Order no.: PCE-THD 50

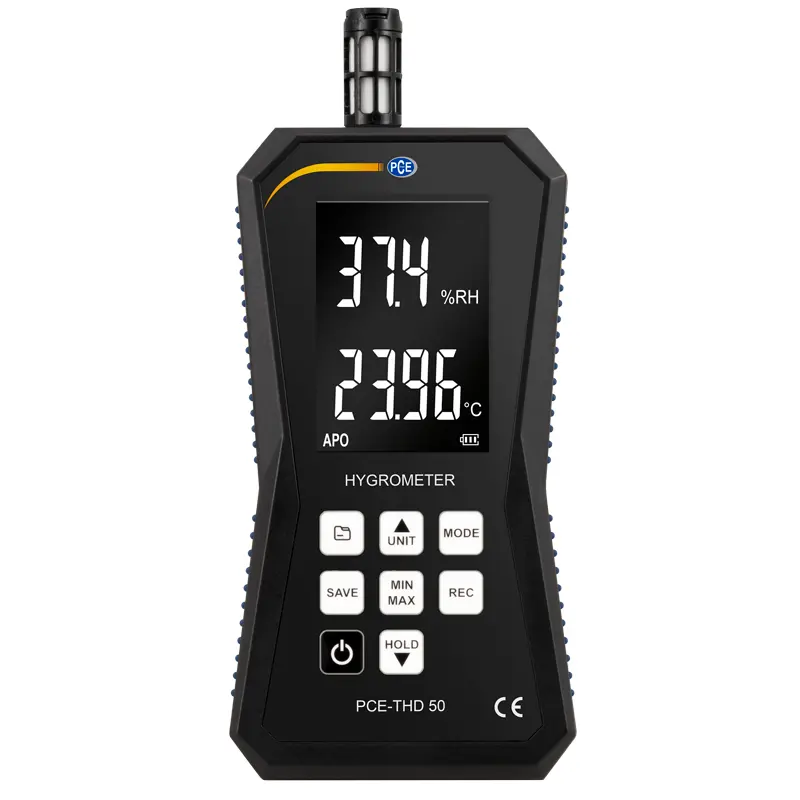

Humidity / Temperature Data Logger PCE-THD 50

US$ 228.00
:
4250348728302
PCE-THD 50
ex. VAT, ex. delivery costs
Available in: 1-2 days

Description

Humidity / temperature data logger with connection for thermocouple type K / Measuring range -20 ... 60 °C / Rechargeable battery / Micro USB data interface / PC software /
Data memory for 32,000 measuring points / Optionally with ISO calibration certificate

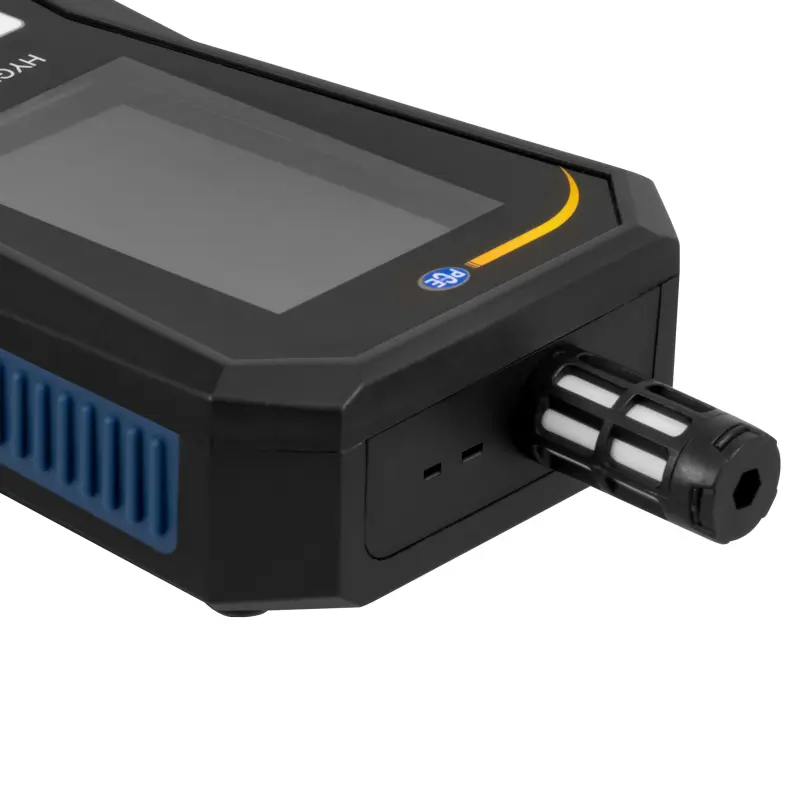

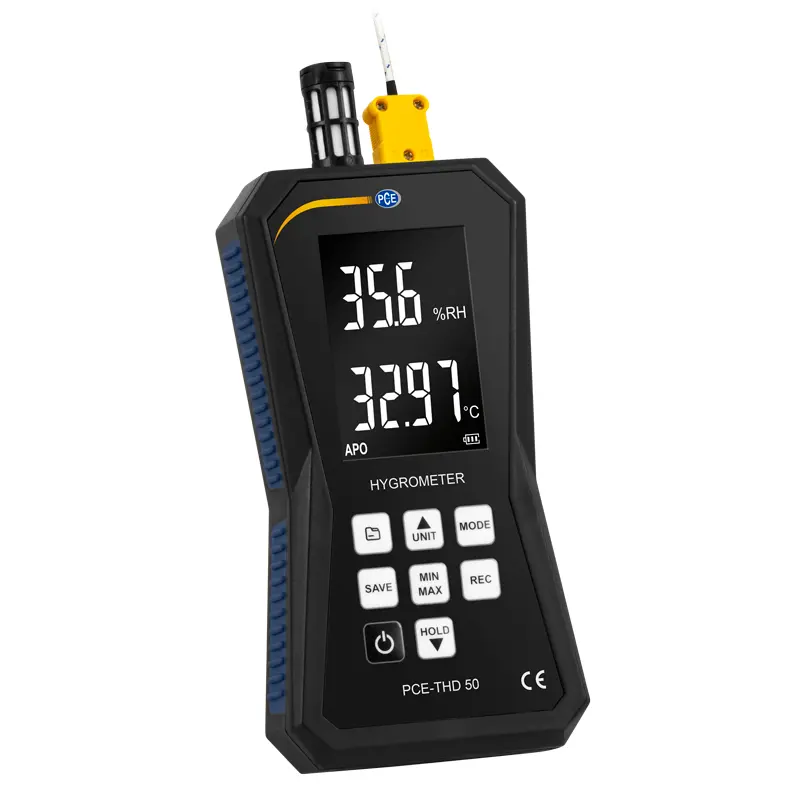

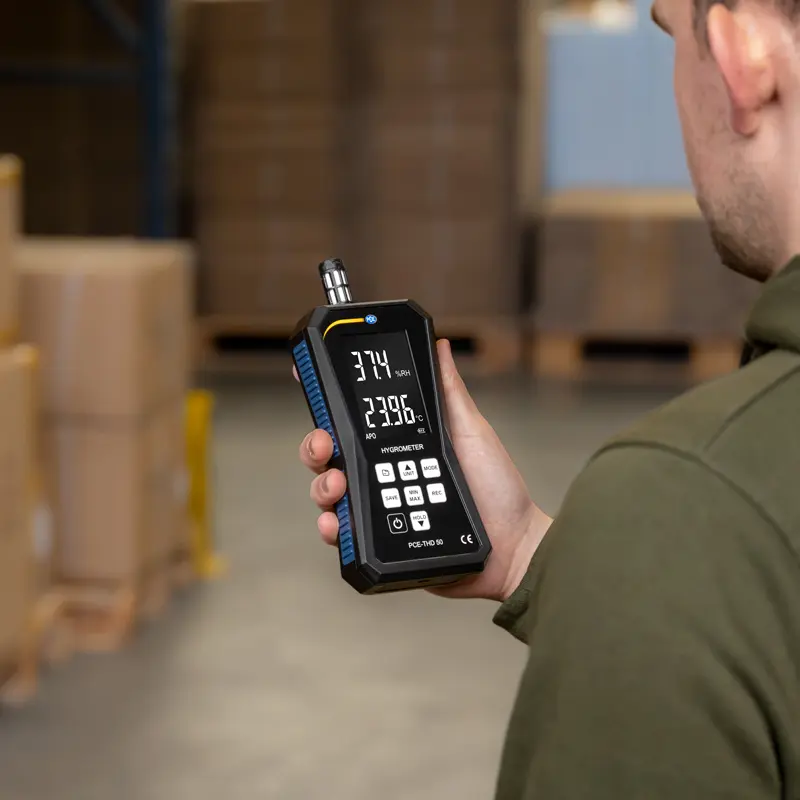

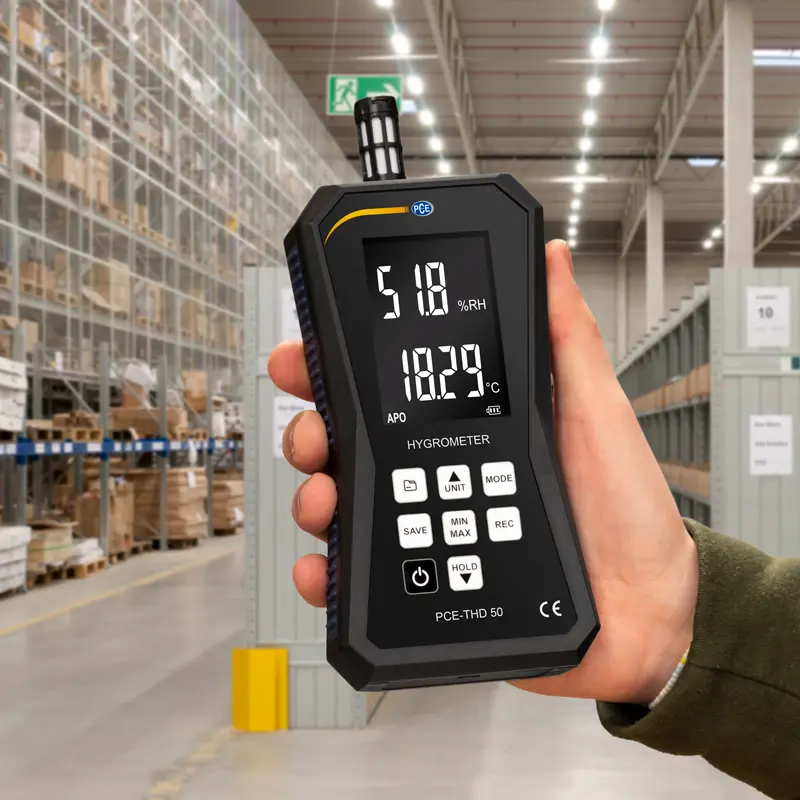

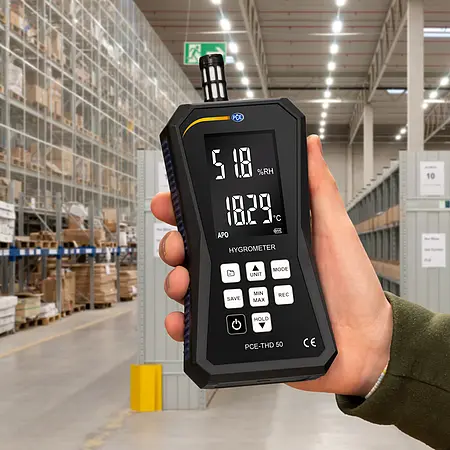

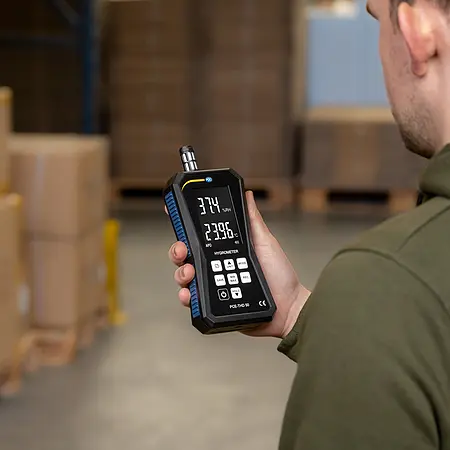

The humidity / temperature data logger is the ideal measuring device to check the climatic conditions in, for example, warehouses, production halls or greenhouses. The humidity / temperature data logger can measure the ambient temperature and humidity. Temperatures between -20 ... 60 °C (-4 ... 140 °F) can be measured reliably and quickly by the humidity / temperature data logger. In addition, the dew point and wet bulb temperature is calculated and displayed by the humidity / temperature data logger. In addition, any type K thermocouple can be connected to the humidity / temperature data logger in a temperature range of -100 ... 1372 °C (-148 ... 2501 °F). As soon as the connected thermocouple has been recognized, the temperature display automatically switches from the humidity / temperature data logger to the thermocouple.

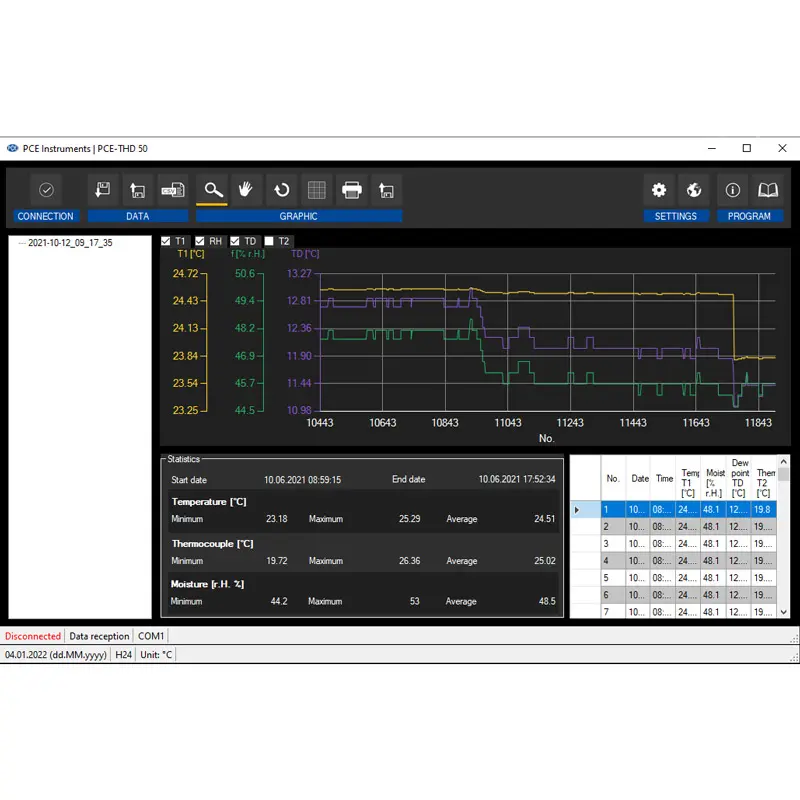

Measured values ​​can be recorded with the data logger function of the humidity / temperature data logger. The large memory of 32,000 measuring points in the humidity / temperature data logger allows recording of measured values ​​over a long period of time. After data logging, all logged measuring points can be read out and analyzed via the micro-USB interface of the humidity / temperature data logger and the free software. The data logged by the humidity / temperature data logger can be exported in CSV file format for further processing.

A 3.7 V Li-ion battery is installed in the humidity / temperature data logger to enable mobile use. This battery can be recharged via the micro-USB interface on the humidity / temperature data logger.

Highlights

- Measuring range -20 ... 60 °C / -4 ... 140 °F
- Temperature, humidity, dew point
- Backlit LC display

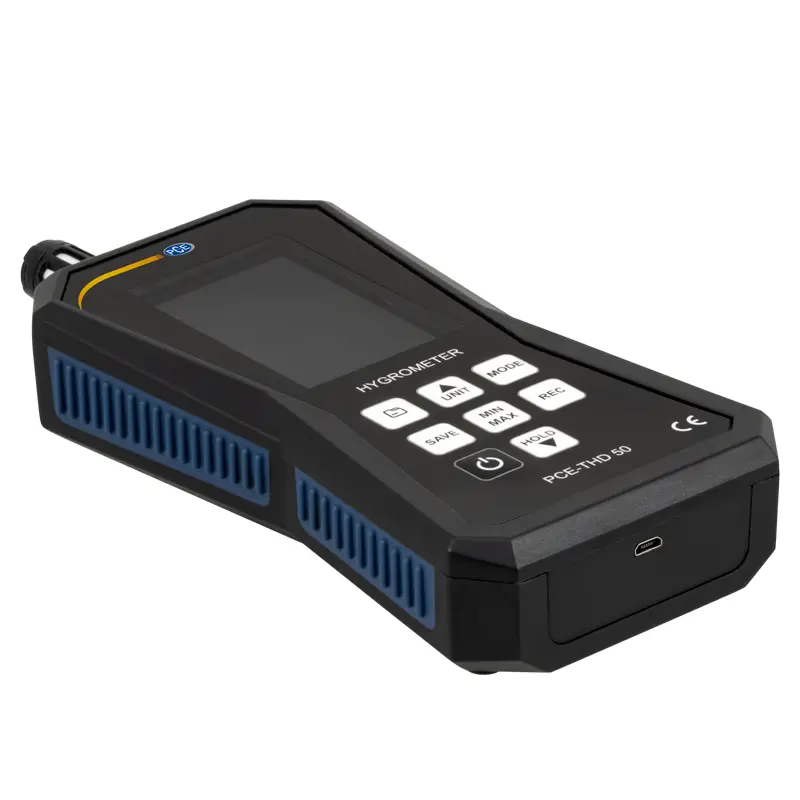

- Micro USB interface
- Rechargeable battery
- Data memory for 32,000 readings
- Wet bulb temperature
- Optionally with ISO calibration certificate

Specification

Air temperature
Measuring range -20 … 60 °C（-4 … 140 °F）
Resolution 0.01 °C/°F
Accuracy ±0.5 °C @ 0 … 45 °C，±1.0 °C
   in remaining range
  ±1.0 °F @ 32 … 113 °F，±2.0 °F
   in remaining range
Measuring rate 3 Hz

Relative humidity
Measuring range 0 … 100 % RH
Resolution 0.1 % RH
Accuracy ±2.2 % RH (10 … 90 % RH)
  @ 23 °C (73.4 °F)
  ±3.2 % RH (<10，>90 % RH)
   @23 °C (73.4 °F)
Response time <10 s (90 % RH, 25 °C (77 °F), with no wind)

Thermoelement
Sensor type Thermoelement Type K
Measuring range -100 … 1372 °C（-148 … 2501 °F）
Resolution 0.01 °C/°F, 0.1 °C/°F, 1 °C/°F
Accuracy ±(1 % ±1 °C)

Calculated values
Wet bulb temperature   -20 … 60 °C （-4 … 140 °F）
Dew point temperature -50 … 60 °C （-58 … 140 °F）

Further specifications
Internal memory 99 measuring points
  (redundant, only readable on the measuring device)
  32,000 measuring points
  (only readable on the PC)
Power supply 3.7 V Li-ion battery
Operating conditions 0 … 40 °C (32 … 104 °F) <80 % RH,
  non-condensing
Storage conditions -10 … 60 °C (14 … 140 °F) <80 % RH,
  non-condensing
Dimensions 162 mm x 88 mm x 32 mm / 6.3 x 3.4 x 1.2"
Weight 248 g / 8.74 oz

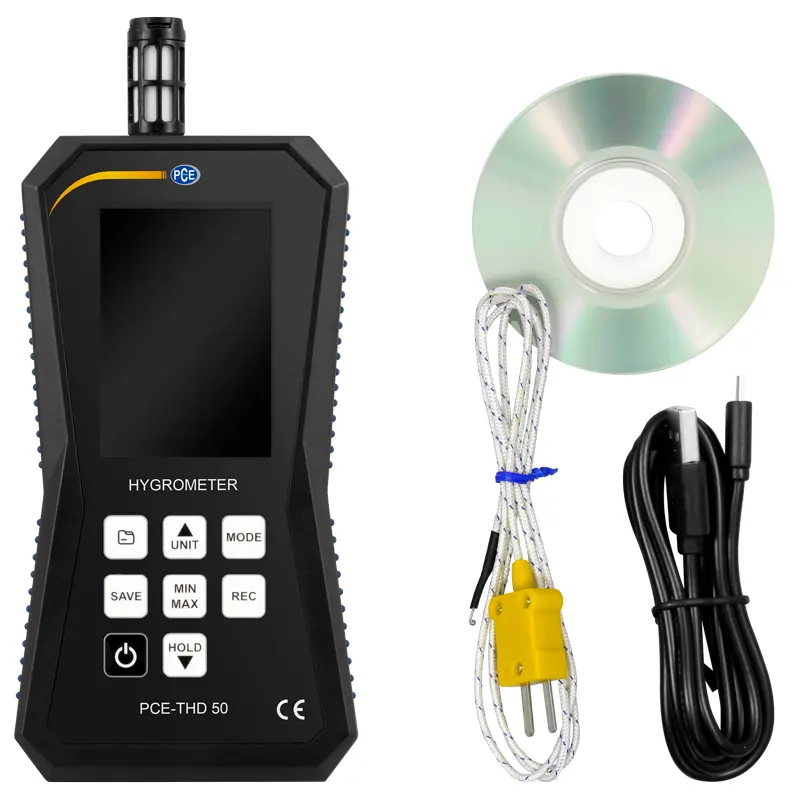

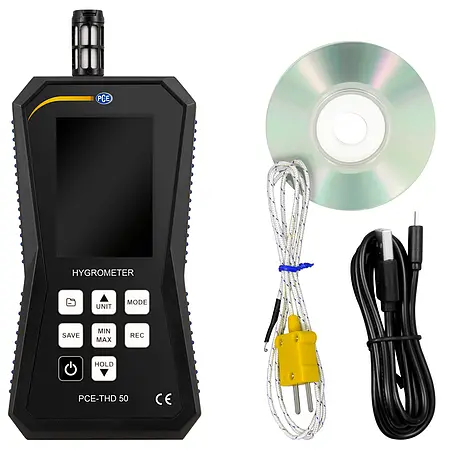

Delivery Scope

1 x Humidity / Temperature Data Logger PCE-THD 50
1 x Type K thermocouple
1 x USB cable
1 x PC software
1 x Instruction manual
