Order no.: PCE-ADL 11

Data Logger PCE-ADL 11

US$ 273.00
:
4250348718099
PCE-ADL 11
ex. VAT, ex. delivery costs
Windspeed
Available in: 1-2 days

Description

 PCE-ADL 11 Data logger wind gauge for different units (m / s, knots, km / h) / Data logger function / Measured value memory for up to 60,000 values ​​/ USB interface / Software for evaluation / Configurable via PC software / Threaded hole for mounting

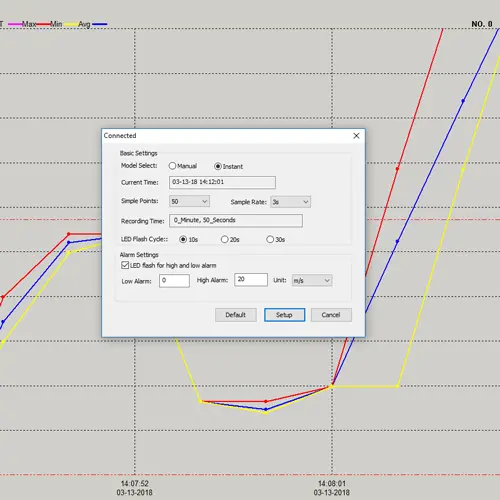

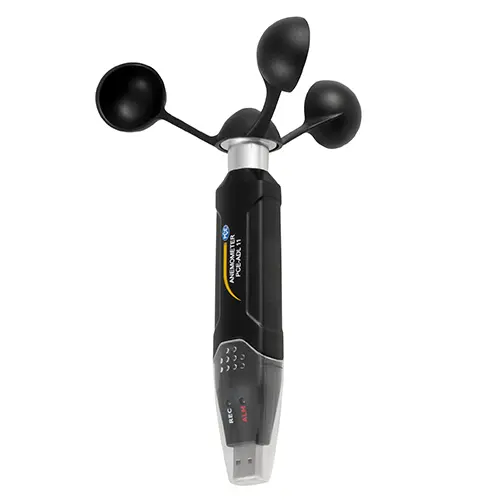

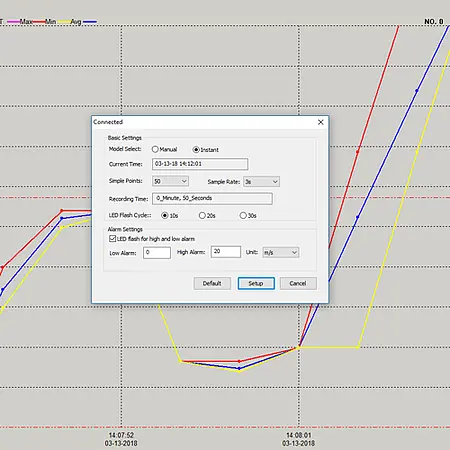

The data logger PCE-ADL 11 is a data logger for wind speeds. The configuration on the wind measuring device is carried out via the supplied software and provides multiple settings for measurement. The data logger measures various parameters. These include m / sec, km / h, knots, mph and ft / min. In addition to the measurement parameters, the measurement intervals can be set on the software by the wind measuring device. The data logger function accommodates 60,000 measured values. After completing the series of measurements, the data from the wind gauge can be read out on the computer via the software. The measurement results are displayed as either graphically as a curve or in tabular form.

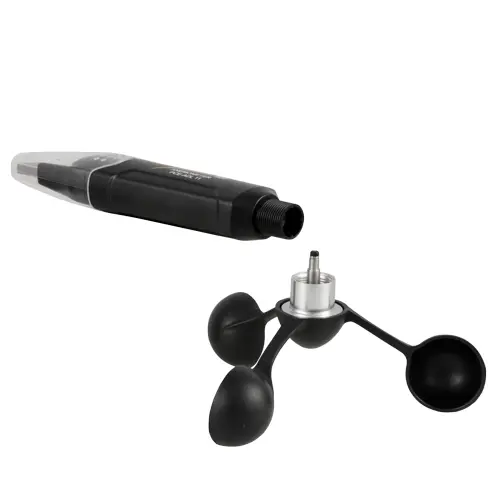

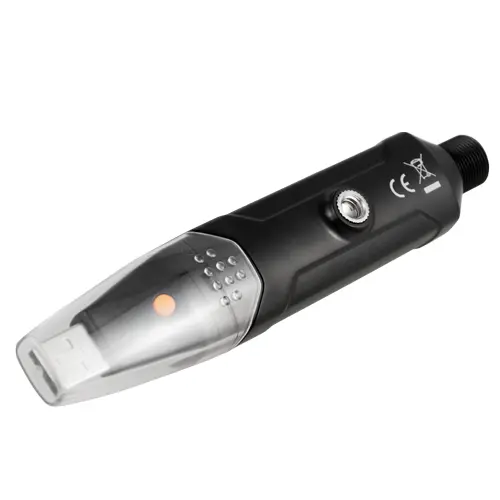

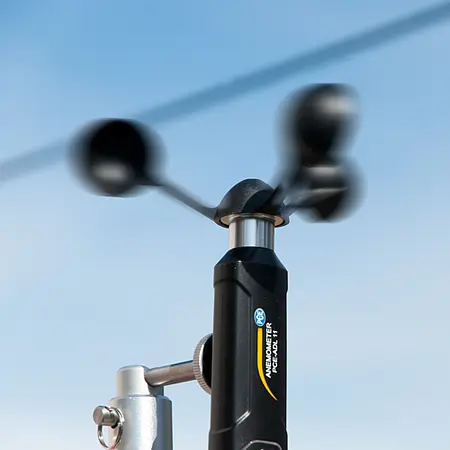

The impeller installed on the wind gauge already responds to low flow velocities. In this case, the data logger can be fixed by means of a mounting device. There is a threaded hole on the bottom of the data logger, so you can attach the unit firmly to the mounting bracket.


Highlights

- Threaded hole on the device
- Configuration via the software
- Easy to use
- Direct-reacting, smooth-running impeller
- Various measuring units selectable
- Evaluation on the PC (graphic representation)
- Alarm when limit value exceeded
- Measurement memory for up to 60,000 values

Specification

Measuring ranges 1.2 ... 30.0 m / sec.
4.3 ... 108.0 km / h
2.33 ... 58.32 knots
2.69 ... 67.2 miles / h
236 ... 5906 ft / min
Resolution 0.01 m / s
0.1 km / h
0.1 knot
0.1 mph
1 ft / min
Measurement accuracy m / s: ± (3% + 0.20 m / s)
km / h: ± (3% + 1.0 km / h)
Knots: ± (3% + 0.4 knots)
miles / h: ± ( 3% + 0.4 miles / h)
ft / min: ± (3% + 40 ft / m)

Storage For up to 60000 readings

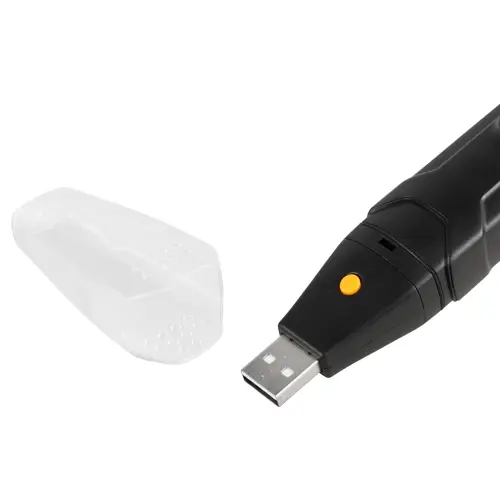

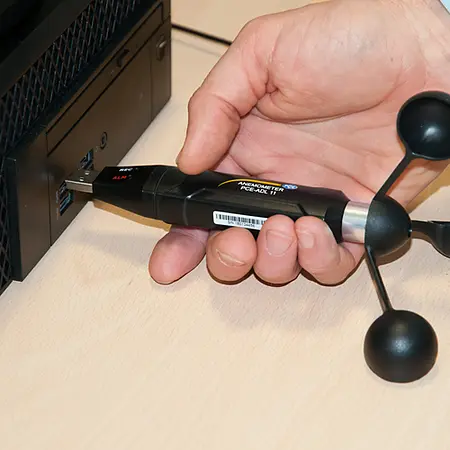

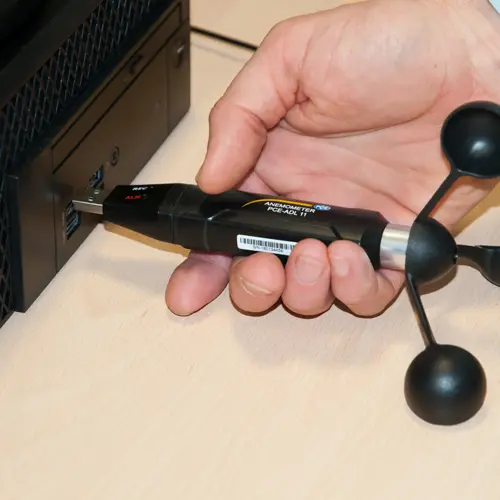

Data Interface USB for data transmission
PC software For data evaluation with graphical representation
Selectable recording intervals 3 seconds, 5 seconds, 10 seconds, 30 seconds, 1 min, 5 mins, 10 mins, 30 mins, 1 hour, 2 hours, 3 hours, 6 hours, 12 hours
Operating condition Indicated by red, yellow and green LEDs
Alarm when extremes are exceeded Yes
Measuring modes Automatic and manual start of the measurement
Sensor Anemometer
Power supply Lithium Thionyl Chloride Battery, 3.6V Mignon
Alarm at low battery voltage Yes
Operating conditions 0 ... 50°C / 32 ... 122°F, <80% relative humidity
Protection class IP42
Max. Height above sea level 2000 m / 6561 ft
Weight 49 g / < 1 lb
Dimensions 145 x 35 x 30 mm / 5.7 x 1.4 x 1.2 in

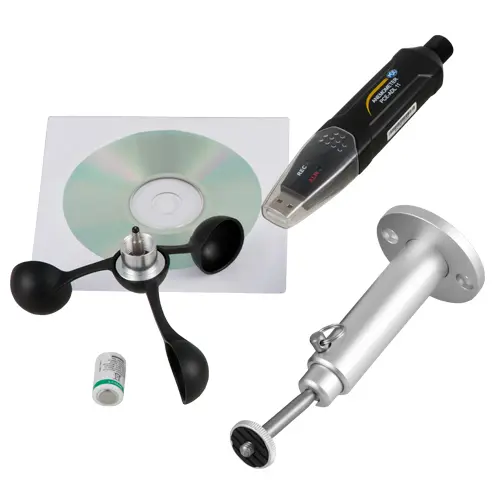

Delivery Scope

1 x Data logger PCE-ADL 11
1 x Mounting device
1 x Software
1 x Impeller
1 x 3.6V lithium thionyl chloride battery
1 x User manual
