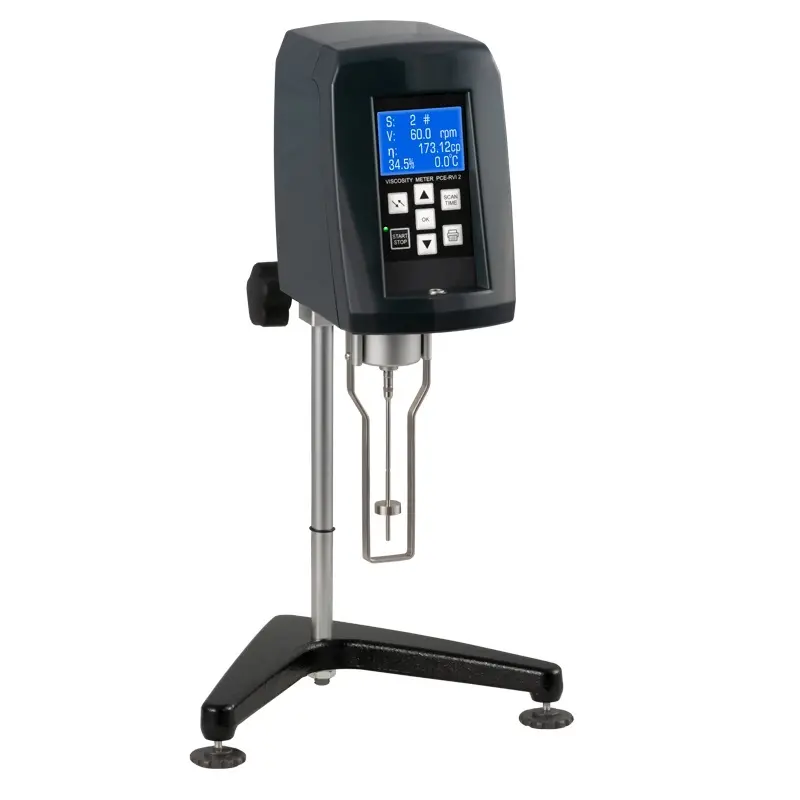

The condition monitoring viscometer has a measuring range of 15 ... 100,000 cP. With an accuracy of <±2% of the range, the condition monitoring viscometer is a precise measuring device to determine the viscosity of a sample liquid. The viscosity is determined by the condition monitoring viscometer on the basis of an applied mechanical resistance that acts in the opposite direction to the rotational movement of a spindle. The condition monitoring viscometer can be operated with an adjustable speed in the range between 6… 60 RPM.

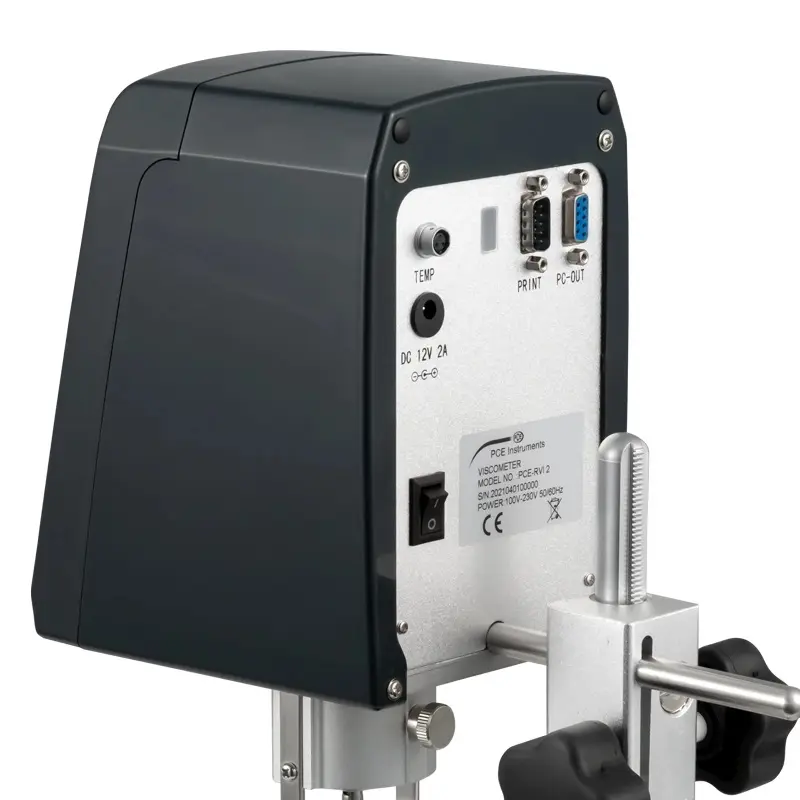

Many fluids are exposed to thermal stress and therefore change their viscosity, such as engine oils. This is exactly where the condition monitoring viscometer comes in. With the immersion temperature sensor, the temperature of a test object can be determined during the measurement between 0 … 100 °C. The condition monitoring viscometer can be connected to a PC via the RS232 interface in order to obtain a progression of the measurement. The optional software can then be used to create a temperature and viscosity curve during a measurement.

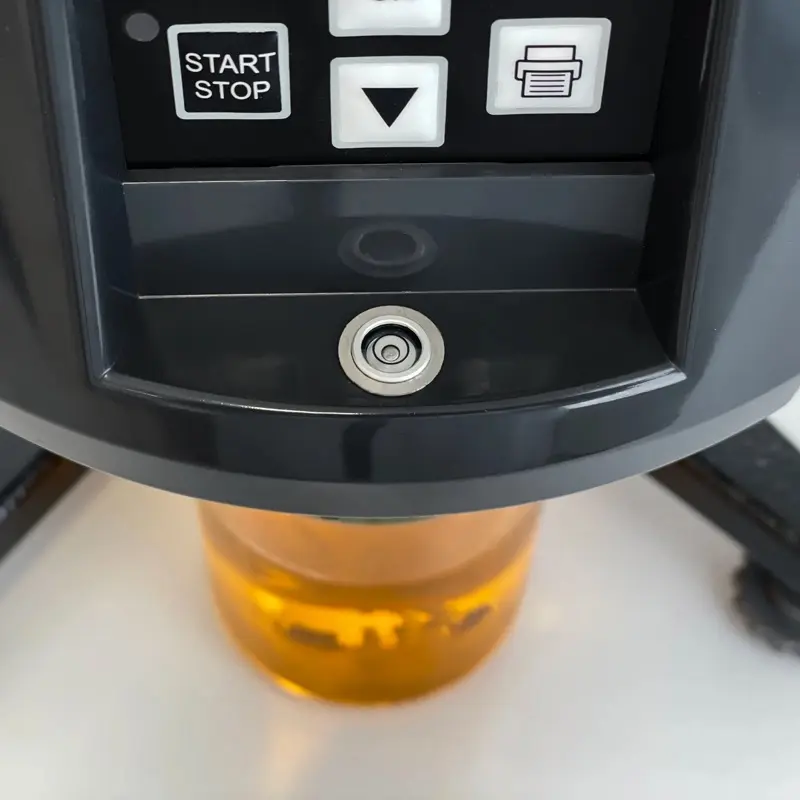

The condition monitoring viscometer can be leveled using the feet so that the measuring spindle is always vertical in the medium to be measured. To check the correct alignment there is a level on the condition monitoring viscometer. At the same time, the height of the test device can be adjusted by a total of 25 cm by the condition monitoring viscometer in order to position the spindle appropriately.
