Measuring range | Acceleration |
0.0 ... 399.9 m/s² / 0.0 - 15744 in/s² | |
Resolution | 0.1 m/s² / 3.94 in/s² |
Accuracy @ 160 Hz | ±2 % |
Frequency range | 10 Hz ... 10 kHz |
1 kHz ... 10 kHz | |
Measuring range | Velocity |
0.00 ... 399.9 mm/s / 0.00 - 15.74 in/s | |
Resolution | 0.1 mm/s / 0.0039 in/s |
Accuracy @ 160 Hz | ±2 % |
Frequency range | 10 Hz ... 1 kHz |
Measuring range | Rotational Speed |
600 ... 50000 RPM | |
FFT acceleration | 10 Hz ... 8 kHz |
FFT velocity | 10 Hz… 1 kHz |
Accuracy @ 160 Hz | ± 2% |
Number of FFT lines | 2048 |
Route measurement | 100 routes each with 100 machines each with |
100 measuring points with 1000 measured values each | |
Measuring range | Displacement |
0.000 ... 3.9 mm / 0.000 - 0.154 in | |
Resolution | 1 µm / 39.4 µin |
Accuracy @ 160 Hz | ±2 % |
Frequency range | 10 Hz ... 200 Hz |
Measurement parameters | RMS, Peak, Peak-Peak |
Crest factor | |
Manual memory | 99 folders with 50 measured values each |
Data logger | Various start/stop triggers |
Measurement interval between 1 s … 12 h | |
50 memory locations with 43200 measured values each | |
Units | can be switched to metric / imperial |

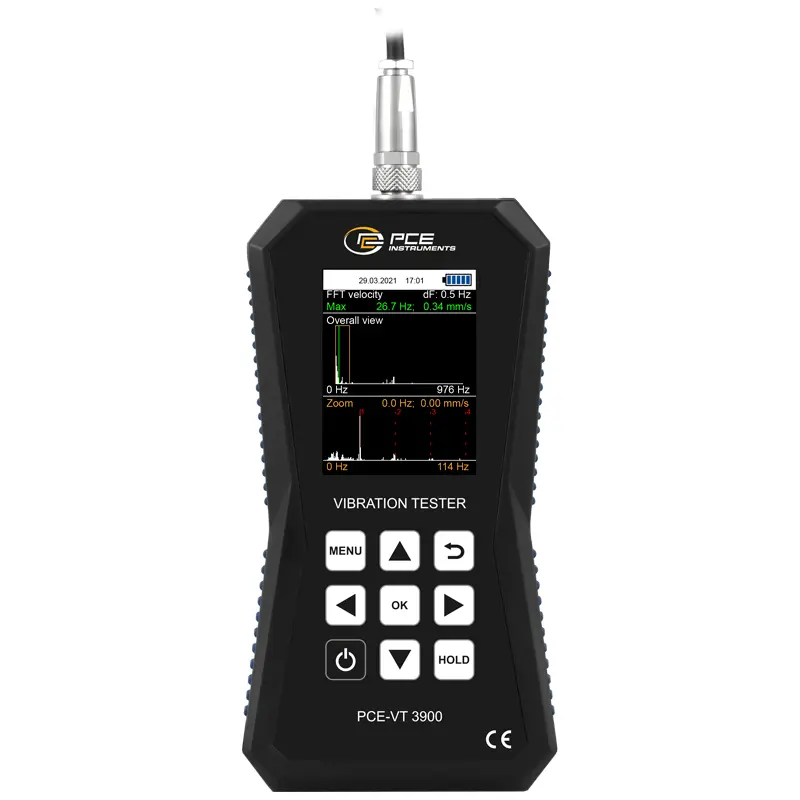

Display | 2.48" LC display |
Menu languages | English, German, French |
Spanish, Italian, Dutch | |
Portuguese, Turkish, Polish | |
Russian, Chinese, Japanese | |
Power supply | internal: LiPo battery (3.7 V, 2500 mAh) |

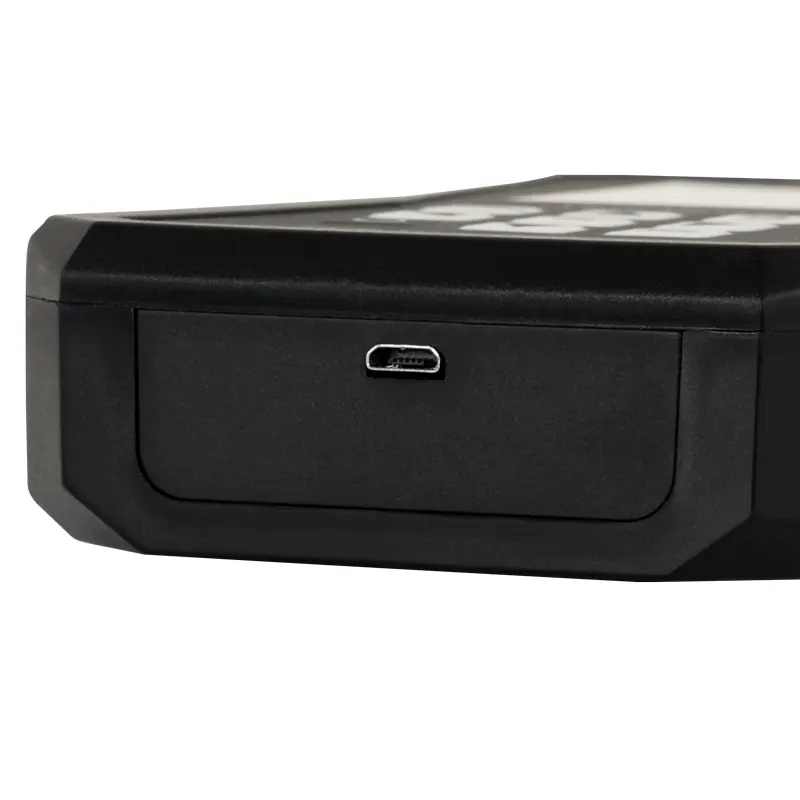

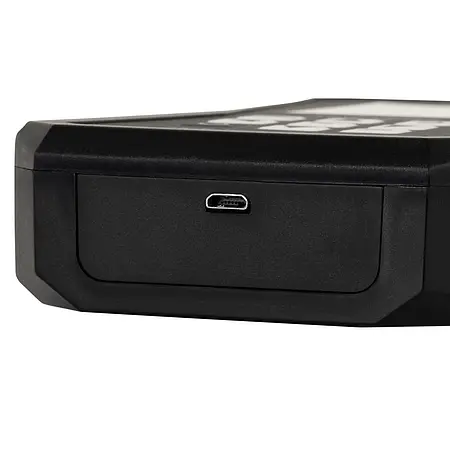

external: USB 5 VDC, 500 mA | |
Operating time | ca. 15 … 20 h (depending on display brightness) |
Operating and storage conditions | temperature: -20 ... +65 °C / -4 ... 149 °F |
humidity: 10% RH ... 95% RH, | |
non-condensing | |
Dimensions | 165 x 85 x 32 mm / 6.5 x 3.3 x 1.3" |
Weight | 239 g / 8.4 oz |

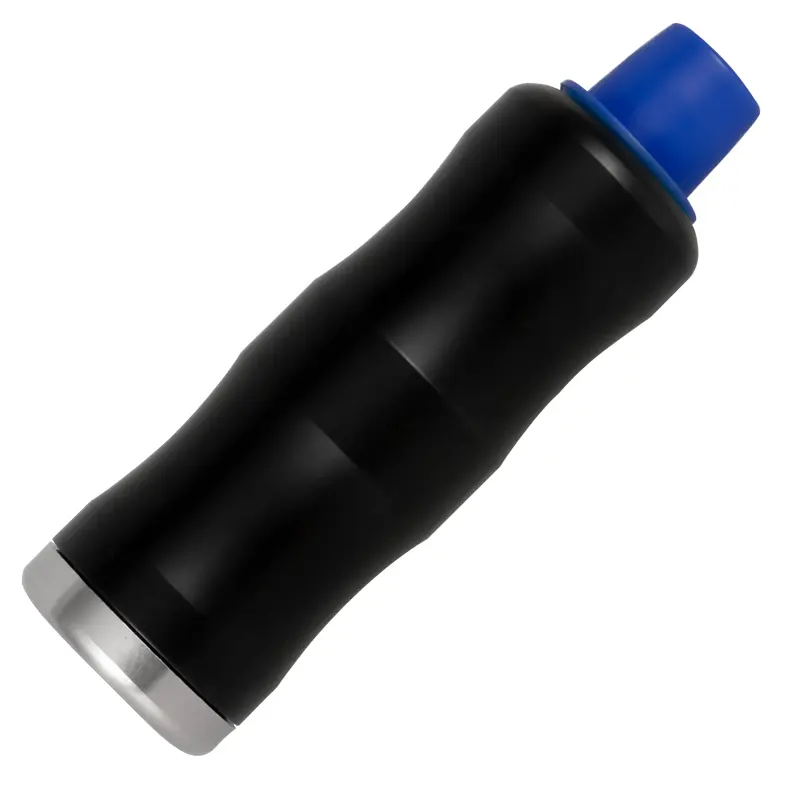

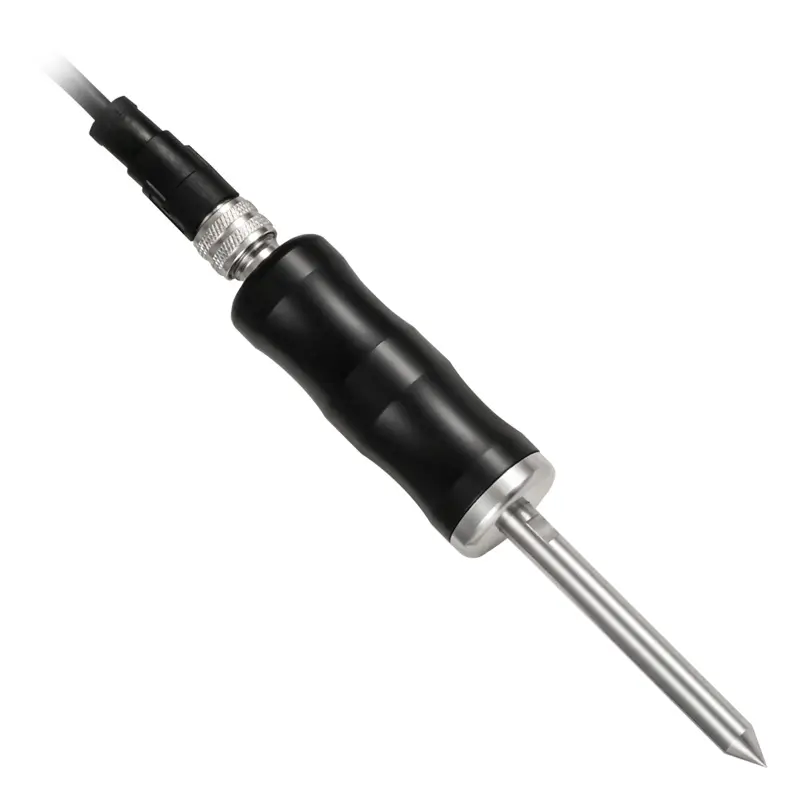

Technical Data Vibration Sensor | |
Resonance frequency | 24 kHz |
Transverse sensitivity | ≤ 5% |
Destruction limit | 5000 g (peak) |
Operating and storage temperature | -55 °C … +150 °C / -67 °F ... 302 °F |
Housing material | stainless steel and plastic |
Mounting thread | ¼ - 28“ |
Dimensions | Ø 29 x 81 mm / 1.14 x 3.18" |
Weight (without cable) | 119 g / 4.2 oz |
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
With the PCE-MH magnetic holder, you have the option of attaching the measuring device to metallic surfaces so that it is possible to work with both hands.
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
PCE-VC20 is a portable shaker vibration calibrator used to calibrate vibration sensors, meters, analyzers and testers. Suitable for calibrating equipment weighing up to 600 g (1.32 lb), this rechargeable-battery-powered vibration calibrator generates mechanical vibrations with a quartz-stabilized vibration frequency of 159.15 Hz (radian frequency 1000/s).
Load-independent vibration magnitude with an RMS of:
- 10 m/s² vibration acceleration
- 10 mm/s vibration velocity
- 10 µm vibration displacement
