Order no.: PCE-VT 3800-ICA

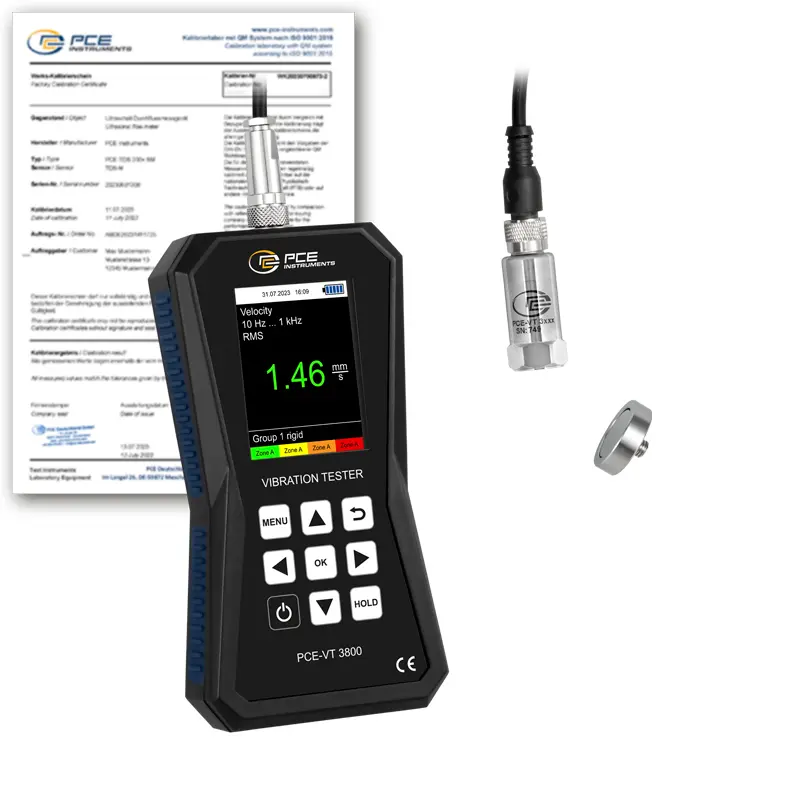

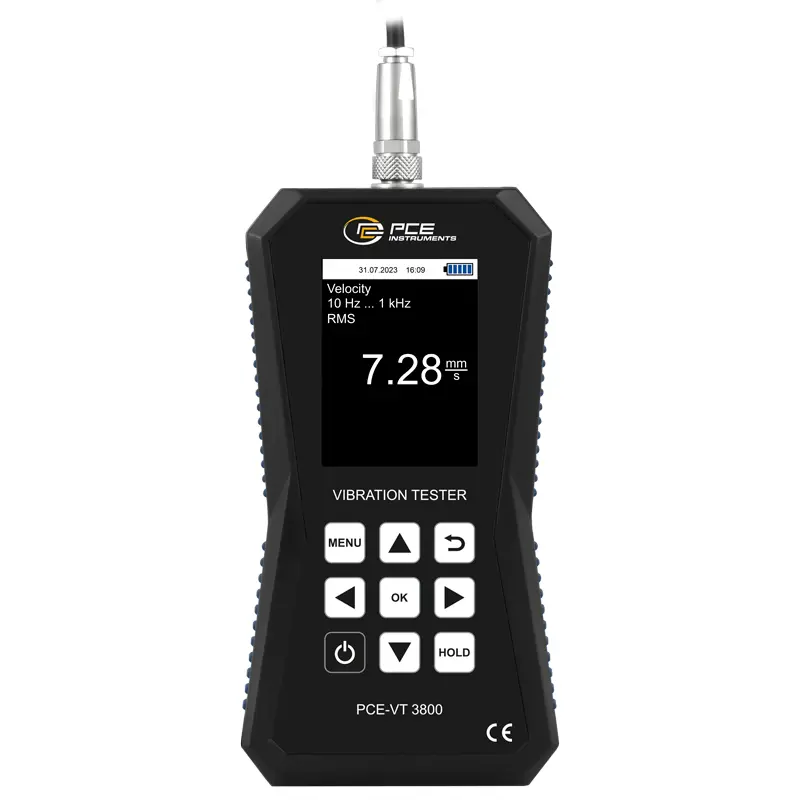

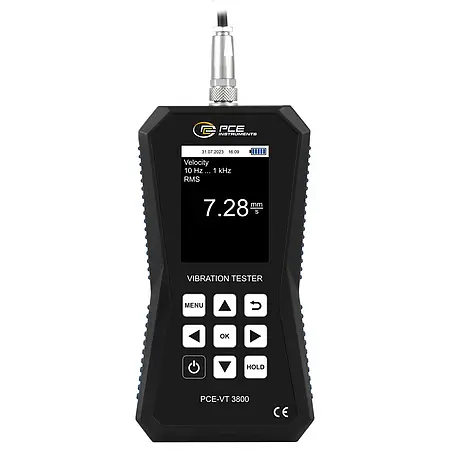

Condition Monitoring Vibration Meter PCE-VT 3800-ICA incl. ISO Calibration Cert.

ISO Calibration
US$ 1,359.00
ex. VAT, ex. delivery costs
Available in: 10 - 14 days


Condition monitoring vibration meter with external sensor / Peak value measurement /
For machines and plant / incl. ISO Calibration Certificate / Software /
Various menu languages ​​/ PC connection via micro USB internal memory

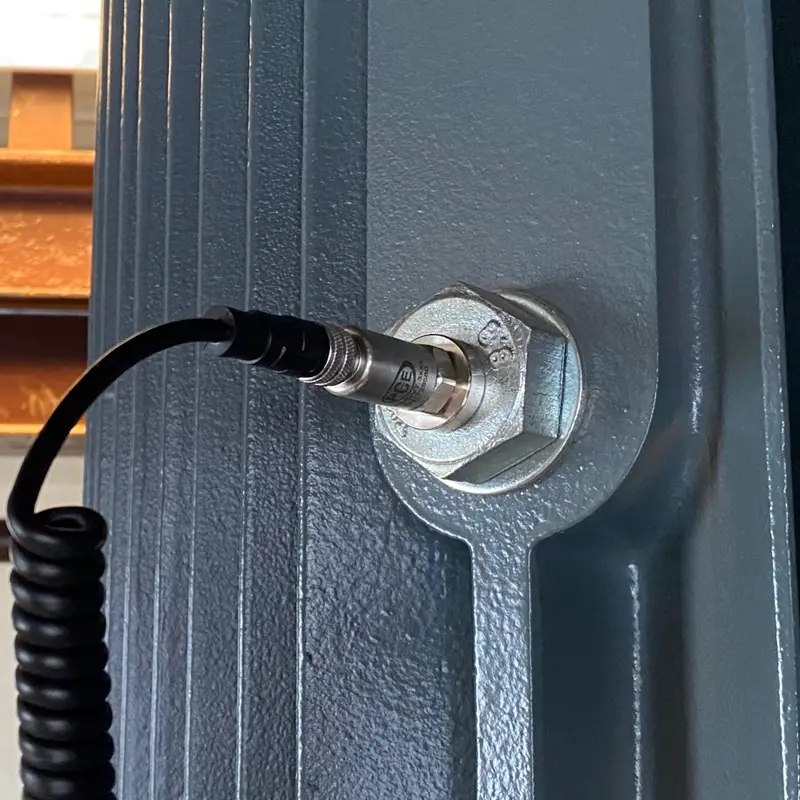

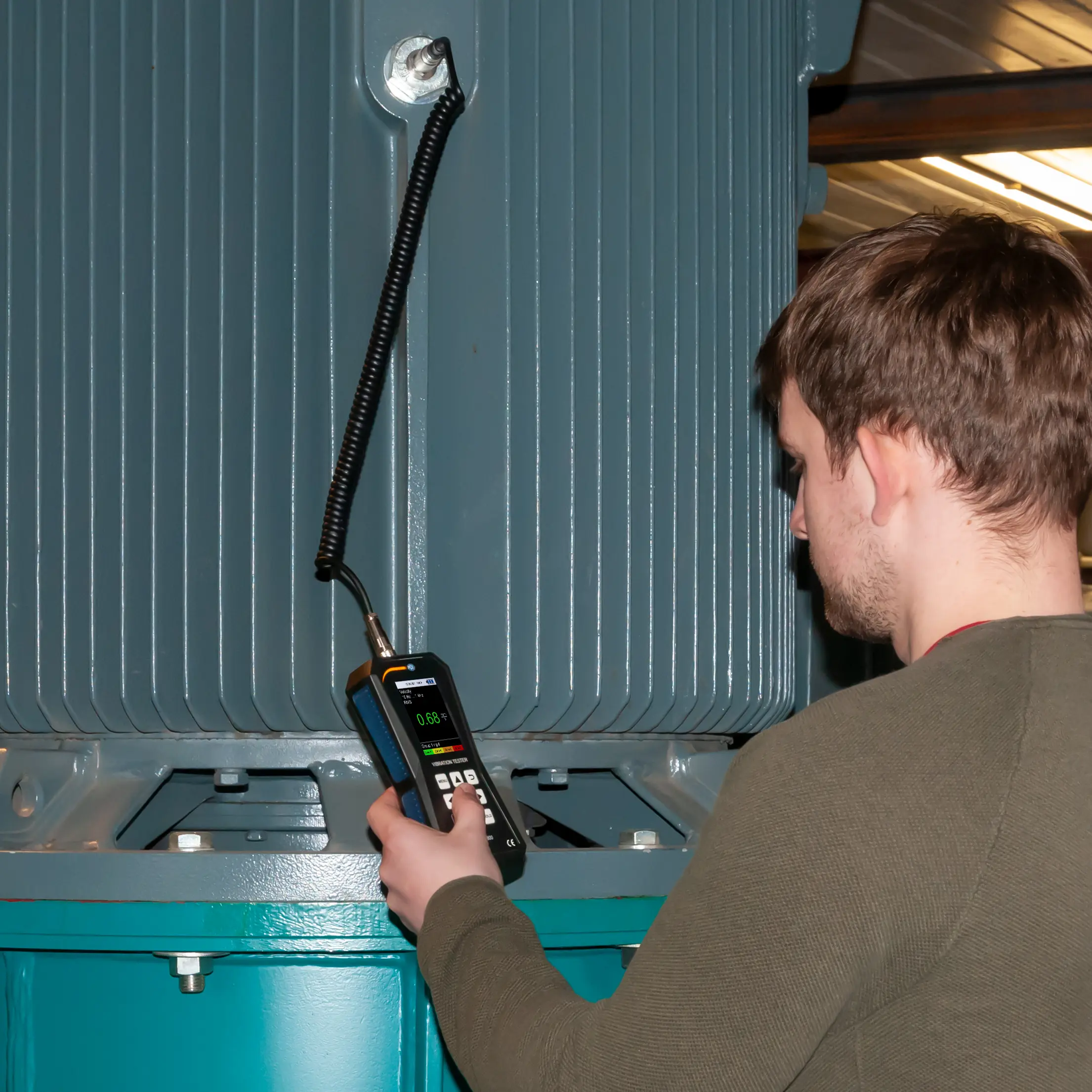

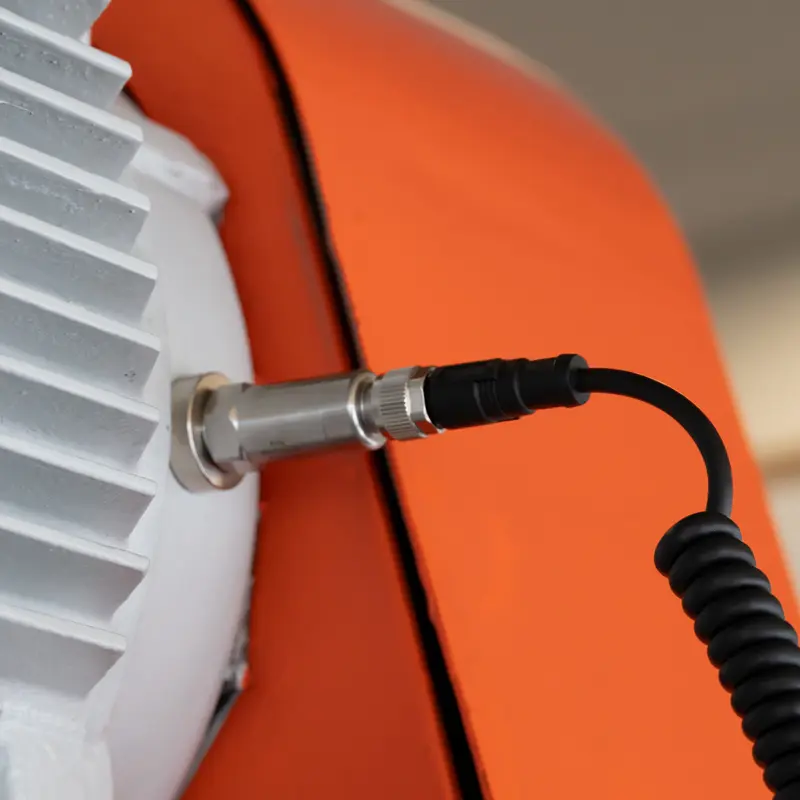

The condition monitoring vibration meter is the ideal companion for checking vibrating parts, machines and plant. With the external vibration sensor of the vibration meter, the vibration displacement up to 3.9 mm, the vibration velocity up to 399.9 mm/s and the vibration acceleration up to 399.9 m/s² can be determined. RMS, peak, peak-to-peak and crest factor are available as measurement parameters on the vibration meter. Another function of the vibration measuring device is the automatic evaluation according to ISO 10816-3. Accordingly, the vibration meter can determine the current vibration state of a machine via a good/bad evaluation. This means that the vibration meter is used, for example, for repair and maintenance work on machines. The built-in LiPo battery with a capacity of 2500 mAh allows a battery life of up to 20 hours. The LiPo battery can be recharged via the micro-USB interface on the vibration measuring device.

In order to process the measured values ​​further, they can be saved directly on the condition monitoring vibration meter. An internal memory is available for this. The measured values ​​can be saved manually as well as automatically by the vibration measuring device. After a measurement, the recorded measured values ​​can be read out on a PC. The software for the vibration meter can be used to analyse the measured data using the graphic display and tabular listing. The measurement data can be exported as a CSV file for further processing. If a firmware update is available for the vibration meter, this can also be carried out directly via the software.


- Data logger function
- Automatic ISO 10816-3 evaluation
- Measuring range up to 399.9 m/s² / 15744 in/s²
- Hand-held device for mobile vibration measurement
- Rechargeable battery
- 2.48" LC display
- incl. ISO Calibration Certificate


Measuring rangeAcceleration
 0.0 ... 399.9 m/s² / 0.0 - 15744 in/s²
Resolution0.1 m/s² / 3.94 in/s²
Accuracy @ 160 Hz±2 %
Frequency range10 Hz ... 10 kHz
 1 kHz ... 10 kHz
Measuring rangeVelocity
 0.00 ... 399.9 mm/s / 0.00 - 15.74 in/s
Resolution0.1 mm/s / 0.0039 in/s
Accuracy @ 160 Hz±2 %
Frequency range10 Hz ... 1 kHz
Measuring rangeDisplacement
 0.000 ... 3.9 mm / 0.000 - 0.154 in
Resolution1 µm / 39.4 µin
Accuracy @ 160 Hz±2 %
Frequency range10 Hz ... 200 Hz
Measurement parametersRMS, Peak, Peak-Peak
 Crest factor
Manual memory99 folders with 50 measured values ​​each
Data loggerVarious start/stop triggers
 Measurement interval between 1 s … 12 h
 50 memory locations with 43200 measured values ​​each
Unitscan be switched to metric / imperial
Display2.8" LC display
Menu languagesEnglish, German, French
 Spanish, Italian, Dutch
 Portuguese, Turkish, Polish
 Russian, Chinese, Japanese
Power supplyinternal: LiPo battery (3.7 V, 2500 mAh)
 external: USB 5 VDC, 500 mA
Operating timeca. 15 … 20 h (depending on display brightness)
Operating and storage conditions
temperature: -20 ... +65 °C / -4 ... 149 °F
 humidity: 10% RH ... 95% RH,
Protection classIP52
Dimensions165 x 85 x 32 mm / 6.5 x 3.3 x 1.3"
Weight239 g / 8.4 oz

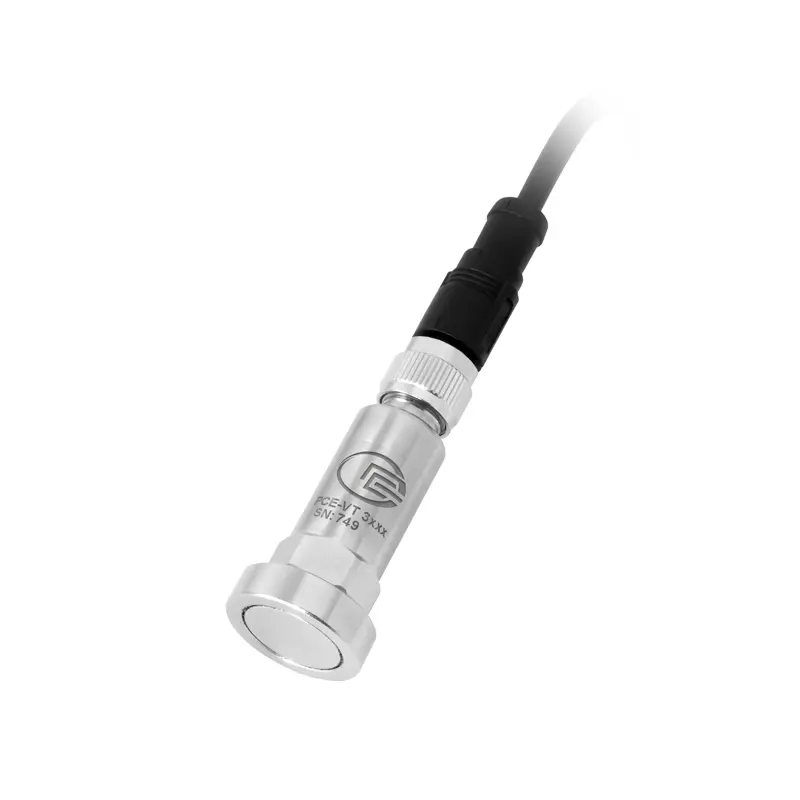

Technical Data Vibration Sensor
Resonance frequency24 kHz
Transverse sensitivity≤ 5%
Destruction limit5000 g (peak)
Operating and storage temperature  -55 °C … +150 °C / -67 °F ... 302 °F
Housing materialstainless steel
Mounting thread¼ - 28“
DimensionsØ 17 x 46 mm / 0.67 x 1.8"
Weight (without cable)52 g / 1.8 oz
Protection Class: IP52

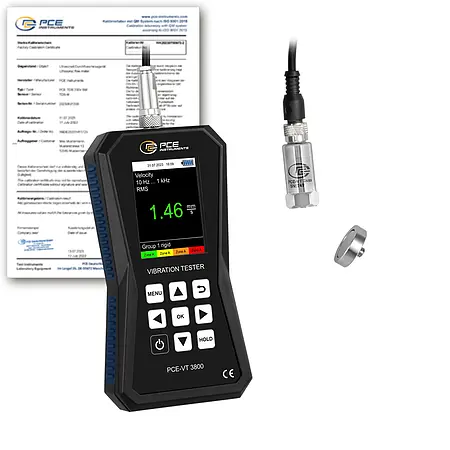

Delivery Scope

1 x Condition Monitoring Vibration Meter PCE-VT 3800-ICA
1 x Sensor
1 x Spiral cable

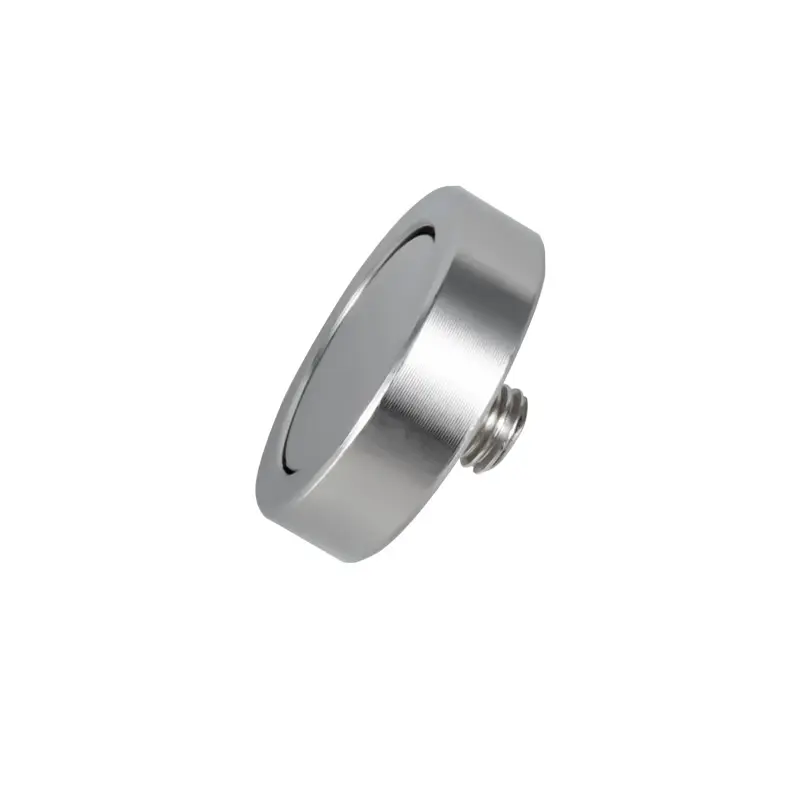

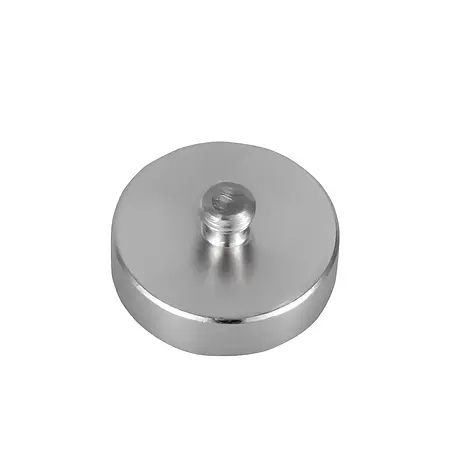

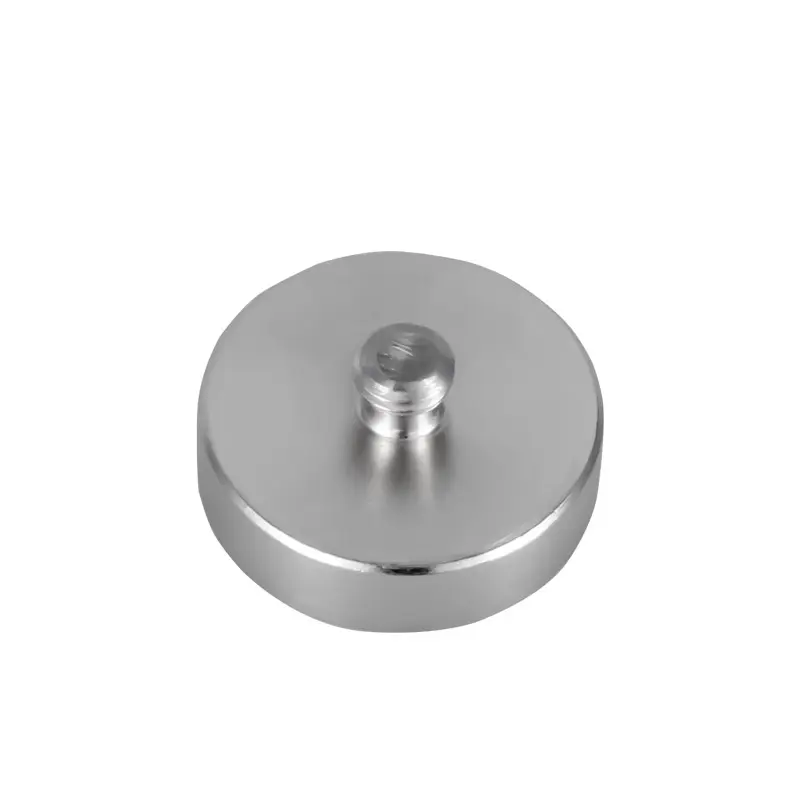

1 x Magnetic adapter
1 x Micro USB cable
1 x USB stick with software and instructions
1 x Quick start guide

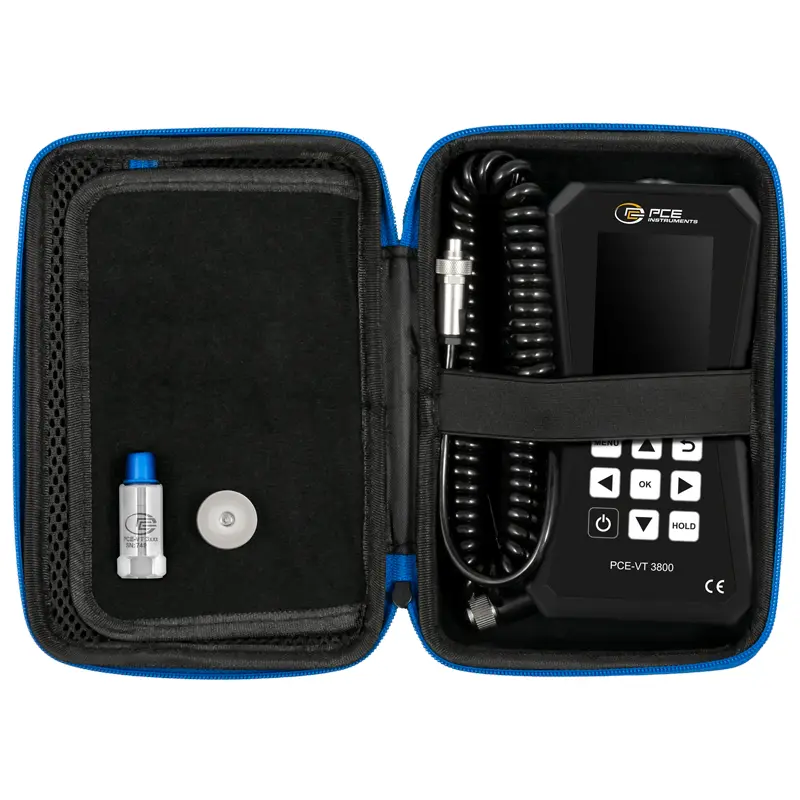

1 x Service bag
1 x ISO Calibration Certificate

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
