Condition Monitoring Vibration Meter PCE-VT 1100

Order no.: PCE-VT 1100
US$ 275.00
4250348714091
PCE-VT 1100
ex. VAT, ex. delivery costs
Available in: 1-2 working days

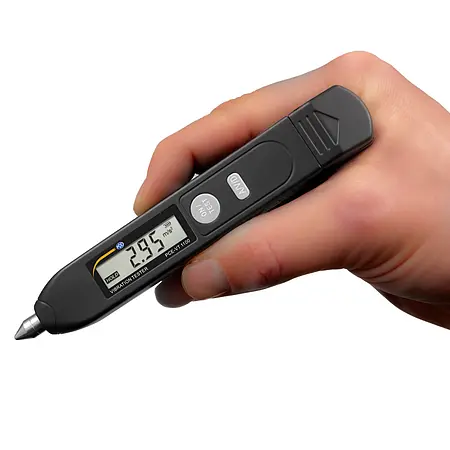

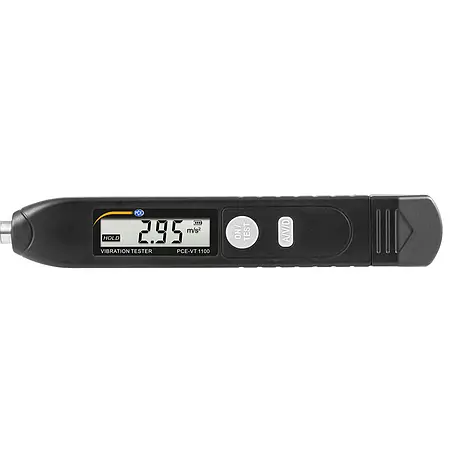

PCE-VT 1100 Vibration Meter
Small, portable, lightweight / Wide frequency range / Easy handling

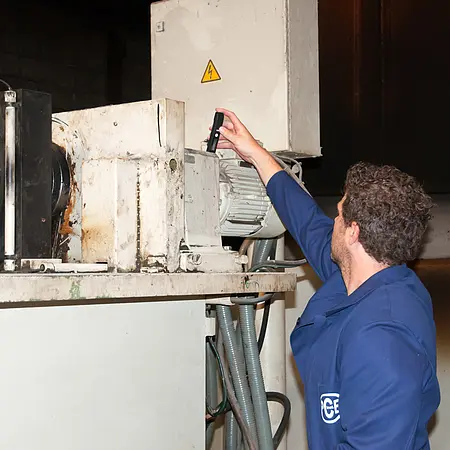

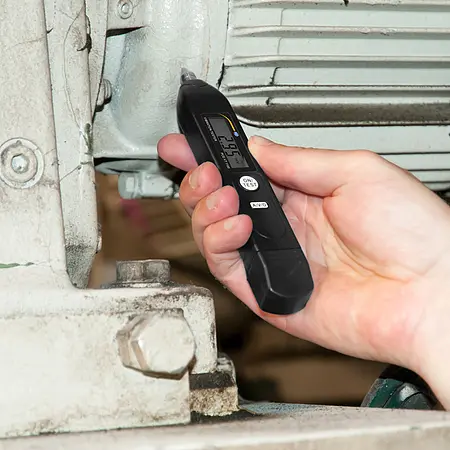

The PCE-VT 1100 Vibration Meter is designed for the preventive or precautionary maintenance of production machines. The Vibration Meter can be utilized for quick measurements of imbalances in machines and the examination of bearings and gears. The Vibration Meter is also frequently used to evaluate the state of small electronic motors.


- Measures vibration velocity
- Keeps the value after every measurement
- Easy to handle, powered by batteries
- Wide frequency range
- Automatic shut-down after 2 minutes of
- Inactivity to protect battery life
- Low battery indicator

Range of Acceleration 0.01 m/s² ... 199.9 m/s² peak
Range of Measurement speed 0.01 mm/s ... 199.9 mm/s rms
4 x 10-4 in/s ... 7.9 in/s
Range of Measurement displacement 0.001 mm ... 1.999 mm p-p
4 x 10-5 in ... 0.08 in
Accuracy ±5%, ±2 Digits (20 Hz ... 1 KHz)
±10%, ±2 Digits (10 Hz ... 20 Hz)
Frequency Range - Acceleration 10 Hz ... 1 kHz
Frequency Range - Speed 10 Hz ... 1 kHz
Frequency Range - Displacement 10 Hz ... 500 Hz
Display 3.5 positions LCD display that shows the last measurement value
Power supply CR2032 Lithium Battery 3V
Auto Shut-off Automatically disconnects after 2 minutes without activity
Operational Temperature Range 0 ... 40°C / 32 ... 104°F
< 85% H. r.
Dimensions 150 mm x 22 mm x 15 mm /5.9 in x 0.8 in x 0.6 in
Weight 0.055 kg / < 1 lb

1 x PCE-VT 1100
1 x PCE-VT-NF-10 standard probe (length 10mm / 0.39")
1 x PCE-VT-NF-45 needle probe (length 45mm / 1.77")

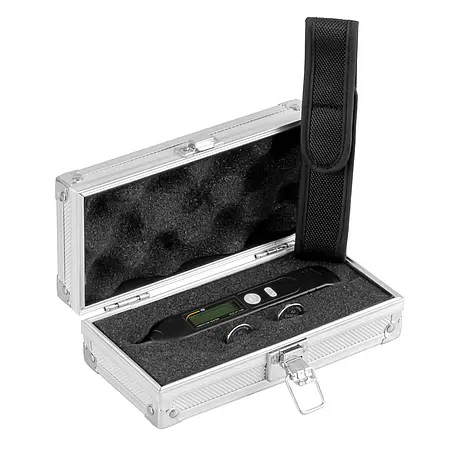

1 x Carrying case
2 x Batteries
1 x User’s manual
