  5. Condition Monitoring Thermo Hygrometer PCE-THT 10-ICA incl. ISO Calibration Cert
Order no.: PCE-THT 10-ICA

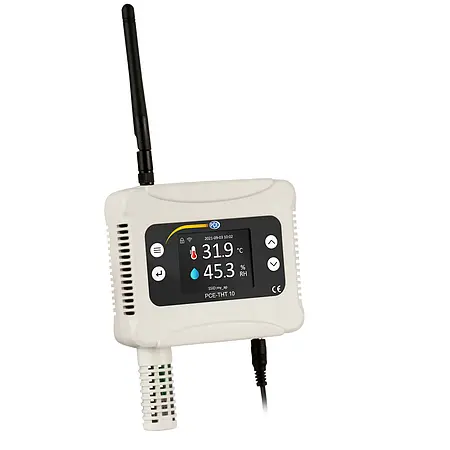

Condition Monitoring Thermo Hygrometer PCE-THT 10-ICA incl. ISO Calibration Cert

ISO Calibration
US$ 536.00
PCE-THT 10-ICA
ex. VAT, ex. delivery costs
Available in: 10 - 14 days

Description

Condition monitoring thermo hygrometer for wall mounting / Data memory for 12800 measuring points / Colour display /
Measuring range -20 ... 60 °C / Mains operation / With ISO calibration certificate

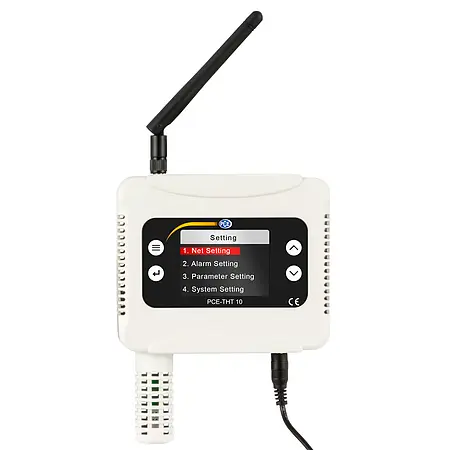

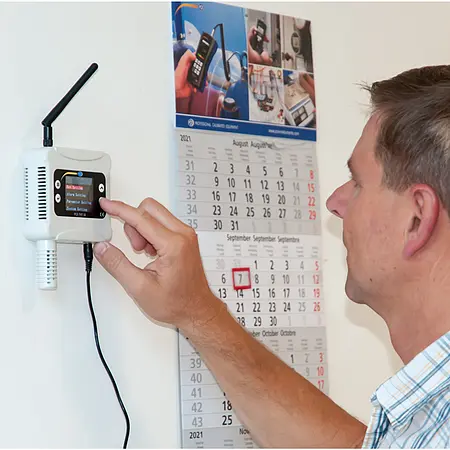

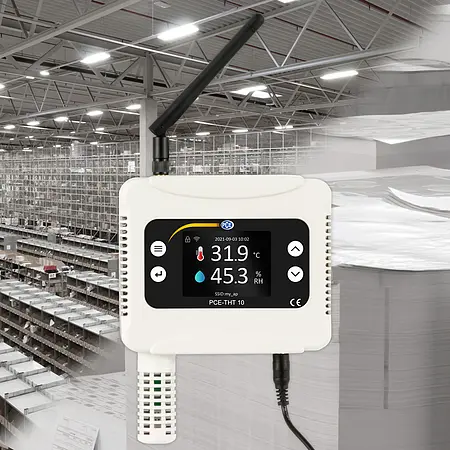

The condition monitoring thermo hygrometer has a temperature measuring range of -20 ... 60 °C and a humidity measuring range of 0 ... 99.9% RH. The readings from the thermo-hygrometer can be read directly on the 2.3" colour display. With the data logger function, all readings from the thermo-hygrometer are stored on the 12800 measuring point memory. The thermo-hygrometer is therefore used to monitor the climatic conditions in offices, logistics, greenhouses or classrooms.

Analysis of the measured values ​​recorded can be carried out with the software for the condition monitoring thermo hygrometer. If there are several thermo-hygrometers in a network, all of them can be controlled by the software at the same time. The thermo-hygrometer software can be found in the PCE Instruments download portal.

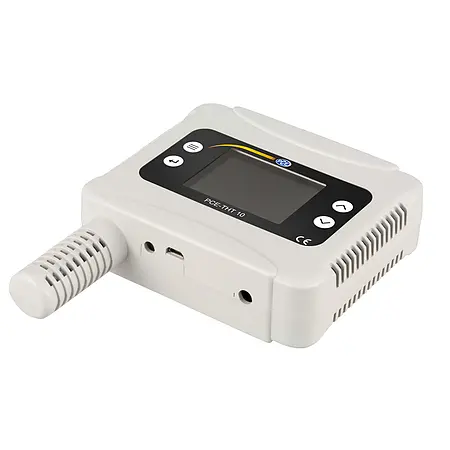

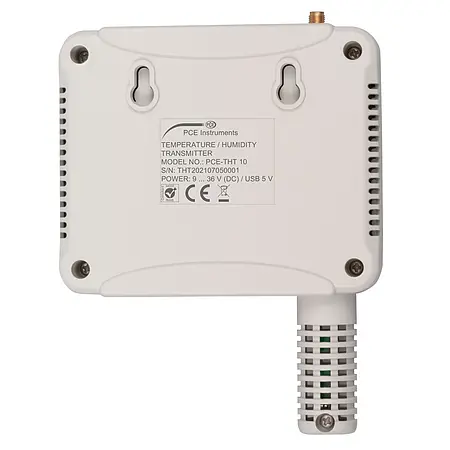

The condition monitoring thermo hygrometer is supplied with power via the 12 V DC mains power converter or the micro-USB interface. For wall mounting, there is a hole on the back to hook the thermo-hygrometer to screws. The thermo-hygrometer is equipped with an ISO calibration certificate.

Highlights

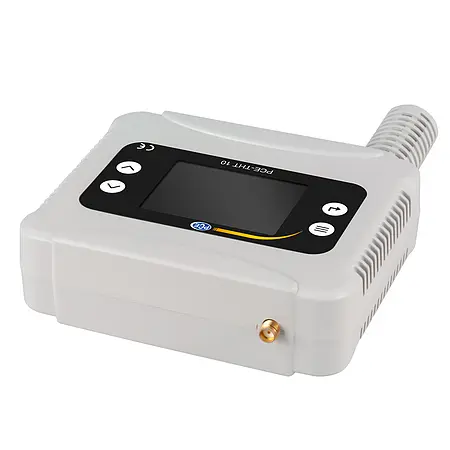

- WiFi interface
- Data memory for 12800 measuring points

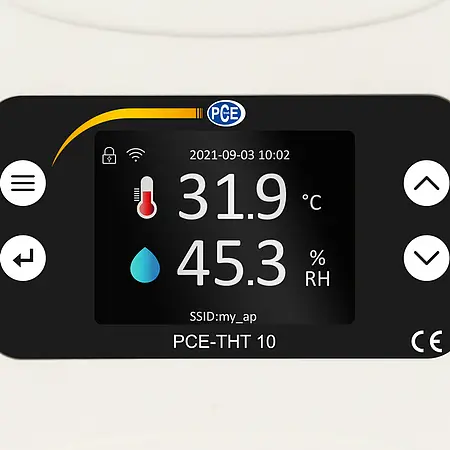

- 2.3" colour display
- Measuring ranges -20 ... 60 °C / -4 ... 140 °F, 0 ... 99.9 % RH
- For mounting on the wall
- incl. ISO Calibration Certificate

Specification

Temperature measurement
Measuring range -20 ... 60 °C / -4 ... 140 °F
Resolution 0.1 °C
Accuracy ±0.5 °C

Humidity measurement
Measuring range 0 ... 99.9 % RH
Resolution 0.1 % RH
Accuracy ±3 % RH

Further specifications
Memory size 12800 measuring points
Storage rate 2 s
Display 2.3" LC display
Interface WLAN, Micro-USB (only for power supply)
WLAN frequency band 2.4 GHz
Power supply mains adapter   primary: 100 ... 240 V AC, 50/60 Hz
  secondary: 12 V DC, 1 A
Power supply Micro-USB, 5 V DC, 1 A
Ambient conditions 0 ... 50 °C / 32 ... 122 °F, <95 % RH, non-condensing
Dimensions 145 x 110 x 33 mm / 5.7 x 4.3 x 1.3"
Weight 122 g / 4.3 oz

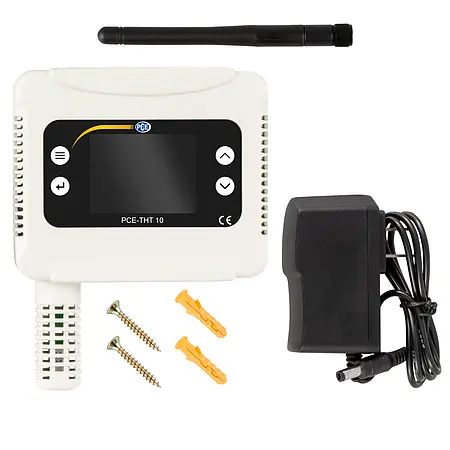

Delivery Scope

1 x Condition Monitoring Thermo Hygrometer PCE-THT 10-ICA
1 x Mains power adapter
2 x Screws
2 x Dowels
1 x Instruction manual
1 x ISO Calibration Certificate

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.

Downloads

Accessories

Accessories

ISO Calibration Certificate for Temperature and Humidity
US$ 211.00

ex. VAT, ex. delivery costs

An ISO calibration certificate is often required to comply with DIN ISO 9000. Each calibration certificate is issued specifically for the customer and instrument. Therefore, calibration certificates are excluded from the right of return.

  • Thermometer function (3 measuring points) 15 °C; 25 °C and 35 °C
  • Hygrometer function (3 measuring points) 30% r.H.; 50% r.H. and 80% r.H.
