Condition Monitoring Sound Level Meter PCE-SLT-TRM-24V-ICA incl ISO Cal. Cert.

Order no.: PCE-SLT-TRM-24V-ICA
ISO Calibration
US$ 523.00
ex. VAT, ex. delivery costs
Available in: 10 - 14 days
Condition Monitoring Sound Level Meter / Sound Warning Device incl. ISO Calibration Certificate
Sound warning device for fixed installation with analogue output 4 ... 20 mA

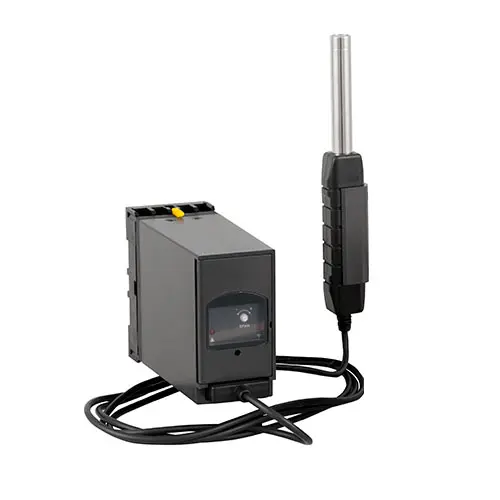

The condition monitoring sound level meter consists of a measuring microphone with a handle and a wall bracket on a 1.5 m cable, a sound transmitter. The main area of ​​application of this sound level meter is in the continuous sound measurement and sound monitoring of factory halls, production rooms and at large events (discotheques, public festivals, cart tracks ...).

The analog output signal can also be used to control window shutters... or the transmitter signals can be saved, evaluated and documented on a logger. The sound level meter is very easy to connect and can be operated via 240 V mains power.

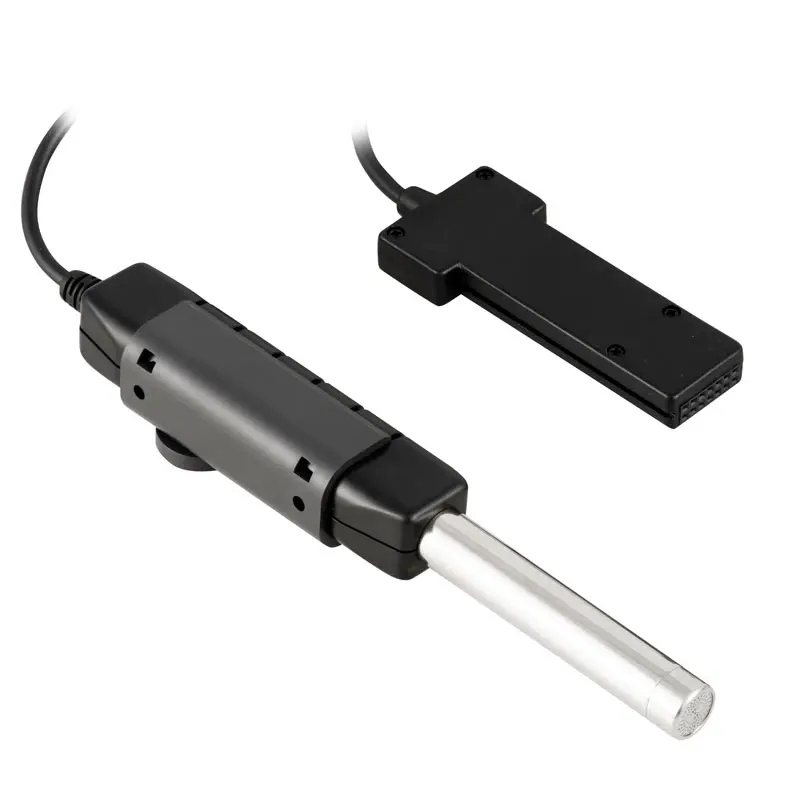

Sound sensor

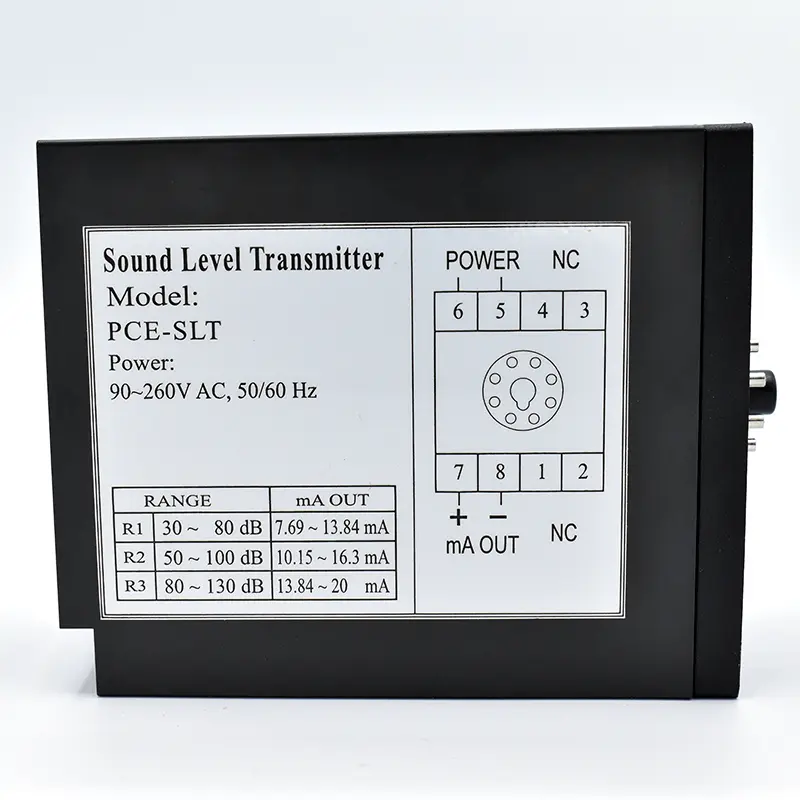

Measuring range30 ... 130 dB in three ranges
I. 30...80 dB(A)
II. 50...100 dB(A)
III. 80...130 dB(A)
Resolution0.1 dB
Accuracy±1.5 dB
Power supplyvia transmitter
Cable length1.5 m
Wall bracketto screw on (included)
Ambient conditionsmax. 85% relative humidity / 0 ... +50 °C
Microphone1/2" precision electret microphone
StandardIEC 61672 class II
HousingABS plastic
Power supply24 V DC
Power consumption
ca. 31 ... 47 mA

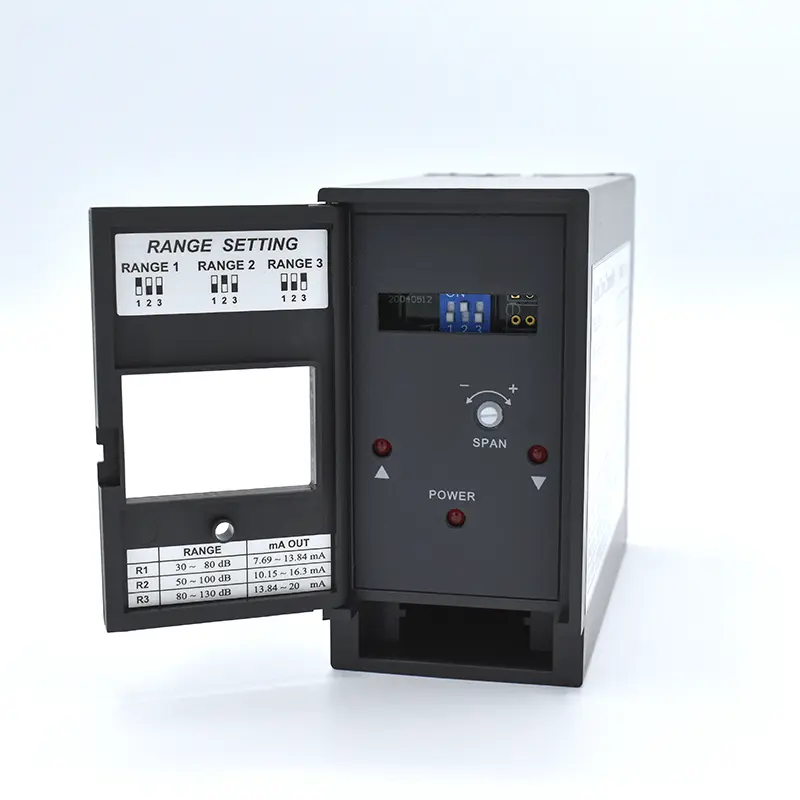

Calibrationadjustable via grub screw
Output4 ... 20 mA
Protection classIP 54
Ambient conditionsmax. 85% relative humidity / 0 ... +50 °C

1 x Condition Monitoring Sound Level Meter PCE-SLT-TRM-24V-ICA
1 x Sound sensor on 1.5 m cable

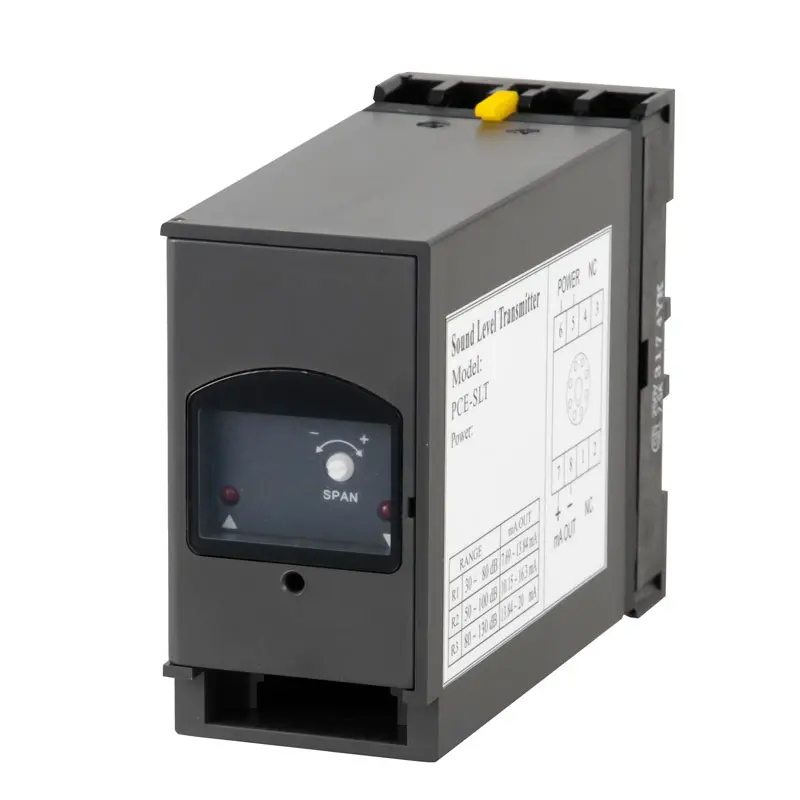

1 x Sound transmitter
1 x Sensor bracket for screwing on
1 x Operating instructions
1 x ISO Calibration Certificate

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
