Condition Monitoring PCE-MIR 10

Order no.: PCE-MIR 10

Question / Callback

Available in: 5-7 working days

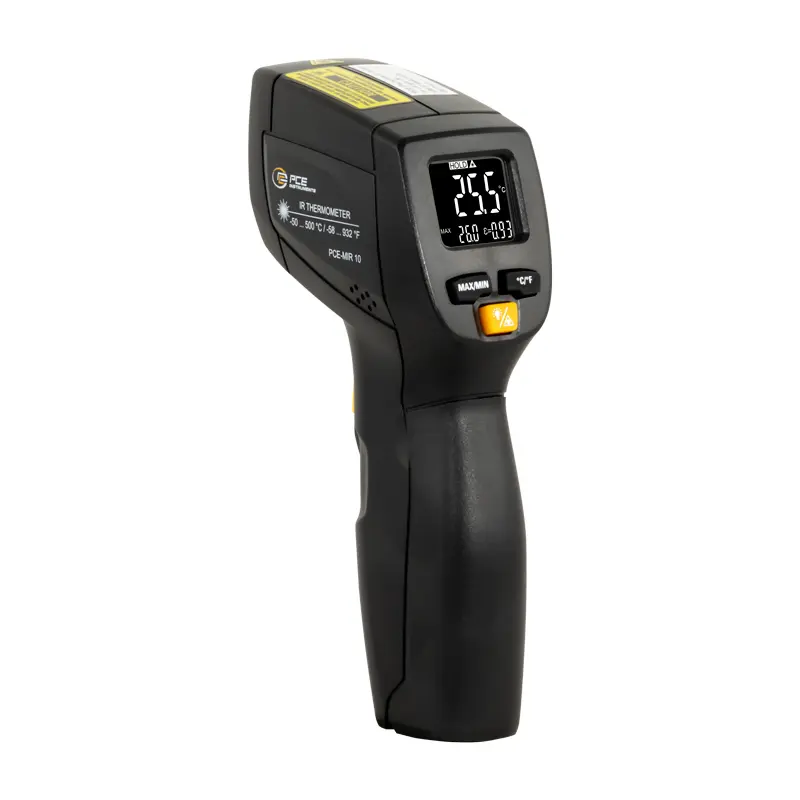

Infrared thermometer with a measuring range of -50 ... +500 °C / emission value 0.95 /

Display of largest and smallest measured value / backlit display /

measuring spot 12:1 / quickly ready for use / optionally with ISO calibration certificate

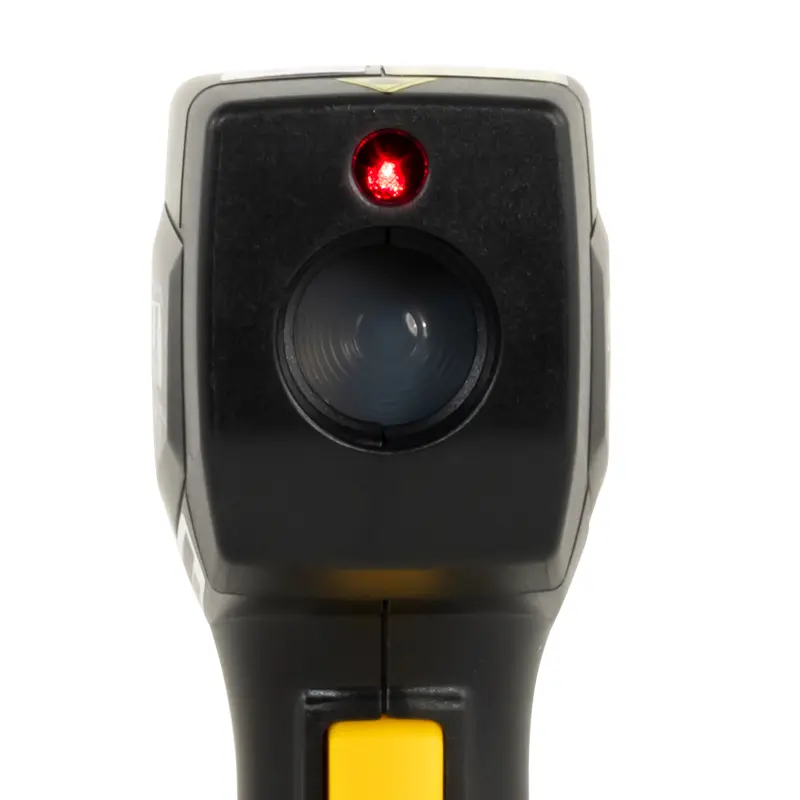

The thermometer has a measuring range of -50 ... +500 °C and covers a wide temperature range. With an accuracy of ±2 % ±2 °C at 20 ... 500 °C, the thermometer is a very precise measuring device. For better orientation of the measuring spot, a laser pointer is built into the thermometer. This laser has an output power of <1 mW. The emission value of the thermometer is fixed at 0.95.

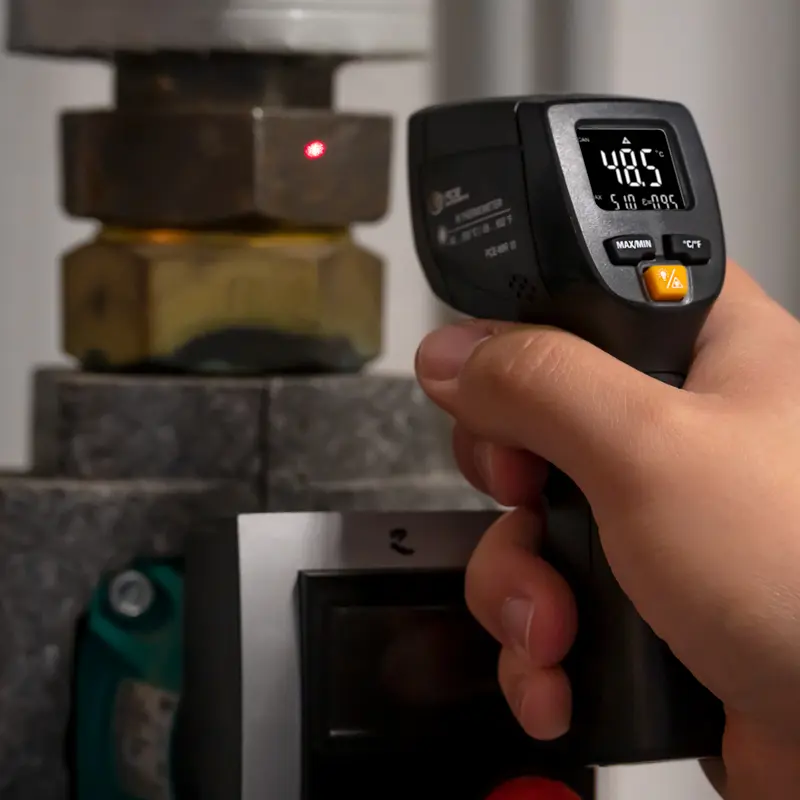

The thermometer is used, for example, for surface temperature testing of electric motors, combustion engines or heat sinks. Thanks to its compact design, the thermometer is handy and can be easily stowed away.

To switch on the thermometer, press the measuring button. The measurement is then immediately taken by the thermometer. When the button is released, the last value remains on the thermometer display until a new measurement is taken. Optionally, the thermometer can be equipped with an ISO calibration certificate.

- Measuring range -50 ... 500 °C

- automatic switch-off

- immediate operating range

- Measuring ratio 12:1

- Max / Min function

- optionally with ISO calibration certificate


Measuring range	-50 … +500 °C / -58 … +932 °F
Resolution	0,1 °C / 0,1 °F
Accuracy	±3 °C / 5,4 °F bei -50 … +20 °C / -58 … +68 °F
	±2 % ±2 °C / 3,6 °F bei 20 … 500 °C / 68 … 932 °F
Repeatability	±1 °C / ±1,8 °F

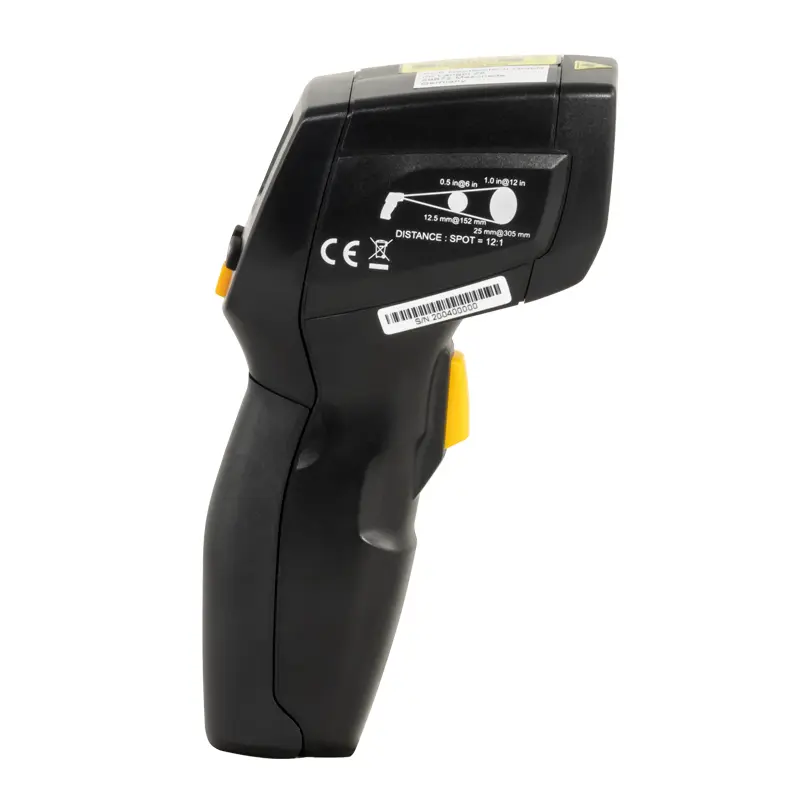

Spot ratio	12:1
Emission value	0,95 fixed
Measuring rate	2 Hz
Spectral range	8 … 14 µm
Overload indicator	„ - - - - „
Laser	output power: <1 mW; wavelength: 630 ... 670 mm;
	Laser class: 2
Power supply	9 V block battery
Operating conditions	00 ... 50 °C / 32 ... 122 °F, <90 % r. h.
Storage conditions	-10 ... 60 °C / 14 ... 140 °F, <80 % r. h.
Dimensions	175 x 75 x 35 mm
Weight	132 g

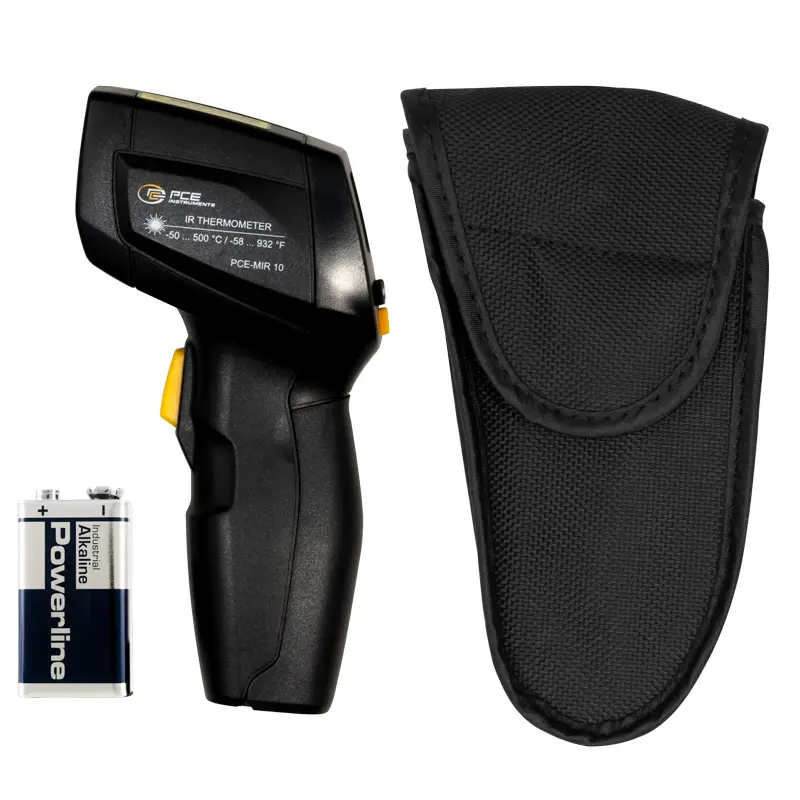

1 x Infrared Thermometer PCE-MIR 10

1 x Carrying bag

1 x instruction manual
