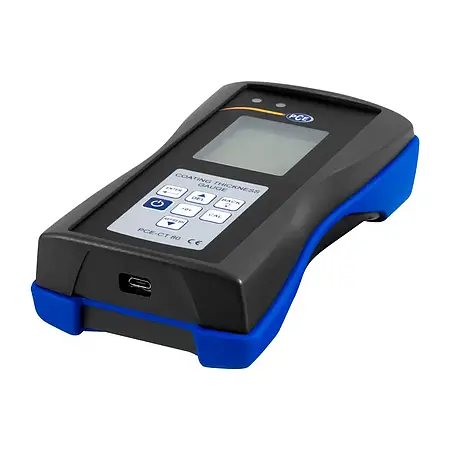

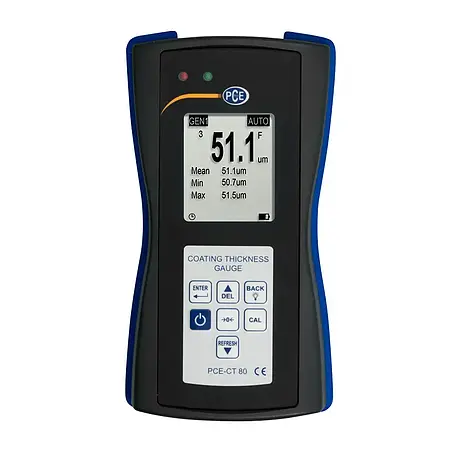

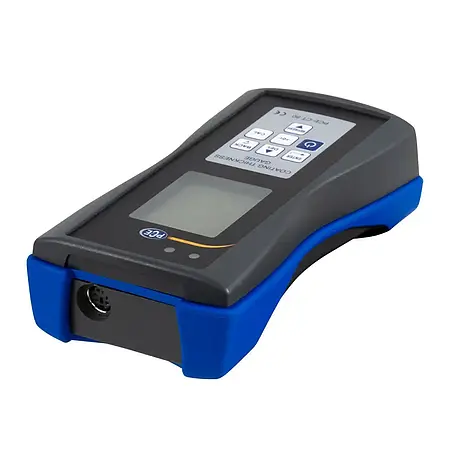

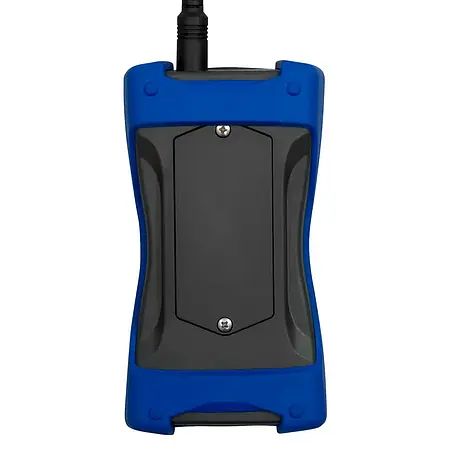

Coating Thickness Gauge PCE-CT 80-FN1D5

Order no.: PCE-CT 80-FN1D5

Question / Callback

Available in: 1-2 days

Coating thickness gauge for Fe and NFe / USB interface / Battery operation /
Integrated data storage

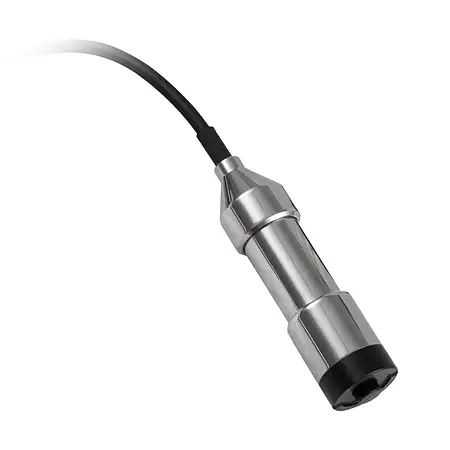

The coating thickness gauge is a measuring device for the non-destructive measurement of coatings (varnishes, paints, plastics ...) on steel / iron and non-ferrous metals. Thanks to the externally connected sensor on the coating thickness gauge, measuring points that are difficult to access can also be easily reached. The menu navigation of the coating thickness gauge allows easy adjustment and setting to new parameters and makes this handy coating thickness gauge an indispensable measuring device for control measurements in production, workshop and quality assurance.

The coating thickness gauge is also ideal for immediately determining and assessing accident damage to vehicles, for example, but the coating thickness gauge can also be used optimally in the industrial sector for incoming and outgoing inspection and material testing in production.

The ergonomically designed coating thickness gauge with external sensor allows you to rapidly determine measurement results with high accuracy. The coating thickness gauge measures non-magnetic layers such as paint, plastic, chrome, copper, zinc, enamel, etc. on steel/iron, as well as non-conductive layers such as paint, plastic, enamel, paper, glass, rubber, etc. on copper, aluminum , brass and stainless steel, as well as anodized aluminum.

- For measurements on iron/steel and non-ferrous metals
- Measurements cannot be influenced by vibrations
- Practical V-groove on the measuring heads
- Ergonomic design
- Warning message for measurements outside the maximum measuring range
- Wear-resistant, spring-mounted measuring head for precise measuring results

Measuring range	Fe: 0 ... 1500 µm
	NFe: 0 ... 1500 µm
Accuracy	±(2 % of reading + 1 µm)
Resolution	0.1 µm (<100 µm)
	1 µm (>100 µm)
Measurable materials	For measurements on iron/steel and non-ferrous metals
Min. radius of curvature convex	5 mm / 0.19"
Min. radius of curvature concave	25 mm / 0.98"
Min. measuring surface	Ø17 mm / 0.67"
Min. substrate thickness	0.2 mm / 0.008" (on magnetic materials)
	0.05 mm / 0.002" (on non-magnetic materials)
Probe mode	Autom. mode with material detection (Fe + NFe)
	Magnetic mode (Fe)
	Eddy current mode (NFe)

Calibration	Multipoint calibration (1 ... 4 points for each group)
	Zero-point calibration
Units	µm, mm, mils
Data transfer	USB 2.0
Memory	A volatile measuring group (DIR mode)
	Four measuring groups with autom. storage and max. 2000 readings (GEN mode)
Statistical functions	Number of measured values, mean, minimum, maximum, standard deviation
Alarm	Display when the adjustable upper and lower alarm limits are exceeded
Operating time	Autom. shutdown mode (3 min.)
Power supply	3 x 1.5 V AAA batteries
Display	128 x 128 px LCD display
Indicators	Battery status
	Fault detection
Operating conditions	0 ... +50 °C / 32 ... 122 °F
	20 ... 90 % RH non-condensing
Storage conditions	-10 ... +60 °C / 14 ... 140 °F
	20 ... 90 % RH non-condensing
Dimensions	143 x 71 x 37 mm / 5.6 x 2.8 x 1.5" (L x W x H)
Weight	With sensor and batteries: ca. 271 g / 9.5 oz

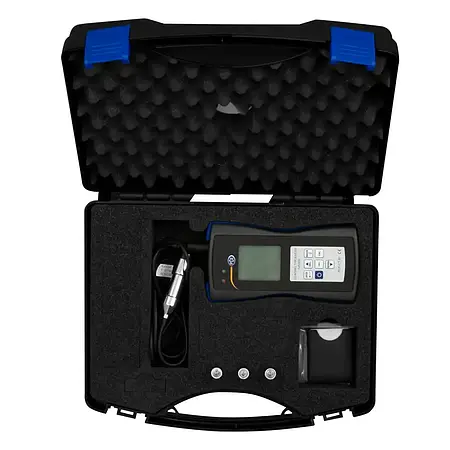

1 x Coating thickness gauge PCE-CT 80-FN1D5
3 x AAA batteries
1 x Instruction manual
1 x Carrying case
1 x Set of standard foils
1 x Calibration plates (Fe and NFe)

Manual

Accessories

Re-Calibration for Coating Thickness Meter

Order no.: RE-CAL-CT

Re-Calibration for Coating Thickness Meter

ISO re-calibration incl. certificate for coating thickness meter. This is often required to comply with DIN ISO 9000.

If your calibration certificate expires, you can easily return your meter for re-calibration. We carry out the calibration and send you the device with a new calibration certificate.

**US calibration certificate is ISO 17025**

Calibration certificates are issued specifically for the customer and are excluded from the right of return

Manufacturer: PCE Instruments

US$ 207.00

ex. VAT, ex. delivery costs

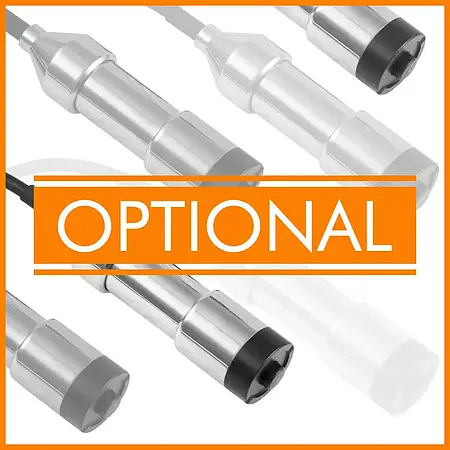

Order no.: PCE-CT 80-3-PROBE

FN3 Sensor PCE-CT 80-3-PROBE

Measuring range: Fe: 0 ... 3000 / 0 ... 118.1 mils
Measuring range: NFe: 0 ... 3000 / 0 ... 118.1 mils
Accuracy: ± (2% of Mw + 1 μm / 0.04 mils)
Diameter: 17 mm
Calibration foils: 50 μm / 2 mils, 100 μm / 3.9 mils, 250 μm / 9.8 mils, 500 μm /19.7 mils, 1000 μm / 39.4 mils
FE and N Material plates

Application: FN3 sensor for measurements on iron / steel and non-ferrous metals

Catalogue: Measuring Instruments / Test Meters / Thickness Gauge

Manufacturer: PCE Instruments

US$ 186.00

ex. VAT, ex. delivery costs

Order no.: PCE-CT 80-2D5-PROBE

FN2 Sensor PCE-CT 80-2D5-PROBE

Measuring range: Fe: 0 ... 2500 / 0 ... 98.4 mils
Measuring range: NFe: 0 ... 2500 / 0 ... 98.4 mils
Accuracy: ± (2% of Mw + 1 μm / 0.04 mils)
Diameter: 17 mm
Calibration foils: 50 μm / 2 mils, 100 μm / 3.9 mils, 250 μm / 9.8 mils, 500 μm / 19.7 mils, 1000 μm / 39.4 mils
FE and N Material plates

Application: FN2.5 Sensor for measurements on iron / steel and non-ferrous metals

Catalogue: Measuring Instruments / Test Meters / Thickness Gauge

Manufacturer: PCE Instruments

US$ 182.00

ex. VAT, ex. delivery costs

Order no.: PCE-CT 80-0D5-PROBE

FN0.5 Sensor PCE-CT 80-0D5-PROBE

Measuring range: Fe: 0 ... 500 / 0 ... 19.7 mils
Measuring range: NFe: 0 ... 500 / 0 ... 19.7 mils
Accuracy: ± (1% of Mw + 1 μm / 0.04 mils)
Diameter: 17 mm
Calibration foils: 50 μm / 2 mils, 100 μm / 3.9 mils, 250 μm / 9.8 mils, 500 μm / 19.7 mils, 1000 μm / 39.4 mils
FE and N Material plates

Application: FN0.5 Sensor for measurements on iron / steel and non-ferrous metals

Catalogue: Measuring Instruments / Test Meters / Thickness Gauge

Manufacturer: PCE Instruments

US$ 186.00

ex. VAT, ex. delivery costs
