Climate Meter PCE-AM 31

Climate Meter PCE-AM 31

Order no.: PCE-AM 31
GTIN (EAN): 4250348738080
US$ 66.00
ex. Sales Tax, ex. delivery costs
:
4250348738080
PCE-AM 31
Available in:1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Description

Climate Meter with built-in compass / Wind speed / Air volume / Temperature / MIN, MAX, real-time measurement / Cup sensor / 2.6-inch LCD display

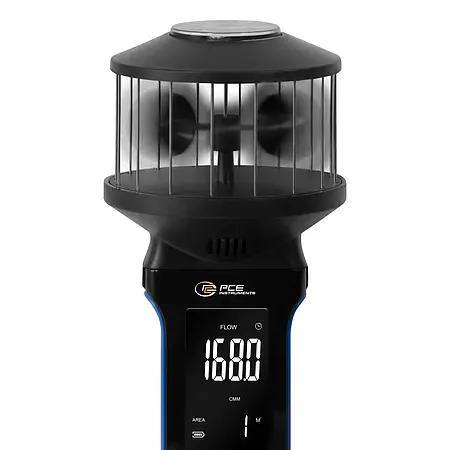

The Climate Meter enables precise measurements of wind speed and temperature. It reliably and conveniently measures wind speeds from 0.3 to 40 m/s. The integrated temperature sensor also enables measurements in the range from -10 to 45°C / 14 to 113°F, thus offering optimal conditions for applications in ventilation, air conditioning, and environmental technology. In addition to pure flow measurement, the device automatically calculates the volume flow based on the measured air velocity and an individually adjustable area. The volume flow can be displayed in a range from 0 to 999,900 m³/min.

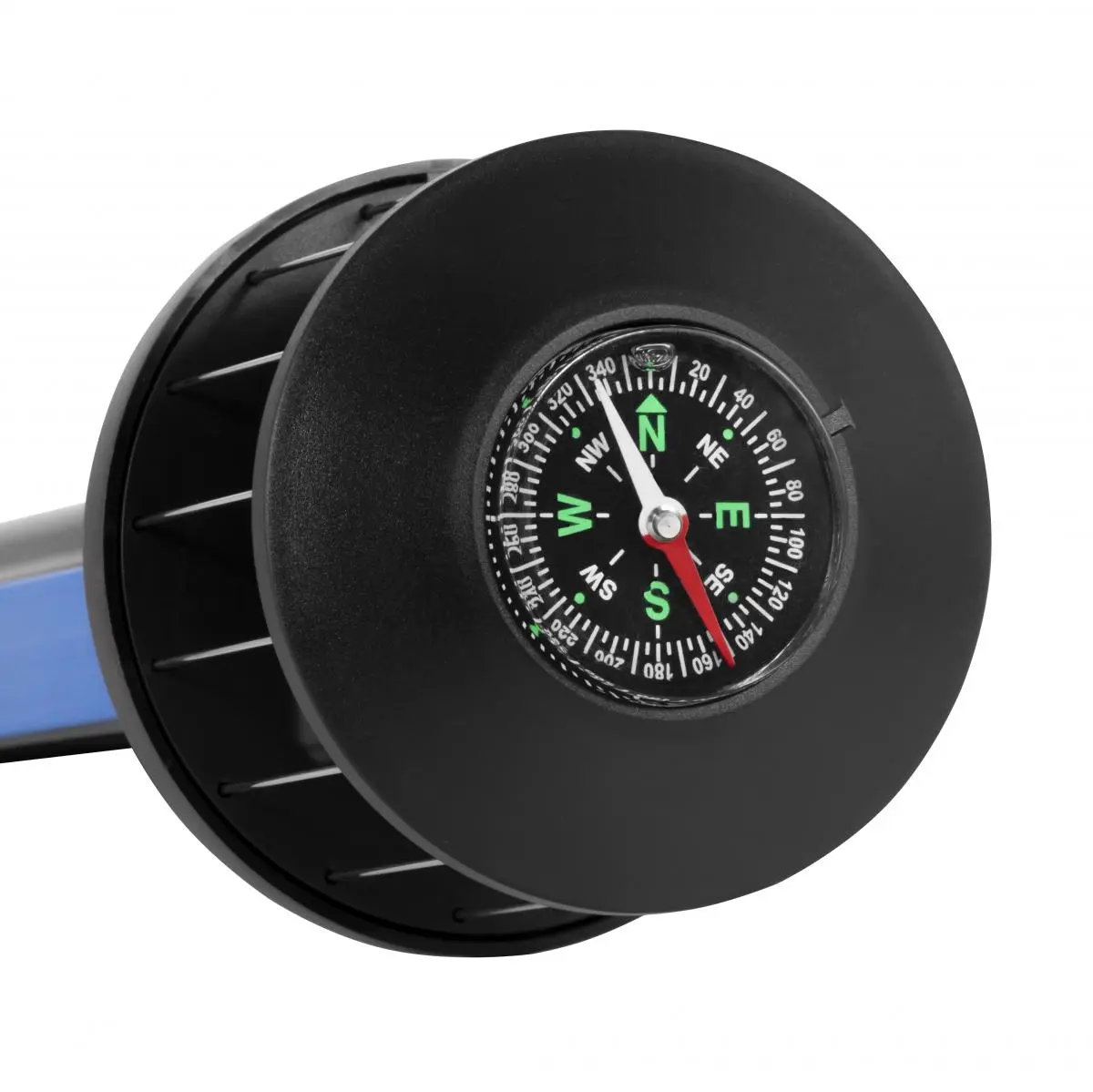

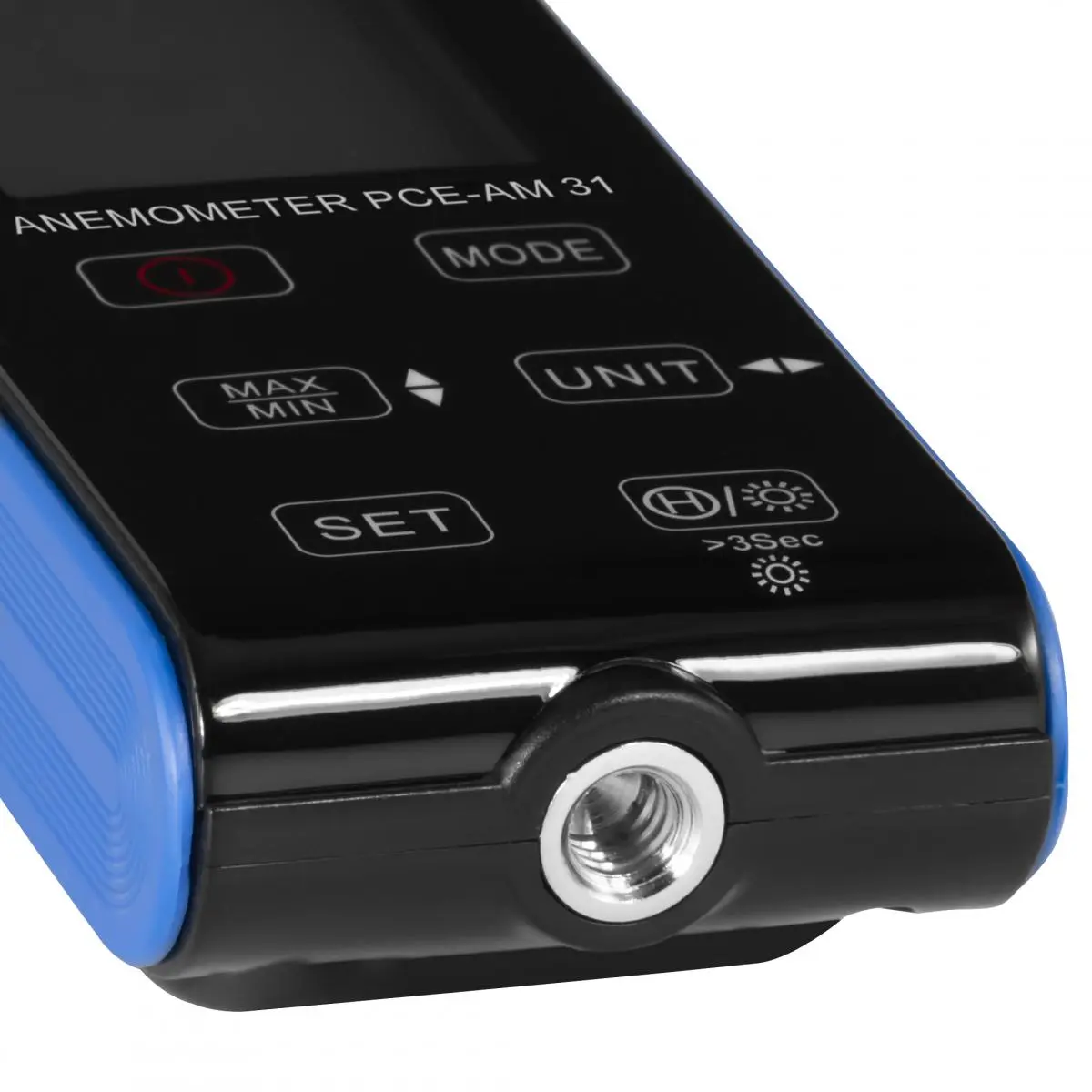

The Climate Meter's important technical functions include min, max, and real-time measurement, display in multiple units (°C, °F, knots, m/s, km/h, mph, ft/min, ft³/min, m³/min, m³/s), switchable backlight, compact, waterproof housing, integrated compass, USB-C interface, and a rechargeable lithium battery that ensures long operating times. The Climate Meter also offers various measurement modes and convenient operation via touch buttons, which enable intuitive control of all functions. A special highlight of the Climate Meter is the integrated compass, which provides accurate directional information. This is particularly useful for outdoor measurements, environmental research, or ventilation applications where the direction of air flow is crucial. With the built-in compass, users can immediately identify the wind direction, take targeted measurements, and interpret data accurately – an advantage that clearly sets the device apart from conventional Climate Meters.

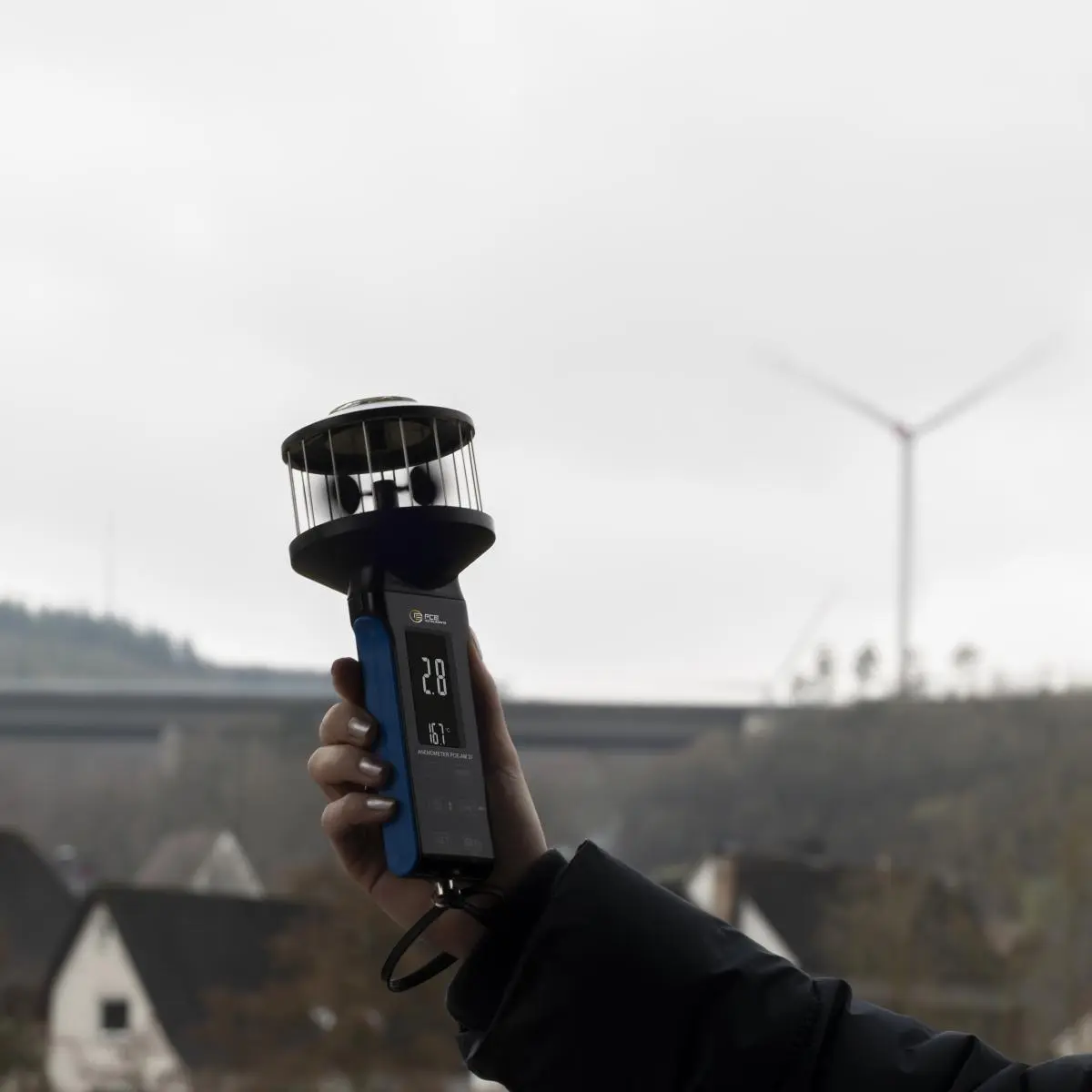

This Climate Meter is ideal for use in air conditioning and ventilation technology, in laboratories, for environmental measurements, or outdoors, where precise measurements of wind speed, temperature, calculated volume flow, and wind direction are required. The Climate Meter offers both professionals and hobbyists a reliable and versatile solution for accurate measurements under a wide range of conditions.


Highlights

- Wind speed measurement
- Temperature measurement
- Volume flow
- Measurement functions: Min, Max, real-time measurement
- Switchable backlight
- Automatic switch-off

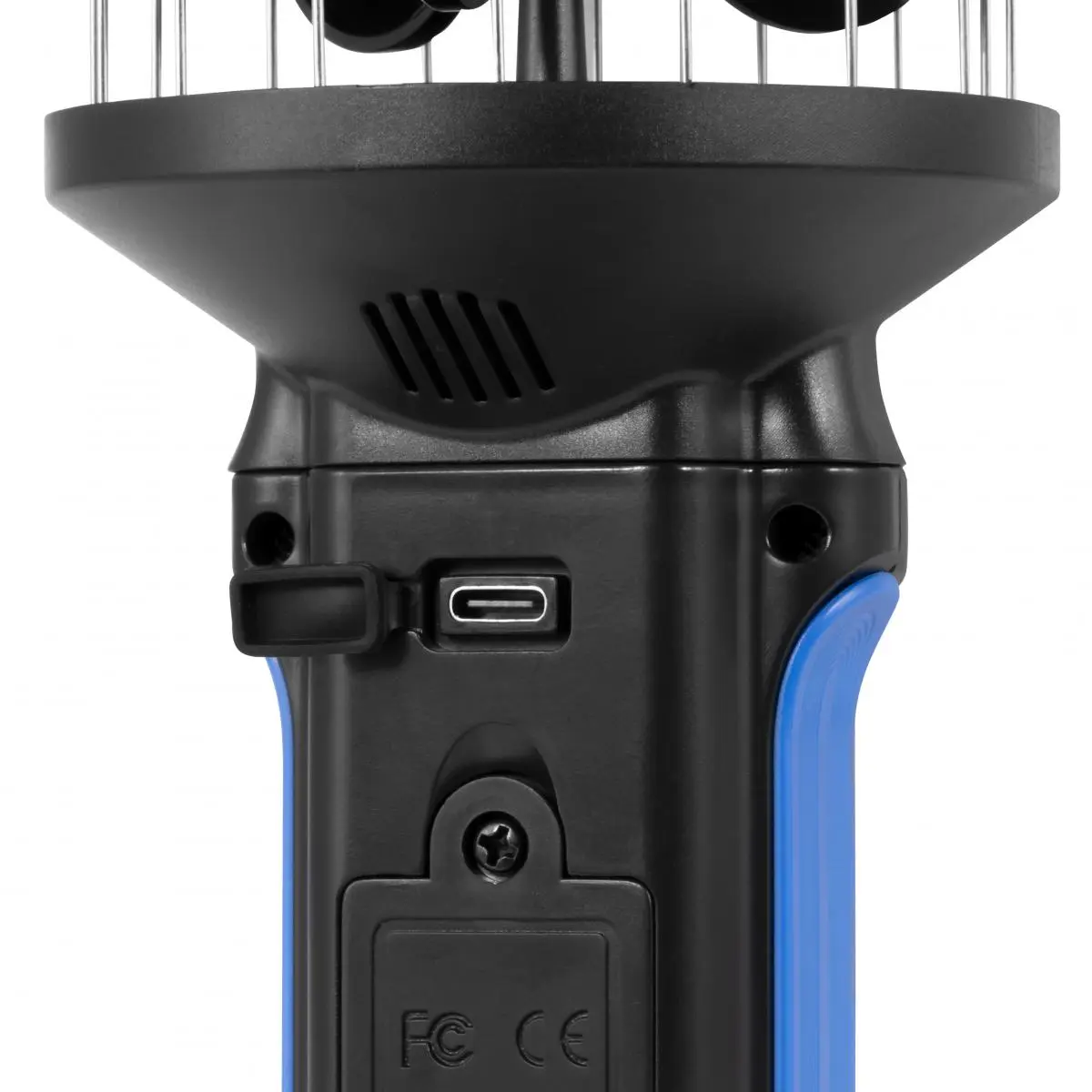

- USB-C interface
- Compact, waterproof housing
- Rechargeable lithium battery
- With built-in compass

Specification

Speed
Measurement range up to  0.3 ... 40 m/s
Resolution  0.1 m/s
Accuracy  ±5% of Rd

Speed
Measurement range up to  2 ... 90 km/h
Resolution  0.3 km/h
Accuracy  ±5% of Rd

Speed
Measurement range up to  59 ... 5905 ft/min
Resolution  19 ft/min
Accuracy  ±5% of Rd

Speed
Measurement range up to  1 ... 55 knots
Resolution  0.2 knots
Accuracy  ±5% of Rd

Speed
Measurement range up to  1 ... 65 mph
Resolution  0.2 mph
Accuracy  ±5% of Rd

Volume flow
Measurement range up to  0 ... 999900 m³/min
Resolution  0.001 m³/min
Accuracy  ±5% of Rd

Volume flow
Measurement range up to  0 ... 999900 m³/s
Resolution  0.001 m³/s
Accuracy  ±5% of Rd

Volume flow
Measurement range up to  0 ... 999900 ft³/min
Resolution  0.001 ft³/min
Accuracy  ±5% of Rd

Temperature
Measurement range up to  -10 ... 45°C
Resolution  0.2°C
Accuracy  ±2°C

Temperature
Measurement range up to  14 ... 113°F
Resolution  0.36°F
Accuracy  ±3.6°F

Sensor
Battery type  Cup cross
Housing  plastic
Dimension  Ø 63 mm / 2.5 in

General technical data
Measuring functions  MIN, MAX
Units  °C, °F, m/s, km/h, mph, ft/min, knots, m³/min, m³/s, ft³/min
Display type  LCD with backlight
Display size  2.3 Inch
Interface  USB-C
Charging time  3 h
Automatic power-off  5 min
Automatic power-off can be deactivated  Yes
Menu language  English, English (GB)
Protection class (device)  IP43
Power supply  5V DC
(Rechargeable) battery  1 x 3.7V internal , Lithium-ion battery
Capacity  400 mAh
Operating conditions  -10 ... 45°C / 14 … 113°F, 0 ... 90% RH
Storage conditions  -20 ... 50°C / −4 … 122°F, 0 ... 90% RH
Dimensions ( L x W x H )  210 x 87 x 87 mm / 8.3 × 3.4 × 3.4 in
Weight  188 g / 0.41 lb

Delivery Scope

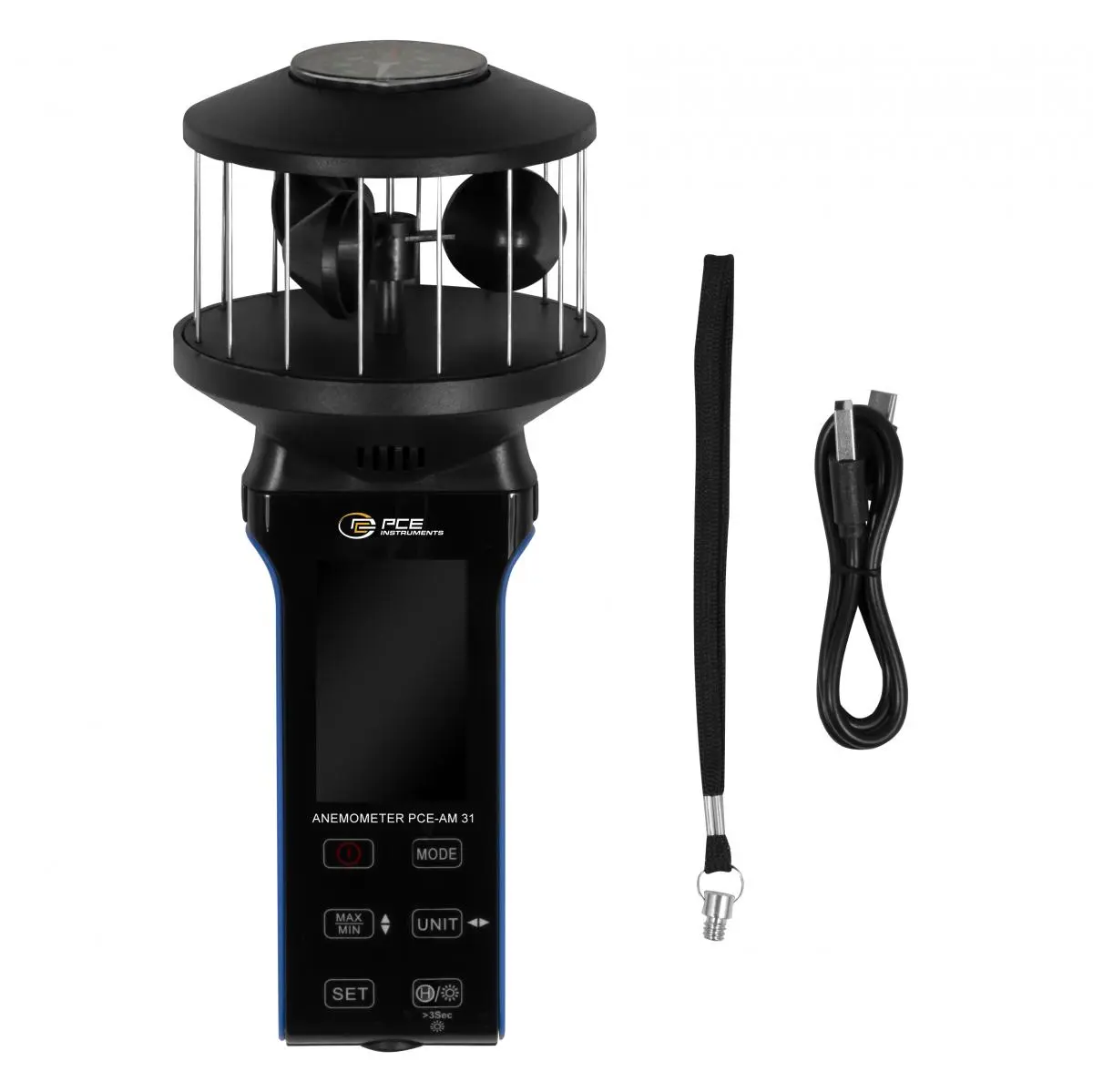

1 x PCE-AM 31 Climate Meter
1 x USB-C cable
1 x Operating instructions
1 x Wrist strap
