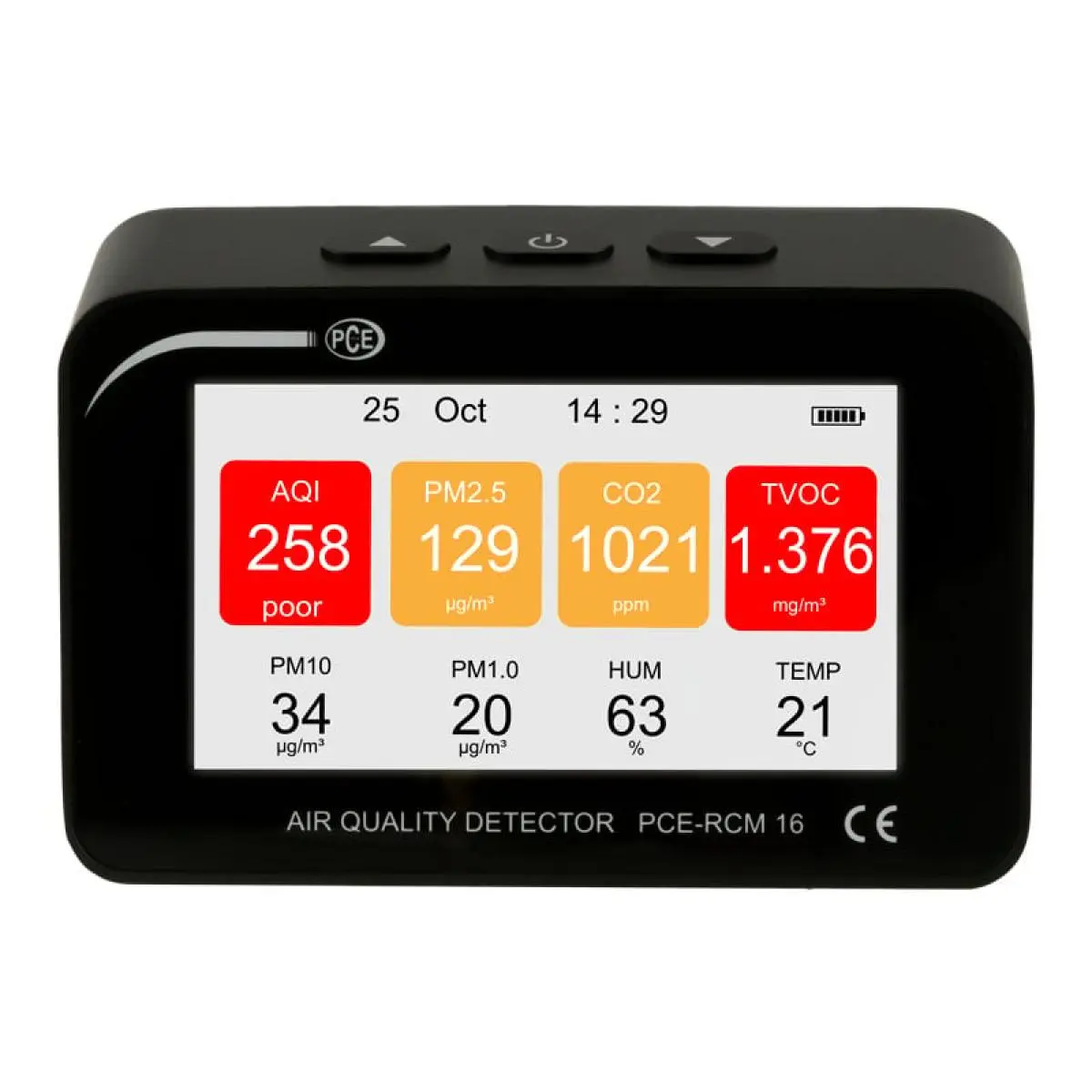

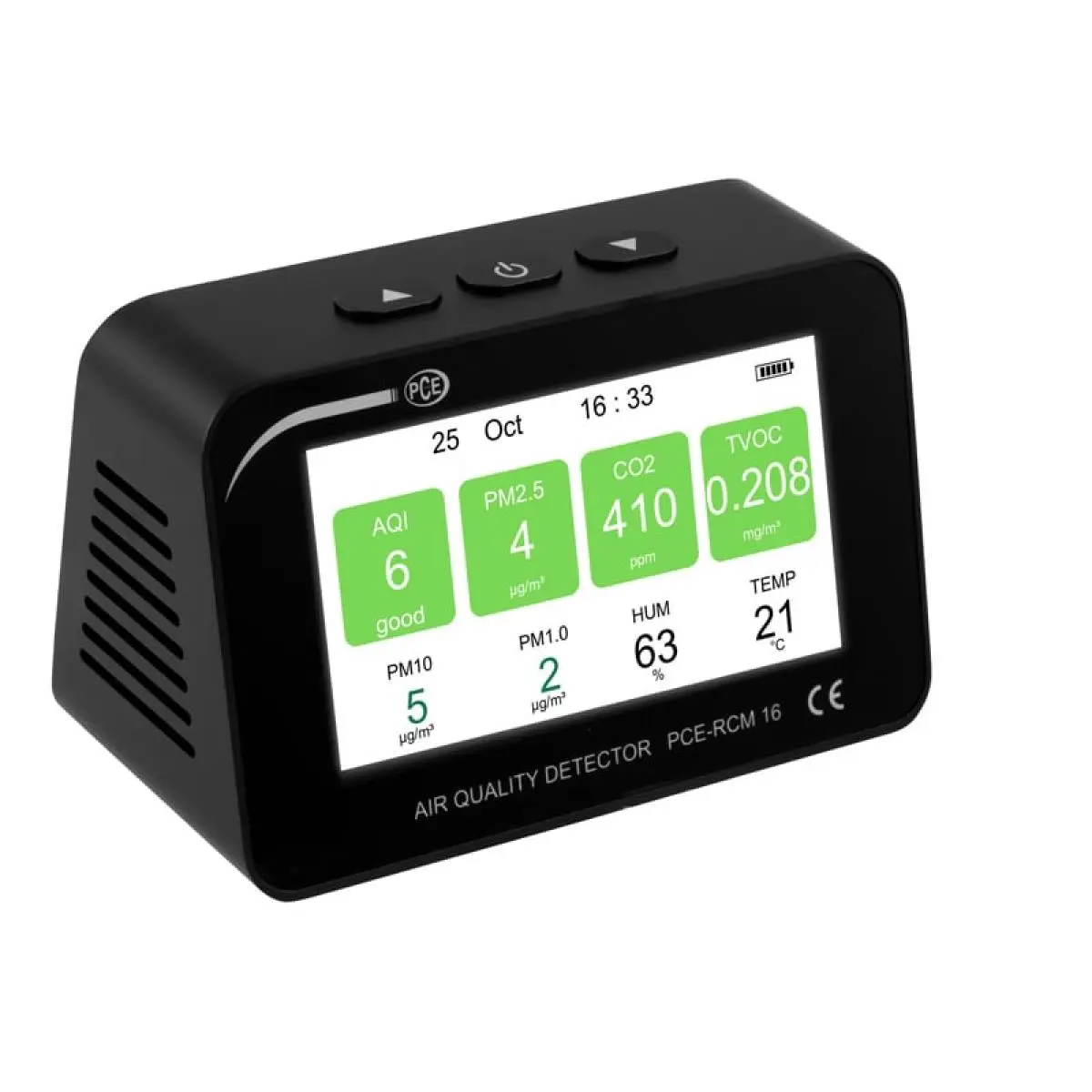

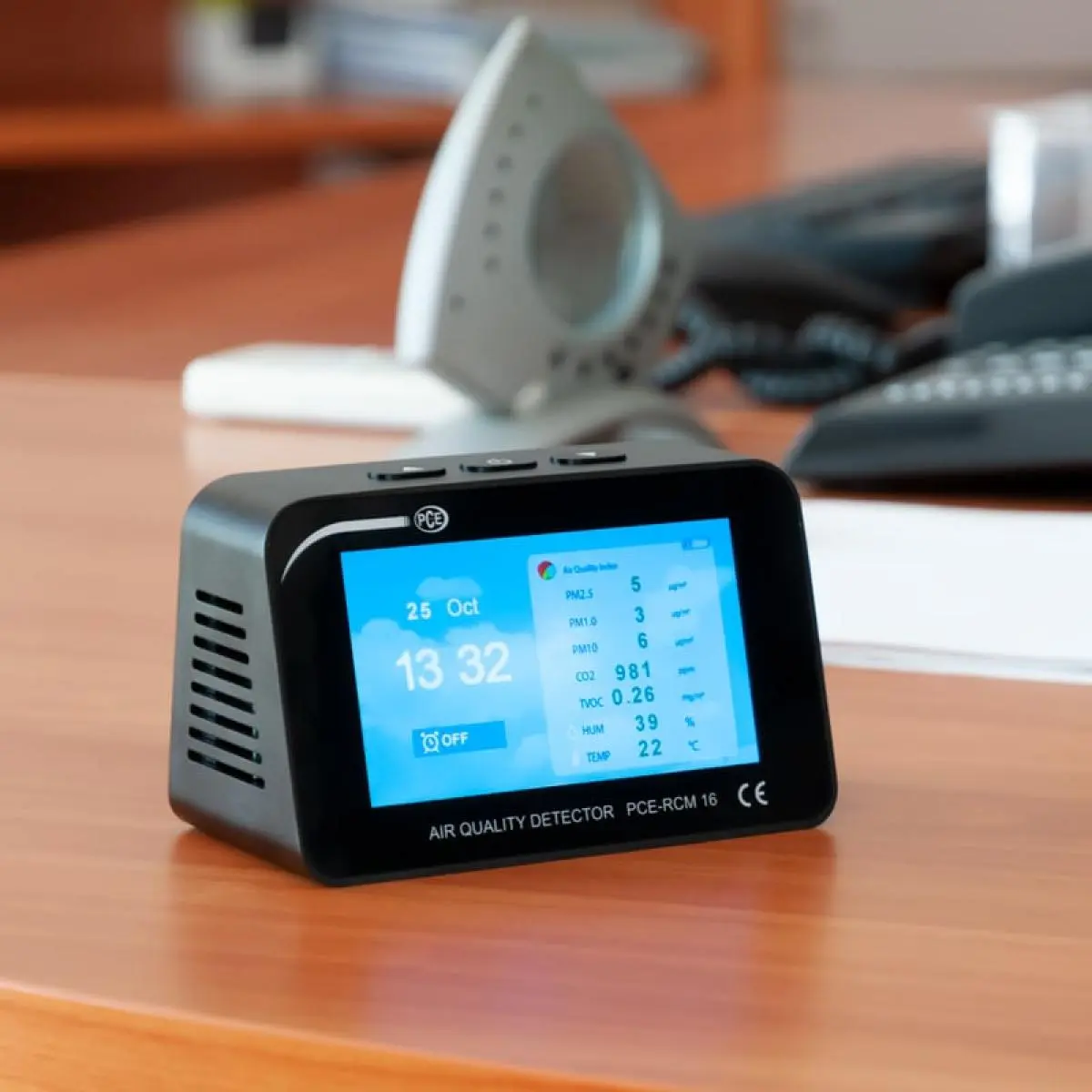

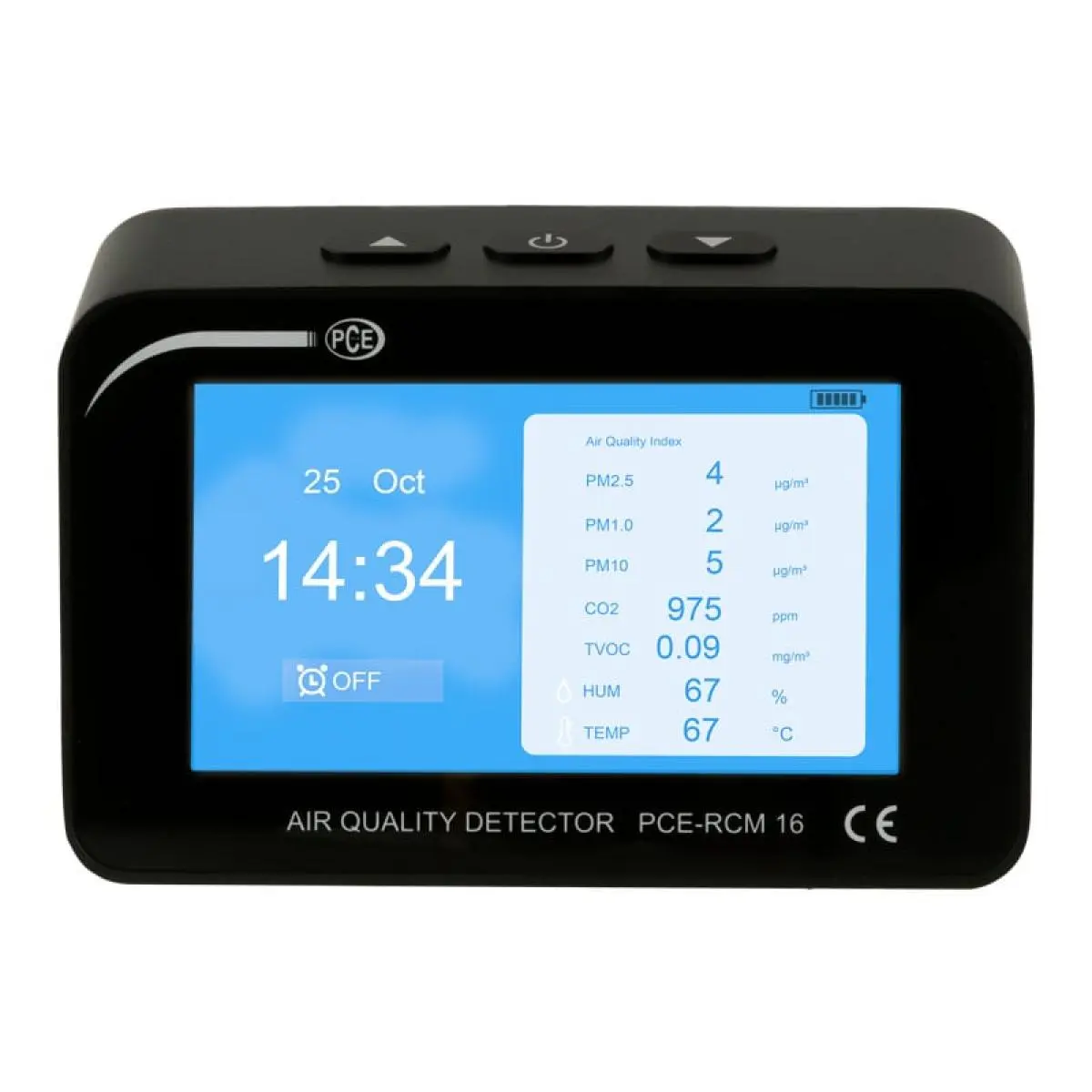

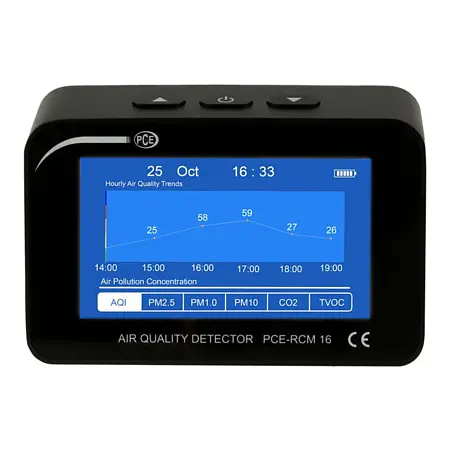

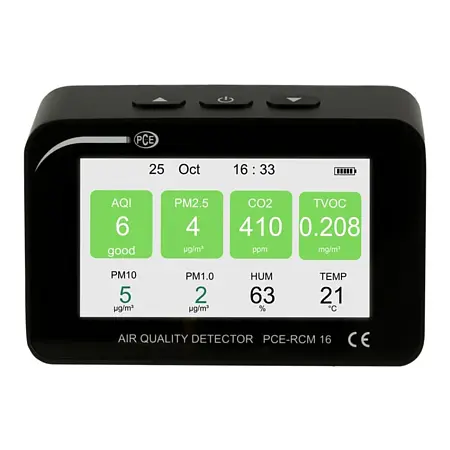

The air quality meter PCE-RCM 16 is ideal for monitoring the air quality in homes, businesses, or public buildings where people are staying. The 4.3-inch TFT display on the air quality meter is dimensioned so that all measured values can be read directly. Supported measurements on the air quality meter are CO2, TVOC, PM1, PM2.5, PM10, temperature, and ambient humidity. On the display of the air quality meter, the measured values are updated every second. As soon as a measured value exceeds the fixed limit, this is visually indicated to the user.
To power the air quality meter, it can be operated directly via the micro USB port on the back. The built-in battery with the air quality meter is charged via this interface. Thus, the air quality meter is versatile. It should be noted that the measured values settle within 24 hours after switching on the air quality meter.
| CO² | |
| Measuring range | 0 ... 5000 ppm |
| Resolution | 1 ppm |
| Accuracy | ±10 % of Rd |
| Particle | |
| Measuring channel sizes | 1.0, 2.5, 10 |
| Measuring range | 0 ... 999 µg/m³ |
| Resolution | 1 µg/m³ |
| Accuracy | ±10% v.Mw. |
| TVOC | |
| Measuring range | 0 ... 9,999 mg/m³ |
| Resolution | 0,001 mg/m³ |
| Accuracy | ±10 % of Rd |
| Relative humidity | |
| Measuring range | 20 ... 90 |
| Resolution | 1 |
| Accuracy | ±4 % RH |
| Temperature | |
| Measuring range | 0 ... 50 °C |
| Resolution | 1 °C |
| Accuracy | ±1 °C |
| General technical data | |
| Display type | TFT-LCD-Display |
| Display size | 4,3 in |
| Interface | Micro-USB |
| Operating time | 6 h |
| Housing | Metal |
| Stabilisation time | 24 h |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | Rechargeable battery: 3.7V Mains adaptor: 5 V / 2 A |
| (Rechargeable) battery | 1 x 3,7 V internal , Lithium-ion battery |
| Capacity | 3400 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 90 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 90 % RH |
| Dimensions ( L x W x H ) | 191 x 78 x 67,5 mm |
| Weight | 336 g |
