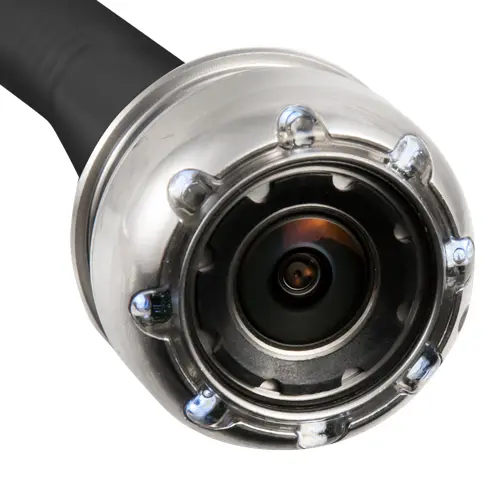

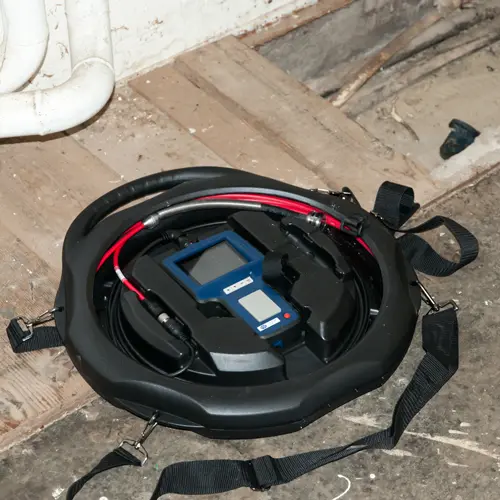

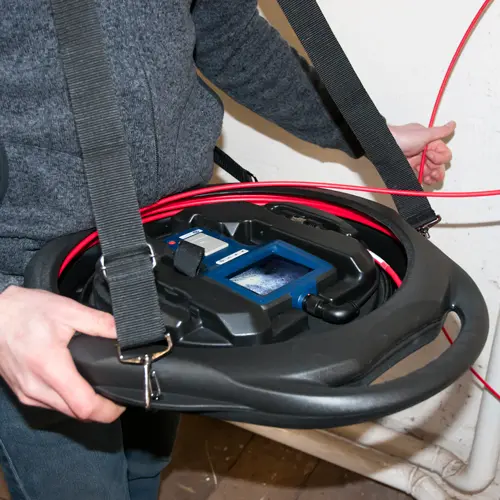

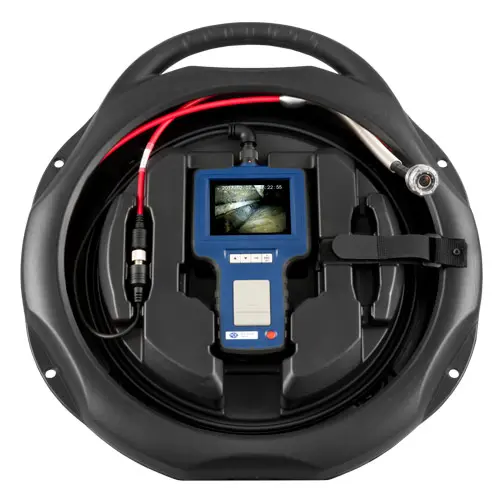

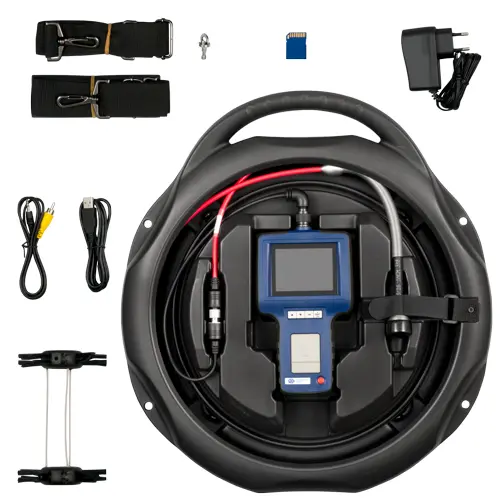

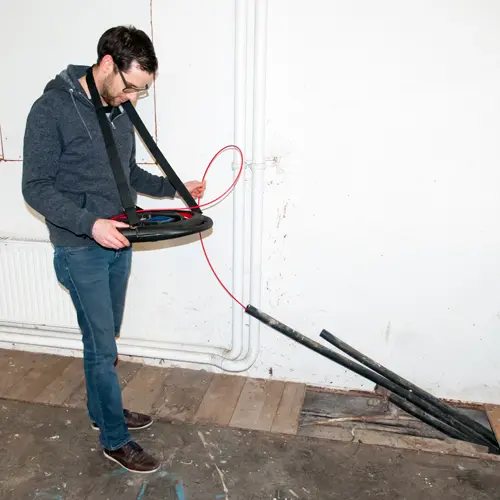

PCE-VE 390N is a car measuring device for the analysis of buildings (walls, supports, eaves, gutters, attics, crawl spaces), plumbing (pipes, drains, sewers, wells) and heating, ventilation, air conditioning and refrigeration (HVACR) systems (ducts, furnaces, chimneys, boiler and condenser tubes). The IP68-rated cable of this inspection camera is waterproof and heavy duty, making the car measuring device well suited for use in tough environments like construction sites and industrial installations.
Cable diameter |
28 mm / 1.11 in |
Cable length |
10 m / 32.8 ft |
Depth of field |
10 mm … ∞ / 0.4 in to infinity |
Field of view |
150.8° |
| Bending radius | 90 mm / 3.54 in. |
| Illumination | 8 LEDs |
| Image sensor | CMOS / 640 x 480 |
| Picture rate | 30 / sec. |
| Display |
88.9 mm / 3.5 in TFT LCD monitor |
| Interface | Mini USB 1.1 / AV out |
| Storage options | Image or video |
| Storage | 8 GB memory card (can be increased to 32 GB) |
| Compression format | MPEG 4 |
| Picture format | JPEG (640 x 480) |
| Video output format | NTSC / PAL |
| Video format | ASF (320 x 240) |
| Operation and storage temperature | -10 ... 60°C / 14 ... 140°F |
| Voltage supply | Rechargeable 3.7V lithium-ion battery |
| Dimensions, handheld device | 207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in |
| Weight, incl. carrying case | 9.98 kg / 22 lbs |
| Protection type, camera | IP 68 = No ingress of dust; complete protection against contact (dust tight) and waterproof; meaning it can be underwater for 30 minutes at depths of up to 1.5 m / 4.92 ft |
|
|
|
ex. VAT, ex. delivery costs
The cable holder can be used for all 5.5 mm diameter cables of the PCE-VE N series. Ideal attachment for use when a rigid cable tip is desired.
**Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
GB-25-PCE-VE-N is a guide ball attachment for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras. The guide ball facilitates passage of the camera cable through tight spaces without contaminating the lens. The guide ball also aids in unscrewing the camera head.
**Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
GB-15-PCE-VE-N is a guide ball attachment for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras. The guide ball facilitates passage of the camera cable through tight spaces without contaminating the lens. The guide ball also aids in unscrewing the camera head.
**Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
Screw-on magnetic hook attachment for removing small metallic objects from hard-to-reach places. This magnetic attachment is screwed securely onto the head of the camera cable, so the attachment stays firmly connected. Suitable for use with 5.5 mm diameter cables only.
**Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
PCE-VE-N-SCS includes two semi-flexible camera cables for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.
**Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
PCE-VE-N-SC1 is a semi-flexible camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.
**Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
**Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
PCE-VE-2in1-N is a 2-in-1 semi-flexible camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.
ex. VAT, ex. delivery costs
PCE-VE-4W1-HR is a four-way articulating camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.
**Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
PCE-VE-4W3-HR is a four-way articulating camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.
**Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
PCE-VE-2W3-HR is a two-way articulating Hyperion camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.
**Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
ES-45 VE 300N is a 45º mirror designed to increase the field of vision by 90º for PCE-VE series borescopes, industrial endoscopes, videoscopes and inspection cameras.
**Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
Guide ball 50mm for endoscope cable with camera head 28mm diameter
ex. VAT, ex. delivery costs
PCE-VE-N-SC2 is a semi-flexible camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.
**Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
PCE-VE-N-SC10 is a flexible camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.
**Attention: NOT compatible wit the VE 200 Series!***
ex. VAT, ex. delivery costs
PCE-VE-N-SC30 is a semi-flexible camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.
**Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
Flexible borescope cable suitable for all borescopes of the PCE-VE-N series with front camera / 2 meters / Ø 5.5 mm
ex. VAT, ex. delivery costs
1 m (3.28 ft) with HighRes function borescope cable for PCE-VE-N series borescopes 1 meter / Ø 5.5 mm / semi-rigid
ex. VAT, ex. delivery costs

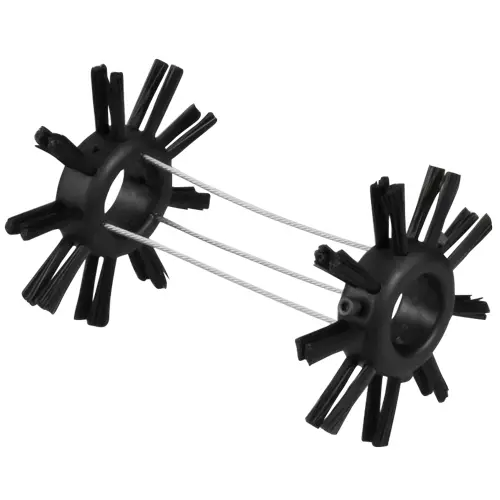

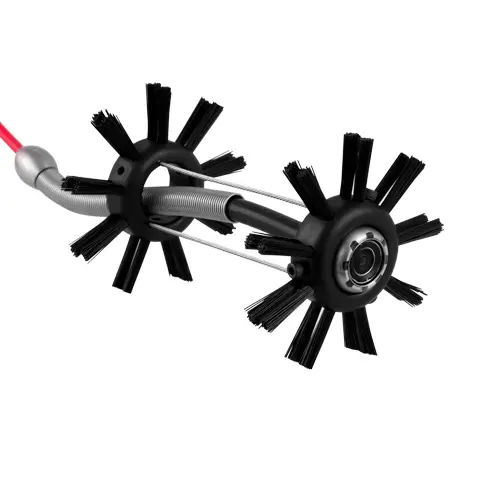

Centering brush suitable for PCE-VE-N-SC22
ex. VAT, ex. delivery costs
