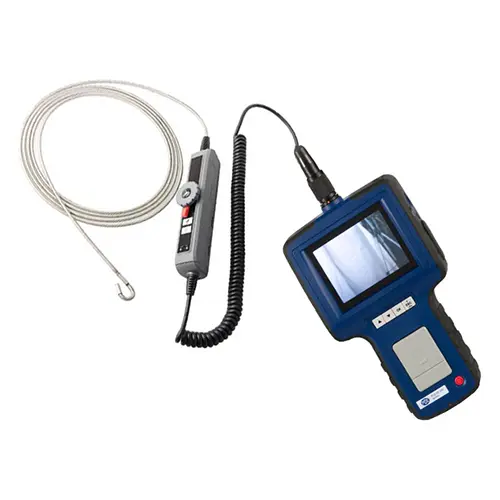

Car Measuring Device PCE-VE 355N
Two-way articulating inspection camera, industrial endoscope or videoscope with 8 GB SD card memory and small 4.5 mm / 0.18 diameter cable
The PCE-VE 355N is a two-way articulating car measuring device, inspection camera, industrial endoscope or videoscope for the non-destructive inspection (NDI) of small components and hard-to-reach places. The camera head features 5 LED lights with automatic illumination. Pictures and videos are saved to the included 8 GB SD card memory, allowing easy transfer to a PC.
- Flexible 1.5 m / 4ft 11" cable
- Diameter camera head 4.5mm / 0.18"
- Image capture / Photos and Videos
- 2-way optics
- 8 GB SD memory card (incl.)
- Robust carrying case included
Cable diameter |
4.5 mm / 0.18 in |
Cable length |
1.5 m / 4.9 ft |
Depth of field |
1.5 ... 10 cm / 0.59 ... 3.9 in |
Field of view |
67° |
Bending radius | 90 mm / 3.5 in |
Illumination | 5 LEDs, automatic |
White balance Image sensor |
Fixed CMOS |
Picture rate | 30 frames per second (fps) |
Display |
88.9 mm / 3.5 in TFT LCD monitor |
Interface | Mini USB 1.1 (AV out / AV in) |
Storage options | Image or video |
Storage | 8 GB memory card (can be increased to 32 GB) |
Compression format | MPEG 4 |
Picture format | JPEG (640 x 480 pixel resolution) |
Video output format | NTSC / PAL |
Video format | ASF (320 x 240) |
Operation and storage temperature | -10 ... 50°C / 14 ... 122°F |
Voltage supply | Rechargeable 3.7V lithium-ion battery |
Dimensions, handheld device | 207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in |
Weight, incl. carrying case | 450 g / 1 lb |
1 x Car Measuring Device PCE-VE 355N
1 x 8 GB SD card
1 x USB cable
1 x Battery charger
1 x User manual
1 x Carrying case
Please note: Not to be used for medical applications!
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
PCE-VE-N-SCS includes two semi-flexible camera cables for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.
- 3.9 mm diameter
- 1 meter long
- 320 x 240 pixel resolution
- 1 cable with front view camera
- 1 cable with side view camera
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
***Attention: NOT compatible with the VE 200 Series!***
ex. VAT, ex. delivery costs
PCE-VE-N-SC10 is a flexible camera cable for PCE VE Series industrial endoscopes, borescopes, videoscopes and inspection cameras.
- 5.5 mm diameter
- 10 meters long
- 320 x 240 pixel resolution
- Integrated LED light
