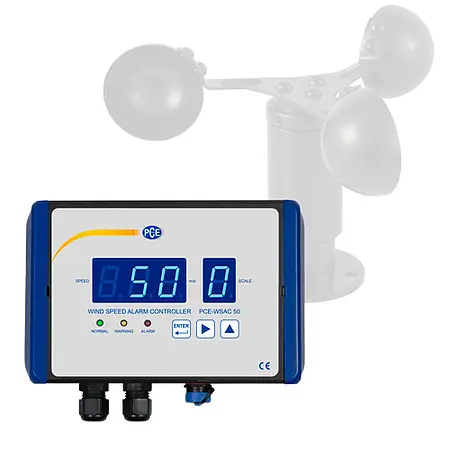

Air Velocity Meter / Wind Warning Device PCE-WSAC 50-220
Anemometer with pre-alarm and alarm / display of wind speed / easy operation / display of the average speed of the last 2 and 5 minutes
The wind warning device can be used in different fields of application. In use, the wind measuring device carries out measurements from the smallest wind movements. The wind warning device can be used on the one hand to monitor the current wind speed. On the other hand, it is also possible to use the wind measuring device to measure the average value of the last two or five minutes. If the wind speed values are higher than the preset values, a pre-alarm is first activated before the alarm is output. Both alarms are given visually and acoustically on the wind warning device. If the pre-alarm takes effect, a yellow LED will flash on the front of the device and a beeper will emit a periodic warning tone. When the normal alarm needs to be activated, the red LED will flash and the beep will be played continuously by the device.

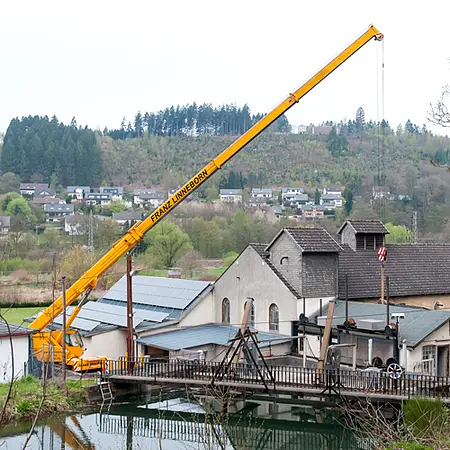

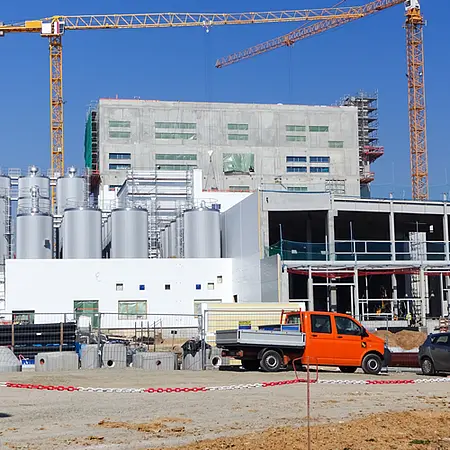

In general, the wind warning device is used wherever wind monitoring has to be carried out. This is often the case in factories, mines, wind turbines and similar. If necessary, a relay can also be connected to the anemometer. In addition to the low wind speeds, the wind measuring device is characterized by its high reliability and high accuracy.
***Sensors sold separately***
| Power supply | 115V AC | |
| Supply voltage for sensors (output) |
12V DC 24V DC |
|
| Measuring range | 0 ... 50 m/s | |
| Measuring accuracy | ± 3% of measuring range | |
| Signal input |
0 ... 10 V |
|
| Alarm relay |
|
|
| Operating temperature | -20 ... 60°C / -4 ... 140°F | |
| Protection class | IP66 | |
| Dimensions | 197.5 x 90 x 45 mm / 7.7 x 3.5 x 1.7 in |
1 x Air Velocity Meter PCE-WSAC 50-220
1 x User manual
1 x Sensor connector

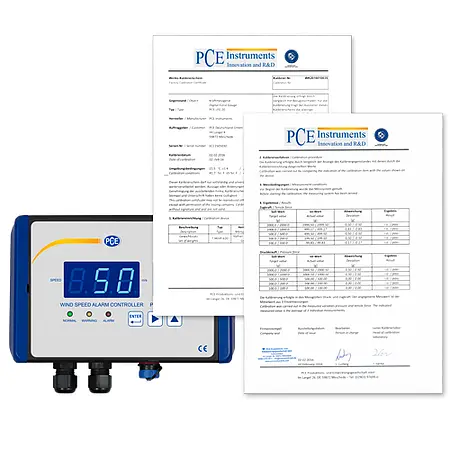

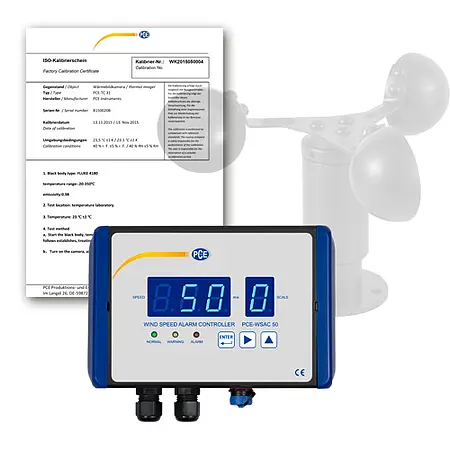

1 x ISO Calibration certificate
Note: Wind sensor not included. This must be ordered separately.
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
25 m Sensor cable for connecting the wind sensors PCE-FST-200-201 to the wind sensor PCE-WSAC 50.
ex. VAT, ex. delivery costs
Mounting bracket suitable for the wind sensor PCE-FST 200-201. The mounting angle can be used to mount the wind sensor for example on a roof.
ex. VAT, ex. delivery costs
The remote maintenance module PCE-SM61 allows you to quickly and easily query your process data via the Internet. Any device with RS485 interface can be connected to the remote maintenance module. The data is retrieved via a web browser and can be carried out simultaneously by the PC, smartphone, tablet, etc., and by several users. In addition to the data query, the remote maintenance module can trigger alarms. The configuration can be done via USB or Ethernet interface.
ex. VAT, ex. delivery costs
Air flow meter with 4 … 20 mA output. Air flow meter for measuring the horizontal wind speed with an analog output signal. The cup cross of the air flow meter is made of plastic, the housing is made of aluminum and anodized. The device has a Pg 21 threaded pin with 2 nuts for mounting.
ex. VAT, ex. delivery costs
The air flow meter is compatible with and can be mounted on to a wide variety of available measuring equipment. The sensor will detect even the minutest movements of air and the results are then output in analogue form.
ex. VAT, ex. delivery costs
The air flow meter is compatible with and can be mounted on to a wide variety of available measuring equipment. The sensor will detect even the minutest movements of air and the results are then output in analogue form.
