Absolute Moisture Meter PCE-GMM 15

Absolute Moisture Meter PCE-GMM 15

Order no.: PCE-GMM 15
GTIN (EAN): 4250348738387
US$ 247.00
ex. VAT, ex. delivery costs
:
4250348738387
PCE-GMM 15
Available in:1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Description

Absolute Moisture Meter for 25 seed types / Approx. 90 ml sample volume / Capacitive measurement with compression / Automatic temperature compensation / Alarm function & data memory / Manual measurement correction possible

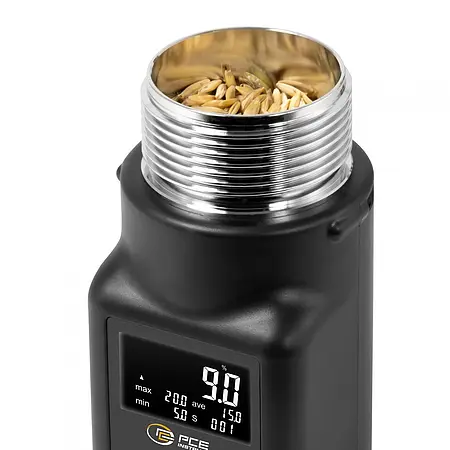

Our portable Absolute Moisture Meter was developed to determine the moisture content of 25 different types of seed quickly, easily and precisely. The measuring range is typically between 3% and 80% moisture, depending on the type of grain, with a resolution of 0.1% and an accuracy of ±0.5%. The required sample quantity is approx. 90 ml, which allows quick and uncomplicated use directly on site. The Absolute Moisture Meter works on a capacitive basis and utilizes the compression of the sample caused by filling and sealing to increase the measuring accuracy.

The device has an alarm function for individually adjustable upper and lower limits, a display of minimum and maximum values and a function for calculating the average value. It also offers a data storage function for up to 240 measured values, a user-friendly keypad and automatic temperature compensation.

Thanks to the described compression, the Absolute Moisture Meter provides reliable measured values for checking storage and processing maturity. The grain moisture analyzer is suitable for professional applications where accurate moisture determination of grain is required.


Highlights

- Sample quantity 90 ml
- for 25 seed types
- Automatic temperature compensation
- Data memory for 240 measurements
- Alarm function
- Automatic switch-off

Specification

Absolute moisture
Measurement range up to  3 ... 80 %
Resolution  0,1 %
Accuracy  ±0.5% for standardized grain types, ±1% for <10%, ±1.5% for >10%

General technical data
Measuring functions  MIN, MAX, Average value
Temperature compensation  automatic
Display type  LCD
Display size  2 Inch
Storage medium  Internal memory
Storage capacity  240 Measurements
Measured medium  Wheat, Rays, Maize, Soy beans, Paddy rice, Rice, Barley, Oats, Sorghum/Milo, Buckwheat, Peas, Rapeseed, Mustard seed, Sunflower seeds, Sugar beet seed, Coffee, Green coffee, Cocoa beans, Linseed, Lenses, Peanuts shelled, Rye grass (Together), Cocksfoot (seed), Clover, white seed, Red clover, Lucerne seed, Cabbage seeds, Beans
Automatic power-off  10 min
Alarm modes  Below limit: 0 ... 80%
Upper limit: 0 ... 80%
Menu language  English, English (GB)
Protection class (device)  IP52

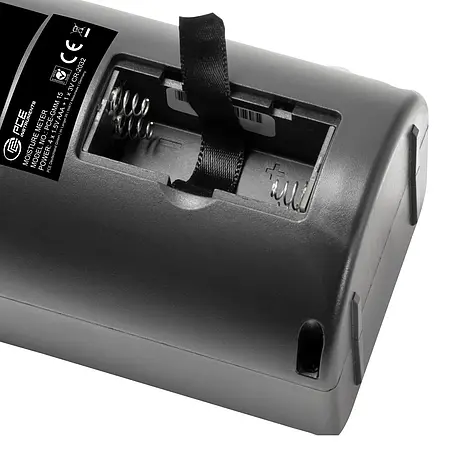

(Rechargeable) battery  4 x 1,5 V AAA battery , Alkali-manganese
Capacity  1200 mAh
Operating conditions  0 ... 60 °C , 5 ... 90 % RH
Storage conditions  0 ... 60 °C , 5 ... 90 % RH
Dimensions ( L x W x H )  76 x 73 x 166 mm
Weight  434 g

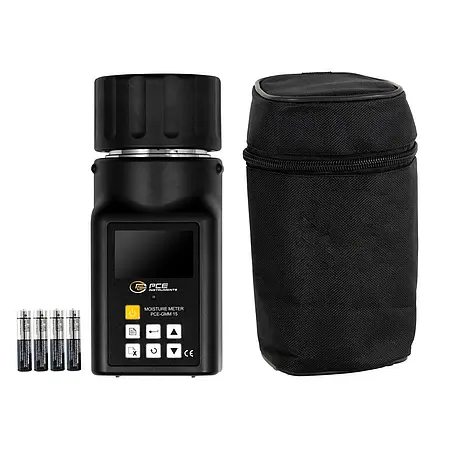

Delivery Scope

1 x Absolute Moisture Meter PCE-GMM 15
4 x 1.5V AAA batteries
1 x Instruction manual
1 x Carrying case
