Description

Laboratory for liquids up to 5 l / Stirring speed up to 1600 rpm / Stirring plate temperature up to 300°C (572°F) / External temperature sensor / Adjustable direction of rotation / Program mode: up to 6 stirring program / 1 stirring position

The Laboratory offers a maximum stirring capacity of 5 liters and a continuously adjustable speed of 100 ... 1600 rpm with a high control accuracy of ±10 rpm. Driven by a brushless motor, the Laboratory ensures reliable and maintenance-free performance. The intelligent PID temperature control enables precise heating in the range from room temperature to 300°C / 572°F. An external temperature sensor also ensures particularly precise control of the medium temperature, while an easy-to-read 3.7-inch LCD display clearly shows all the important parameters.

The robust worktop made of die-cast aluminum with a surface area of 155 x 155 mm / 6.1 x 6.1 in ensures even heat distribution and high resistance to chemical influences. Together with a stirring rod of Ø 8 x 30 mm, the Laboratory is ideal for demanding applications. Functions such as an adjustable direction of rotation, a wide timer range from 1 second ... 99 hours and 59 minutes and the option of saving up to 6 individual stirring programs offer maximum flexibility in everyday laboratory work.

Thanks to the single stirring position, the Laboratory is ideal for precise tasks in chemical syntheses, biological and pharmaceutical processes and materials research. Wherever precise temperature control and uniform stirring are required, this Laboratory impresses with its powerful technology.


Highlights

- Stirring speed adjustable from 100 ... 1,600 rpm adjustable
- For a maximum of 5 liters of liquid
- Temperature control: PID method
- External temperature sensor
- Temperature sensor
- Stirring plate temperature: 0 ... 300°C / 32 ... 572°F
- Stirring plate with die-cast aluminum surface
- Number of stirring positions: 1
- Timer: 1 s ... 99 h 59 min
- Program mode: up to 6 stirring programs
- Power supply: 230V AC, 50/60 Hz

Specification

Speed
Measurement range up to  100 ... 1600 rpm
Resolution  1 rpm
Accuracy  ±10 U/min

Temperature sensor
Measurement range up to  -50 ... +300 °C
Resolution  1 °C
Accuracy  ±0.5°C

General technical data

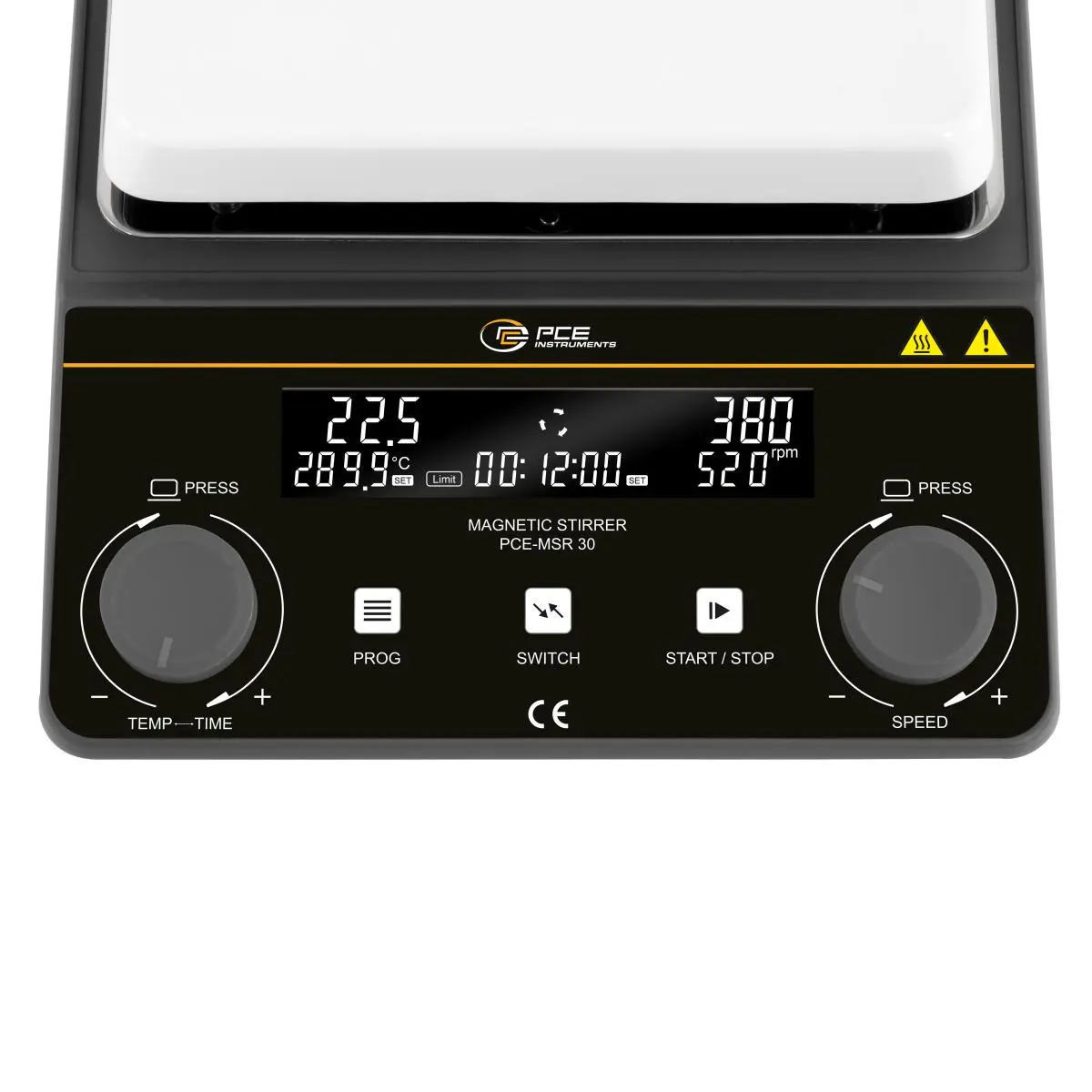

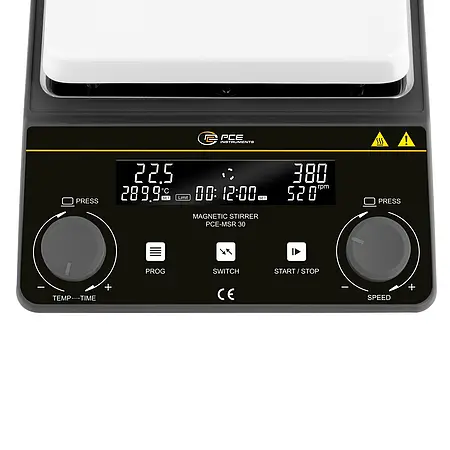

Display type  LCD
Display size  3,7 Inch
Dimensions  Stirring plate: 150 x 150 mm
Stirring rod: Ø 8 x 30 mm
Performance  550 W
Number of stirring points  1
Drive of the stirring points  Brushless motor
Max. Stirring quantity  5 l
Stirring plate material  Cast aluminium with ceramic coating
Temperature  Stirring plate: 0 ... 300°C / Accuracy: ±3°C
Timer from  1 s
Timer until  100 h
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  230V AC | 50/60 Hz
Connector type  Cold-device plug
Operating conditions  0 ... 50 °C , 0 ... 80 % RH
Storage conditions  0 ... 50 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  270 x 180 x 85 mm
Weight  1911 g

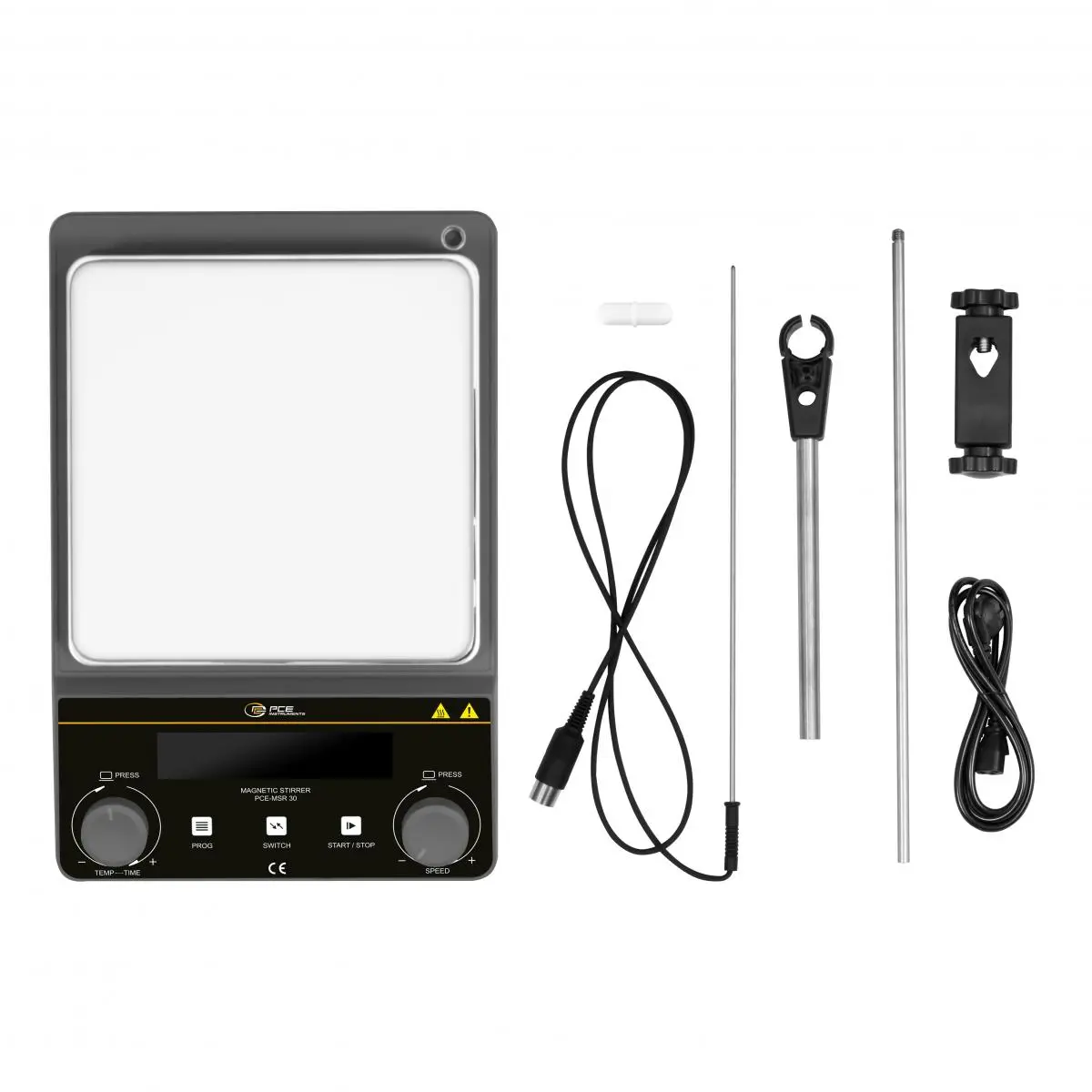

Delivery Scope

1 x PCE-MSR 30 Laboratory
1 x Temperature sensor (PT 1000)
1 x Stand
1 x Bakelite clamp holder
1 x Sensor holder
1 x Device cable
1 x Stirring rod: Ø 8 x 30 mm
1 x Instruction manual
