Paint Testing Equipment PCE-CSM 20

Order no.: PCE-CSM 20

US$ 6,963.00
ex. VAT, ex. delivery costs
Solids & liquids
Available in: 1-2 days

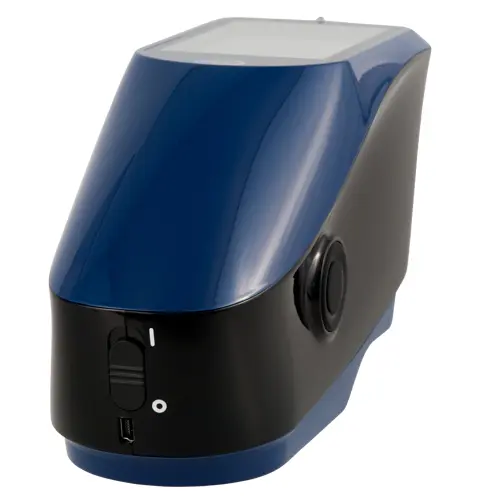

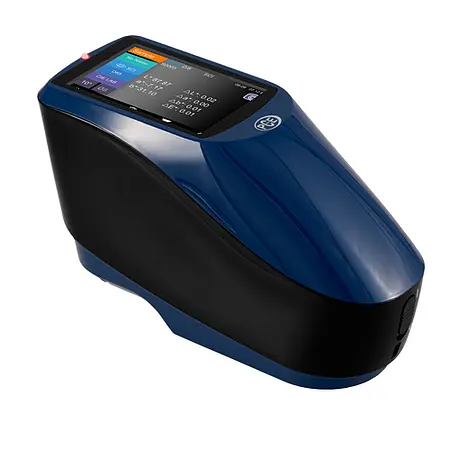

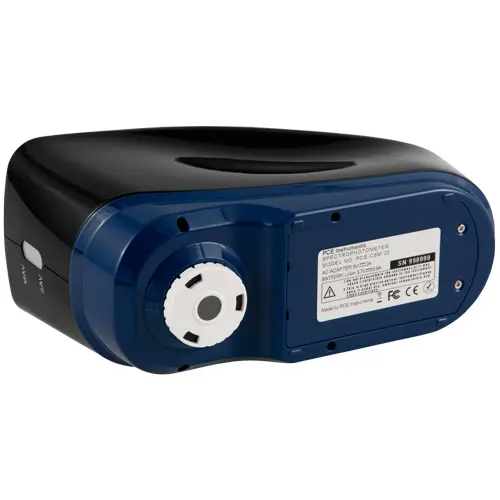

Paint Testing Equipment PCE-CSM 20
High-quality spectrophotometer /
Powerful lithium-ion battery / Single or average value measurement /
Evaluation via USB / 4 options  for light source

The paint testing equipment is used for high-quality color measurement. Featuring a single 8 mm aperture and including SCI and SCE specular modes for industrial color measuring applications. The paint testing equipment offers a long battery life, a 4-color lamp life and an easy-to-use portable design. The powerful battery allows up to 5000 measurements. The lighting used on the paint testing equipment is designed to carry out three million measurements. Camera/illumination locating for small samples.

The high-quality processing of the paint testing equipment is very fast. The ability to choose aperture size and light source allows the user to discriminate between colors that may look the same. Four color space choices allow the user to choose the best space for their samples. The 256 image element double array CMOS imager allows measurement from 400 to 700 nm in 10 nm increments. The measured data can be transmitted to a computer via included USB. Sophisticated analysis software is also included in the delivery contents.

- Long battery life
- USB cable for data transfer to included software
- Portable for ease of use
- Reference memory of 2000 colors, storage for 20,000 samples

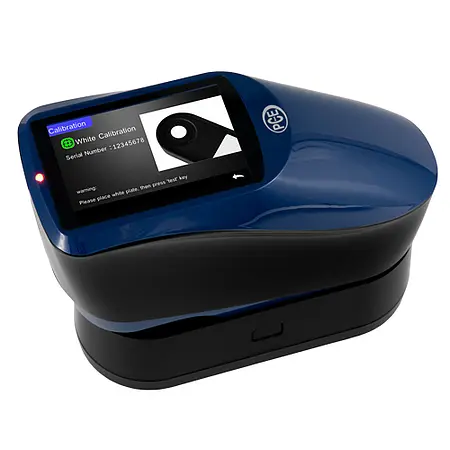

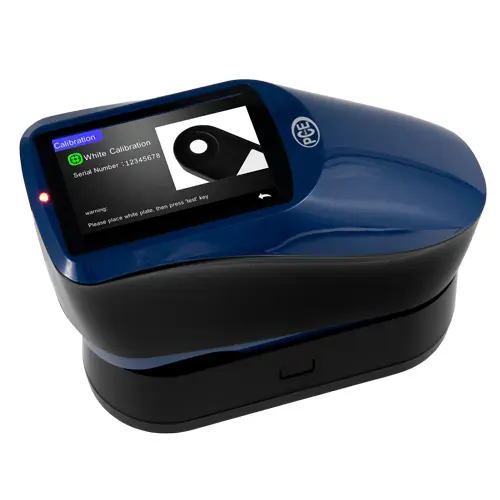

- Includes white and black calibration standards
- High measuring accuracy and stability with 4 illumination choices
- Single and average measurements with delta pass/fail display
- Spectrophotometer measures from 400 to 700 nm in 10 nm increments
- Conforms with CIE No. 15, GB/T  3978, GB2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil

Measuring geometry

8° / d

Integrated sphere size 48 mm
Light source LED lighting system, UV light
Spectrophotometric operation Concave grid
Sensor 256 Pixel CMOS image sensor
Wavelength range 400 ... 700 nm
Wavelength interval 10 nm
Measured reflection range 0 ... 200%
Measuring aperture Single panel: 8 mm (0.3")
Specular component SCI, SCE
Colour ranges CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB
Formulas for color inequality ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter)

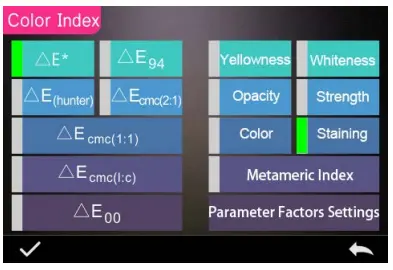

Other colorimetric index WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO), Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness
Lighting type D65, A, C, D50
Viewing angle 2° / 10°

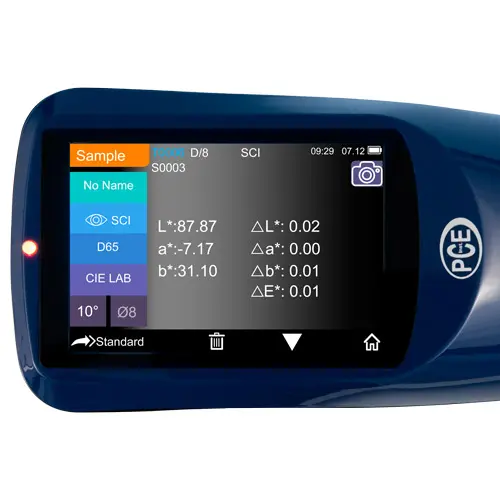

Data display Spectrogram values, colour values samples, colour difference values / graph, pass / fail result, colour balance
Measuring time 2.6 seconds
Repeatability Standard deviation within ΔE*ab 0.06
Average of 30 measurements of standard white plate
Error between equipment ΔE*ab 0.4
Measurement mode Single measurement, average value measurement
Tracking procedure Finding the measuring points by camera
Power supply Built-in Li-ion battery
Dimensions 184 x 77 x 105 mm / 7.2 x 3.0 x 4.1" (L x W x H)
Weight 600 g / 1.3 lbs
Lamp lifespan 5 years / over 3 million measurements
Display 3.5 in TFT colour LCD, capacitive touch screen
Data interface USB
Data storage 2000 standards, 20,000 samples
Menu languages English, Chinese
Operating conditions 0 ... 40°C / 32 ... 104°F
0 ... 85% relative humidity (non-condensing)
Storage conditions -20 ... 50°C / -4 ... 122°F
0 ... 85% relative humidity (non-condensing)

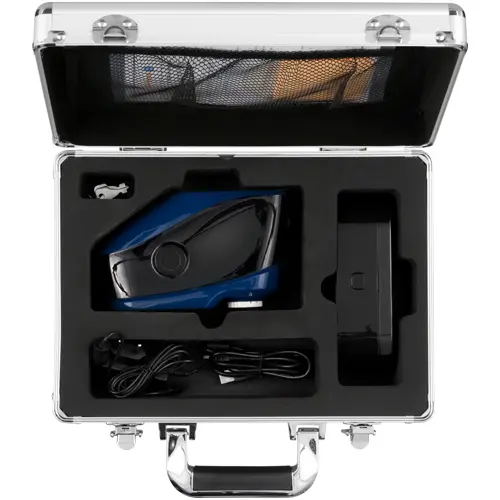

1 x Paint Testing Eqipment PCE-CSM 20
1 x Li-Ion battery (installed)

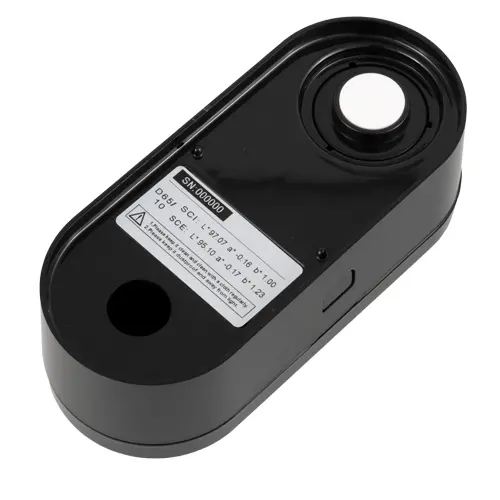

1 x Calibration standard (white and black)
1 x Charging adapter
1 x Dust cover
1 x USB cable
1 x Factory calibration certificate
1 x CD-Rom with software
1 x Cleaning cloth
1 x User manual
1 x aluminum carry case
