Paint Test Equipment PCE-CSM 1

Order no.: PCE-CSM 1
US$ 1,709.00
ex. VAT, ex. delivery costs
Handheld / Desktop
Internal Sensor
Available in: 1-2 days

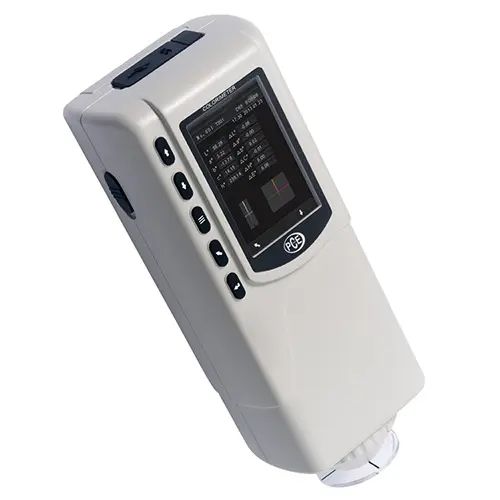

Paint Test Equipment PCE-CSM 1 for quality control
PC software included / Li-ion battery / 3 different color spaces / D

etermination of reference values and samples / White and black calibration

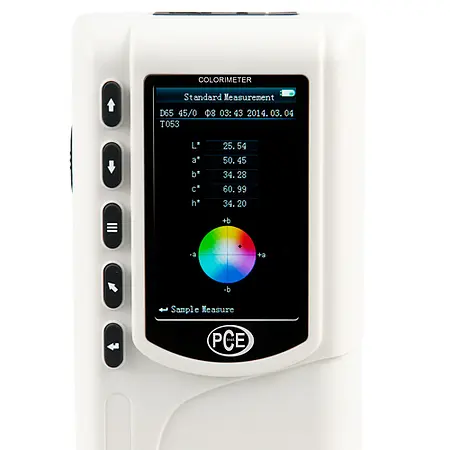

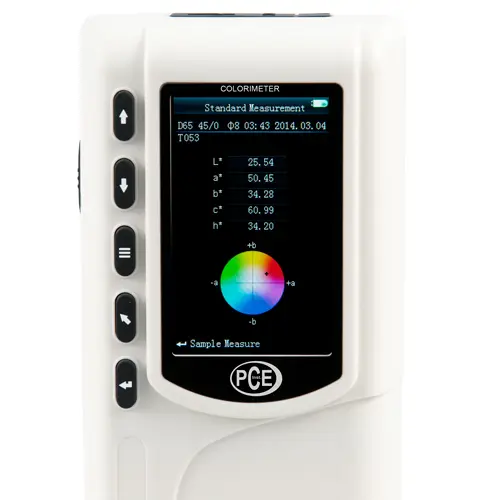

The paint test equipment was developed for quality control and offers a very high accuracy. When using the color meter, you can choose between different color spaces (CIE L*a*b*C*h, CIE L*a*b* and CIE XYZ). After a measurement with the paint test equipment, the reading can be used as a reference value while other readings can be recorded as a sample and later be compared to the reference value easily.

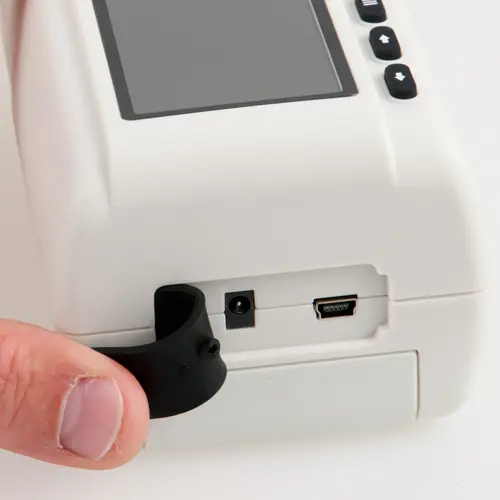

In addition to the individual color space coordinates, the deviation between the reading is also displayed. When using the paint test equipment, it is possible to store up to 100 reference values and up to 20,000 samples on the device. The measured data can also be transferred to a PC via the USB interface. A special PC software is included in the package.

- CIE L*a*b*C*h, L*a*b* and XYZ
- Automatic white and black calibration
- Determination of reference values and samples
- Rechargable Li-ion battery
- Measuring of different colors
- Suitable for many different surfaces
- 8°/d geometry diffused illumination integrating sphere system illuminates sample from 8-degree angle
- Easy to use
- Incl. PC software
- 6 mm measuring aperture


Geometry 8°/d
Aperture Ø 6 mm
Sensor Silicon photoelectric diode
Color spaces CIE L*a*b*C*h, CIE L*a*b, CIE XYZ
Color difference formula ΔE*ab, ΔL*ab, ΔE*C*H

Observation Angle

Light source

CIE 10°


Light source device LED blue light
Errors between each equipment ≤0.80 ΔE*ab
Storage 100 reference values, 20,000 samples
Repeatability Standard deviation within ΔE*ab 0.08
Average of 30 measurements of standard white plate
Power supply Rechargeable lithium-ion battery
3.7 V @ 3200-mAh
Charging time 8 hours
Battery life Approx. 5,000 measurements
Lamp life 5 years, more than 1.6 million measurements
Storage conditions Air temperature: 0 ... 40°C / 32 ... 104°F
Air humidity: 0 ... 85% RH, non-condensing
Dimensions 205 x 67 x 80 mm / 8.07 x 2.63 x 3.14 in
Weight 500 g / 17.6 oz

1 x Paint Test Equipment PCE-CSM 1
1 x USB cable
1 x Lithium-ion battery
1 x AC Charger adapter
1 x Wrist band
1 x Calibration plate (white)
1 x Soft meter carry case
1 x PC software
1 x Instruction manual
