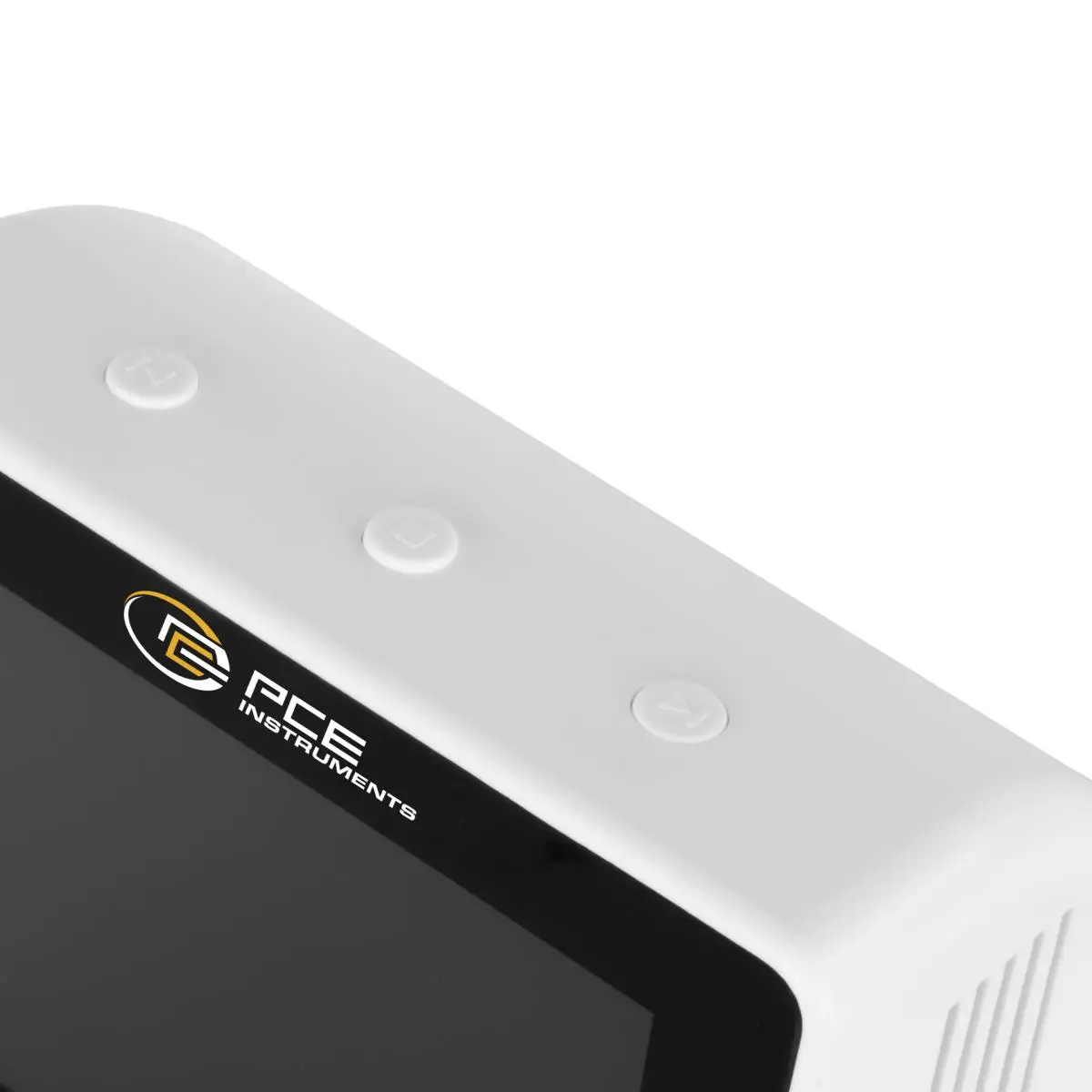

Oxygen Meter PCE-RCM 18

Oxygen Meter PCE-RCM 18

Order no.: PCE-RCM 18
GTIN (EAN): 4250348747655
US$ 187.00
ex. Sales Tax, ex. delivery costs
:
4250348747655
PCE-RCM 18
Available in:1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Description

Oxygen Meter with data logger / Automatic and adjustable view switching / Visual traffic light alarm display / Three display modes

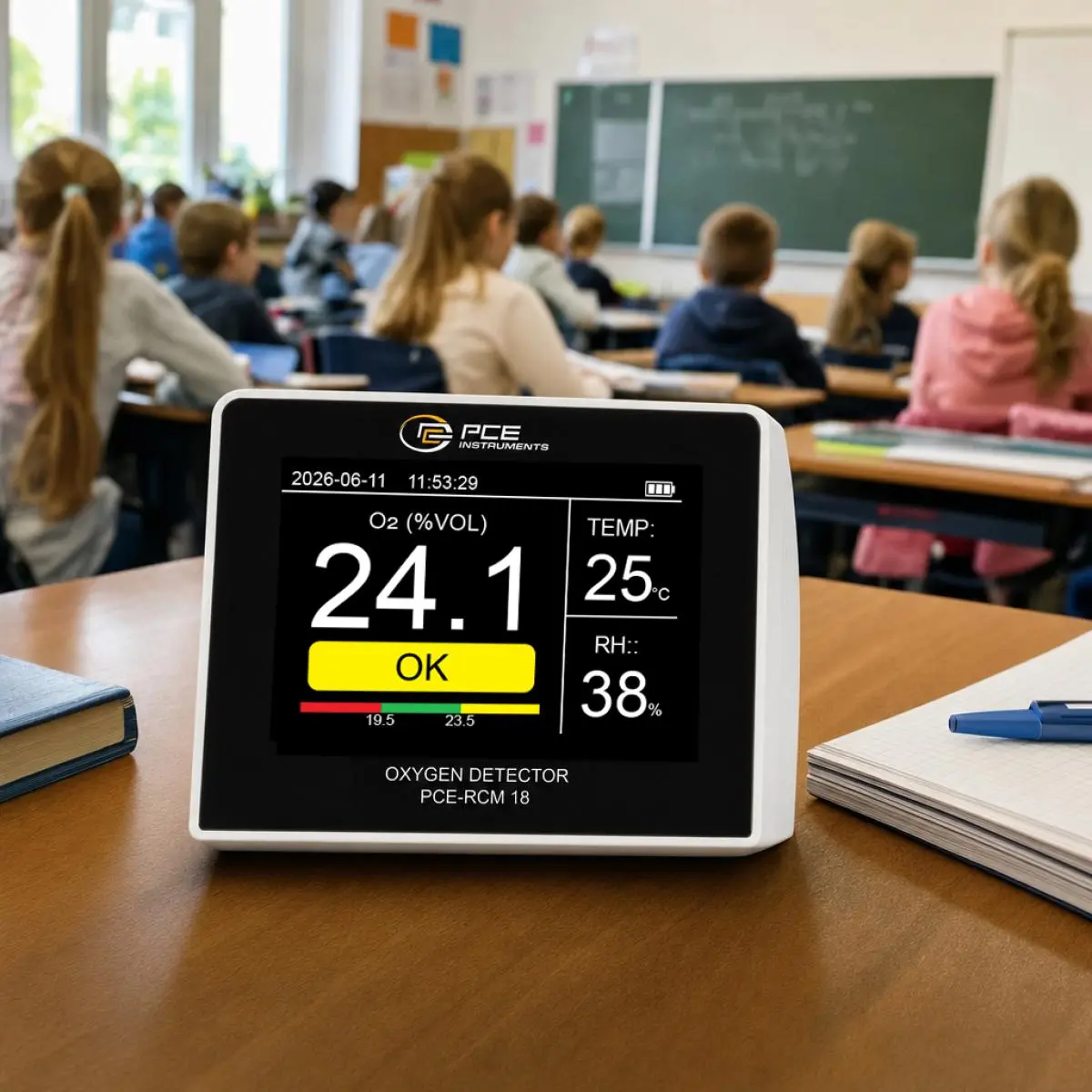

The Oxygen Meter is suitable for continuous monitoring of oxygen content, temperature, and relative humidity in indoor areas. Typical applications include offices, laboratories, technical rooms, storage areas, schools, greenhouses and any environments where reliable indoor air monitoring is required.

The device measures oxygen content in the range of 0 ... 30% with a resolution of 0.1%, temperature from -9 ... 55°C with a resolution of 1°C, and relative humidity from 0 ... 100 % with a resolution of 0.1%. A 3.5-inch LCD colour display ensures clear and easy-to-read presentation of the measured values. The Oxygen Meter offers several views such as real-time values, trend display and history display, as well as automatic switching between displays. The device has an integrated alarm function with visual traffic light indication and fixed threshold values for rapid assessment of air quality.

The Oxygen Meter also shows the date and time directly on the display. For long-term measurements, the Oxygen Meter has an integrated data logger with large memory, adjustable interval and rechargeable lithium battery for flexible use. The stored measured data can be viewed directly on the device; reading out or transferring the memory to external systems is not yet possible. Overall, the Oxygen Meter combines precise measurement technology, clear presentation and extensive recording functions in a compact device.


Highlights

- Oxygen, temperature and humidity sensor
- Automatic view switching
- Integrated data logger
- Memory: 65534 records
- Storage interval: 10 ... 600 s
- Recording duration adjustable up to 1080 min
- Traffic light alarm display

Specification

Oxygen
Measuring range  0 ... 30 %
Resolution  0,1 %
Accuracy  ±0.3% of reading

Relative humidity
Measuring range  0 ... 100 %
Resolution  1 %
Accuracy  5% RH

Temperature
Measuring range  -9 ... +55 °C
Resolution  1 °C
Accuracy  ±0.5 °C

General technical data
Display type  LC colour display with backlight
Display size  3,5 in
Storage medium  Internal memory
Storage capacity  65534 Data records
Storage interval from  10 s
Storage interval to  600 s
Interface  Micro-USB
Service life  Oxygen sensor: approx. 2-3 years
Operating time  8 h
Automatic power-off from...to  0 ... 18 h
Menu language  English, English (GB), Russian, Chinese, Japanese, Korean
Protection class (device)  IP20
Power supply  5 V, 1 A
(Rechargeable) battery  1 x 3,7 V internal , Lithium-ion battery
Capacity  3000 mAh
Operating conditions  -9 ... 55 °C , 0 ... 90 % RH
Dimensions ( L x W x H )  100 x 60 x 76 mm
Weight  203 g

Delivery Scope

1 x Oxygen Meter PCE-RCM 18
1 x Micro-USB cable
1 x Operating instructions
