US$ 228.00
Bilingual Technical Support (EN / ES)
Public Service, Military and First Responder Discount
30 Day Return Policy
2 Year Warranty

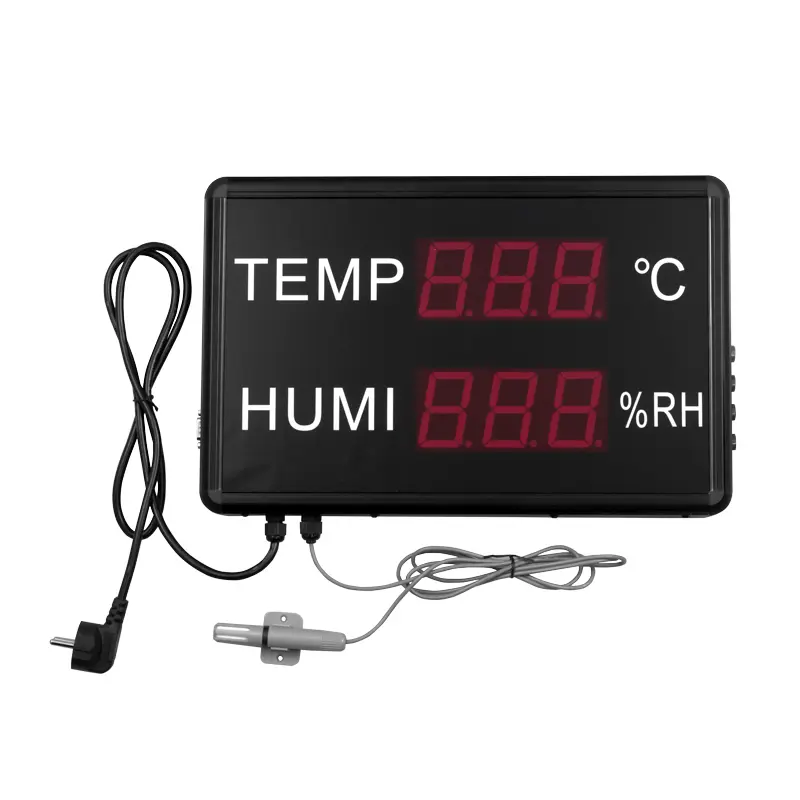

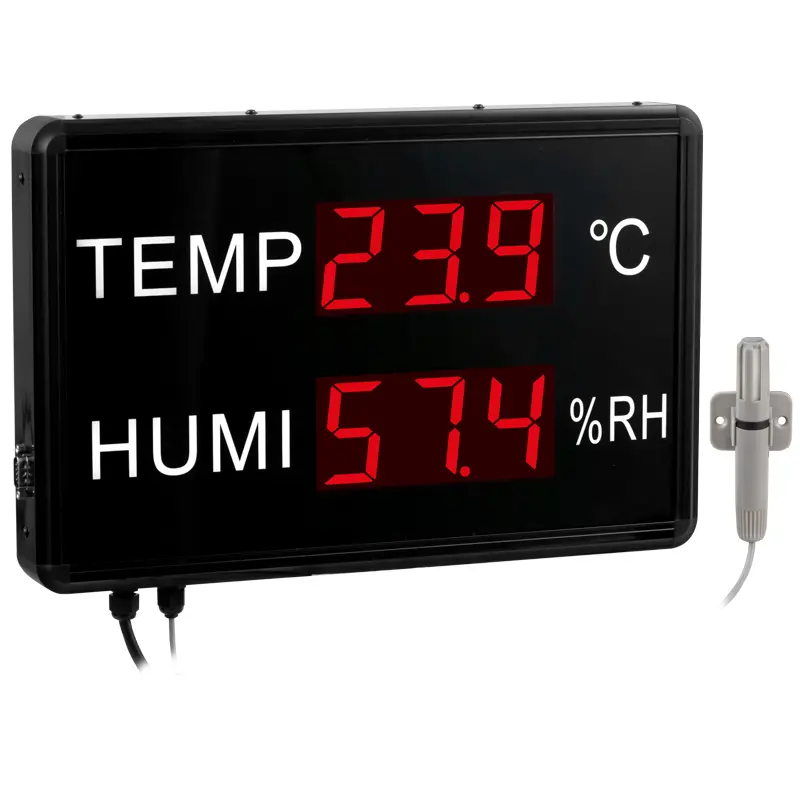

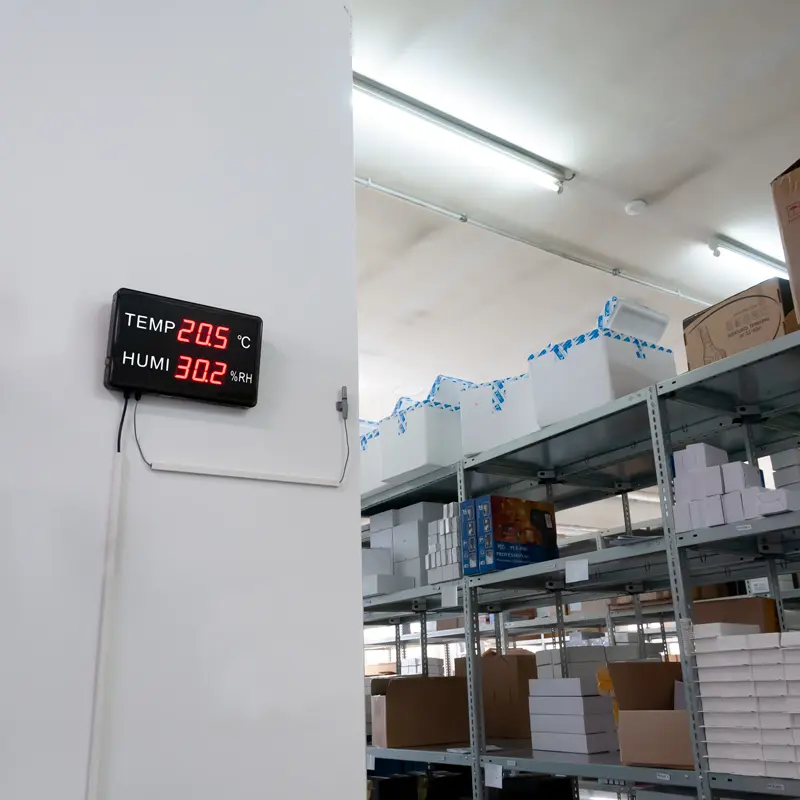

The temperature indicator is used to measure the environmental parameters of temperature and humidity. The temperature indicator finds its application in warehouses, open-plan offices, schools, etc. The temperature indicator has 55 mm high digits that indicate the temperature and humidity.
Due to the large size of the digits, the temperature indicator display can be read from distances up to 30 m.

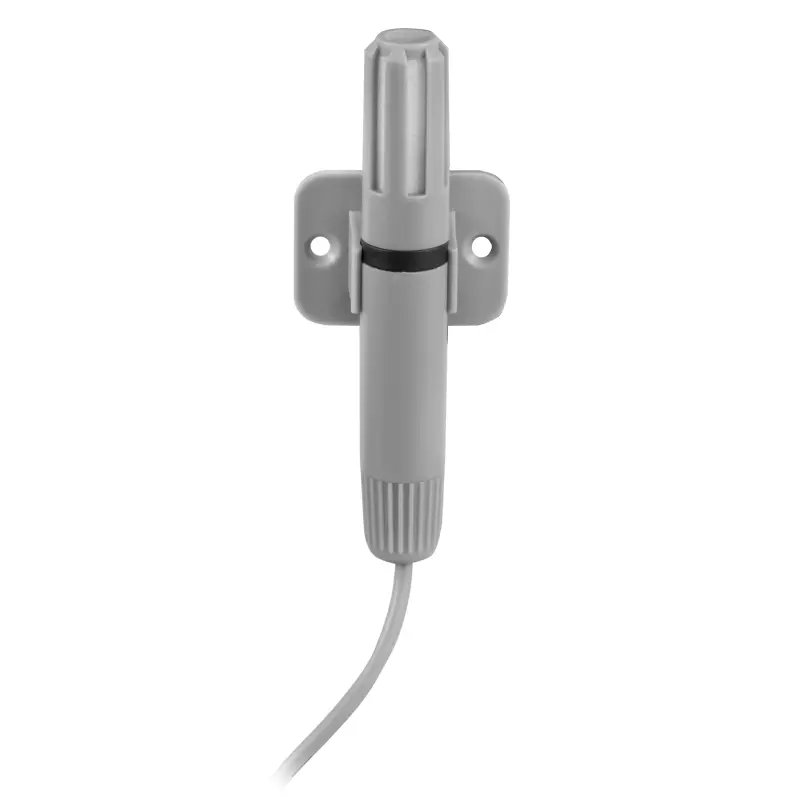

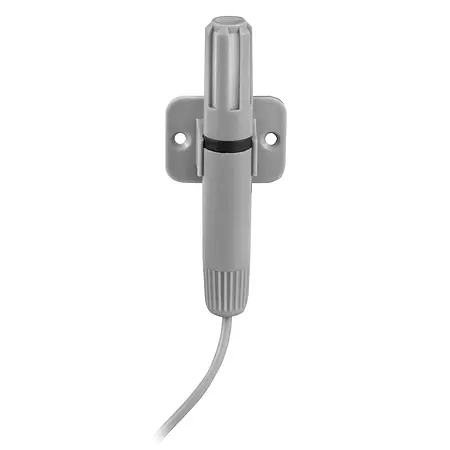

The temperature and humidity sensor of the temperature indicator is connected by a 2 m long cable.

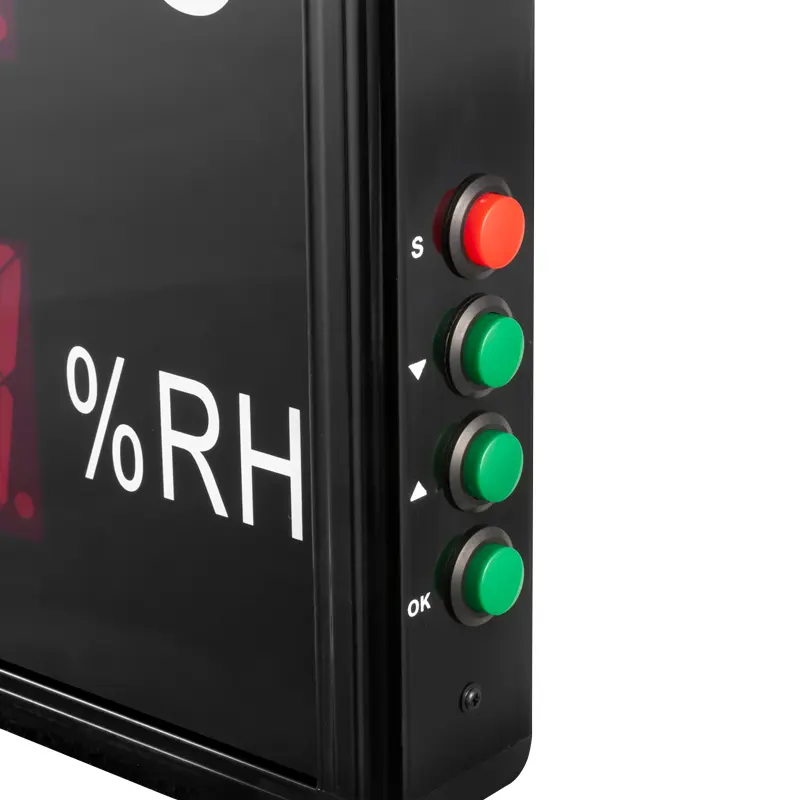

The temperature indicator is operated by 230 V AC mains voltage. Via the side-mounted buttons, alarm levels can be set on the temperature indicator.
| Measuring function | |
| Measuring range temperature |
-40 ... 85 °C |
| Resolution | -10 ... 85 °C: 0.1 °C |
| <-10 °C: 1 °C | |
| Accuracy | ± 0.3 °C |
| Measuring range humidity | 0 ... 99 % r.H. |
| Resolution | 0.1 % r.H. |
| Accuracy | ± 4 % r.H. |
| Display | 2 x 3 digit LED display (red) |
| 55 mm character height | |
| Reading distance | ca. 30 m |
| Cable lengths | Sensor cable ca. 2 m |
| Power supply: ca. 1 m | |
| Power supply | Primary: 100 .. 240 V AC 50/60 Hz |
| Secondary: 12 V DC, 0.5 A | |
| Operating conditions | -20 ... 70 °C / max. 85 % r.H. |
| Dimensions | 395 x 255 x 50 mm |
| Weight | ca. 2.5 kg |
