Panel Indicator PCE-N24T

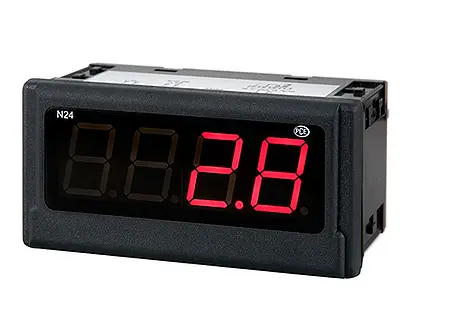

Panel Indicator PCE-N24T [zoom]
Panel Indicator PCE-N24T
Panel Indicator PCE-N24T
Panel Indicator PCE-N24T rear side

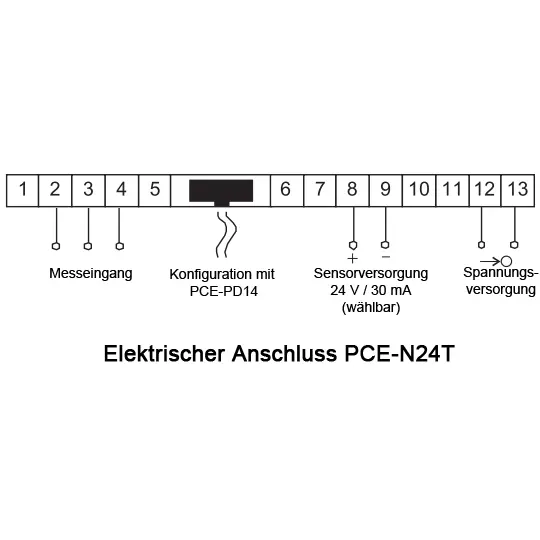

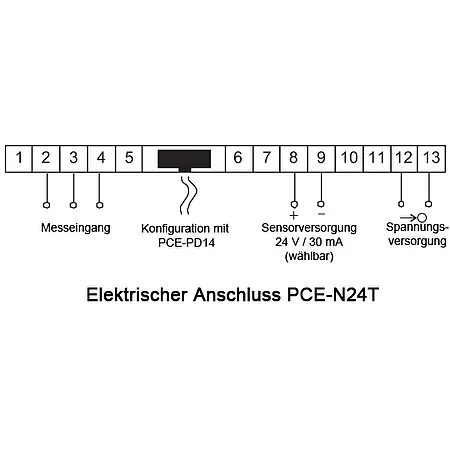

Panel Indicator PCE-N24T connection diagram

Panel Indicator PCE-N24T

Order no.: PCE-N24T
GTIN (EAN):
US$ 123.00
ex. Sales Tax, ex. delivery costs
PCE-N24T
Available in:10 - 14 days
–
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Accessory

Description

Digital temperature display for Pt100 and thermal elements / 4-digit LED /
20 mm digit height / compatible with PCE-PD14 programming adapter

The digital indicator PCE-N25T is used for processing signals coming from temperature sensors. Depending on your specific needs, the digital indicator can be ordered with different inputs for thermocouples (type J, K) or resistance thermometers (Pt100). The input signal of the digital indicator is freely scalable, which increases its application possibilities. The measured values are shown on the large 5-digit LED display. As an option, an integrated 24 V sensor power supply system is available for connecting 2-wire sensors or transducers. The power supply of the digital indicator itself can also be selected, depending on your needs. To set up the digital indicator, you can use the optional programming adaptor PCE-PD14 to connect it to a PC. There you can use the free PC software LPCon to adjust the settings.

Highlights

- For PT100 sensor or thermal element
- Diameter: 96 x 48 x 64 mm
- Measurement speed: > 0.5 sec.
- Solid Enclosure
- 4 digit LED display (20 mm)
- Display: red on black

Specification

General Technical Specifications of the Panel Indicator PCE-N24T
Input (arbitrary)
Pt100
Thermal element J
Thermal element K 		-50 °C ... +150 °C / -50 °C ... +400 °C
-50 °C ... +1200 °C
-50 °C ... +1370 °C
Accuracy  ± (0.2 % FS + 1 dgt.)
Internal resistance 10 Ω ± 1 %
Scaling 2-point-scaling
Display 4-digit, 7-segments, LED, digit height: 20 mm
Display range -1999 ... 9999
Power Source for Sensor (arbitrary) 24 V DC, max. 30 mA
Surrounding temperature During Operation: -10 °C ... +55 °C
Storage: : -25 °C ... +85 °C
Diameters 96 mm x 48 mm x 64 mm
Size of switch board 92 mm x 45 mm (according to DIN)
Power Source (arbitrary) 24 V AC
110 V AC
230 V AC
85 ... 253 V AC/DC
20 ... 40 V AC/DC
Protection Class Front: IP 65
Weight < 200 g
Assembly Mounting clips with clamp screws,
Connection via plug board
Enclosure Solid synthetic enclosure

Delivery Scope

1 x Panel Indicator PCE-N24T
1 x Fastening material
1 x Seal
1 x Operating instructions
