Order no.: PCE-DPD-U/MB1

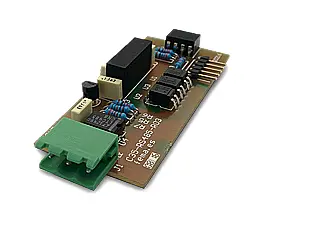

Modbus RTU Module for PCE-DPD-U

US$ 91.00
PCE-DPD-U/MB1
ex. VAT, ex. delivery costs
Available in: 1-2 days

Description

The module offers 1 serial output in Modbus RTU protocol, isolated, to be installed in the Opt1 option.

Highlights


- Allows Modbus communication

Specification

ProtocolModbus RTU
Bus typeRS-485, configurable at 9600 bps or 4800 bps
Addresses1 to 247
FormatsConfigurable 8n1, 8e1, 8o1, 8n2
Function codes4 - log reading
Logs0 - indication value (16 bits)
1 - number of decimals (16 bits)
Mistakes0 - function not supported
1 - registration not accessible
Isolation1000V DC
Allowed location        Opt1


Delivery Scope


1 x Modbus RTU PCE-DPD / MB1 module
