Condition Monitoring Vibration Meter PCE-VT 3750

Order no.: PCE-VT 3750

GTIN (EAN): 4250348732965

Accessory

ISO Calibration Certificate CAL-V-I for Vibration Meter

₹33,033.00

Description

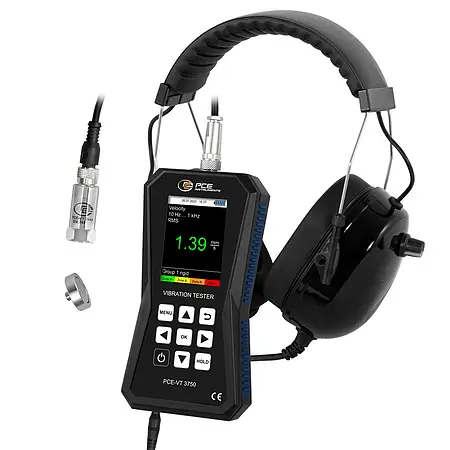

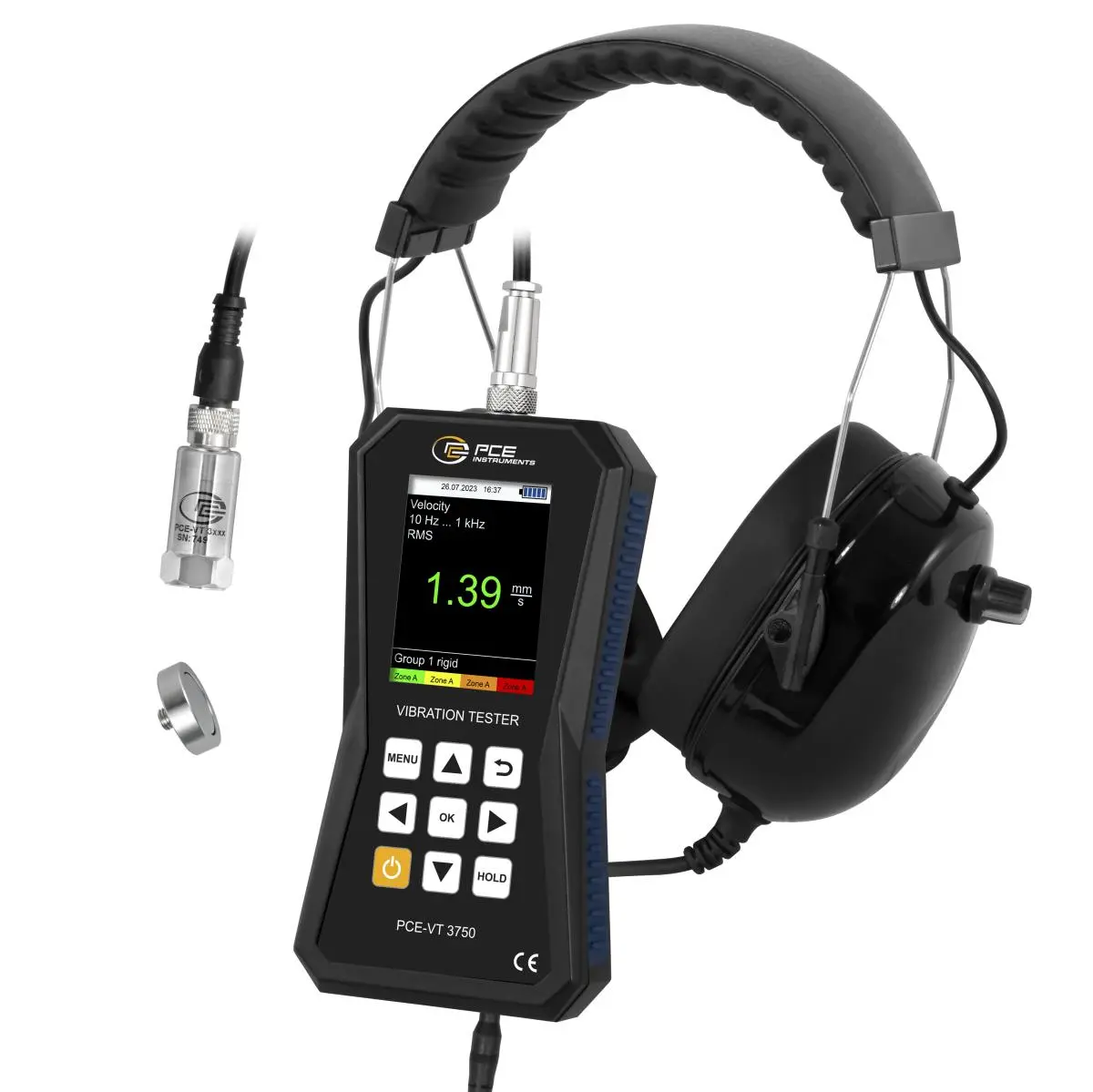

Handy Condition Monitoring Vibration Meter for vibration monitoring of machines and systems / HOLD function / Peak value measurement / Handheld device for mobile vibration measurement / Automatic ISO 10816-3 evaluation / incl. headset

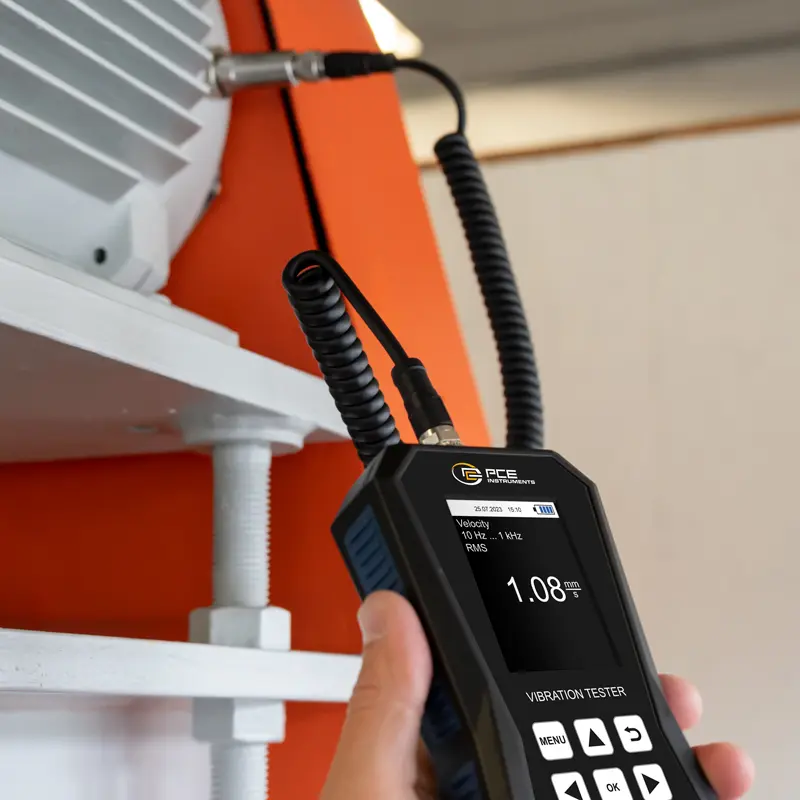

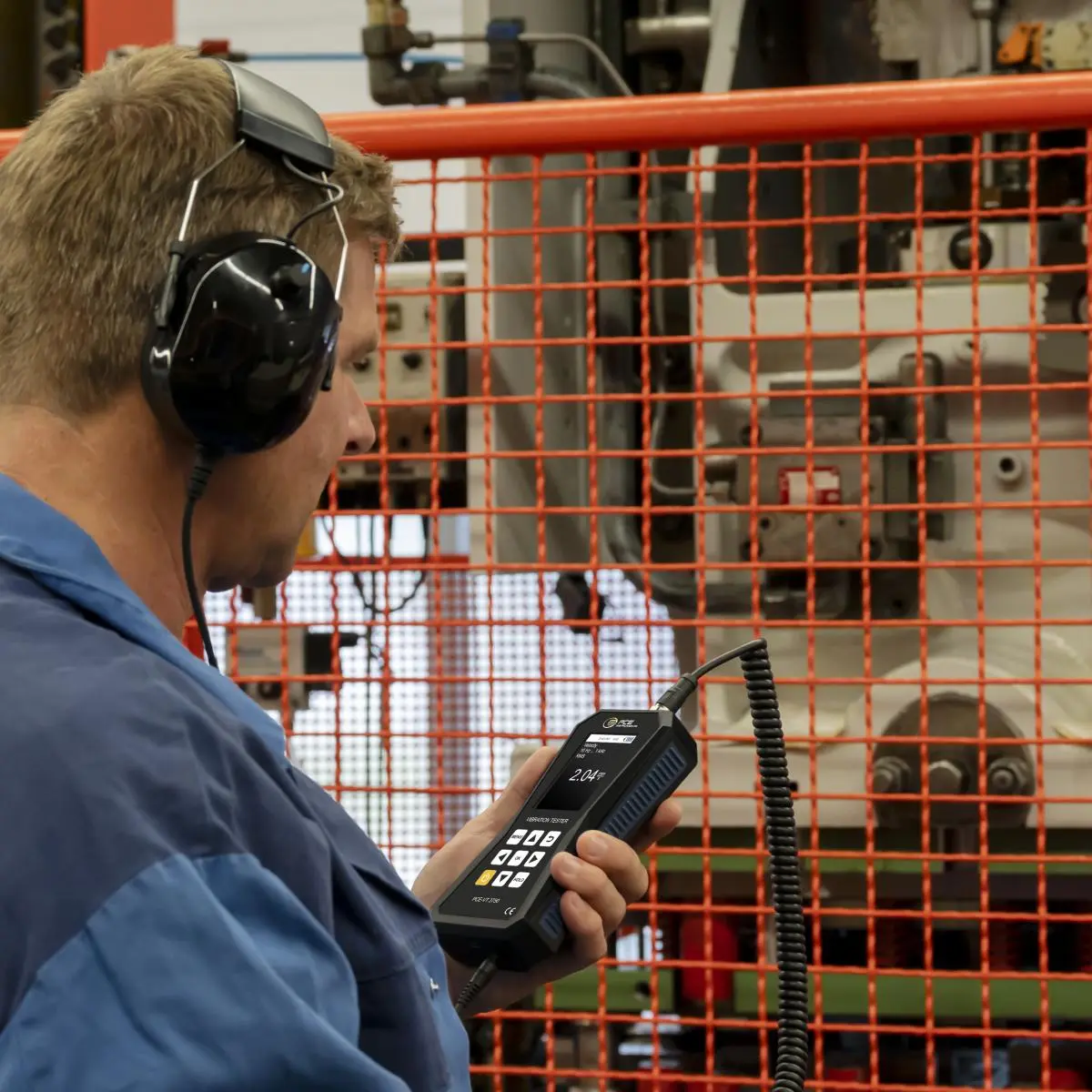

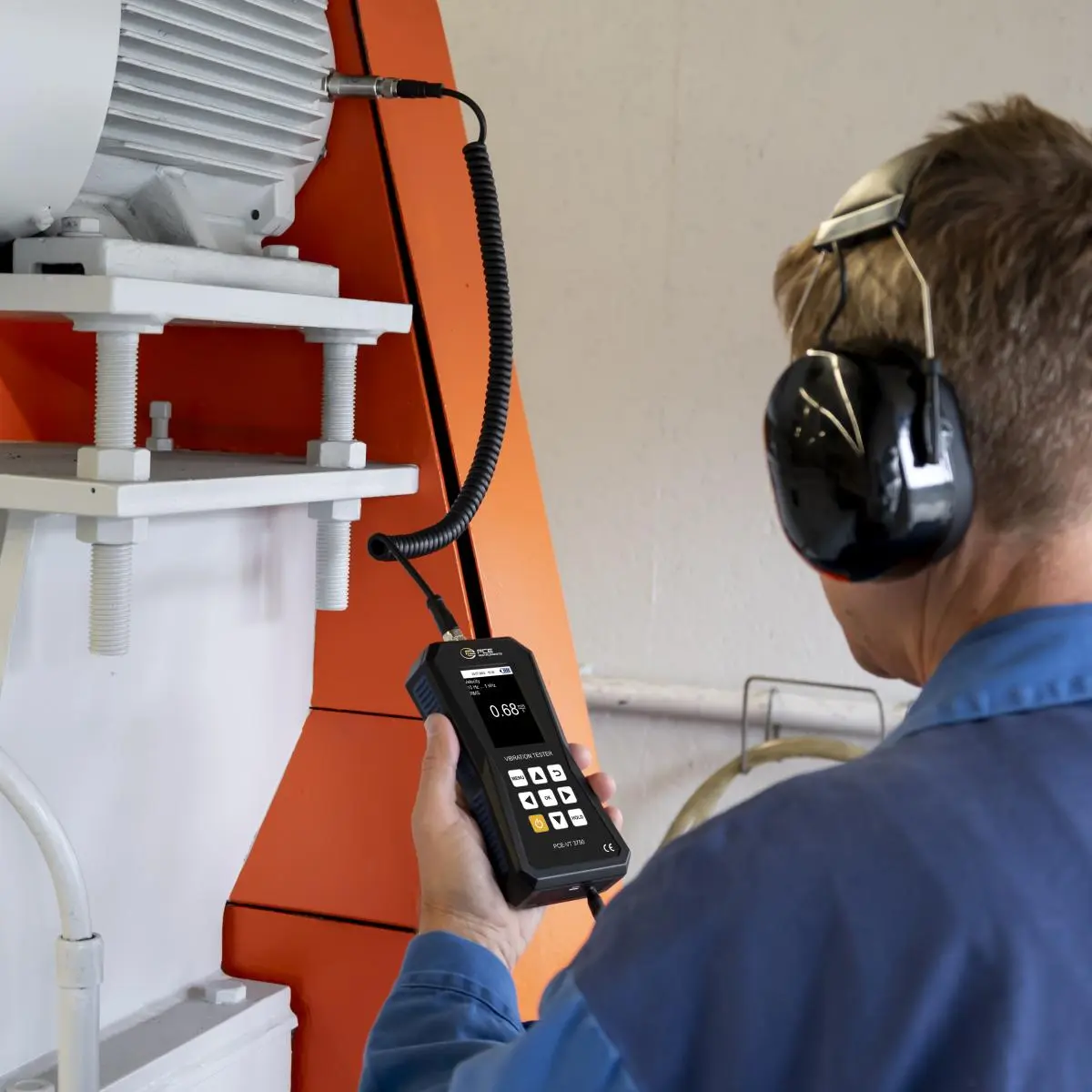

The condition monitoring vibration meter is ideal for maintenance workers to quickly check vibrating parts, machines and systems. This condition monitoring vibration meter shows the vibration acceleration, vibration velocity and vibration displacement directly on the display. You can use the device to quickly and reliably detect machine imbalances which can lead to, for example, bearing damage. The condition monitoring vibration meter is equipped with a mode that allows a measurement according to ISO 10816-3 to be carried out. The condition monitoring vibration meter analyzes the measured values and automatically shows a good / bad evaluation on the display.

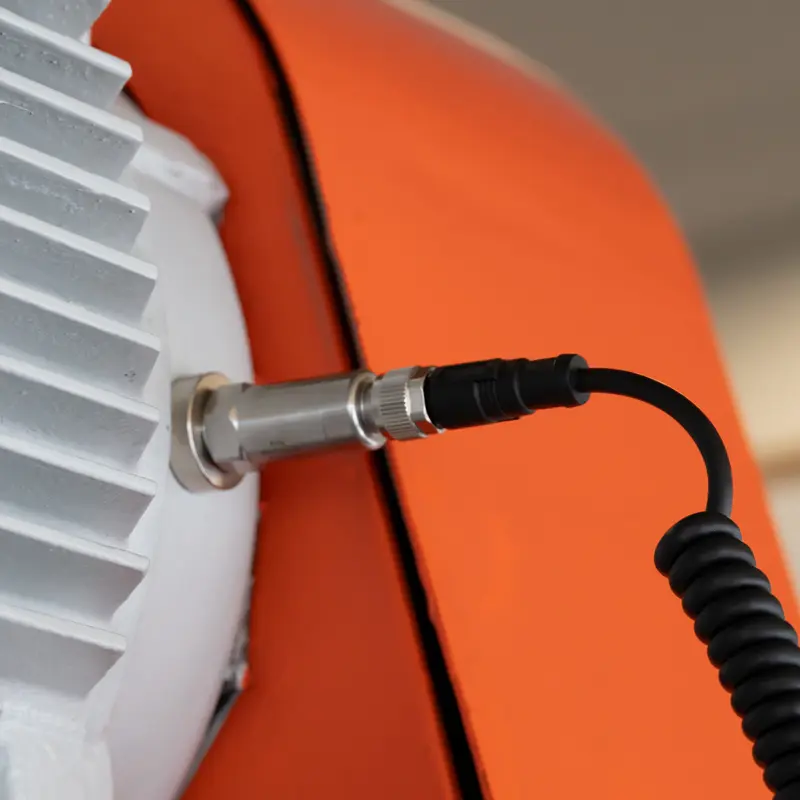

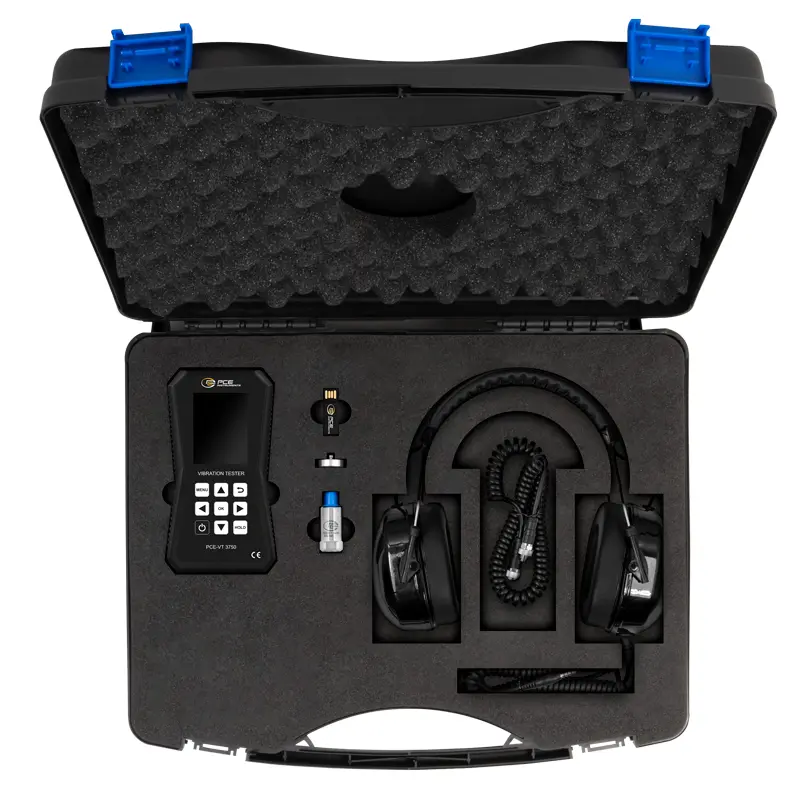

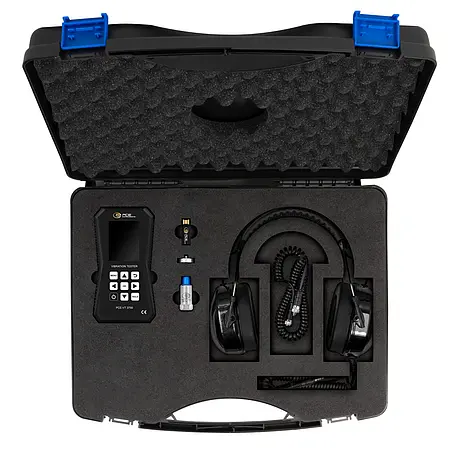

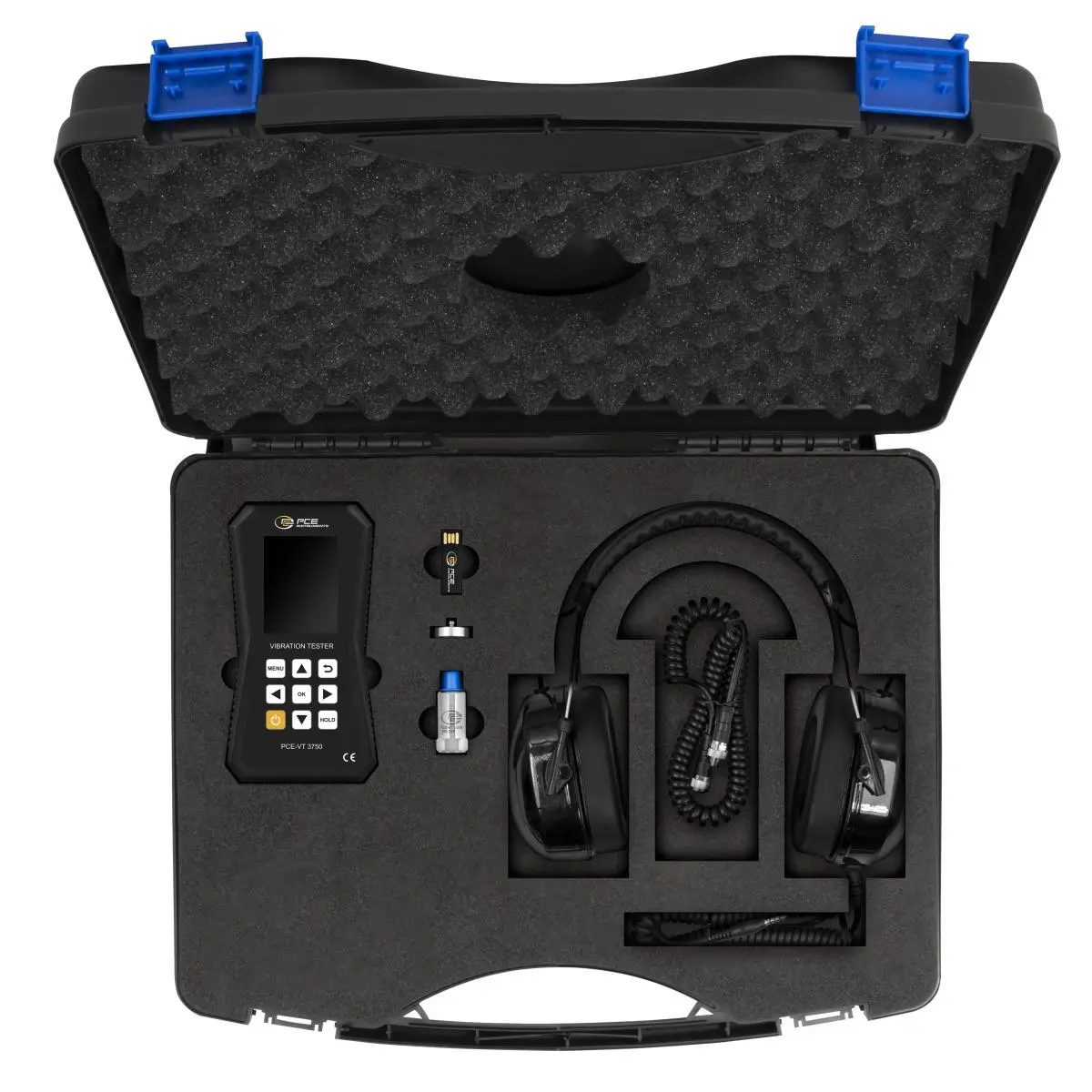

The condition monitoring vibration meter is supplied with a sensor on the spiral cable, magnet adapter, service bag and batteries. The display of the condition monitoring vibration meter is a colored graphic display, which makes operation easier, since all instructions and menu items are shown in plain text. The 12 languages in the menu of the vibration meter are easily switchable.

Highlights

- Automatic ISO 10816-3 evaluation

- Easy to handle

- For mobile vibration measurement

- The measurement unit can be switched between the metric system and imperial units

- Colored graphic display

- Peak-hold function

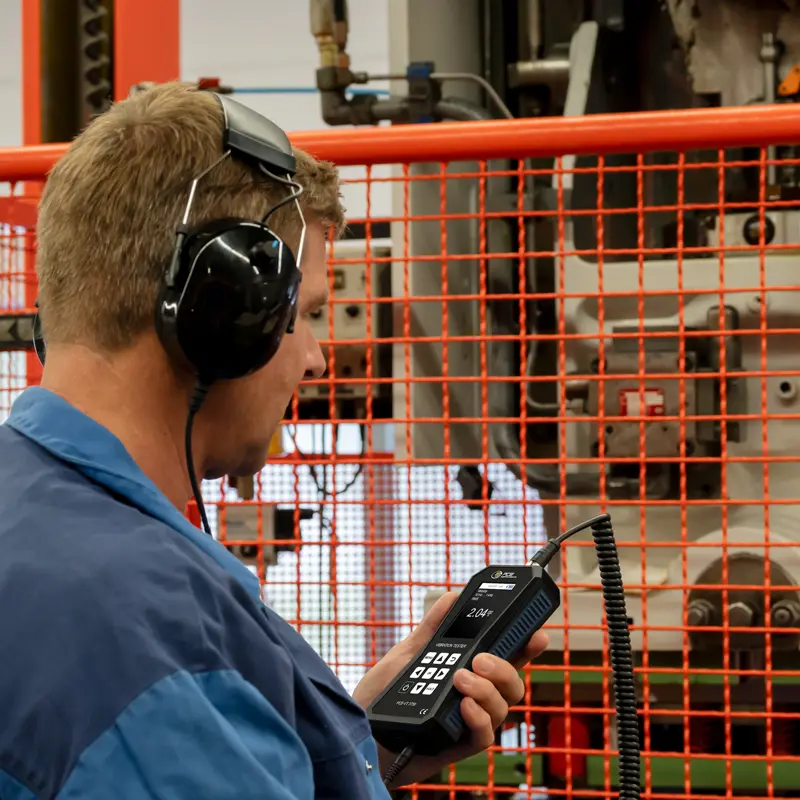

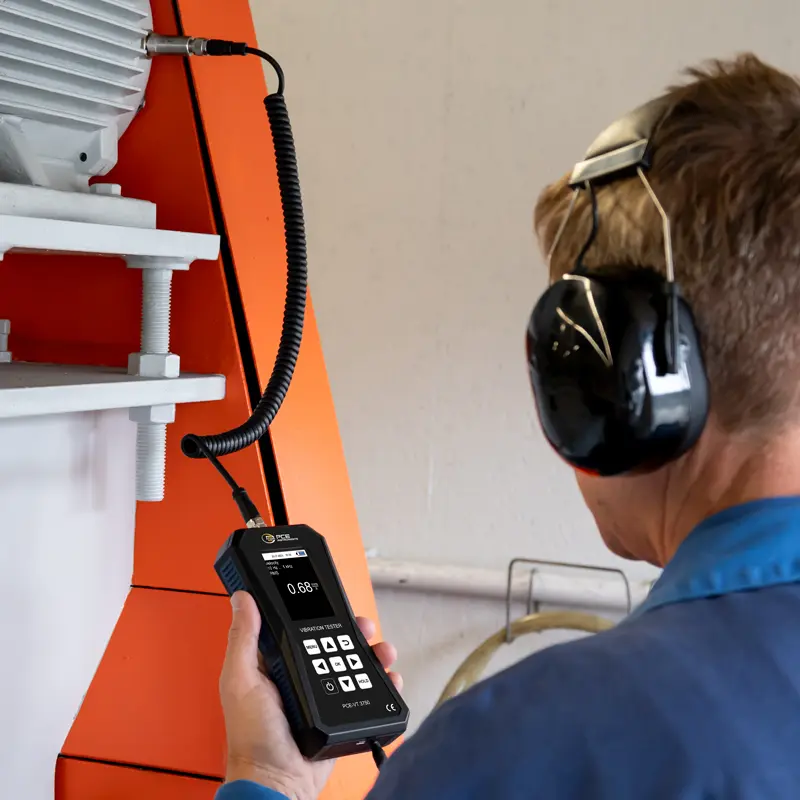

- incl. headset

Specification

Acceleration
Measuring range	0 ... 399,9 m/s²
Resolution	0,1 m/s²
Accuracy	±2 % @ 160 Hz
Frequency range	1 kHz ... 10 kHz 10 Hz ... 10 kHz

Speed
Measuring range	0 ... 399,9 mm/s
Resolution	0.1 mm/s
Accuracy	±2 % @ 160 Hz
Frequency range	10 Hz ... 1 kHz

Path
Measuring range	0 ... 3,9 mm
Resolution	1 µm
Accuracy	±2 % @ 160 Hz
Frequency range	10 Hz ... 200 Hz

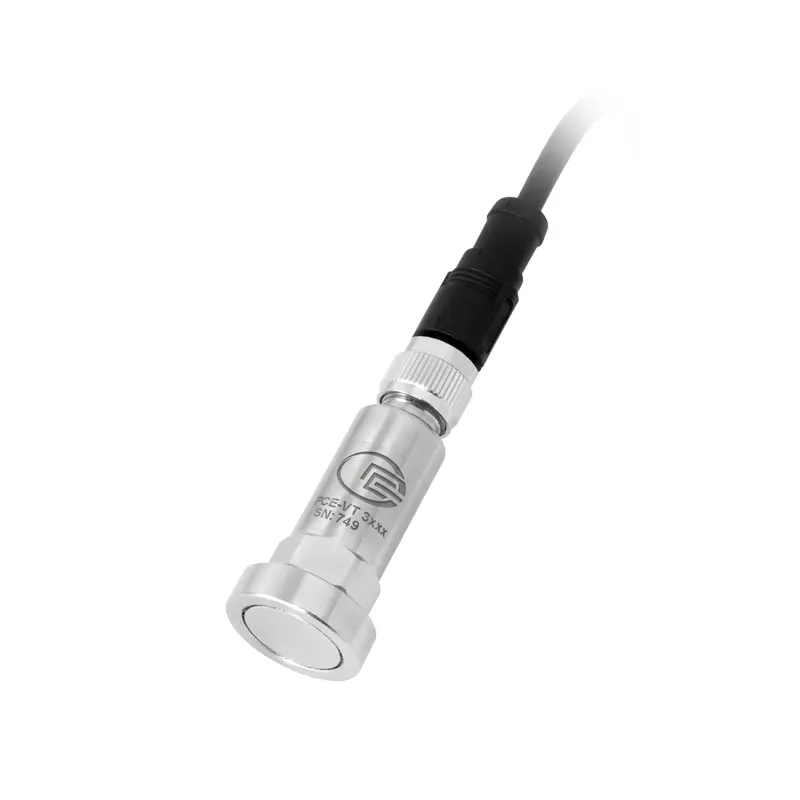

Sensor
Designation	PCE-VT 3xxx SENSOR
Housing	Stainless steel
Additional description	Resonant frequency: 24 kHz Transverse sensitivity: Δ 5% Destruction limit: 5000 g (peak) Mounting thread: ¼ - 28 UNF Operating/storage conditions: -55°C … +150°C
Dimension	Ø 17 x 46 mm

General technical data
Number of measuring channels	1
Measuring functions	RMS, peak, Peak-peak, Crest factor

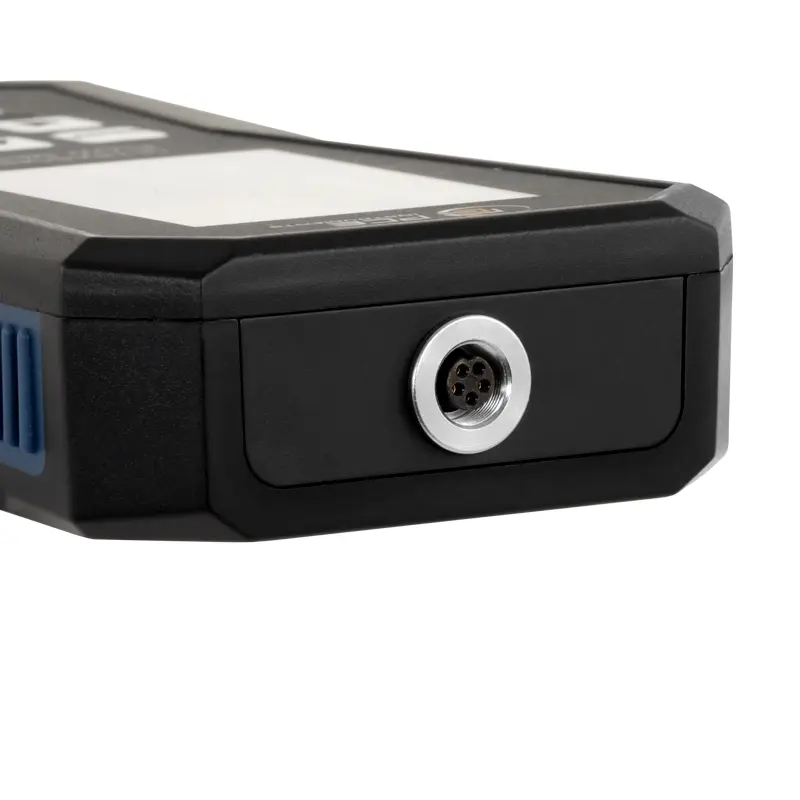

Connections additional information	Headphone socket 3.5 mm jack
Frequency	10 ... 10000 Hz
Display type	LC colour display with backlight
Display size	2,8 in
Standard(s)	ISO 10816-3
Menu language	English, German, French, Spanish, Italian, Dutch, Portuguese, Turkish, Polish, Russian, Chinese, Japanese
Protection class (device)	IP52
Power supply	batteries
(Rechargeable) battery	3 x 1,5 V AA battery , Alkali-manganese
Capacity	3000 mAh
Performance	4,5
Operating conditions	-20 ... 65 °C , 10 ... 95 % RH
Storage conditions	-20 ... 65 °C , 10 ... 95 % RH
Dimensions ( L x W x H )	165 x 85 x 32 mm
Weight	239 g
