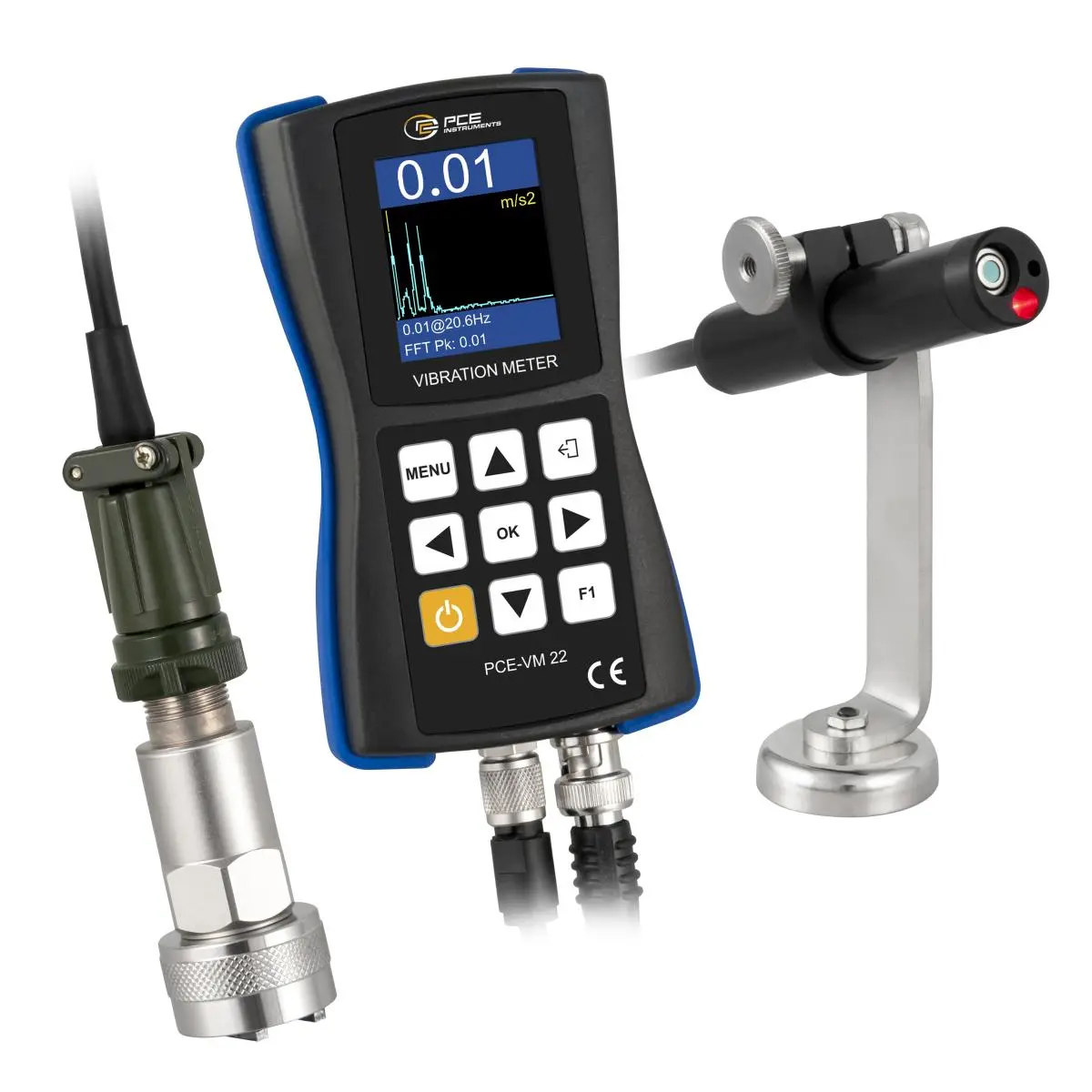

Condition Monitoring Vibration Meter PCE-VM 22

Order no.: PCE-VM 22

GTIN (EAN): 4250348727497

Accessory

ISO Calibration Certificate CAL-V-I for Vibration Meter

₹33,033.00

Description

Condition Monitoring Vibration Meter with 4 GB data memory / FFT analysis / Waveform display / Infrared temperature meter / Measuring range 0 ... 200 mm/s² / Battery life of 8 hours /
Micro USB interface / Magnetic holder / Optical speed measurement

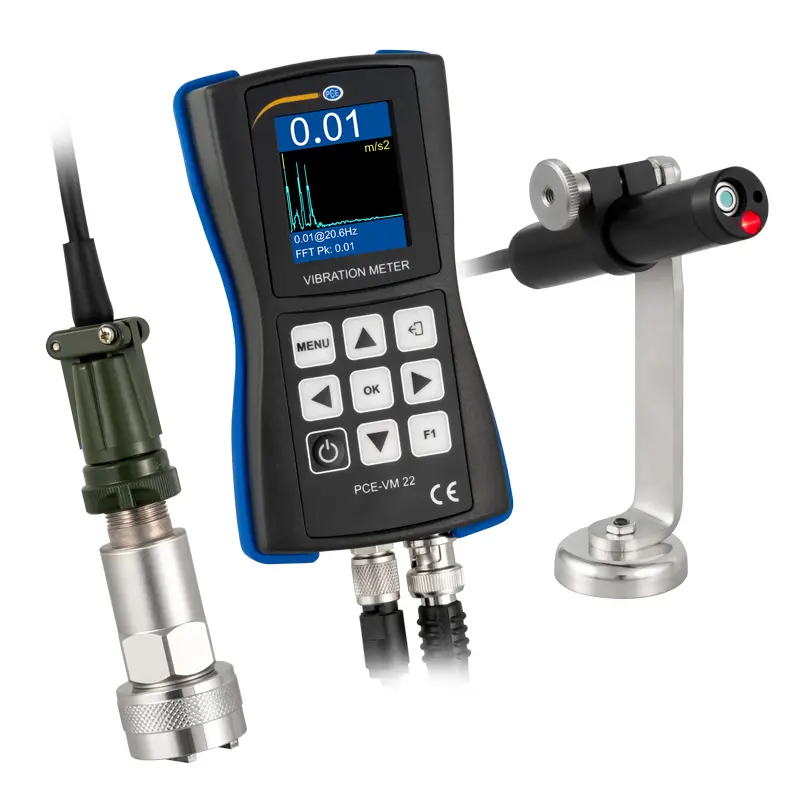

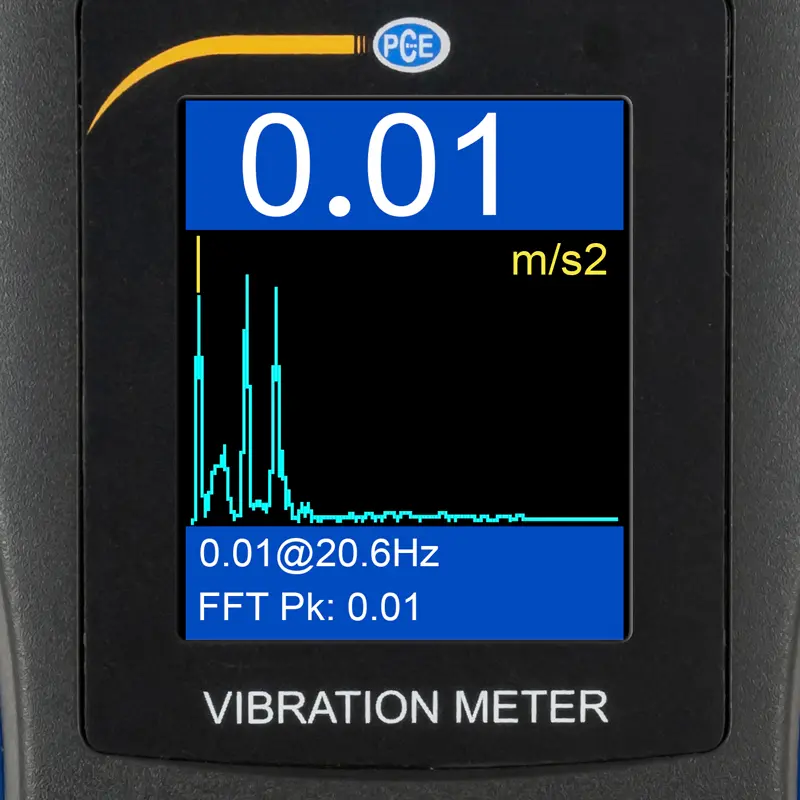

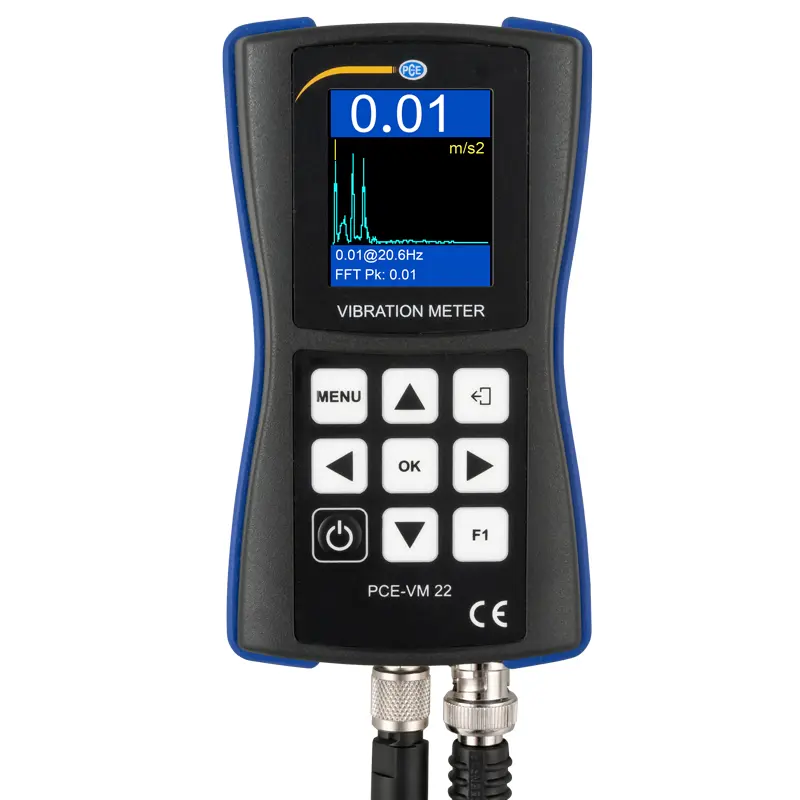

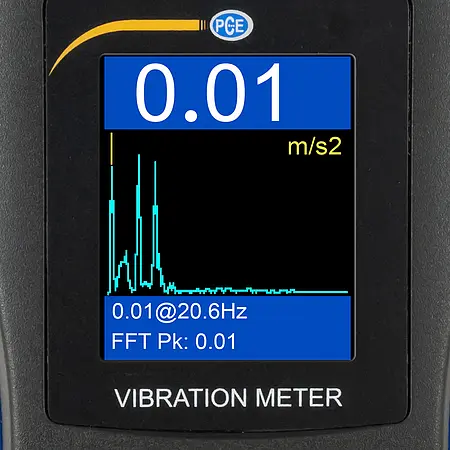

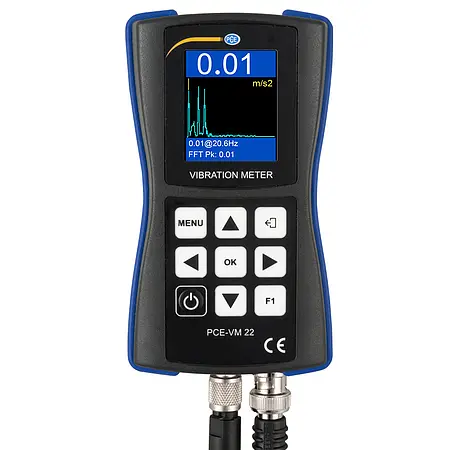

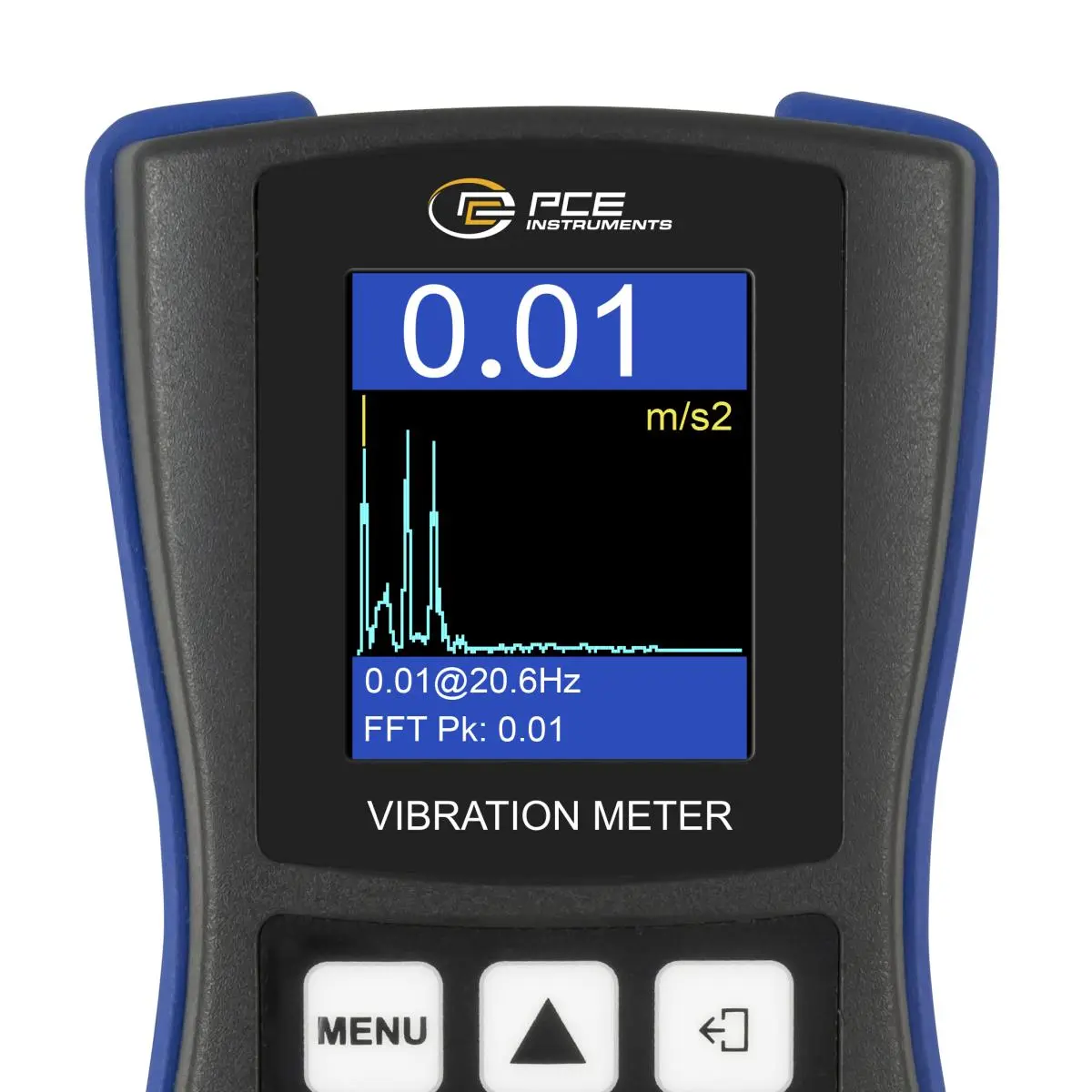

The Condition Monitoring Vibration Meter has a measuring range of 0 ... 200 m/s² for acceleration. In addition to acceleration, the Condition Monitoring Vibration Meter can also measure speed, displacement, frequency and an ISO 18016-3 measurement. During the vibration measurement, an FFT view is simultaneously displayed on the Condition Monitoring Vibration Meter. By pressing a button, it is possible to switch from the FFT analysis to the actual wave view of the vibration. This makes it possible to analyse and evaluate a vibration even better with the Condition Monitoring Vibration Meter. The magnetic holder of the vibration sensor of the Condition Monitoring Vibration Meter is designed in such a way that it can be attached to curvatures with a minimum radius of 20 mm / 0.78".

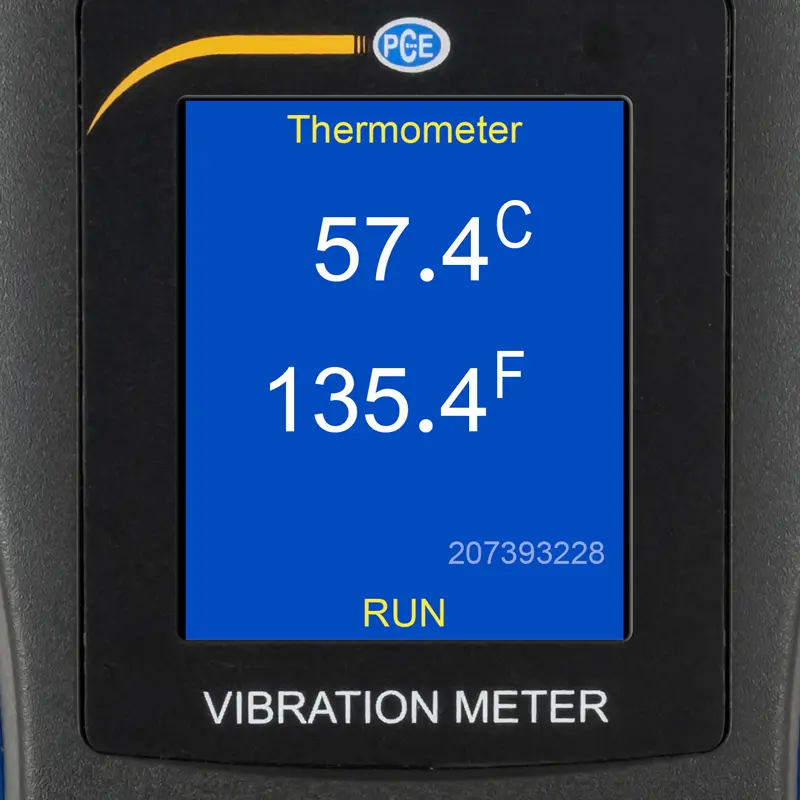

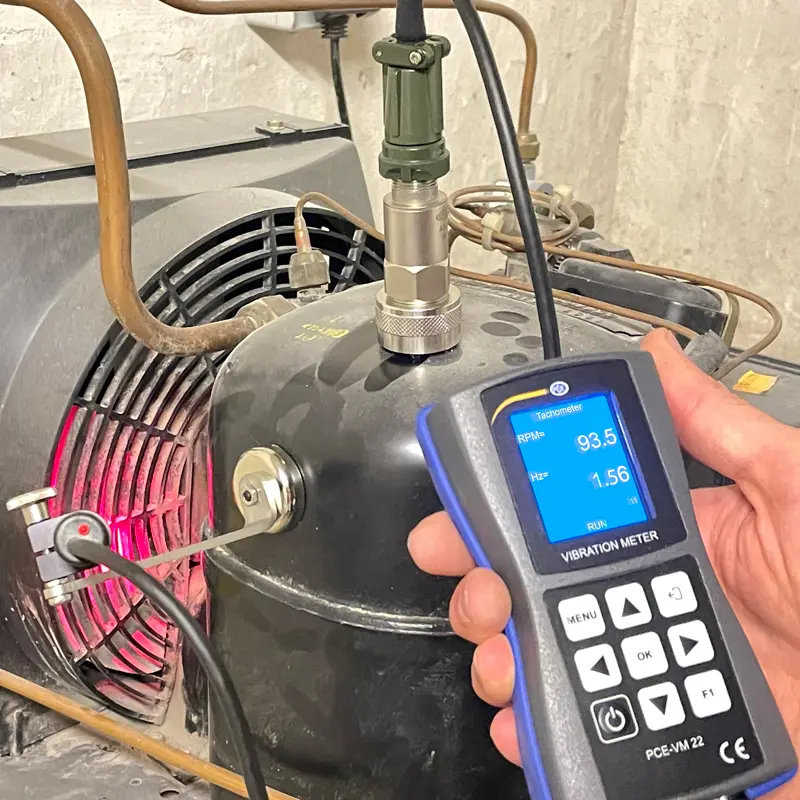

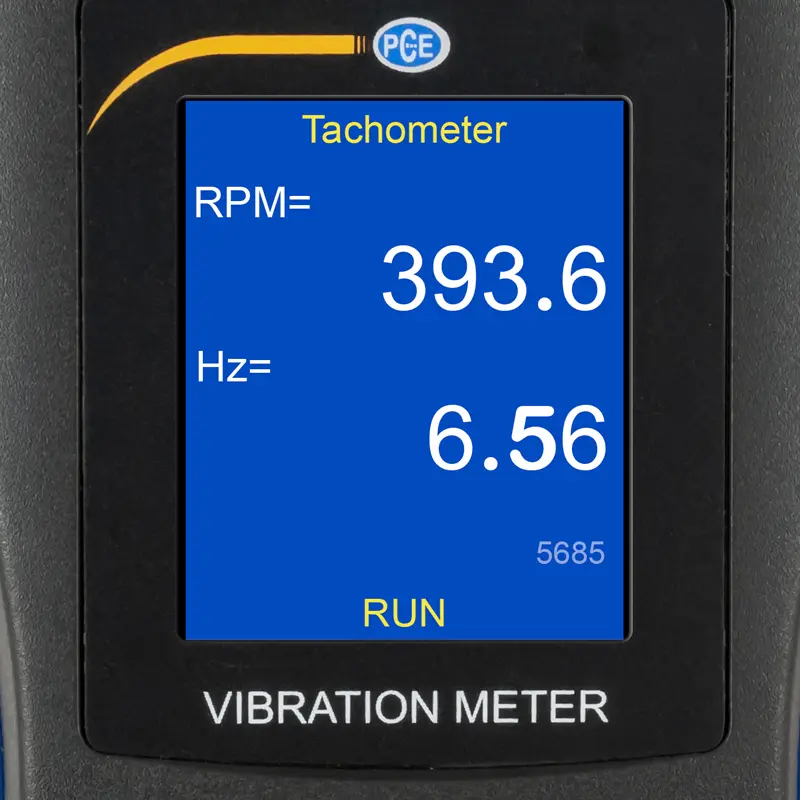

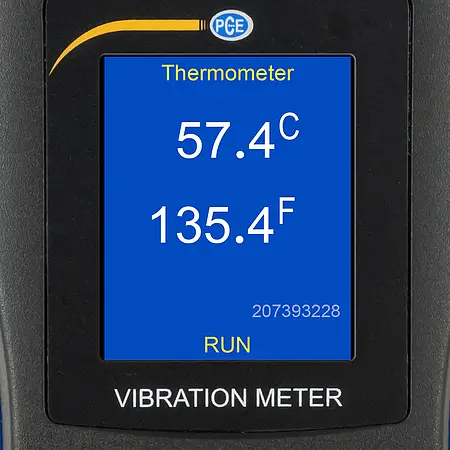

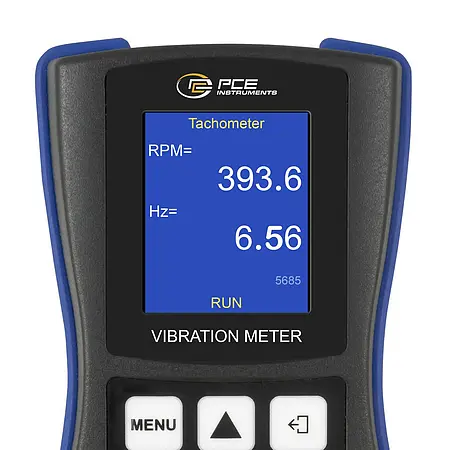

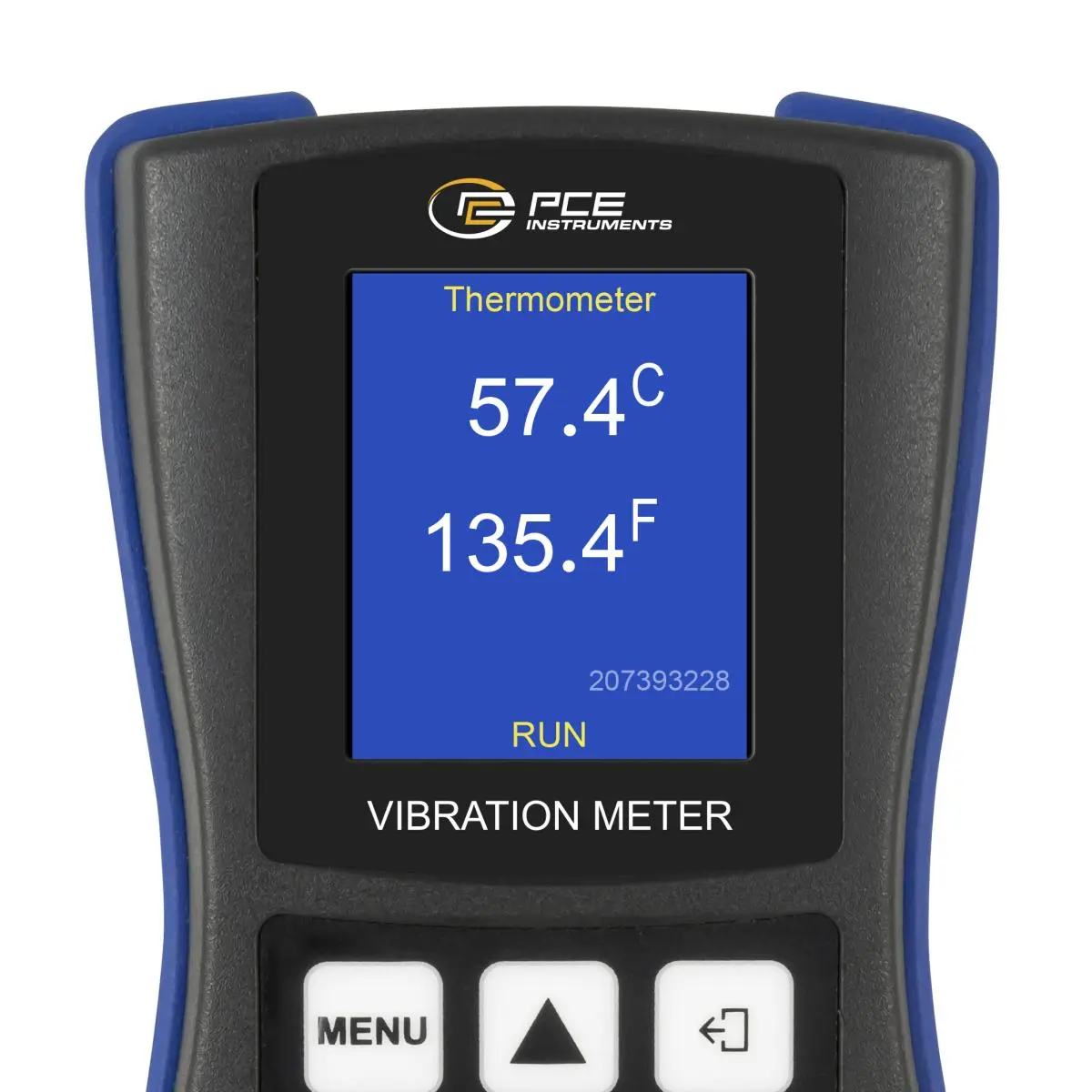

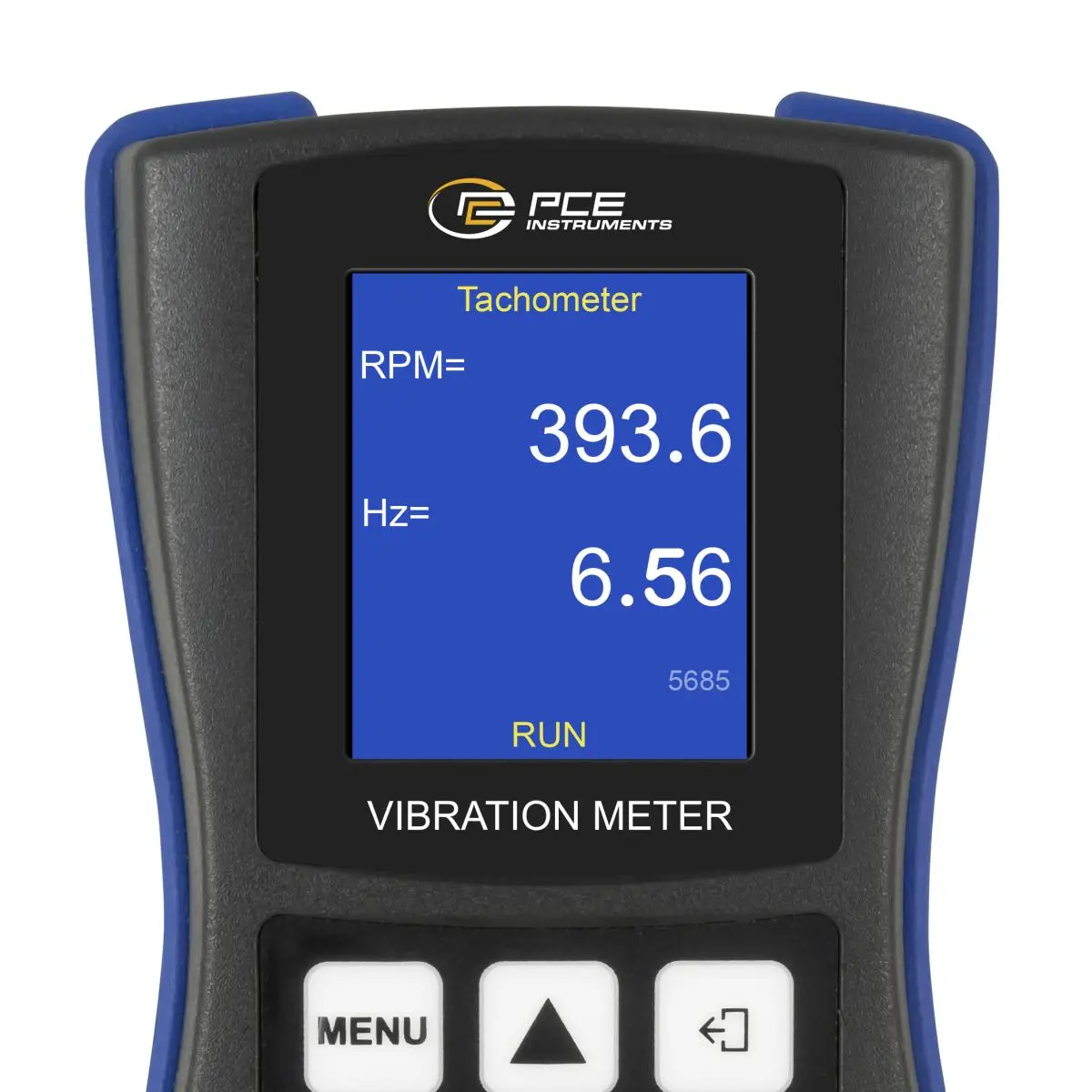

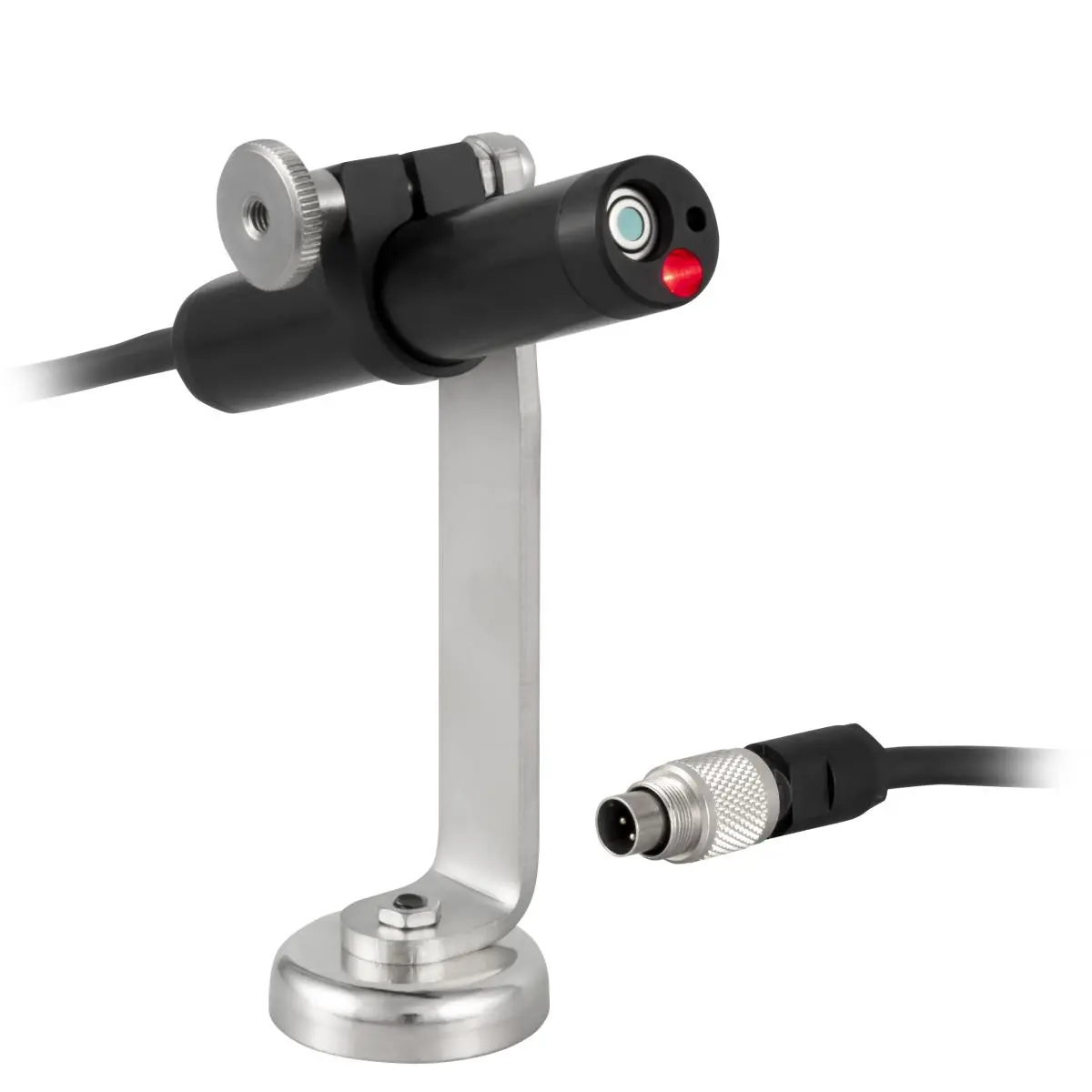

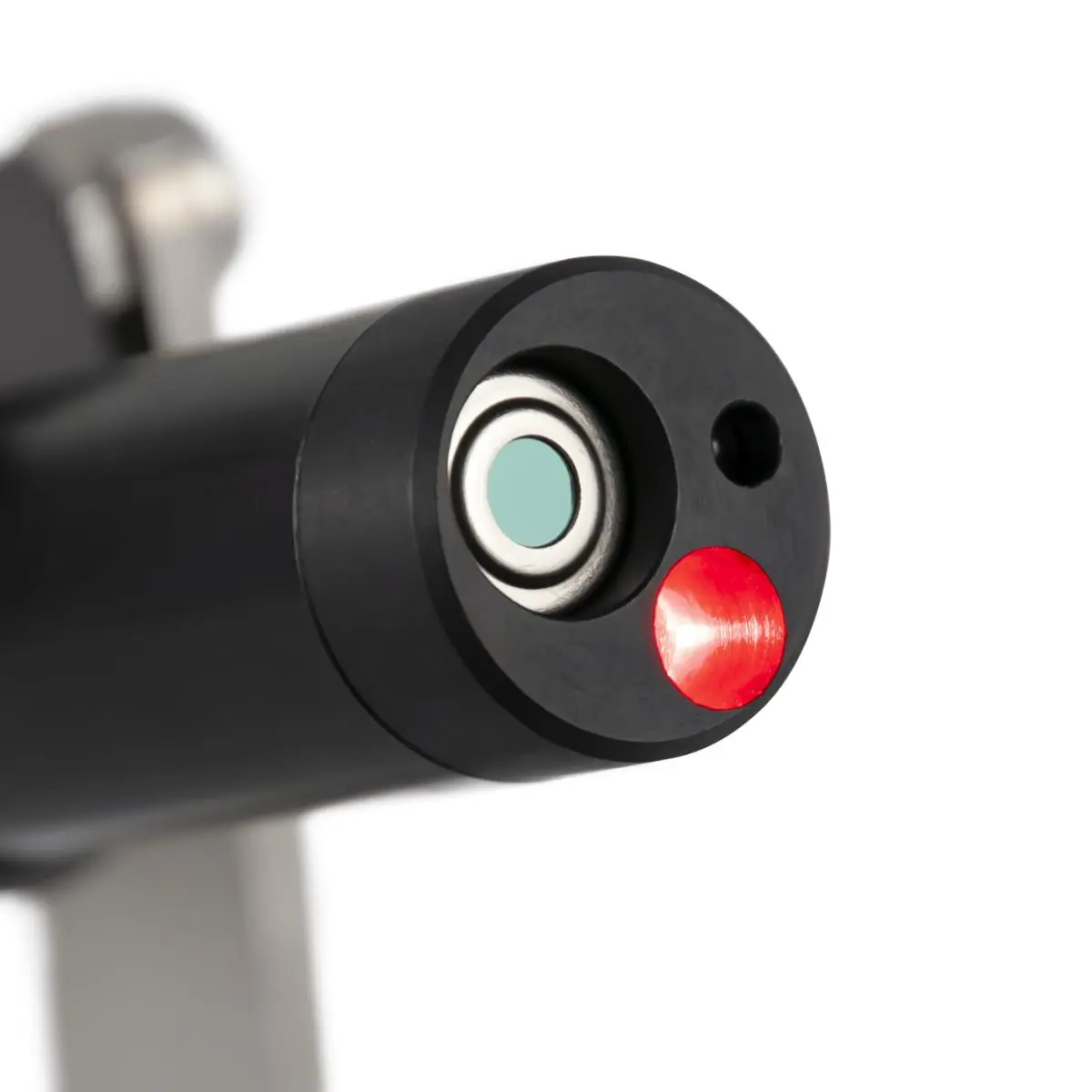

In addition to the vibration measurement, the Condition Monitoring Vibration Meter also has an external infrared temperature sensor. With this temperature sensor, surface temperatures between -70 ... 380 °C / 158 ... 716 °F can be measured. Another measuring function of the Condition Monitoring Vibration Meter is the contactless speed measurement. This means that the number of revolutions of ventilation systems, for example, can be checked with the Condition Monitoring Vibration Meter.

The Condition Monitoring Vibration Meter has a 4 GB memory. The measurement data can then be transferred from the Condition Monitoring Vibration Meter to a PC. Free software is available to analyse the data.

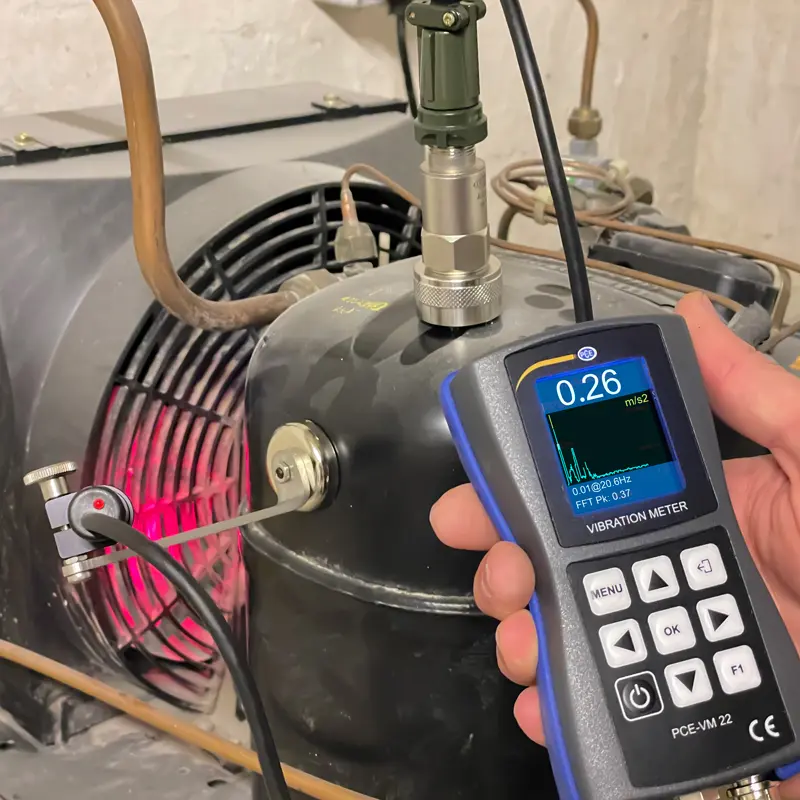

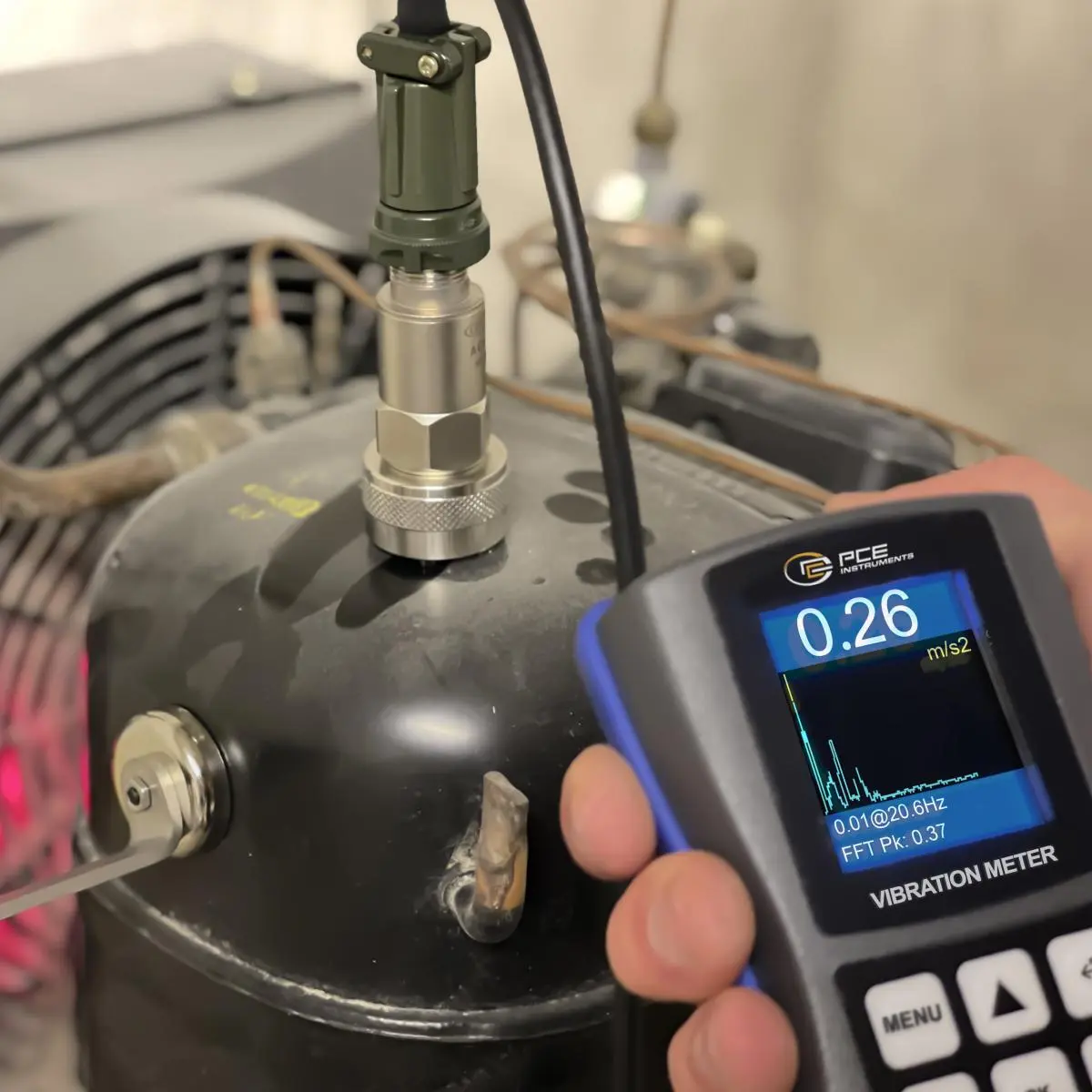

Because of its many functions, the Condition Monitoring Vibration Meter is a universally applicable measuring tool. Thus, the Condition Monitoring Vibration Meter can be used, for example, for maintenance work on generators or engines. Optionally, the Condition Monitoring Vibration Meter can be equipped with an ISO certificate.

Highlights

- Measuring range 0 ... 200 m/s²

- Infrared temperature measurement

- 4 GB data storage

- 8 hours of battery life

- Optionally with ISO calibration certificate

- FFT analysis and wave view of the vibration

Specification

Acceleration
Measuring range	0 ... 200 m/s²
Resolution	0,01 m/s²
Accuracy	±5% (measuring device only)

Optical speed
Measuring range	10 ... 200000 RPM
Resolution	0,1 RPM
Accuracy	±0.1% and ±1 RPM

Speed
Measuring range	0 ... 200 mm/s
Resolution	0.01 mm/s
Accuracy	±5% (measuring device only)

Path
Measuring range	0 ... 2000 µm
Resolution	0,01 µm
Accuracy	±5% (measuring device only)

Infrared temperature
Measuring range	-70 ... -40 °C
Resolution	0,1 °C
Accuracy	±2% FS

Infrared temperature
Measuring range	-40 ... 0 °C
Resolution	0,1 °C
Accuracy	±1 % FS

Infrared temperature
Measuring range	0 ... 60 °C
Resolution	0,1 °C
Accuracy	±0.5 % FS

Infrared temperature
Measuring range	60 ... 120 °C
Resolution	0,1 °C
Accuracy	±1 % FS

Infrared temperature
Measuring range	120 ... 180 °C
Resolution	0,1 °C
Accuracy	±2% FS

Infrared temperature
Measuring range	180 ... 380 °C
Resolution	0,1 °C
Accuracy	±4% FS

Frequency
Measuring range	1 ... 10000 Hz
Resolution	0,1 Hz
Accuracy	±5% (measuring device only)

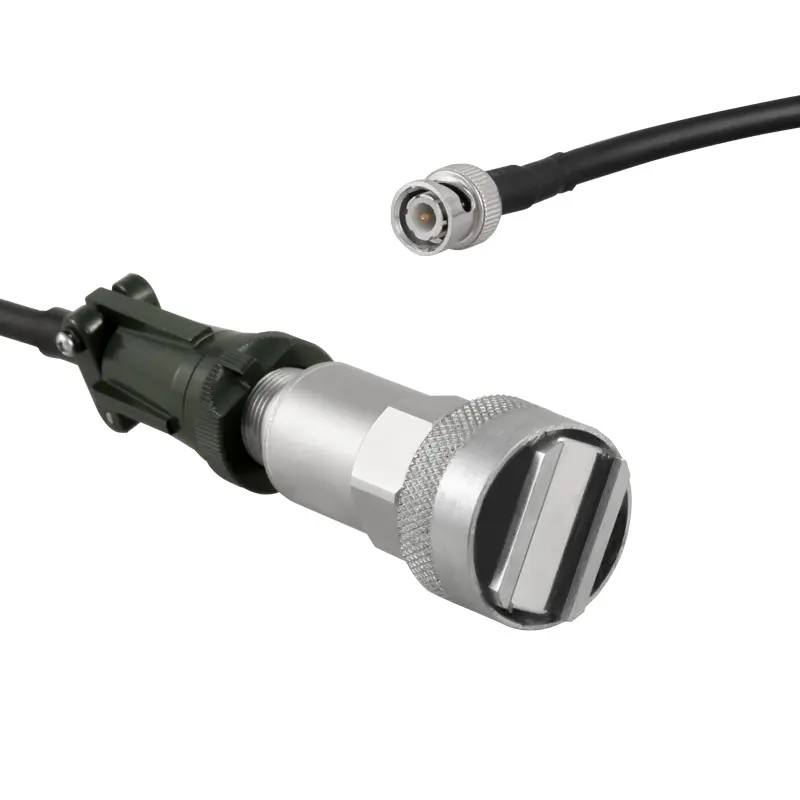

Sensor
Sensitivity	100 mV/g
Housing	316L stainless steel
Cable length	1,5 m
Dimension	Ø25 x 53 mm

General technical data
Storage medium	Micro SD card
Storage capacity	4 GB

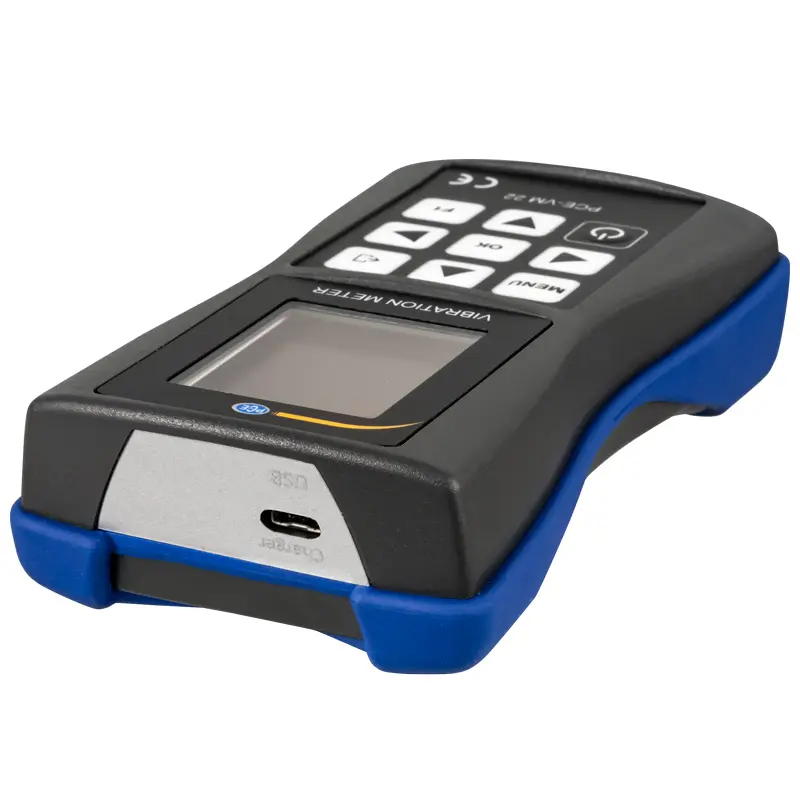

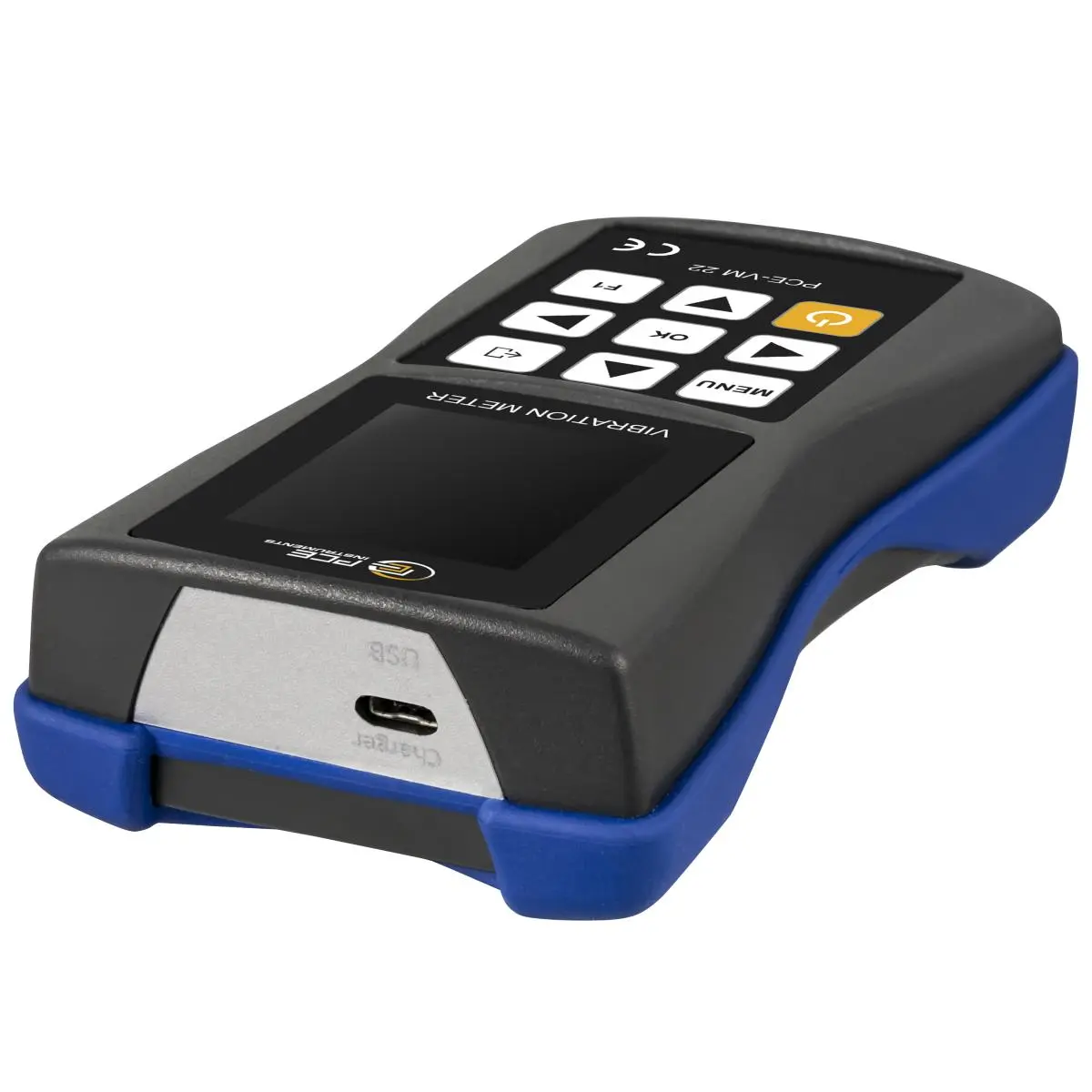

Interface	Micro-USB
Operating time	8 h
Dimensions	Magnetic holder: Ø30 mm Infrared and speed sensor: Ø16 x 83 mm
Menu language	English, English (GB)
Protection class (device)	IP20
Power supply	5V DC, 1 A
Connector type	Device-europlug
(Rechargeable) battery	1 x 3,7 V internal , Lithium-ion polymer battery
Capacity	1000 mAh
Performance	3,7
Operating conditions	0 ... 50 °C , 0 ... 85 % RH
Storage conditions	-20 ... 60 °C , 0 ... 85 % RH
Dimensions ( L x W x H )	132 x 70 x 33 mm
Weight	150 g
