Condition Monitoring Sound Level Meter PCE-SLT

Condition Monitoring Sound Level Meter PCE-SLT

Order no.: PCE-SLT
GTIN (EAN): 4250348701589
₹82,867.00
₹97,783.06
price ex. (VAT / delivery)
:
4250348701589
PCE-SLT
Delivery time: 1-2 working days
A
No

Description

Condition Monitoring Sound Level Meter incl. ISO calibration certificate
For permanent installation with relay output and control output

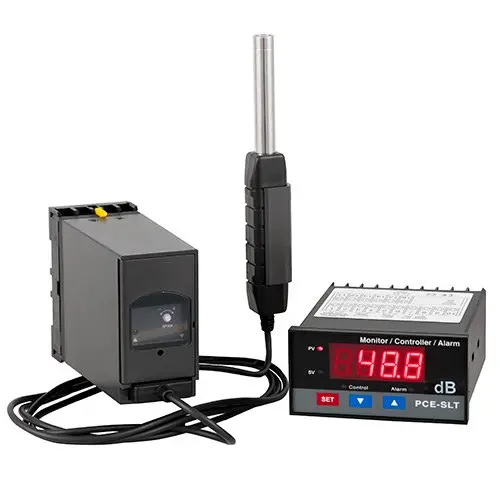

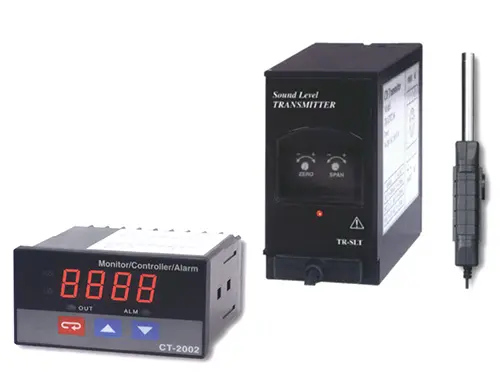

The Condition Monitoring Sound Level Meter consists of a measuring microphone with handle and a wall bracket with 1.5 m / 4.9 ft cable, a noise transmitter and a digital display. The main field of application of this Condition Monitoring Sound Level Meter is in the continuous noise measurement and noise monitoring of factory buildings, production areas and major events such as night clubs, folk festivals or kart tracks. The digital display has a relay output for controlling alarm horns, flashing lights for visual or audible warning and a control output.

The limit for this Condition Monitoring Sound Level Meter can be programmed on the display. Likewise, the analogue output signal can be used to control window flaps or the signals of the transmitter can be stored, evaluated and documented on a logger. The Condition Monitoring Sound Level Meter is very easy to connect and can be operated via 240V mains current. The Condition Monitoring Sound Level Meter for the noise warning display is delivered preconfigured to the noise transmitter and can be used immediately.

Highlights

- Measuring range: 30 ... 130 dB in 3 ranges
- Resolution: 0.1 dB
- Accuracy: ± 1.5 dB
- IP 54 ingress protection rating on transmitter offers limited protection against dust ingress (no harmful
  deposit) and protection against splashed water from any direction
- IP 65 ingress protection rating on digital indicator offers total protection against dust ingress and protection
  against low-pressure water jets from any direction. Limited ingress permitted.

Specification

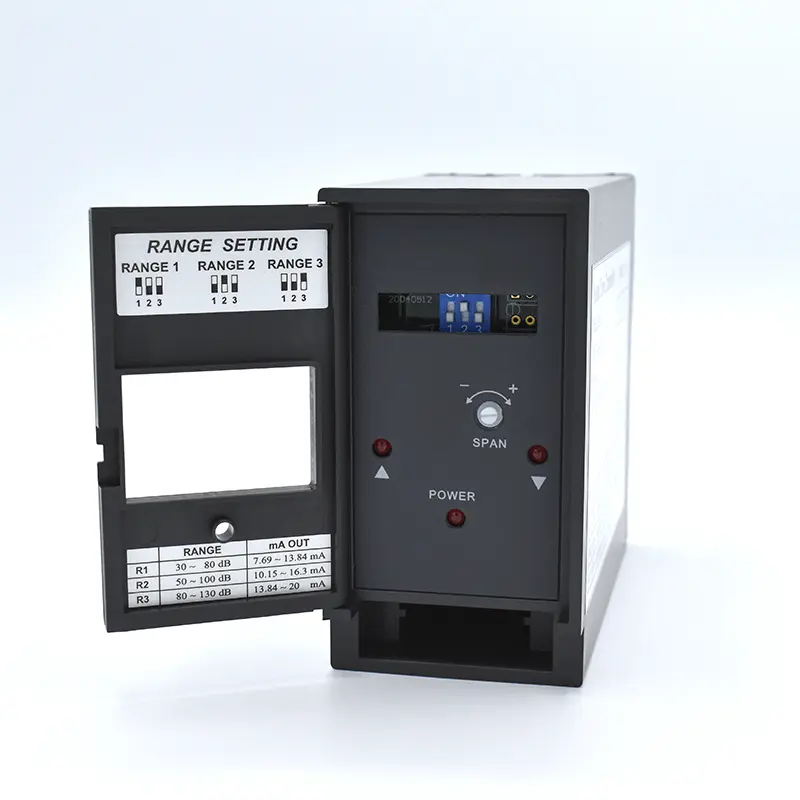

Measuring range 30 ... 130 dB in 3 ranges:
I. 30 ... 80 dB(A)
II. 50 ... 100 dB(A)
III. 80 ... 130 dB(A)
Resolution 0.1 dB
Accuracy ±1.5 dB
Frequency weighting
A
Power supply Via transmitter
Cable length (sensor to transmitter) 1.5 m / 4.92'
Operating conditions 0 ... 50°C / 32 ... 122°F, max. 85% RH
Microphone 1/2" precision electret
Standard IEC 61 672 (Class II)

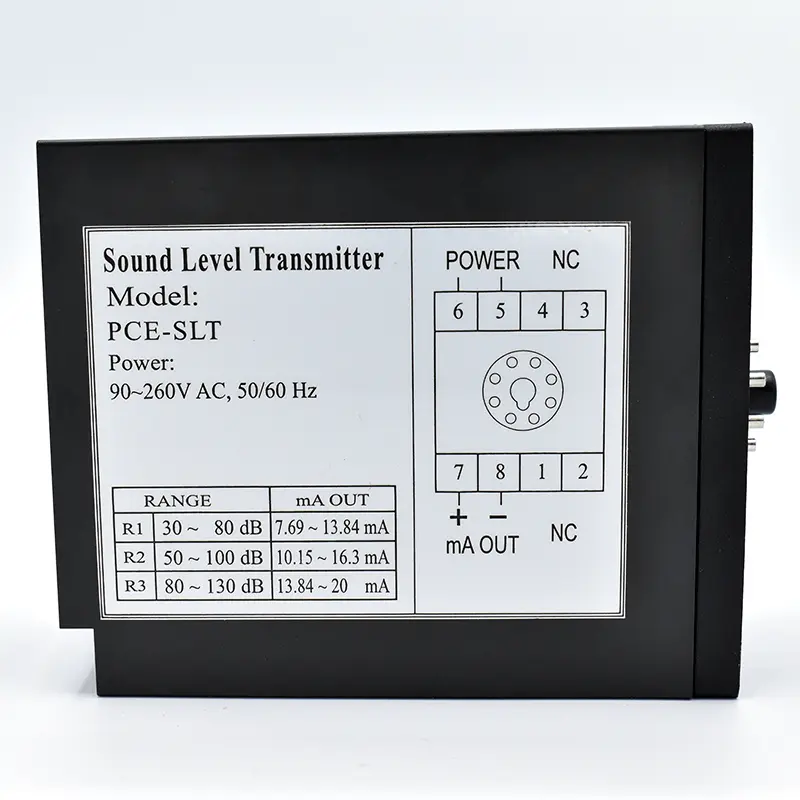

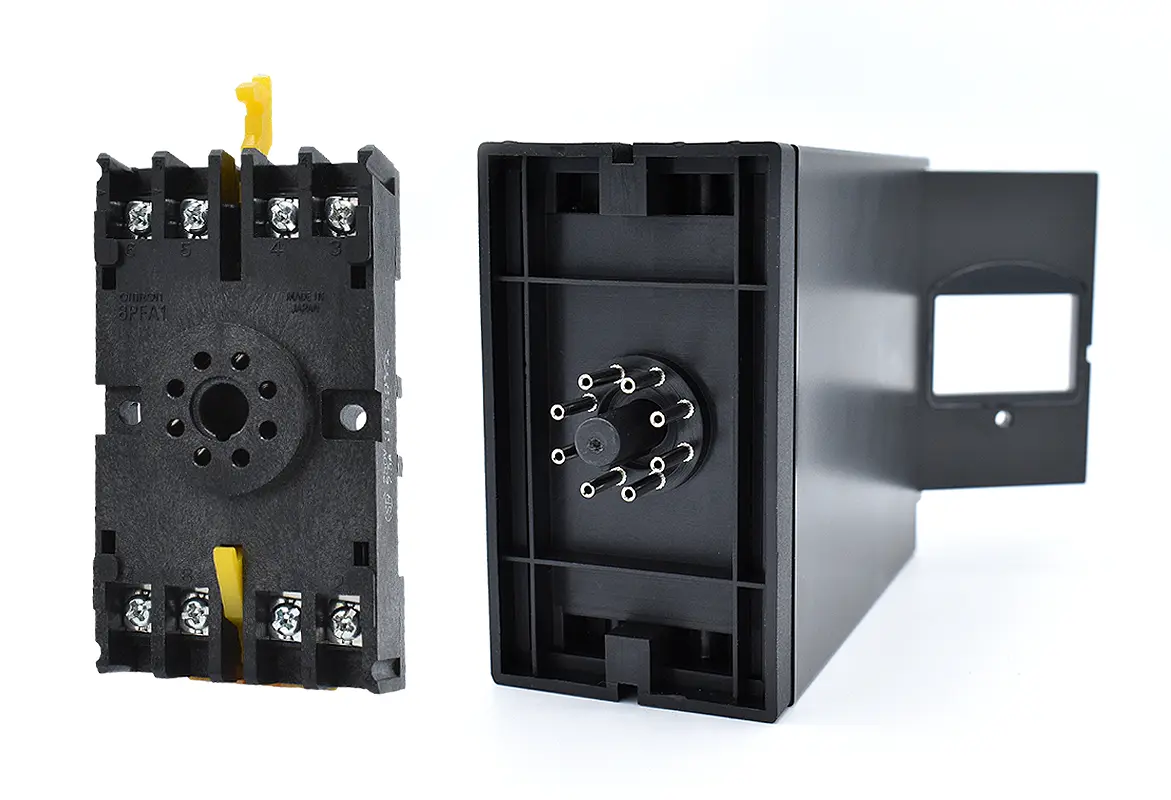

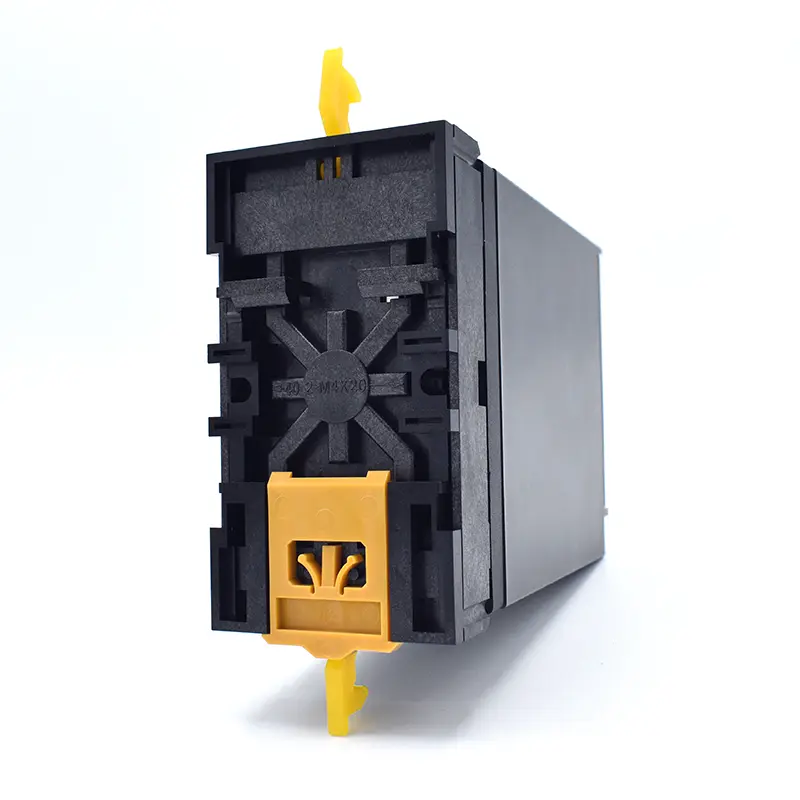

Transmitter

Housing

ABS plastic

Power supply 90 ... 260 AC V
Calibration Adjustable by set screw
Output 4 ... 20-mA
Protection class IP 54 ingress protection rating
Operating conditions 0 ... 50°C / 32 ... 122°F, max. 85 % RH
Digital indicator
Transmitter input signal 4 – 20-mA
Indicator - 1999 ... 9999 (1 ... 3 decimals, according to the measurement value / chosen by the user)
Programming data (decimals, limit value ..)Saved in the unit
Regulation output 3 points (Com, NO, NC)
Alarm outputRelay output: 5 A / 240V AC
Power 90 ... 260 AC V / 50 ... 60 Hz
Dimensions / Switchboard according to DIN 92 (+ 0.8) mm x 45 (+ 0.5) mm
WeightApprox. 250 g / 0.56 lb
Operating conditions 0 ...50°C / 32 ... 122°F, max. 85% RH
Protection class IP 65 ingress protection rating

Delivery Scope

1 x Condition Monitoring Sound Level Meter PCE-SLT (consisting of 1 x acoustic sensor on a 1.5 m / 4.92' long cable and a transmitter)
1 x Wall-mounting bracket for sensor
1 x Digital indicator
1 x User manual
