Condition Monitoring PCE-779N-ICA

Condition Monitoring Infrared Thermometer PCE-779N-ICA incl ISO Calibration Cert

Order no.: PCE-779N-ICA
GTIN (EAN): 4250348725028
₹46,803.00
₹55,227.54
price ex. (VAT / delivery)
:
4250348725028
PCE-779N-ICA
Delivery time:5-7 working days
Non-contact/Contact
Handheld
Dependent on sensor
No
No

Description

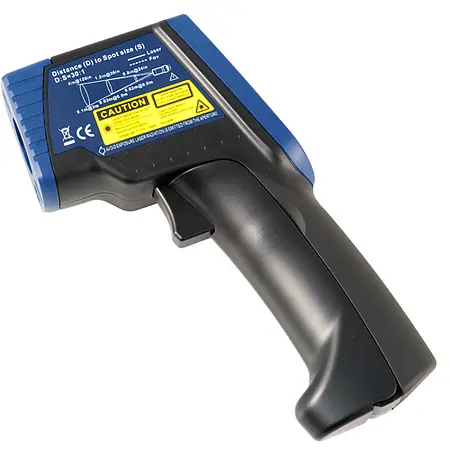

Condition Monitoring Infrared Thermometer
Compact infrared thermometer to measure surface temperatures /
Incl. thermocouple measurement / Adjustable emissivity / Difference measuring function /

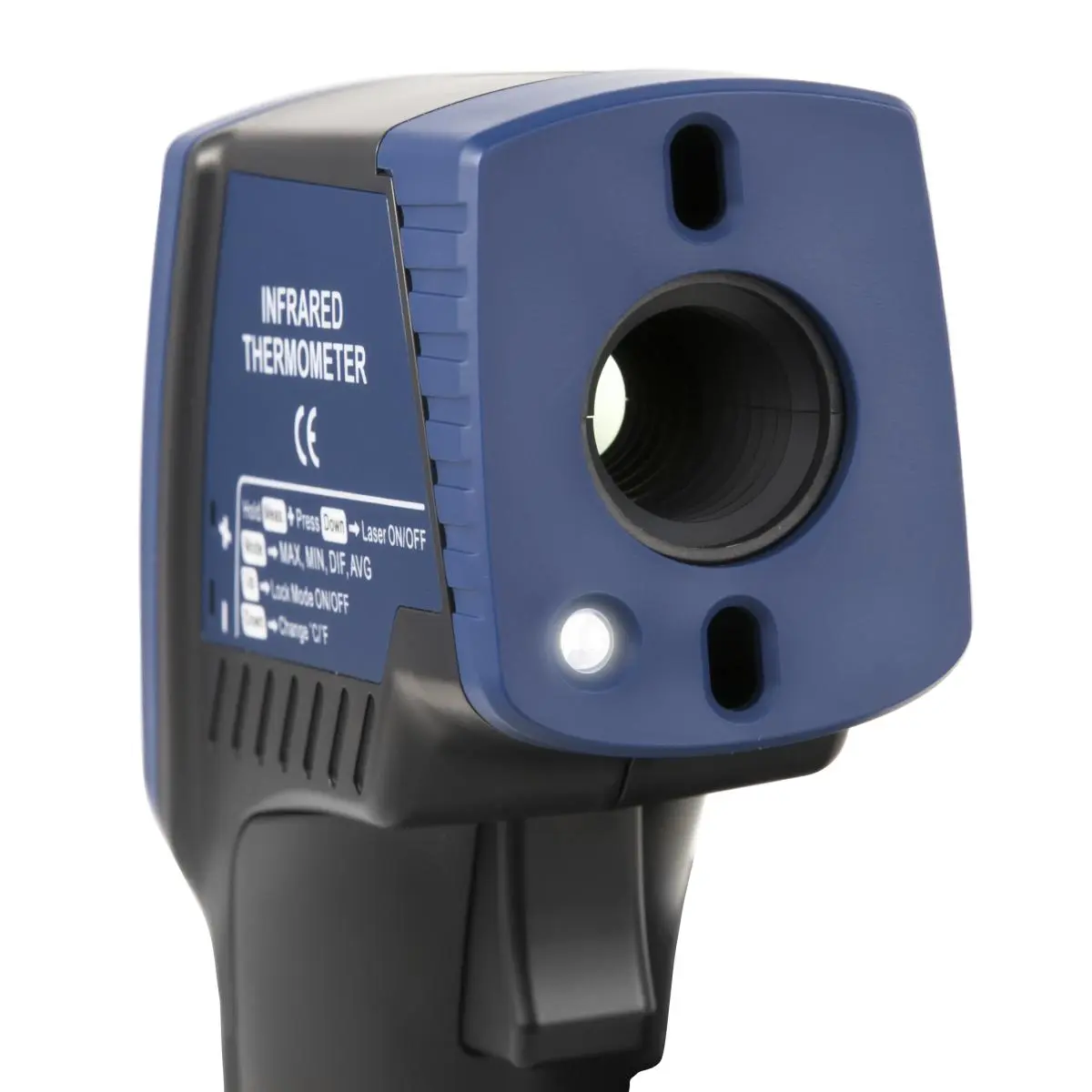

Tripod thread / MIN, MAX and alarm function / LED light

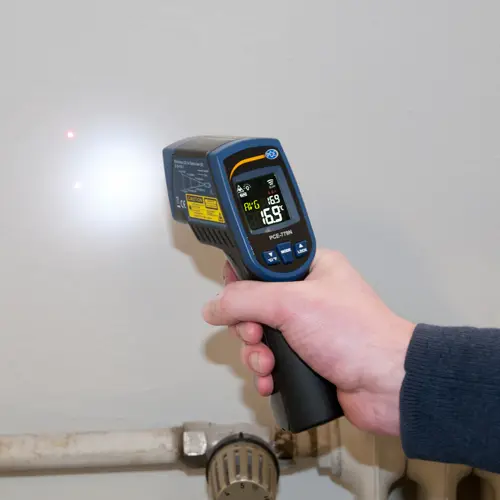

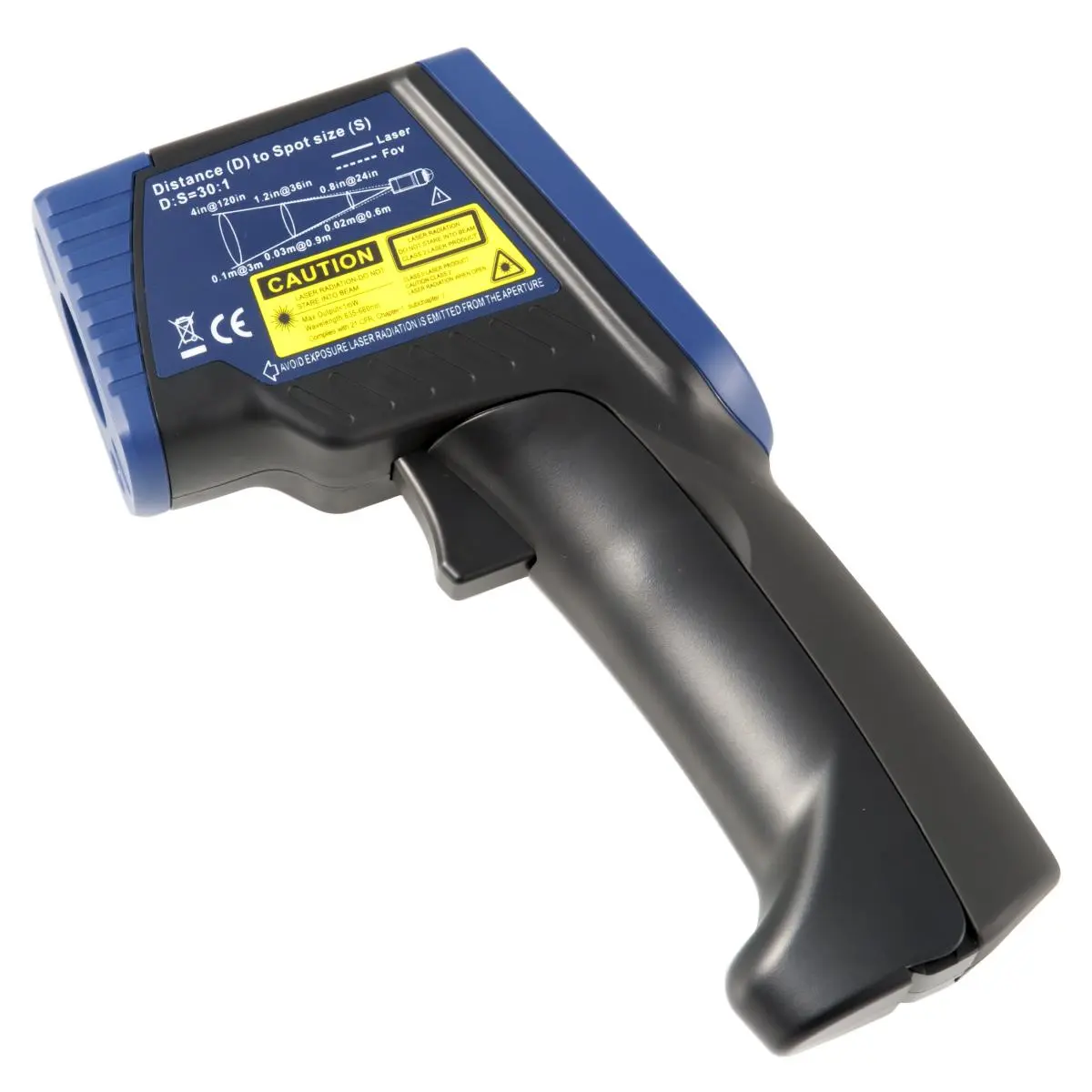

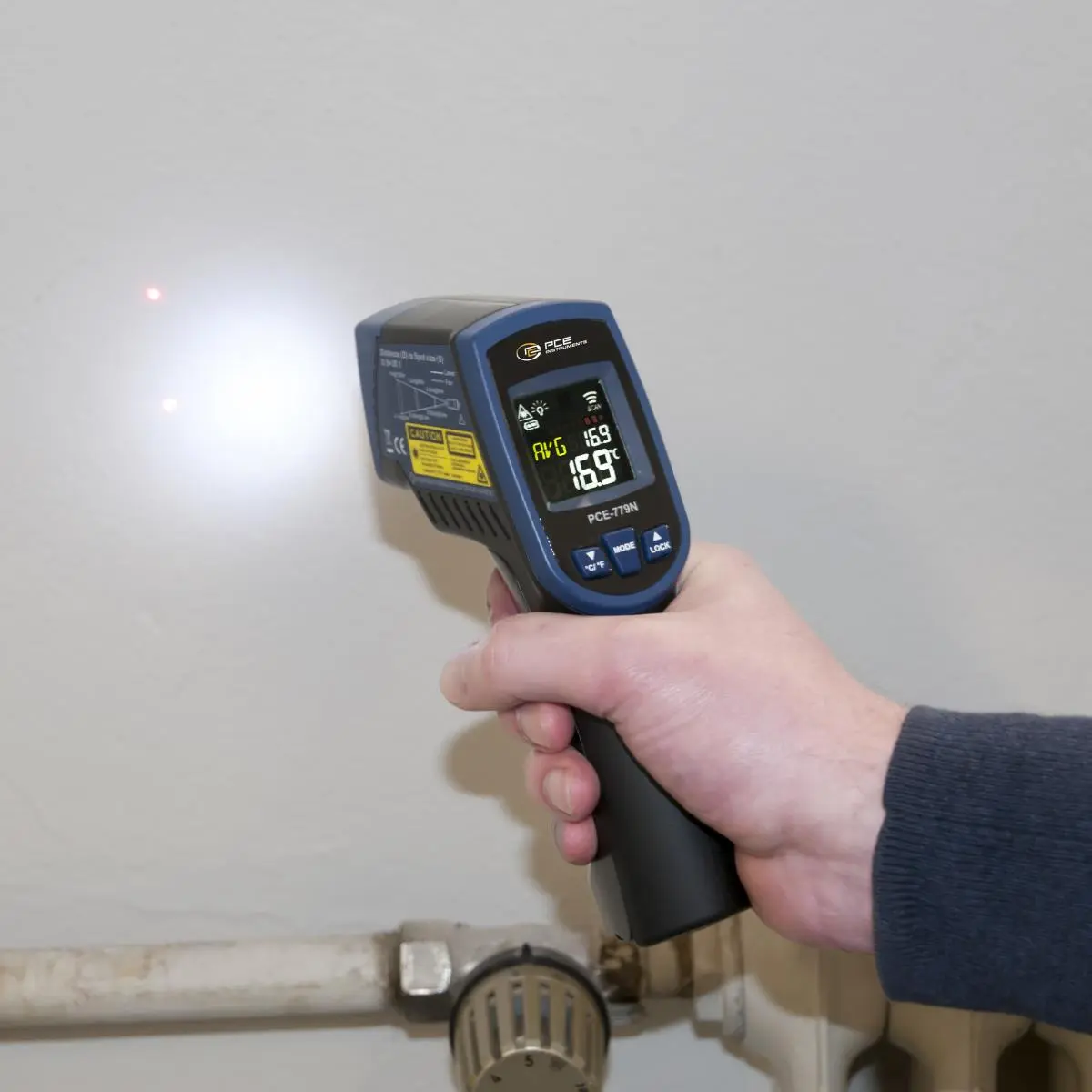

The Condition Monitoring Infrared Thermometer can be used for quick temperature measurements. This can be done in two different ways: either without contact or by means of a thermocouple. The Condition Monitoring Infrared Thermometer is suitable for nearly all surfaces. Since the Condition Monitoring Infrared Thermometer allows non-contacting measurement, even high temperatures can be measured from a safe distance. By means of the integrated dual laser of the Condition Monitoring Infrared Thermometer, the user can target the measuring spot very precisely.

The Condition Monitoring Infrared Thermometer has a variety of functions, including the MAX and MIN functions as well as the average and the difference function, which makes the Condition Monitoring Infrared Thermometer useful for many applications, including contacting, but also non-contacting measurements. The Condition Monitoring Infrared Thermometer is typically used for e. g. food monitoring, different hygiene-related controls, road construction, switch cabinet and production monitoring as well as for measuring motor temperatures.


Highlights

- Dual laser for targeting

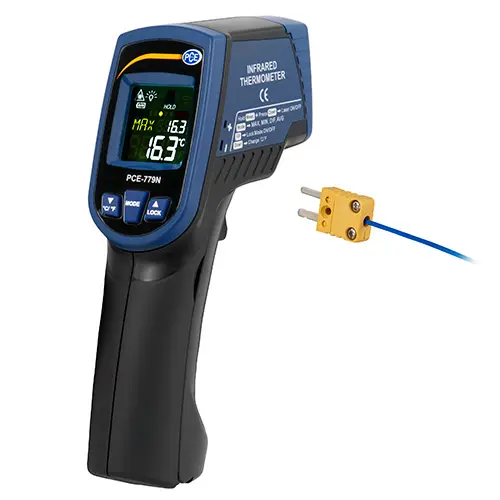

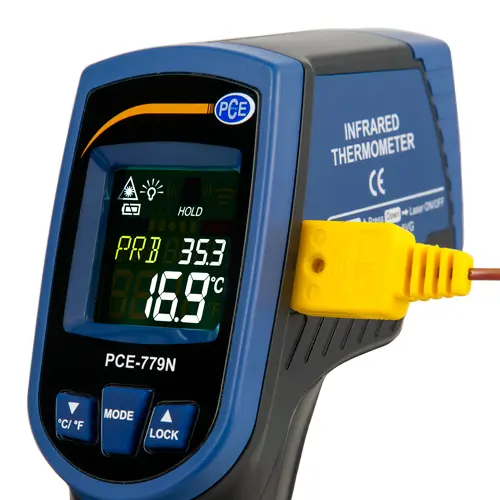

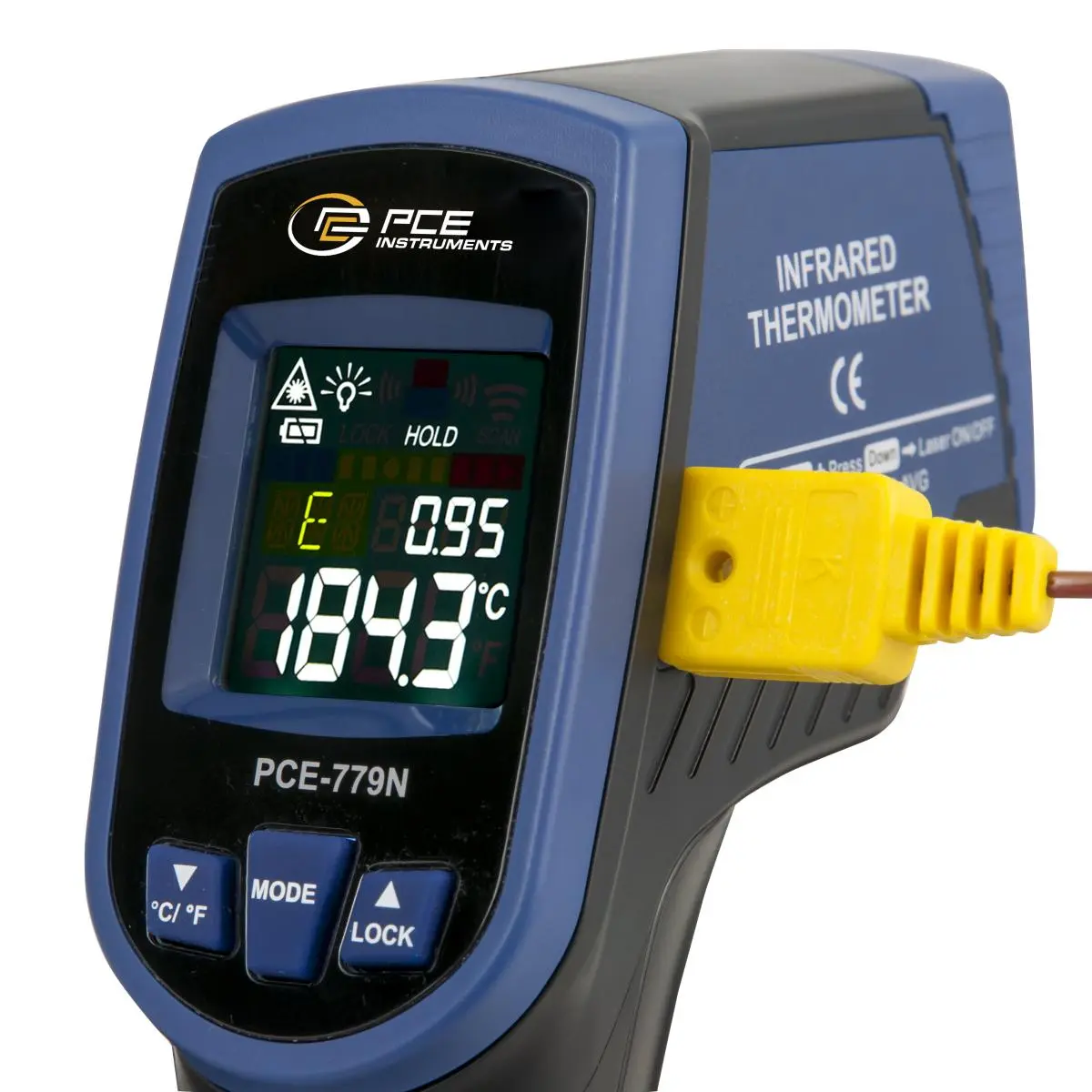

- Additional thermocouple measurement
- Easy handling

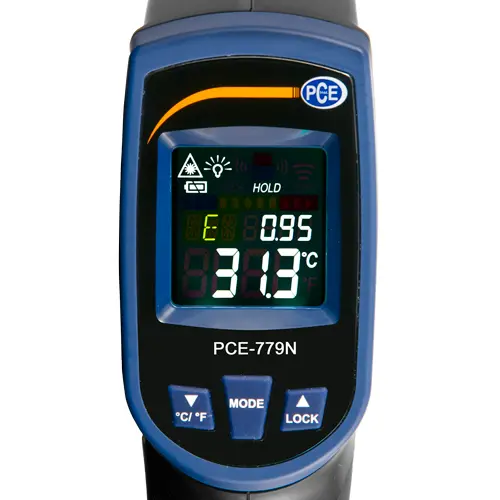

- Large display
- Difference value measurement
- Average measurement
- MIN / MAX value measurement
- Alarm function

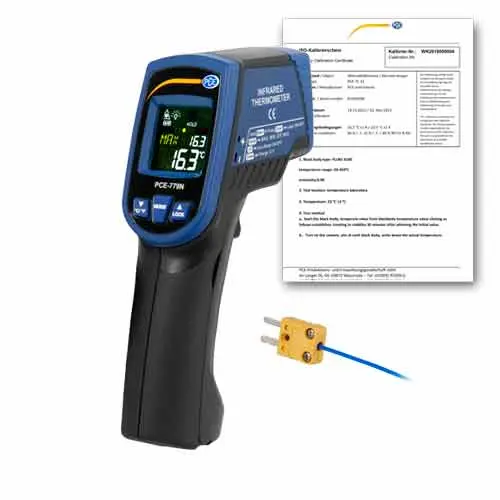

- incl. ISO-Calibration Certificate

Specification

Temperature K-type
Measuring range  -64 ... +1400 °C
Resolution  1 °C
Accuracy  ±1% v.Mw. or ±1°C (larger unit counts) (measurement under TUmg = 23 ±6°C)

Infrared temperature
Measuring range  -60 ... +760 °C
Resolution  1 °C
Accuracy  TObj = -60 ... 0 ±(2+0.05/degC) degC, TObj = 0 ... 760: ±2% v.Mw. or ±2°C (larger unit counts)

General technical data
Outputs  Interface for K-type sensor
Measuring functions  MAX, MIN, Difference, Average value
Units  °C, °F

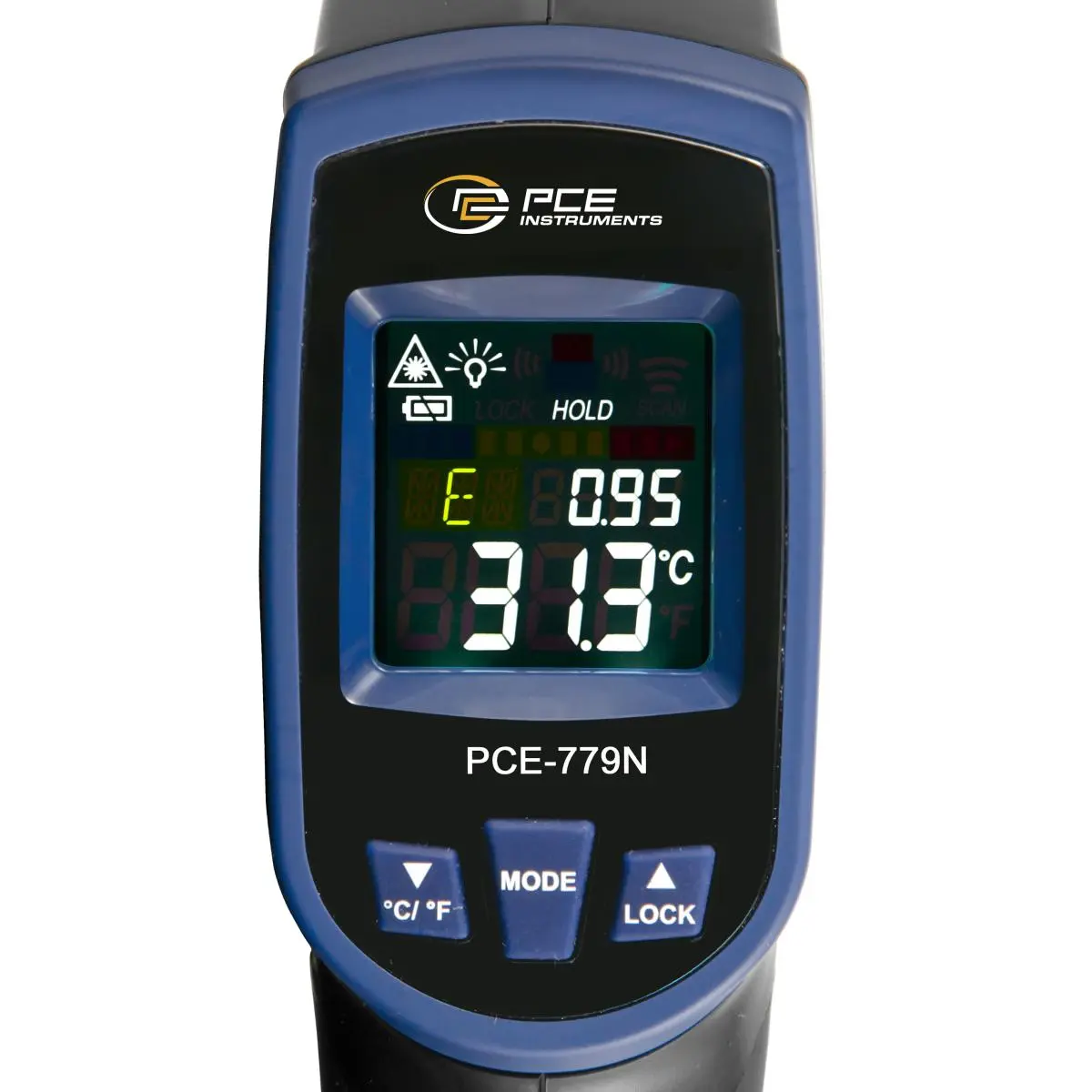

Display type  LCD with backlight
Display size  1,6 in
Response time  1 s
Operating time  30 h
Operating time additional information  without laser: min. 30 h
with laser and LED switched on: min. 3 h
Automatic power-off from...to  1 ... 12 min.
Laser  Class 2 <1mW
Emissivity from/to  0.1 ... 1
Emissivity  0,95
Menu language  English, English (GB)
Protection class (device)  IP20
(Rechargeable) battery  2 x 1,5 V AAA battery , Alkali-manganese
Capacity  1200 mAh
Operating conditions  0 ... 50 °C , 10 ... 90 % RH
Storage conditions  -20 ... 60 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  172 x 119 x 48 mm
Weight  256 g

Delivery Scope

1 x Infrared Condition Monitoring PCE-779N-ICA
1 x Thermocouple (max. 200°C / 392°F)
2 x Battery (AAA)
1 x Manual

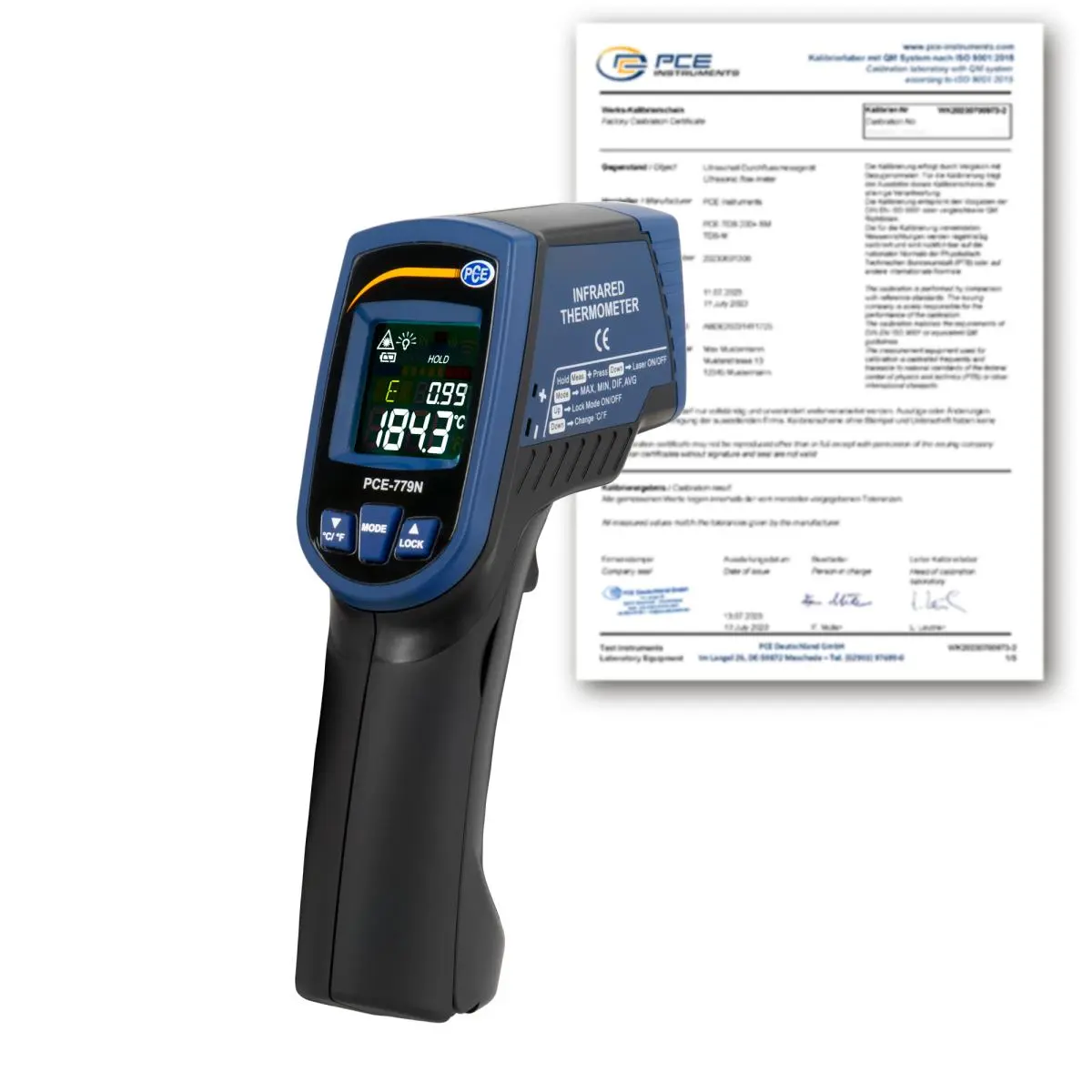

1 x ISO-Calibration Certificate
