Description

Weight Indicatorfor up to 3000 kg / resolution from 1 kg / installation width up to 4 m /
Battery operation / limit weighing function / bi-directional RS-232 interface

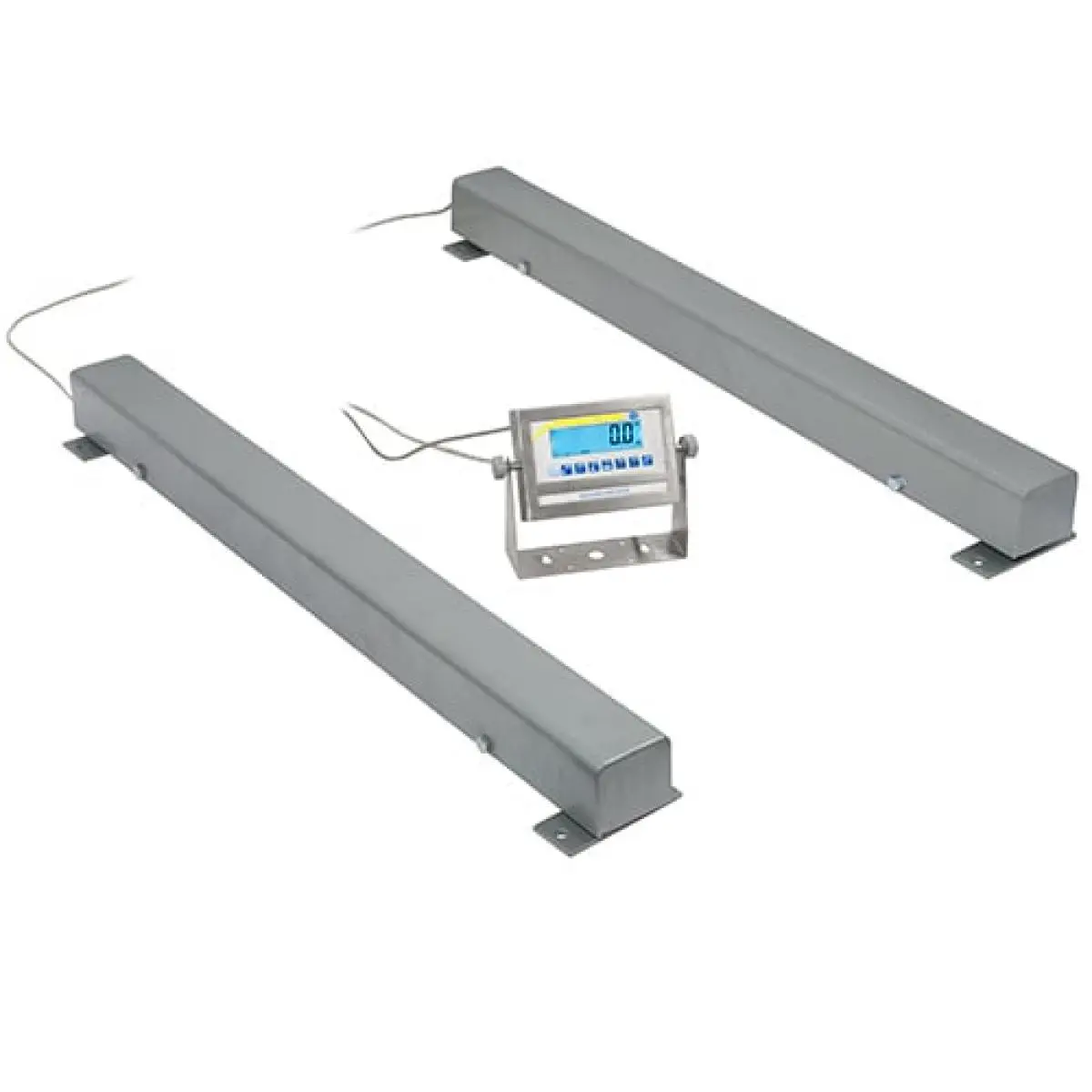

The Weight Indicator of the PCE- SW N series is independent of the size of the pallet. The two weighing beams can be placed at a distance of up to 4 m from each other. The Weight Indicator is, for example, ideally suited for weighing oversized or excessively long weighing goods. The Weight Indicator has a length of 1200 mm and a width of 120 mm. The display is connected to the Weight Indicatorwith a 5 m long cable. This display device can be mounted on the table or on the wall. Thanks to the bi-directional RS- 232 interface, the Weight Indicator can be connected to a PC or printer. The manual interfaces also allow for easy integration of the Weight Indicator into existing IT systems. Power is supplied through an internally installed battery and thus also enables mobile use of the Weight Indicator.

Highlights

- Bi-directional RS-232 interface for PC or printer connection

- Multiple TARE for whole weighing range

- Threshold, sum-up and counting functions

- 6V rechargeable battery inside display

- Ingress protection rating: IP 54

- Ideal for use in warehouse, storage facility, shipping, receiving, loading dock, logistical, supply chain, retail, inventory and stock room applications

- Software, USB to RS-232 adapter and ISO calibration certificate sold separately - see accessories for details

Specification

Weighing range
Measurement range up to [Max]	3000 kg
Resolution [d]	1 kg
Accuracy	±4 kg

General technical data
Cable length	5 m
Measuring functions	HOLD
Measuring functions (additional information)	Limit value weighing function, counting function, totalising function
Units	kg, lb
Display type	LCD
Digit size [WxH]	Height: 25 mm
Material evaluation device	Stainless steel
Interface	bidirectional RS232
Automatic power-off from...to	10 ... 60 min.
Housing	Painted steel
Tare range	Multiple tare over the entire weighing range
Calibration	Multi-point calibration possible
Menu language	English, English (GB)
Protection class (device)	IP54
Power supply	Power supply unit: 9V / 1.2 A
Connector type	Device-europlug
(Rechargeable) battery	1 x 6 V internal , Lead gel battery
Capacity	4500 mAh
Operating conditions	0 ... 40 °C , 10 ... 80 % RH
Storage conditions	0 ... 40 °C , 10 ... 80 % RH
Dimensions ( L x W x H )	1200 x 120 x 110 mm
Weight	55000 g

Delivery Scope

1 x Weight Indicator PCE-SW 3000N (includes 2 x weighing beams and 1 x display)

1 x Battery charger

1 x User manual
