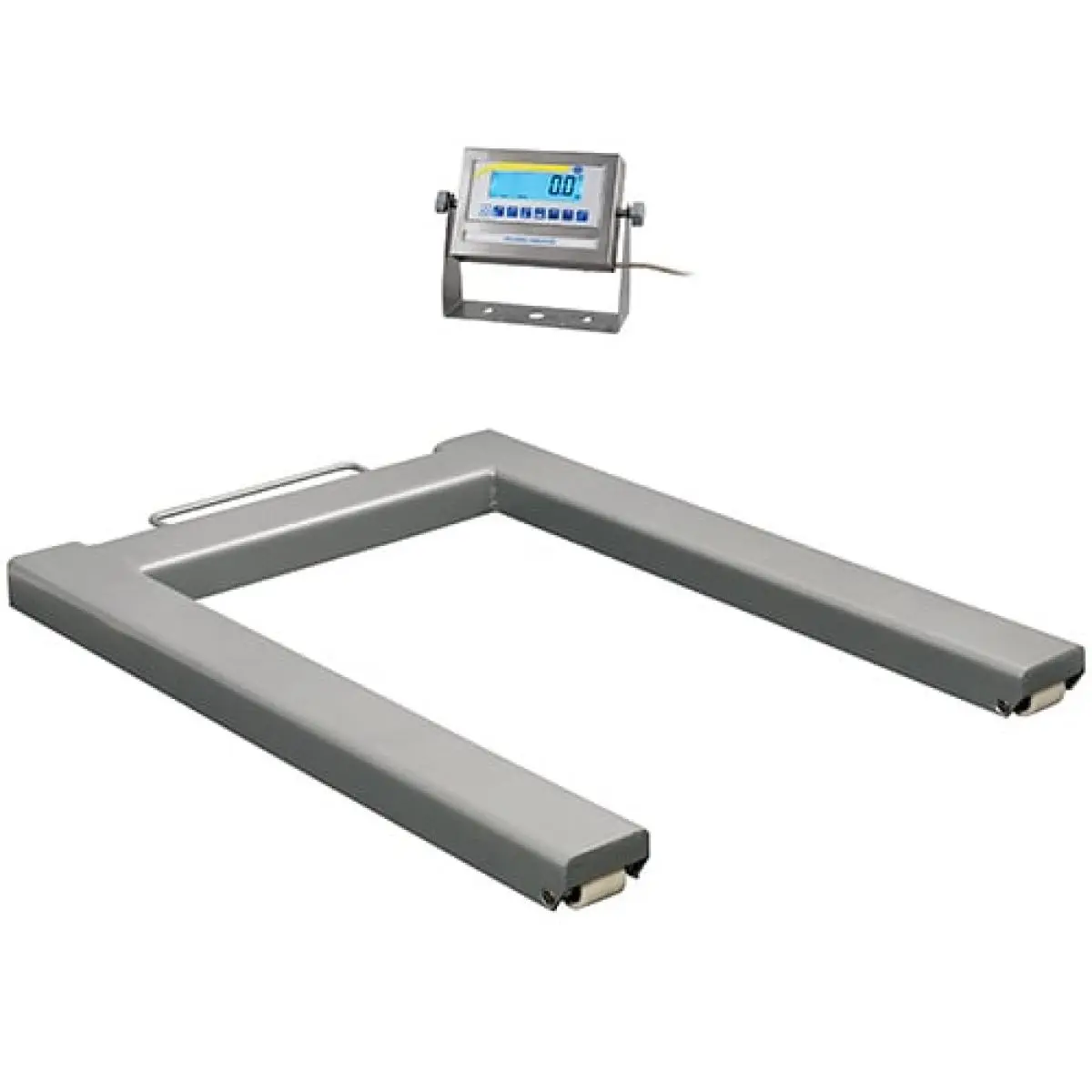

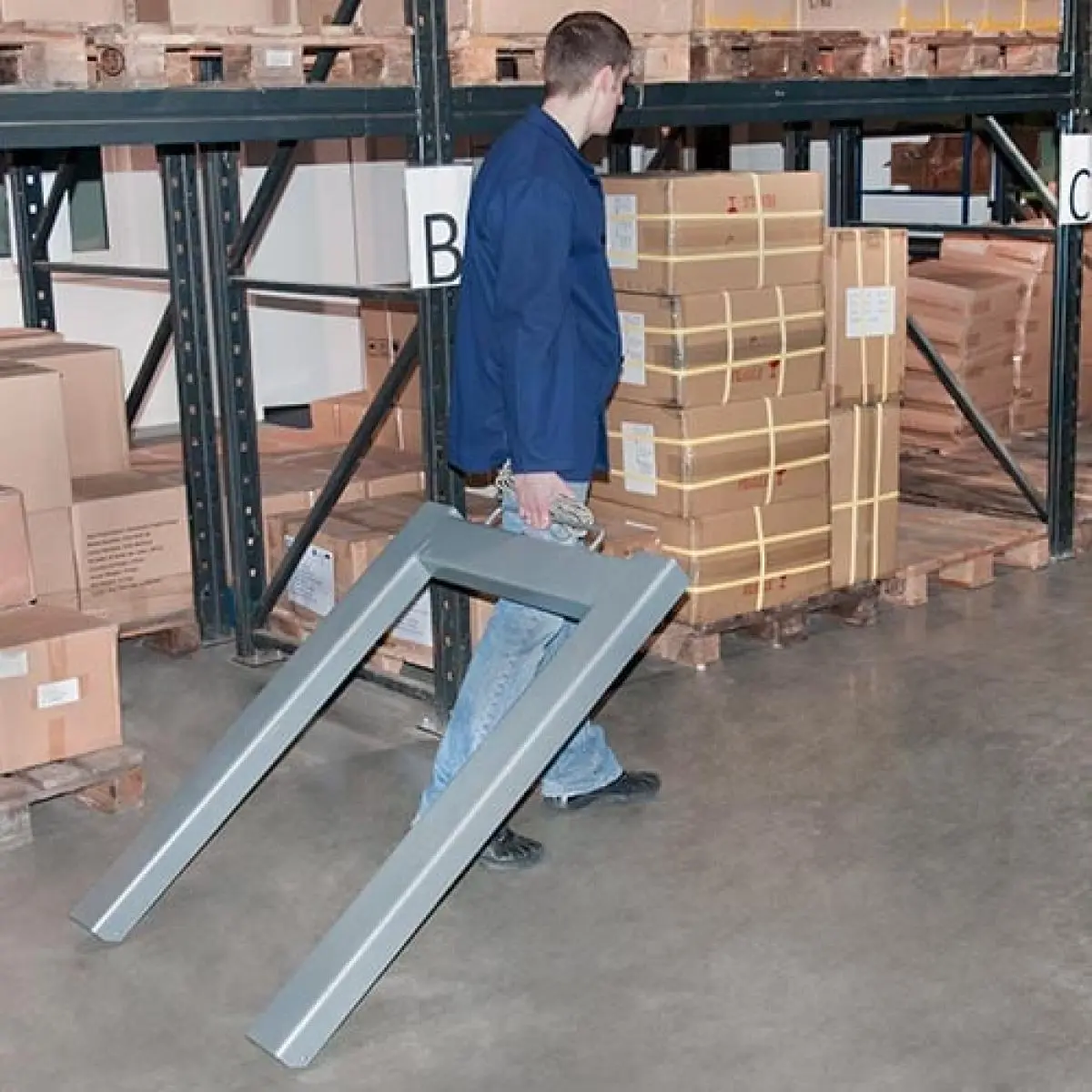

This Pallet Scale PCE-EP 1500 allows you to load directly onto the ramp in no time at all. This model of Pallet Scale is the ideal solution for fast and precise mobile weighing in industrial and warehousing applications, in shipping and receiving applications and in inventory control. Now, you don't need to move the pallet with great effort up to the scale. You only have to bring the merchandise to weigh near the scale, and you will be able to have good control of the process. The Pallet Scale is transported without problems. In the front view, you have a handle to elevate it, and on the sides of the scale, you have some wheels. The display has been mounted in the back part of the Pallet Scale (ideal for its transport); nevertheless, you can remove it and place it where you want.
| Weighing range | |
| Measurement range up to [Max] | 1500 kg |
| Resolution [d] | 0,5 kg |
| General technical data | |
| Cable length | 4 m |
| Units | kg |

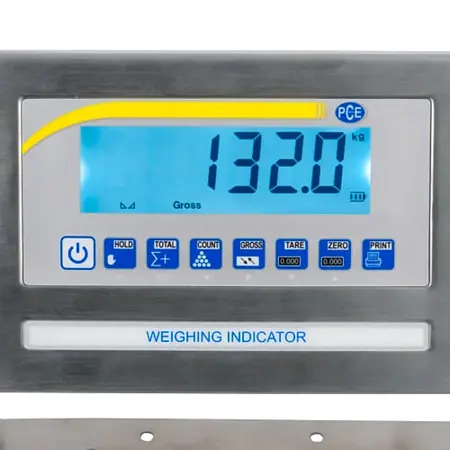

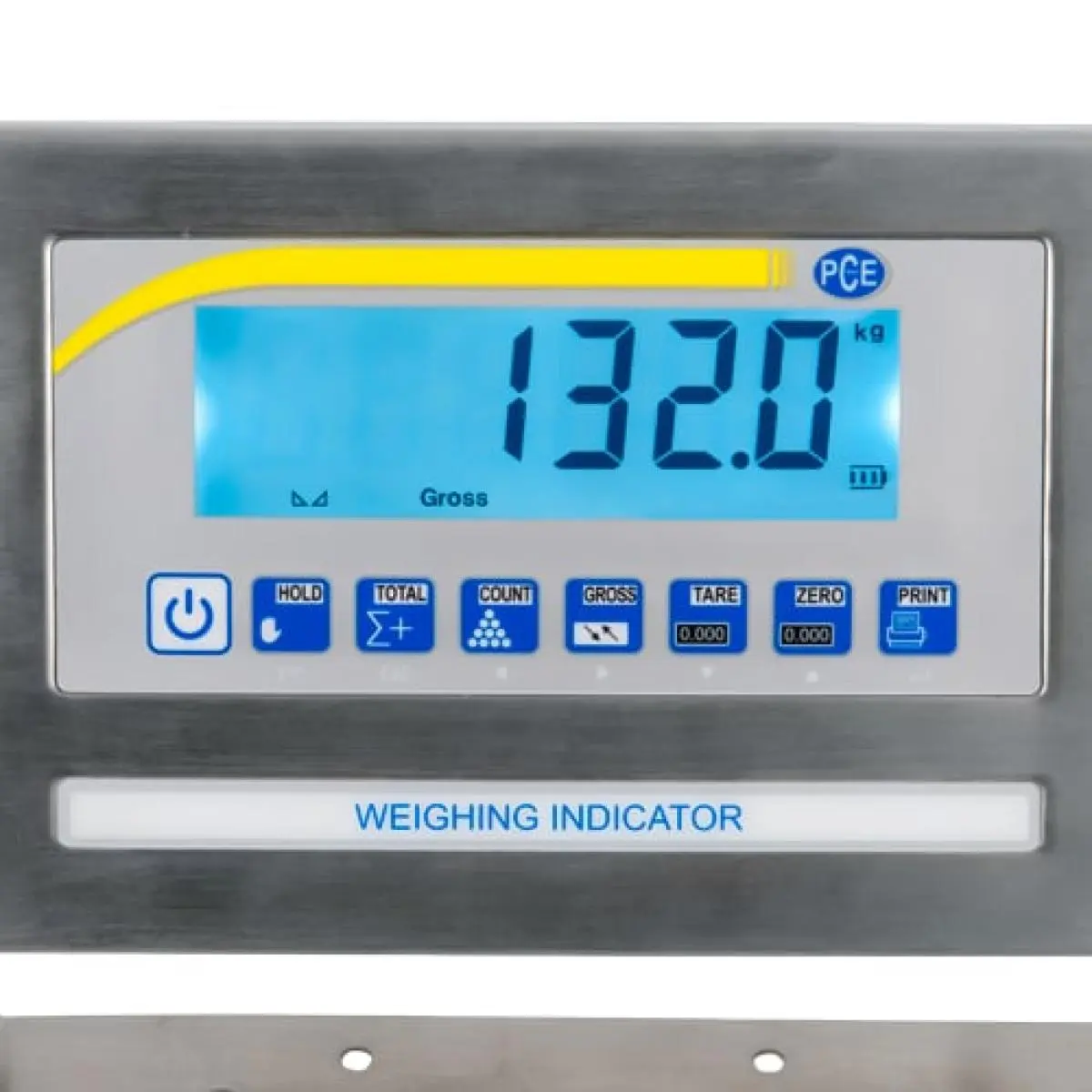

| Display type | LCD with backlight |
| Material evaluation device | ABS (acrylonitrile-butadiene-styrene copolymers) |
| Housing | Painted steel |
| Overload protection | max. overload: 125 %, overload alarm: alarm from 3 % overload |
| Reproducibility | ±0.5 kg |
| Tare range | Over the entire weighing range |
| Substructure material | Painted steel |
| Calibration | Automatic (via external calibration weight) |
| Settling time | 3 s |
| Protection class (device) | IP54 |
| Power supply | Rechargeable battery: 6 V / 4 Ah Mains adaptor: 9 V / 1.2 A |
| Connector type | Device-europlug |
| (Rechargeable) battery | 1 x 6 V internal , Lead gel battery |
| Capacity | 4500 mAh |
| Operating conditions | 0 ... 40 °C , 10 ... 80 % RH |
| Storage conditions | 0 ... 40 °C , 10 ... 80 % RH |

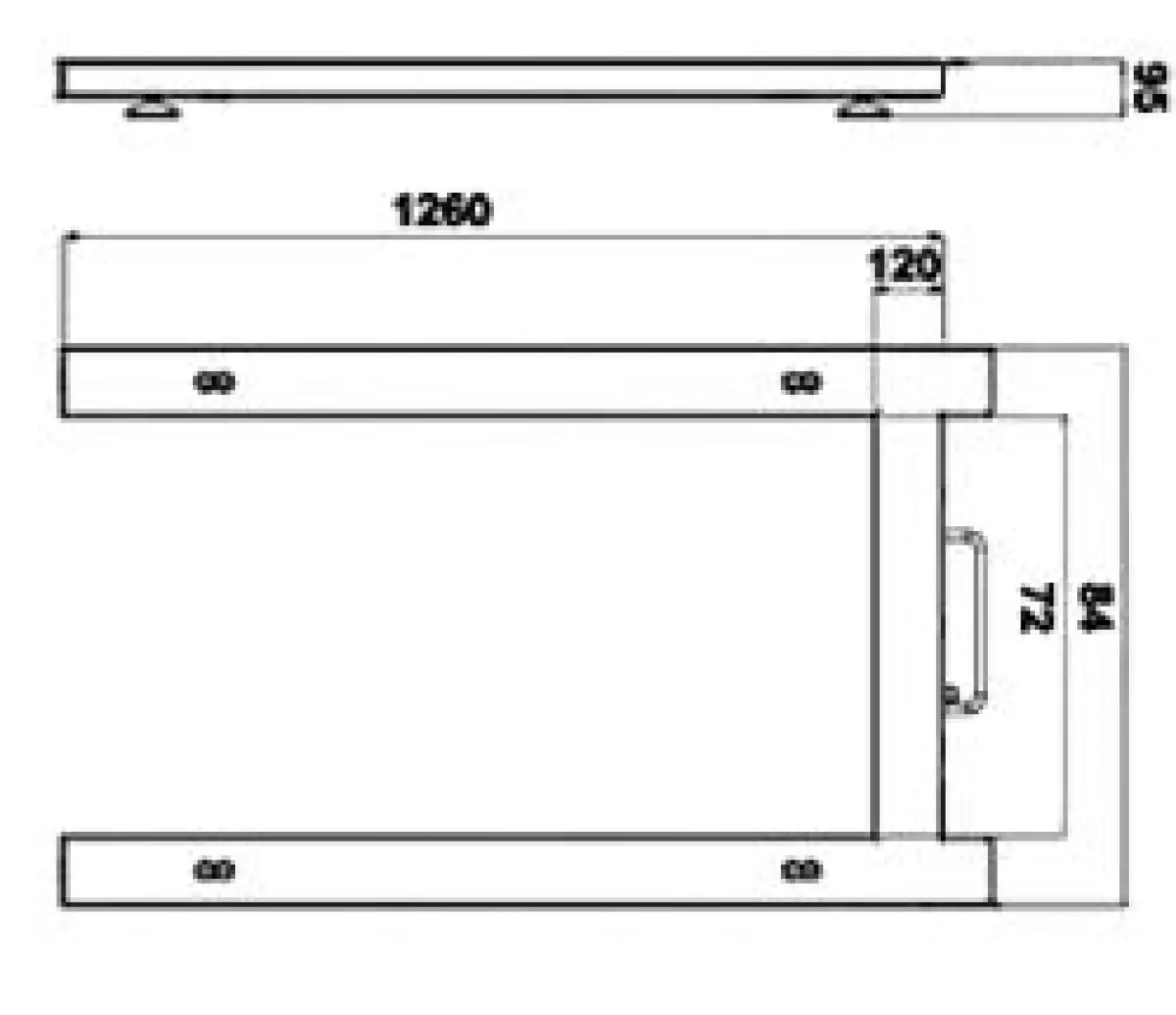

| Dimensions ( L x W x H ) | 1200 x 840 x 75 mm |
| Weight | 50000 g |
