Weighing Platform PCE-SD 3000F SST

Order no.: PCE-SD 3000F SST
Verification for Trade / conformity assessment
£ 4,672.00
£ 5,606.40
price ex. (VAT / delivery)
Delivery time: up to 10 working days

Calibrated stainless steel built-in Weighing Platform up to 3t / Resolution 1 kg / IP68 - IP65 / Piece counting function / Summing function / RS-232 interface / Removable weighing plate

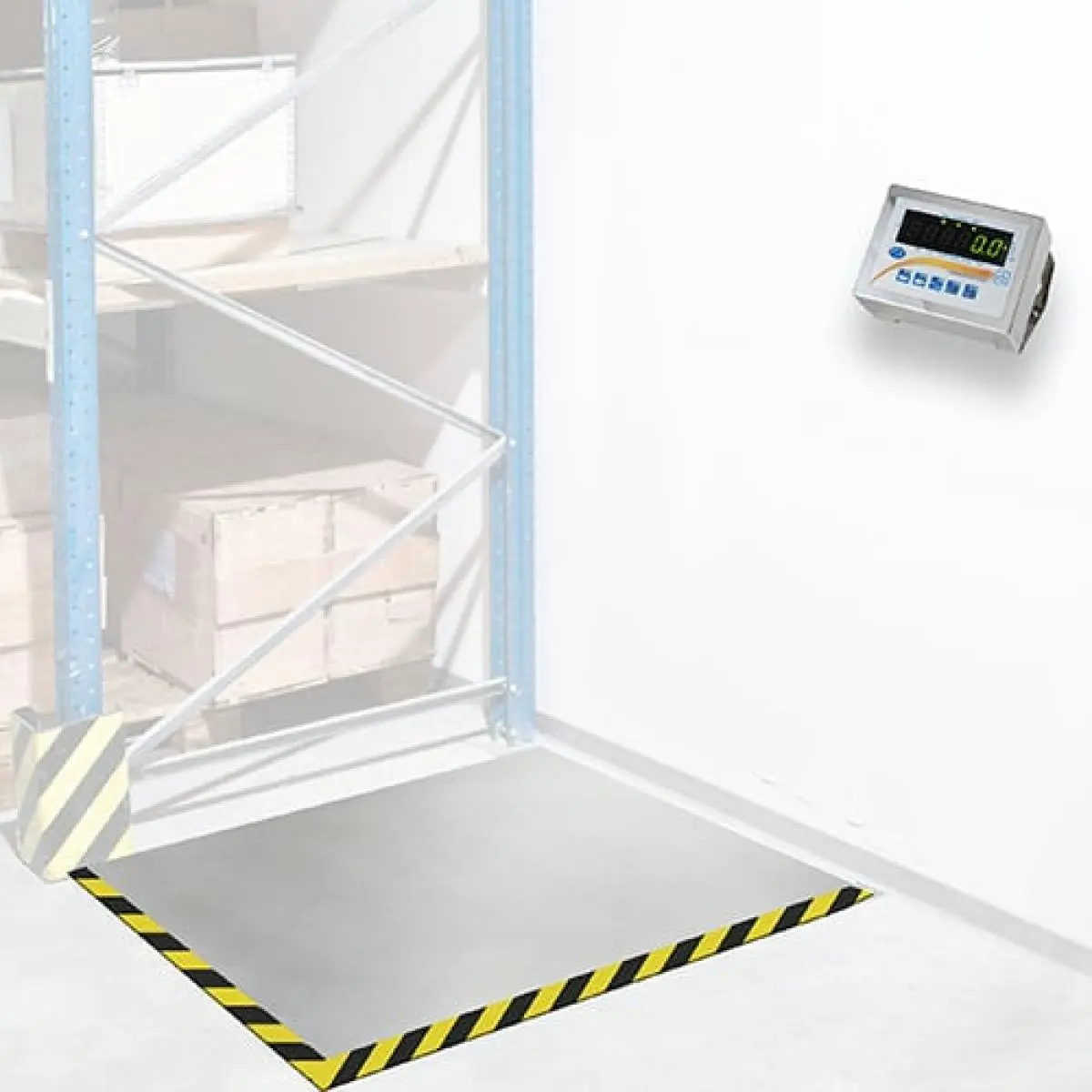

The stainless steel weighing platform  is installed in the floor to obtain a flat surface. As a result, the stainless steel weighing platform can be easily loaded with all kinds of conveyors. The stainless steel scale has a weighing platform bolted to the frame, which can be used as required. Optionally, it is possible to provide the stainless steel weighing platform  with a damper which makes it easier to lift the weighing surface. The cells of the stainless steel weighing platform are IP68 protected and the display IP65. Due to the high protection class, the stainless steel weighing platform  has no interfaces. These interfaces, such as RS-232, RS-485, USB, LAN, 4-20mA, 0-10V or floating contacts can be installed at our factory. Subsequent installation is not possible. This allows the stainless steel weighing platform to monitor or control production processes.

- Piece counting function
- Percent% comparison weighing
- Filter (reaction time) adjustable
- Animal weighing function
- A tare value storable
- Tolerance determination Weight min / ok / max
- Sum up several weighings
- Statistics function
- Adjustable automatic shutdown
- Gross / net button on the display
- Menu freely adjustable
- Maintenance-free components
- Optional: USB, LAN or 4-20 mA


Weighing range






3,000 kg

1 kg

20 kg

1500 x 1500 mm

210 kg

* The minimum load is the load from which the calibration authority checks the accuracy. The verifiable stainless steel floor installation scale also indicates smaller weights, but these may not be used in legal traffic.
Calibration calibratable according to class M III (delivered calibrated)
Tare range multiple tare over the full weighing area
Settling time <4 s
Display LED with 20 mm digit height
Cable length plugged in 5 m
Weighing units kg / piece / lb
Interface optional bi-directional RS-232, USB, LAN
Interface description
e.g. 4-20 mA, 0-10V, OC switching contacts
Weighing plate Smooth stainless steel (unscrewable)
Operating temperature -10 °C ... +40 °C / 14 ... 104 °F
Power supply ~230V 50Hz 8VA  (safety plug)
Protection cell IP 68 / display IP65
For the installation of the stainless steel installation scale you need the dimensions of the foundations as well as the frame, which are located behind the buttons sketch

1 x Stainless Steel Weighing Platform for installation
1 x Display

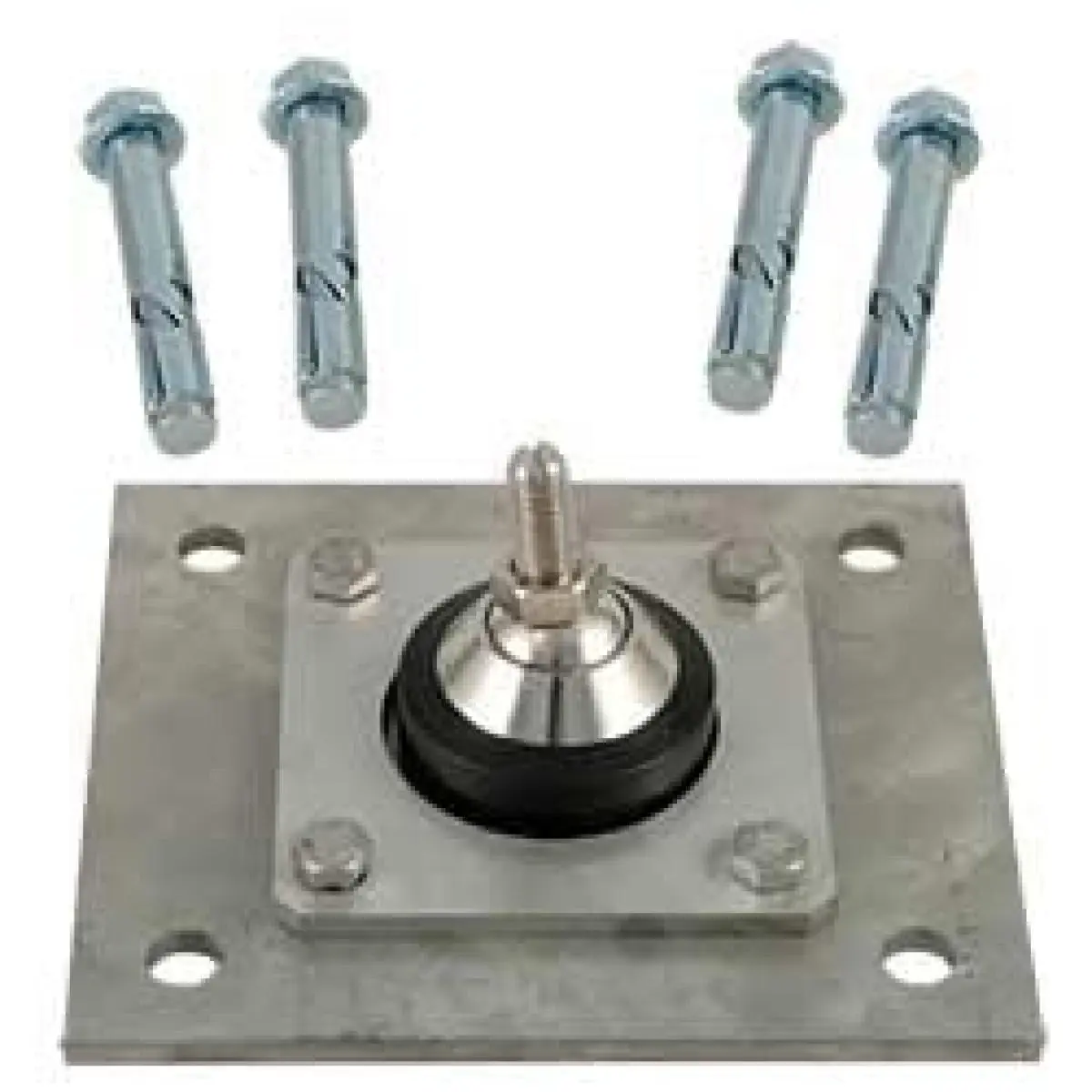

4 x Floor fixing plates
1 x User manual
