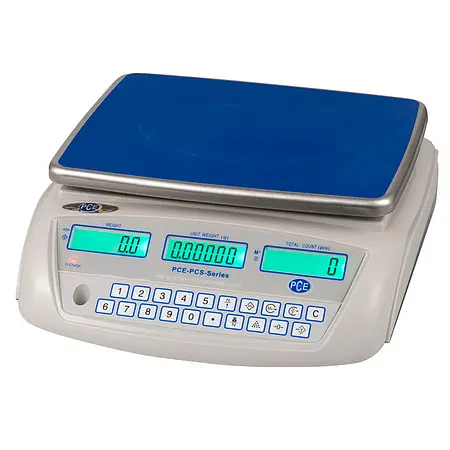

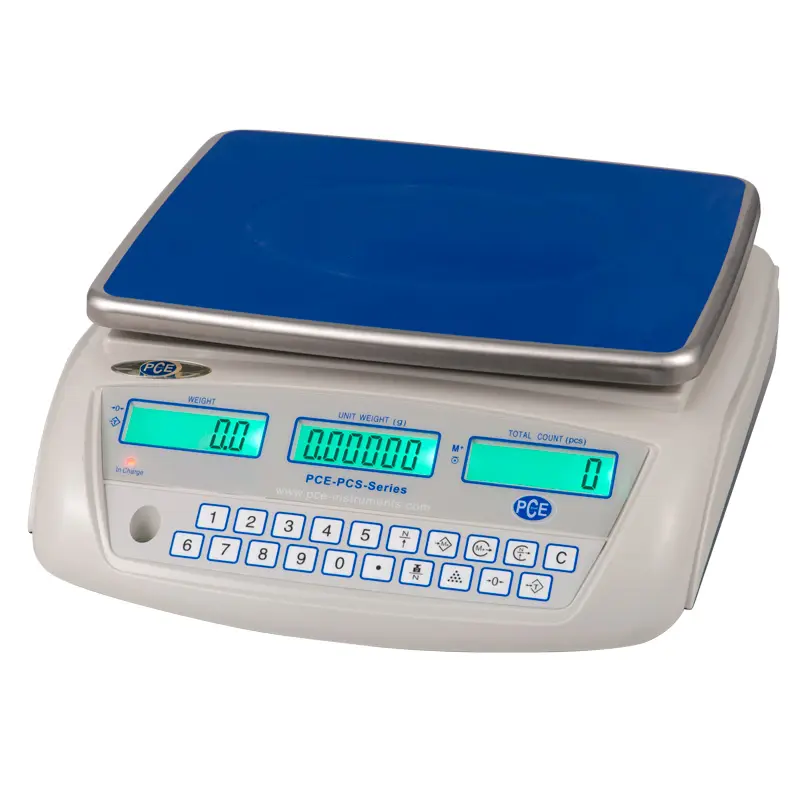

Weighing Platform PCE-PCS 30

Weighing Platform PCE-PCS 30

Order no.: PCE-PCS 30
GTIN (EAN): 4250348701183
£ 318.00
price ex. (VAT / delivery)
:
4250348701183
PCE-PCS 30
Delivery time:1-2 working days

Description

Inventory Scale PCE-PCS 30
Two models of inventory scale for piece counting function (6 kg and 30 kg) / high resolution / RS-232 interface / powered by an internal accumulator

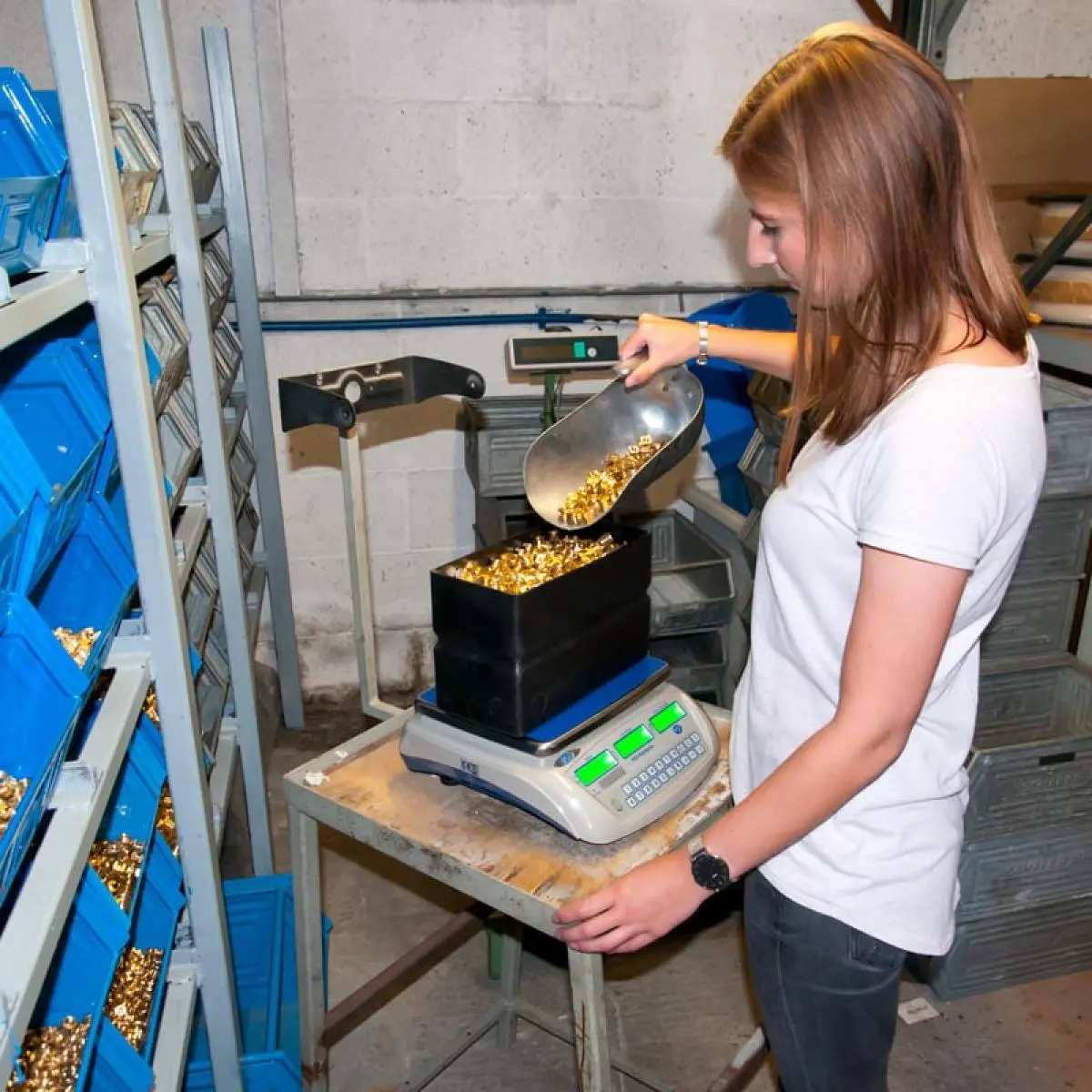

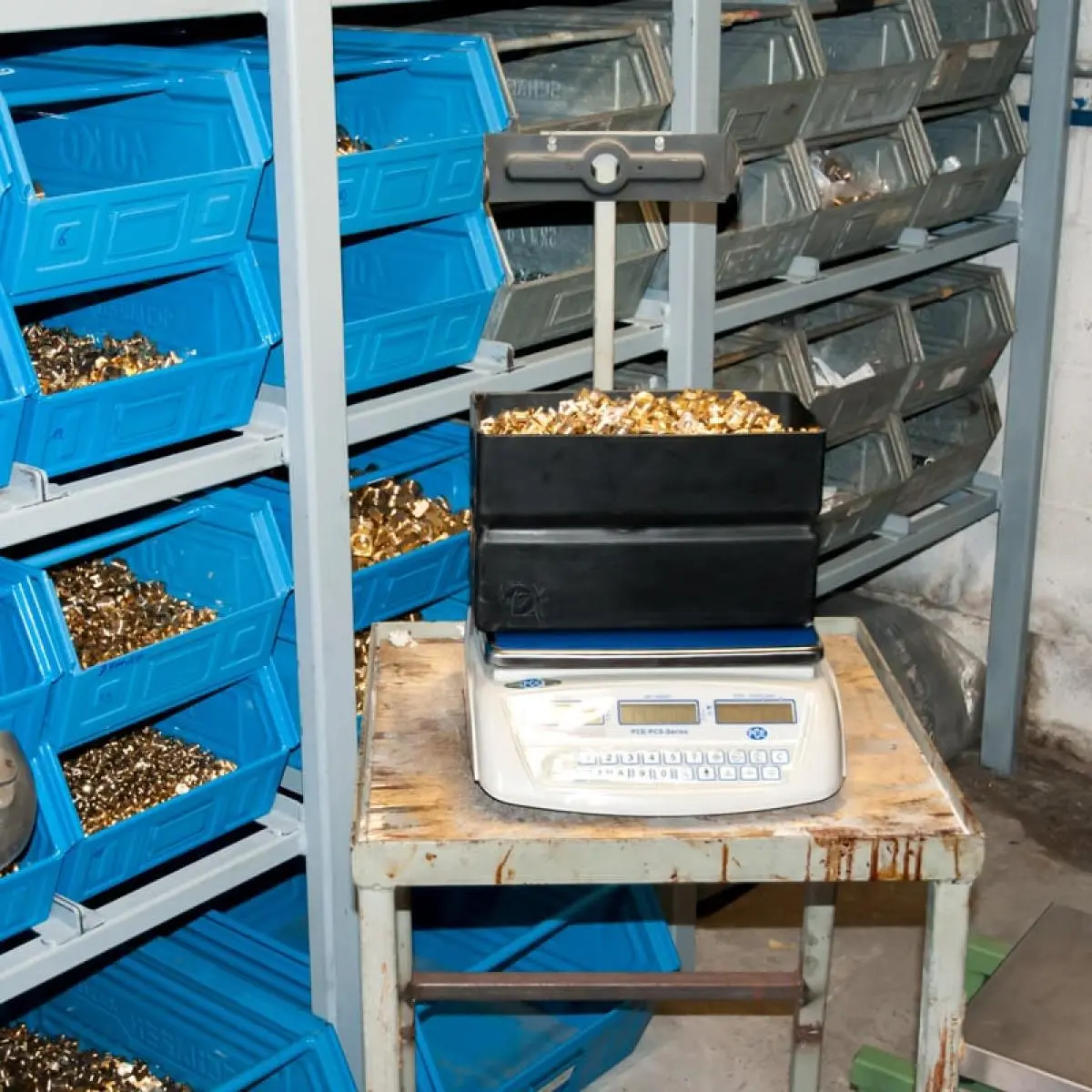

Inventory scale is designed for professional counting and weighing. Both memory cells and the possibility of being powered by an accumulator turn this inventory scale in an irreplaceable device. This inventory scale is the ideal instrument to determine the amount of pieces accurately, for instance while carrying out inventories. When piece counting function is active, the single weight of a piece is determined by the scale, but if value is known, it can be entered via the keyboard. If a number of pieces is placed on the scale, the inventory scale will be able to show the weight, the reference weight as well as the amount of pieces placed on it. By means of the optional printer of labels, weighing results can be printed directly. Printing is automatic when the value on the display is stabilized. A previous tare can be performed or it is even possible to introduce the reference weight via the keyboard. RS-232 interface is available for the inventory scale. Through the optional software weighing data can be transferred to a computer.

Highlights

- Functions: TARE, ZERO, auto calibration (requires external weight, not included), backlight on / off, piece counting accumulation and auto average

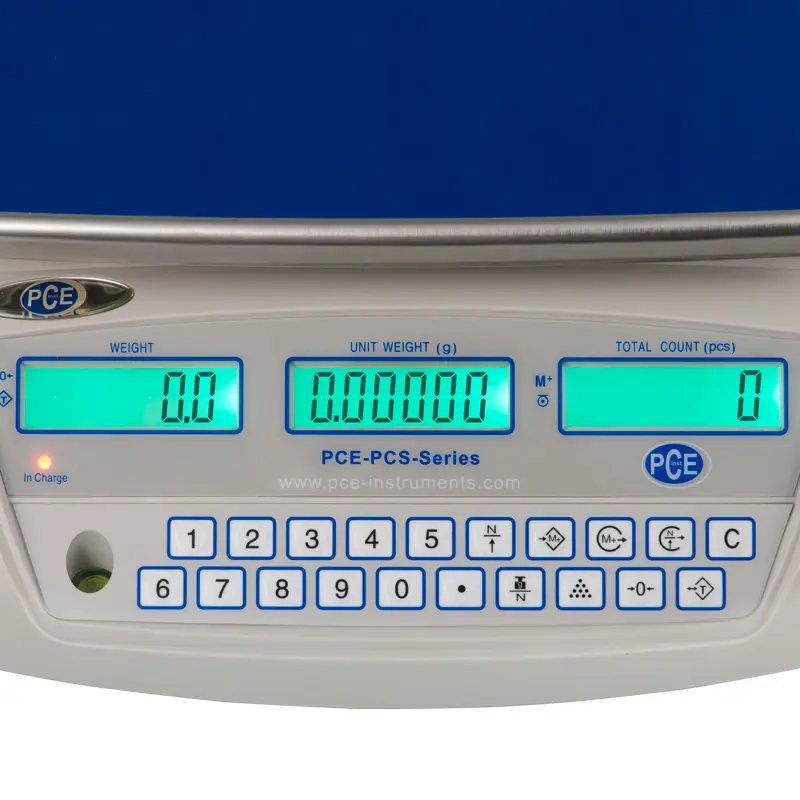

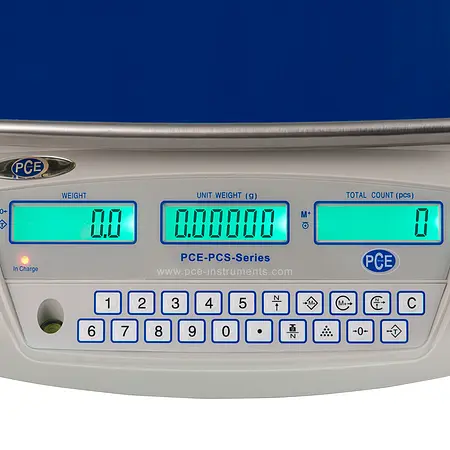

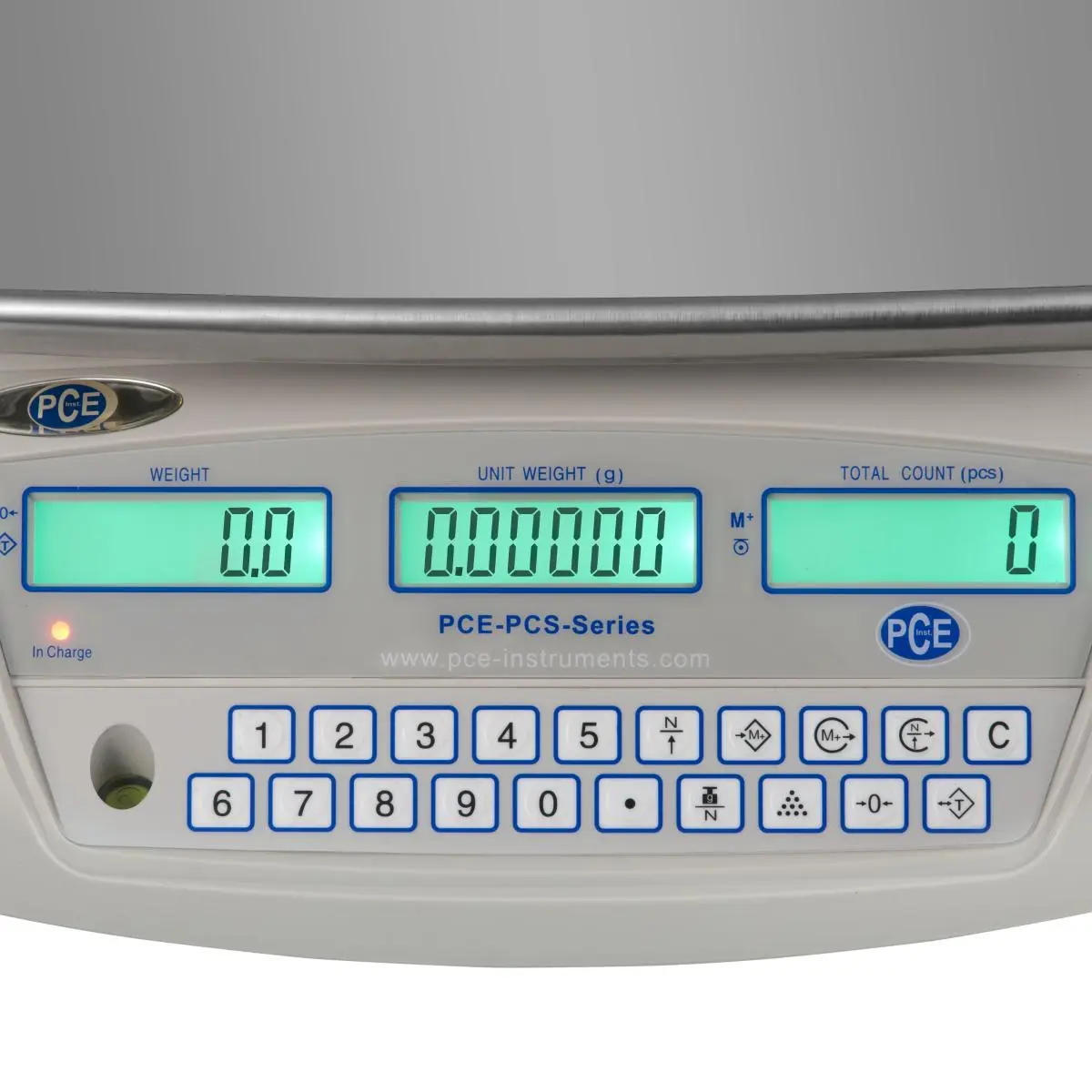

- Displays gross weight, unit weight and total quantity of pieces (pcs)
- Reference weight established by TARE or keyed manually
- Programmable (99 memory positions)
- Set communication via RS-232 port to automatic output when reading is stable or continuous output
- Powered by electric power supply (included) or battery
- Low power indicator signals need to recharge battery
- Features adjustable feet for leveling

Specification

Weighing range
Measuring range from  0,5 g
Measurement range up to [Max]  30 kg
Resolution [d]  0,5 g
Accuracy  ±0.5 g

General technical data
Measuring functions (additional information)  Piece counting, totalising function
Units  g
Display type  LCD
Storage capacity  99 Values
Interface  RS232
Housing  ABS (acrylonitrile-butadiene-styrene copolymers)
Reproducibility  ±0.5 g
Minimum load [min]  0,5 g
Tare range  100 %

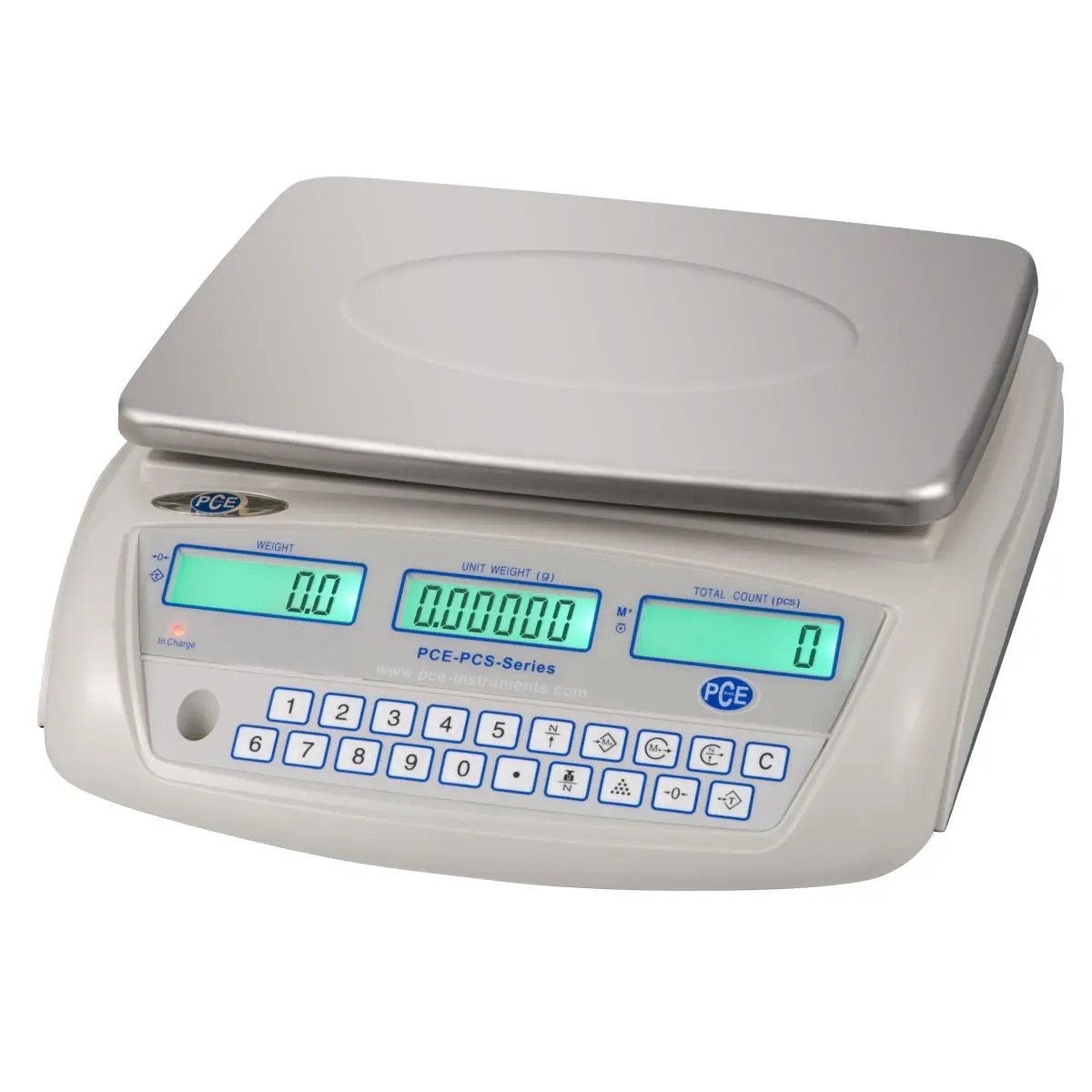

Weighing plate material  Stainless steel
Calibration  Using an external test weight
Settling time  3 s
Protection class (device)  IP20
Power supply  Mains adaptor: 230 V / 50 Hz
Connector type  Device-europlug
(Rechargeable) battery  1 x 6 V internal , Lead gel battery
Capacity  4500 mAh
Operating conditions  0 ... 40 °C , 10 ... 90 % RH
Storage conditions  0 ... 40 °C , -10 ... 60 % RH
Dimensions ( L x W x H )  320 x 320 x 125 mm
Weight  2800 g

Delivery Scope

1 x Weighing Platform PCE-PCS 30
1 x electric power supply
1 x user manual
