£ 29.00
Price excl. VAT &. delivery
2 year Warranty
[more]
Load | 500 kg / 1102.3 lbs |
Stroke range | 350… 1130 mm / 13.8 ... 44.5 in |
Stroke | 780 mm / 30.7 in |
Linear actuator | Hydraulic |
Platform size | 1300 x 850 mm / 51.2 x 33.5 in |
Platform type | Closed |
Lifting speed without load | Approx. 60 mm / sec. |
Stroke cycles | Max. 10 per hour / Max. Approx. 30,000 |

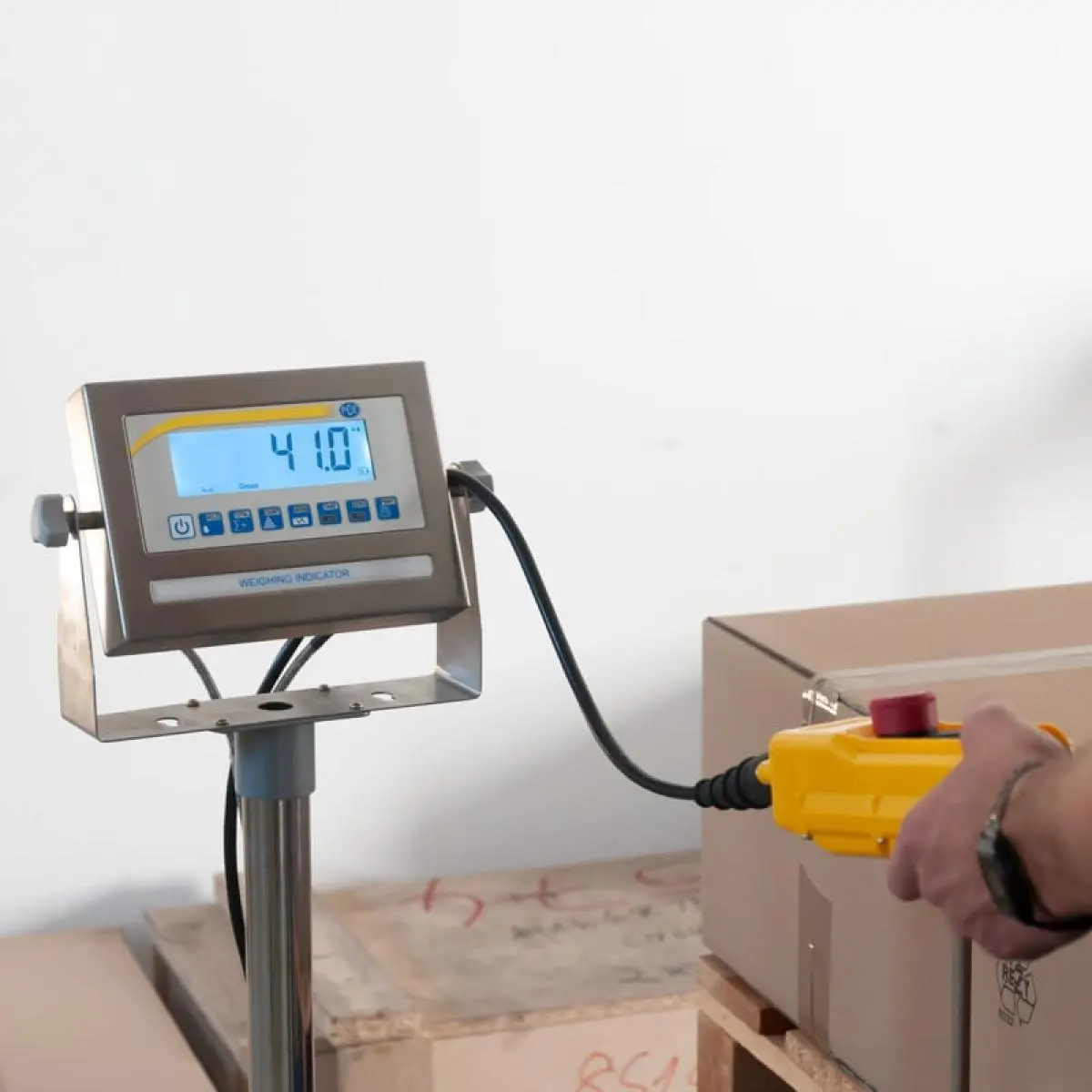

Control panel | Lift button, lowering button and emergency stop Cable length approx. 3 m / 9.9 ft |

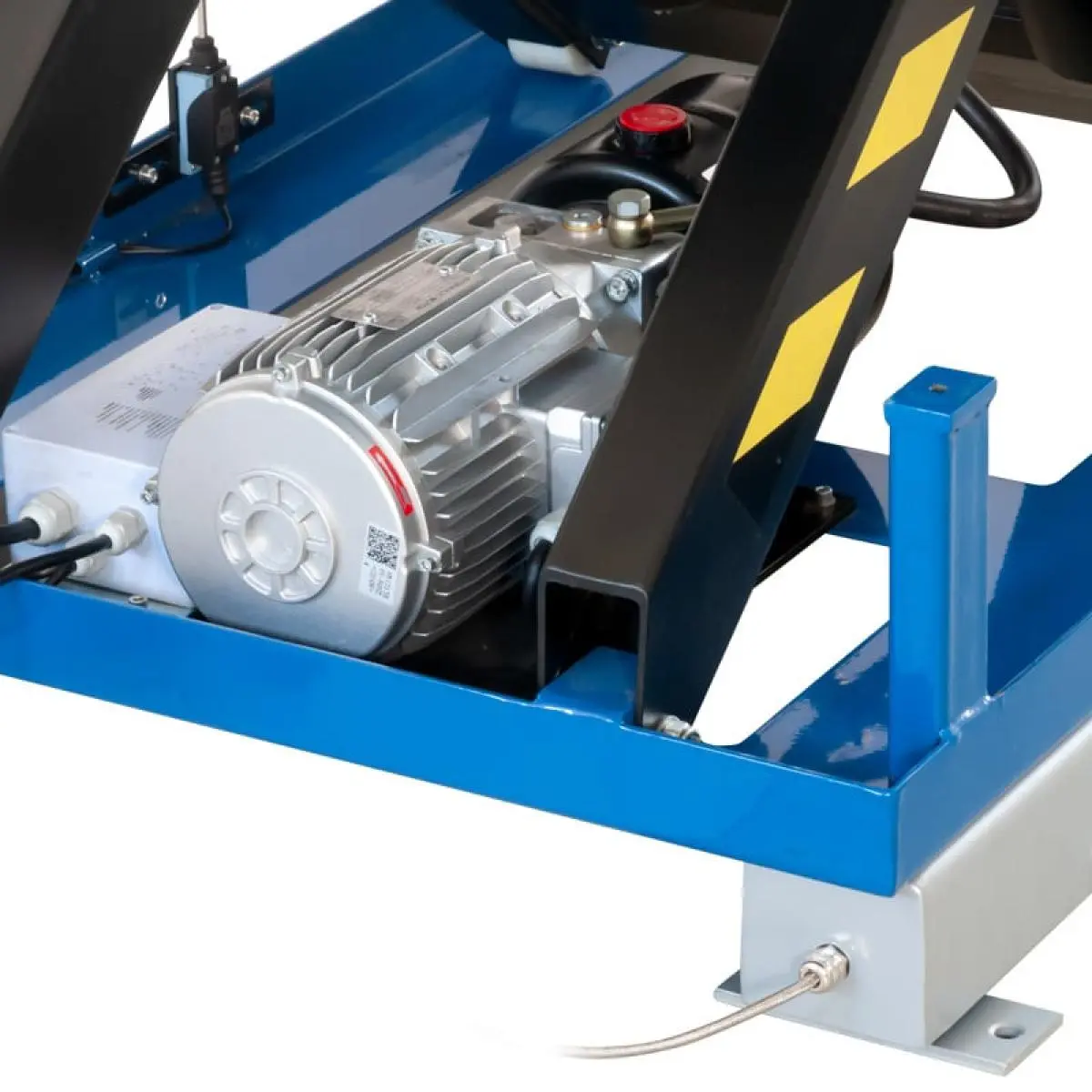

Power hydraulic pump | 2.2 kW |
Power supply lift table | 380V / CEE 16A |
Cable length | Approx. 3.5 m / 11.5 ft |
Weight | Approx. 225 kg / 496 lbs
|
Scales | |
Weighing | 500 kg / 1102.3 lbs |
Resolution | 0.2 kg / 0.4 lbs |
Measurement uncertainty | ± 1 kg / 2.2 lbs |
Tare | Multiple tare across the entire weighing range |

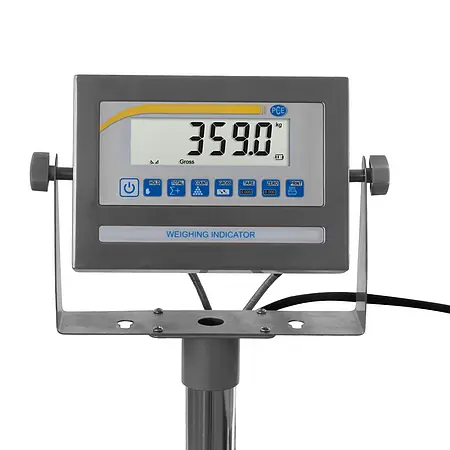

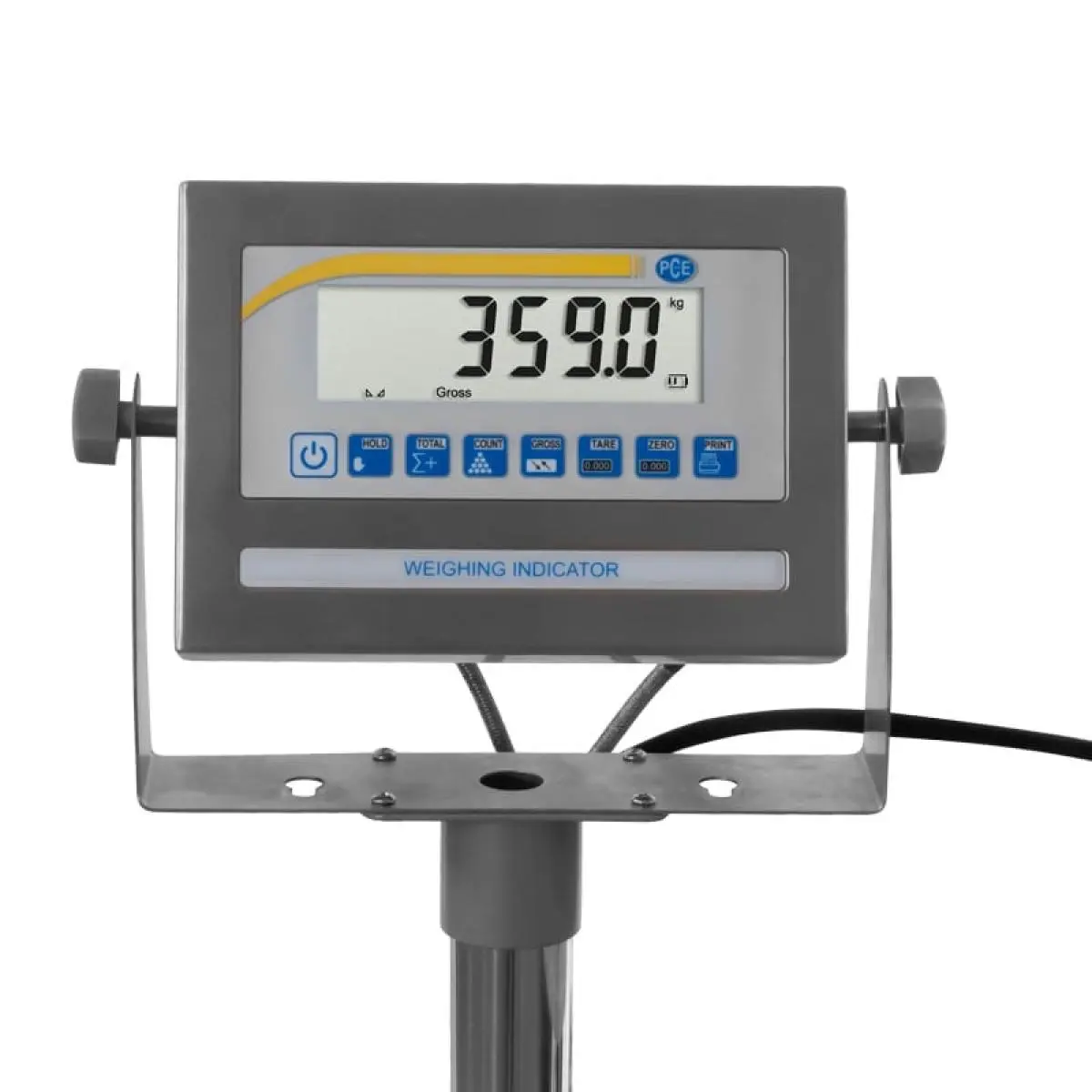

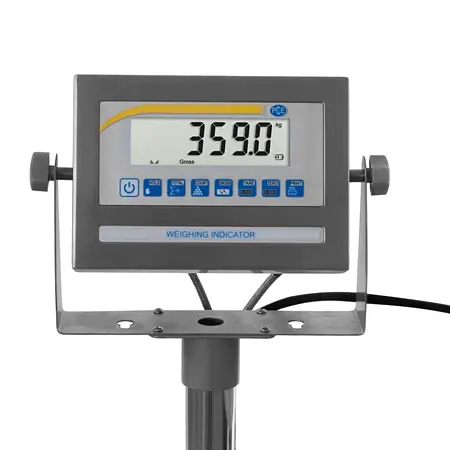

Display | LCD with a digit height of 25 mm / 1 in |
Display assembly | Tripod / operating height 115 mm / 4.5 in |
Cable length to the display | Approx. 5 m / 16.4 ft |
Interface | RS-232 / Sub D9 / Male |
Power supply scale | 6V battery / 9… 12V power supply |
Weight | Approx. 55 kg / 121.3 lbs |
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
