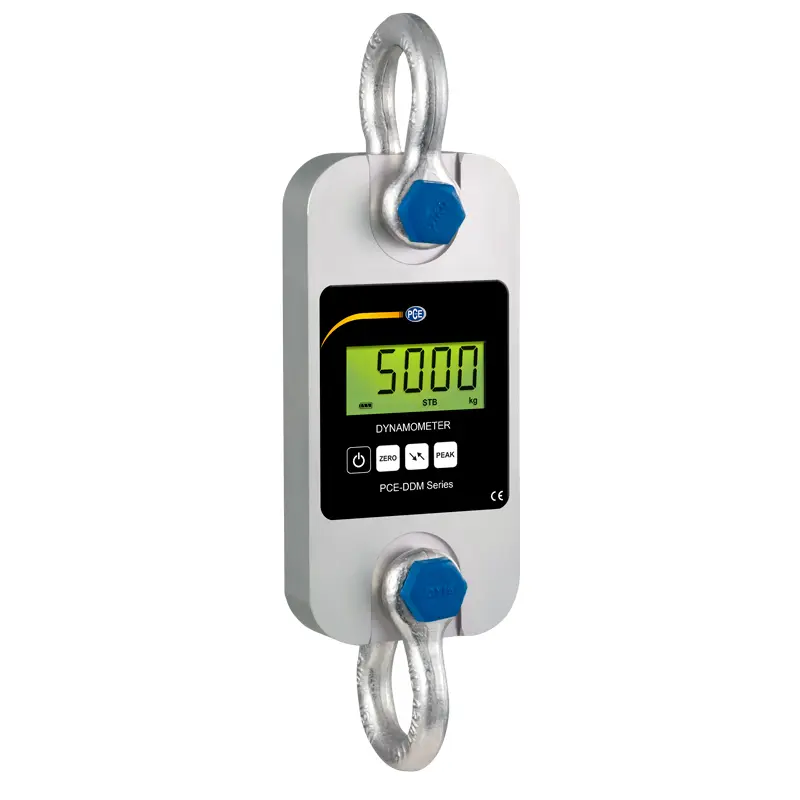

Weighing Hook PCE-DDM 5WI incl. ISO calibration certificate
Max. capacity up to 5 tons / Peak hold, sum and tare functions / Includes shackles, protective carrying case and two-year warranty against manufacturer defects

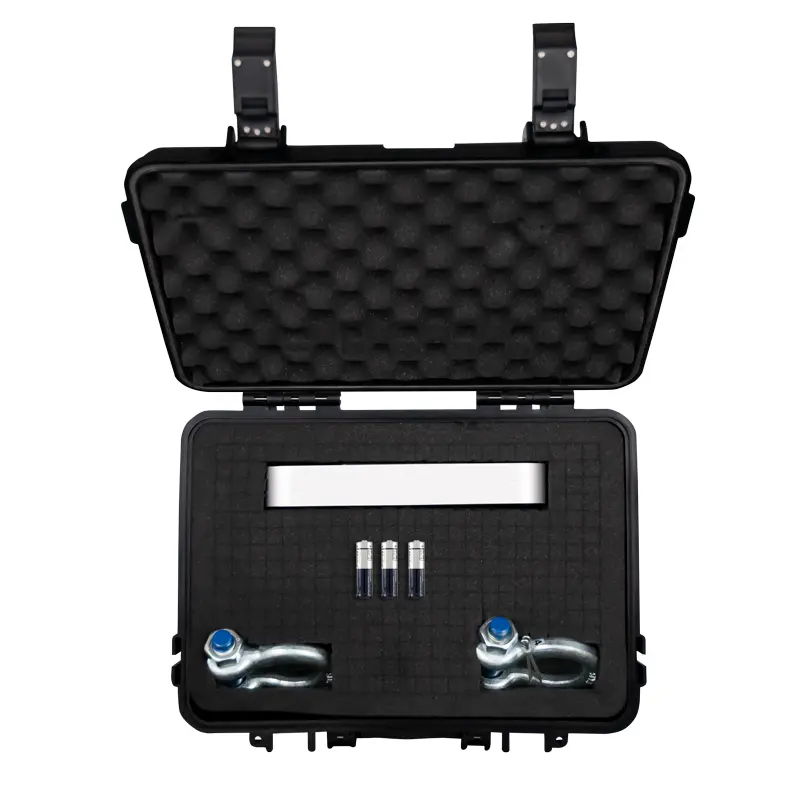

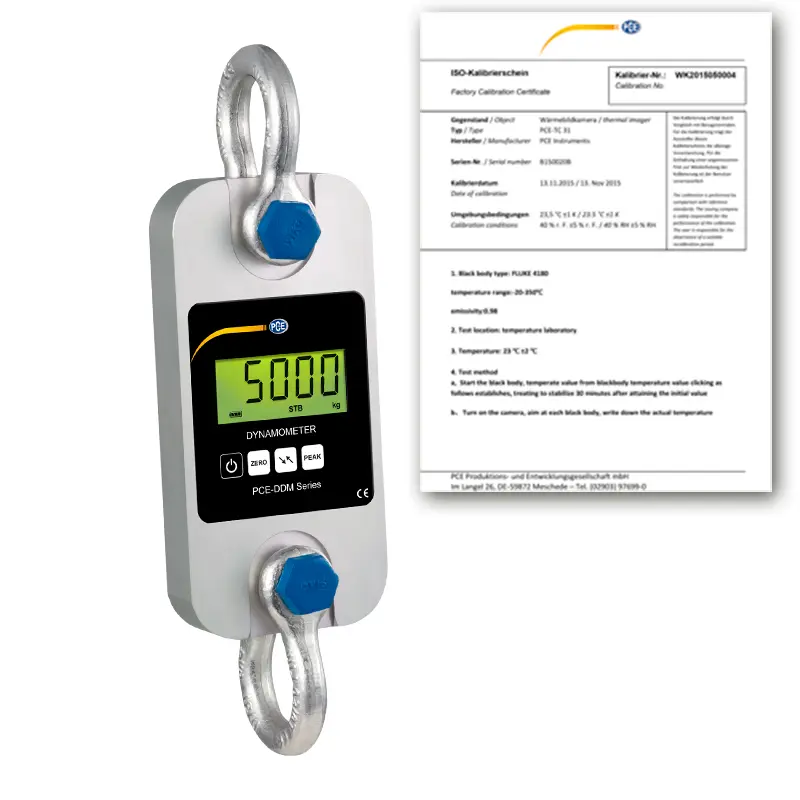

PCE-DDM 5WI is a rugged weighing hook designed to weigh large hanging loads. PCE-DDM 5WI is also a durable digital dynamometer specially crafted to measure strong tensile forces. This high-capacity device is delivered in a protective carrying case and includes two shackles made of heavy-duty aluminum. Each PCE-DDM 5WI is manufacturer calibrated, but can be certified to ISO standards for an additional fee (see accessories for details).
Despite its high capacity and rugged durability, the PCE-DDM 5WI is a compact and portable device with a low net weight. The PCE-DDM 5WI has many useful practical features including peak hold, tare, sum and the ability to select different units of measurement such as kg / t / lbs / N / kN.
Please note that this device is only suitable for weighing and for tension force testing. For compression force testing, please see the PCE-FM series force gauges (visit similar items tab for details).
|Maximum capacity||5 t / 11023 lbs / 5000 kg / 50 kN|
|Resolution||4 lbs / 2 kg / 20 N|
|Minimum capacity||88 lbs / 40 kg|
|Device weight (with shackles)||
6.6 lbs / 3 kg /
(13 lbs / 6 kg)
|Accuracy||± 0.1 % of measurement range|
|Tare range||Max. 20 % of measurement range|
|Display||LCD with 0.9" / 22 mm digit height|
|Units of measurement||kg / t / lb / N / kN|
|Sampling rate||2.5 Hz|
|Operating temperature range||-10° C ... +40° C / +14° F ... +104° F|
|Power supply||3 x 1.5 V AA batteries|
|Battery life||Approx. 50 hours of continuous use at full charge|
