System Balance PCE-SD 60CR

Order no.: PCE-SD 60CR
Verification for Trade / conformity assessment

£ 1,179.00
£ 1,414.80
price ex. (VAT / delivery)
Delivery time: 1-2 working days
System Balance up to max. 30kg - 150 kg / bi-directional RS-232 interface /
width of guide rail approx. 580 mm /
optionally purchasable: RS-485, analogue outputs 4 ... 20 mA, 0 ... 10 V,  USB interface

The system balance PCE-SD ... CR series is designed for applications in many processes and delivery businesses, since the roller scale supports many interfaces. Furthermore the system balance features a standard RS-232 interface. In addition the system balance PCE-SD CR series can be equipped with further interfaces which enable control of the roller scale. For example, the system balance can be extended with an analogue output 4-10 mA or 0-10 V, or even potential-free contacts. The system balance is calibrated and thus can be used for tasks in areas of custody transfer. The system balance can be also integrated into larger rollers, and hence can be used as an extension module.

- Calibratable incl. initial calibration
- Display cable for platform 1.5 m
- Guide rail scale for max. 30 kg-150 kg
- Diameters of guide rail: 500 x 580 mm
- Smoothly running synthetic rails
- Bi-directional RS-232 interface
- Item counting function
- Tolerance range function: min / OK / max


Weighing range


Calibration Value

minimum load*


30 kg

10 g

10 g

200 g


60 kg

20 g

20 g

400 g


150 kg

50 g

50 g

1 kg

*The minimum load is defined by the load, from which the calibration authority tests the accuracy of the scale. The waterproof steel scale shows even lower weights, but these are not valid for custody transfer.
Guide Rail diameters500 x 580 x 110 mm
Guide Rail materialSynthetic
Guide Rail framegalvanised
Diameters of scale520 x 620 x 150 mm
Platform Stainless steel in synthetic protection foil
DisplayLCD display on a 1.5 m cable
Taring rangefor the whole weighing range
Settling timeapprox. 3 sec.
Calibration ClassM III
InterfaceSerial RS-232 (bi-directional)
Operational temperature-10 °C ... +40 °C
Power Supply~230 V 50 Hz 6 VA / = 12 V 1,2 A adapter
Protection typeIP 54
Weight of scale33 kg

1 x System Balance PCE-SD CR 60CR (incl. calibration)
1 x adapter
1 x instruction manual

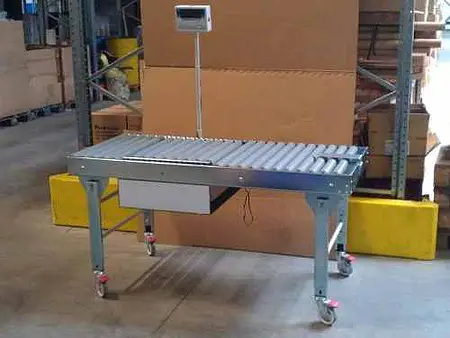

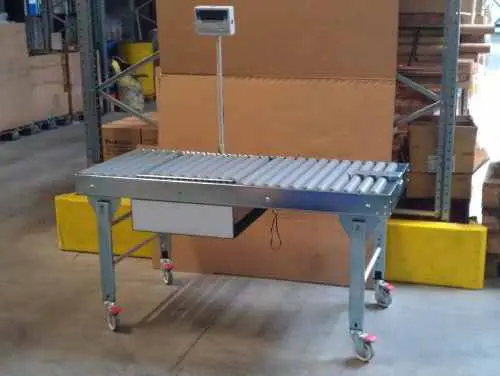

N.B. the roller table (in which the scale is mounted) that appears in some of the images is NOT included
