System Balance PCE-SD 3000U SST

Order no.: PCE-SD 3000U SST
Verification for Trade / conformity assessment
£ 2,665.00
£ 3,198.00
price ex. (VAT / delivery)
Delivery time: up to 10 working days
Calibrated U-shaped system balance made of stainless steel / incl. transport rollers / IP68-IP65 /
Unit Counter / Summation function / analogue outputs 4 ... 20 mA, 0 ... 10 V optional

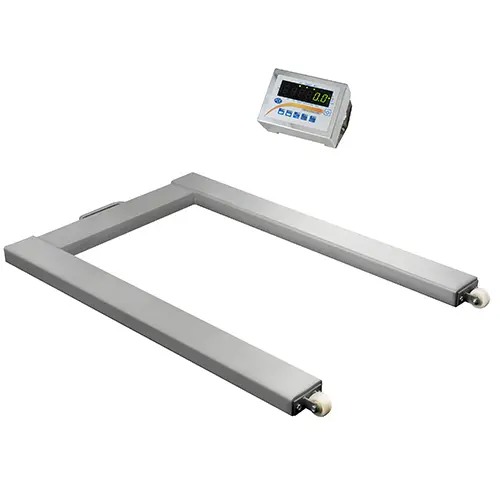

The U-shaped system balance is a calibratable scale that will be already calibrated before delivery. The measurements of the U-shaped system balance are exactly accordant to serial EU palettes. The U-shape of the platform scale allows quick and easy loading of the scale even by means of forklift scales. The four load cells of the U-shaped system balance are IP68 protected and are embedded at the corners of the U-shaped system balance. The weighing frame is made of massive stainless steel that is resistant to acids. The display of the U-shaped system balance is IP65 protected and can be mounted either on a wall or placed on a table. There is also an option to extend the U-shaped system balance with interfaces, e.g. RS-232, USB, LAN, 4-20 mA etc., although it should be considered that this would affect the IP protection. For more comfortable transport and moving from one location to another, the U-shaped system balance also features rollers at its pillars. Functions of the U-shaped system balance are automatic tare, unit counter, tare memory, gross / net weighing, percentage calculation, threshold measurement etc.

- Calibratable incl. initial calibration before delivery
- Made entirely of IP68-IP65 stainless steel
- Unit Counter
- Summation function
- MAX / MIN indication
- Percentage calculation
- Measurement on formula
- Statistics calculation
- Animal weighing function
- Gross / net indication
- Tare memory
- Threshold weighing MIN / MAX / OK
- 3 potential-free contacts optional
- Analogue outputs optional (4-20 mA / 0-10 V)

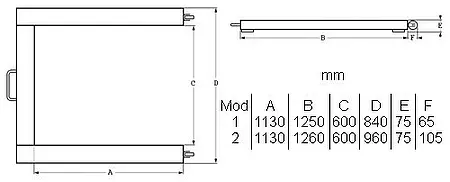

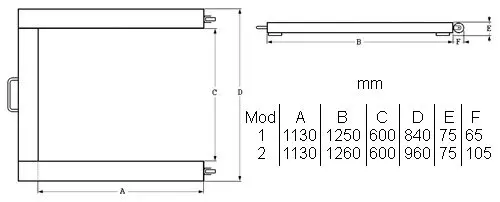

Technical specifications of the U-shaped System Balance PCE-SD U SST series
Model Measurement range Readability Calibration value Minimum load*
PCE-SD 1500U SST 1,500 kg 0.5 kg 0.5 kg 10 kg
PCE-SD 3000U SST 3,000 kg 1 kg 1 kg 20 kg
*The minimum load is defined by the load, from which the calibration authority tests the accuracy of the scale. The waterproof steel scale shows even lower weights, but these are not valid for custody transfer.
Calibration ClassM III (is calibrated before delivery)
Unit CounterCounting by reference values
Tare functionMultiple taring for the whole measurement range
InterfaceOptional RS-232 / LAN / USB
Description of interface
(please consider IP code)
DisplayLED with 20 mm digit height
Power Source~230V, 50Hz, 8VA
Protection ClassLoad Cells IP 68 / Display IP 65
Operational temperature- 10 °C ... + 40 °C
Weightapprox. 70 kg

Delivery content of the U-shaped System Balance PCE-SD 3000U SST
1 x U-shaped System Balance PCE-SD 3000U SST (incl. calibration), 1 x instruction manual
