Order no.: PCE-SD 3000F

Stainless Steel Scale PCE-SD 3000F

£ 3,203.00
£ 3,843.60
PCE-SD 3000F
price ex. (VAT / delivery)
1 kg
Delivery time: up to 10 working days


Calibrated Stainless Steel built-in scale up to 3,000 kg / Resolution 1 kg / Weighing cells IP67 /
Piece counting function / Summing function / RS-232 interface / Scales made of painted steel / Removable weighing plate / Mounting frame optional

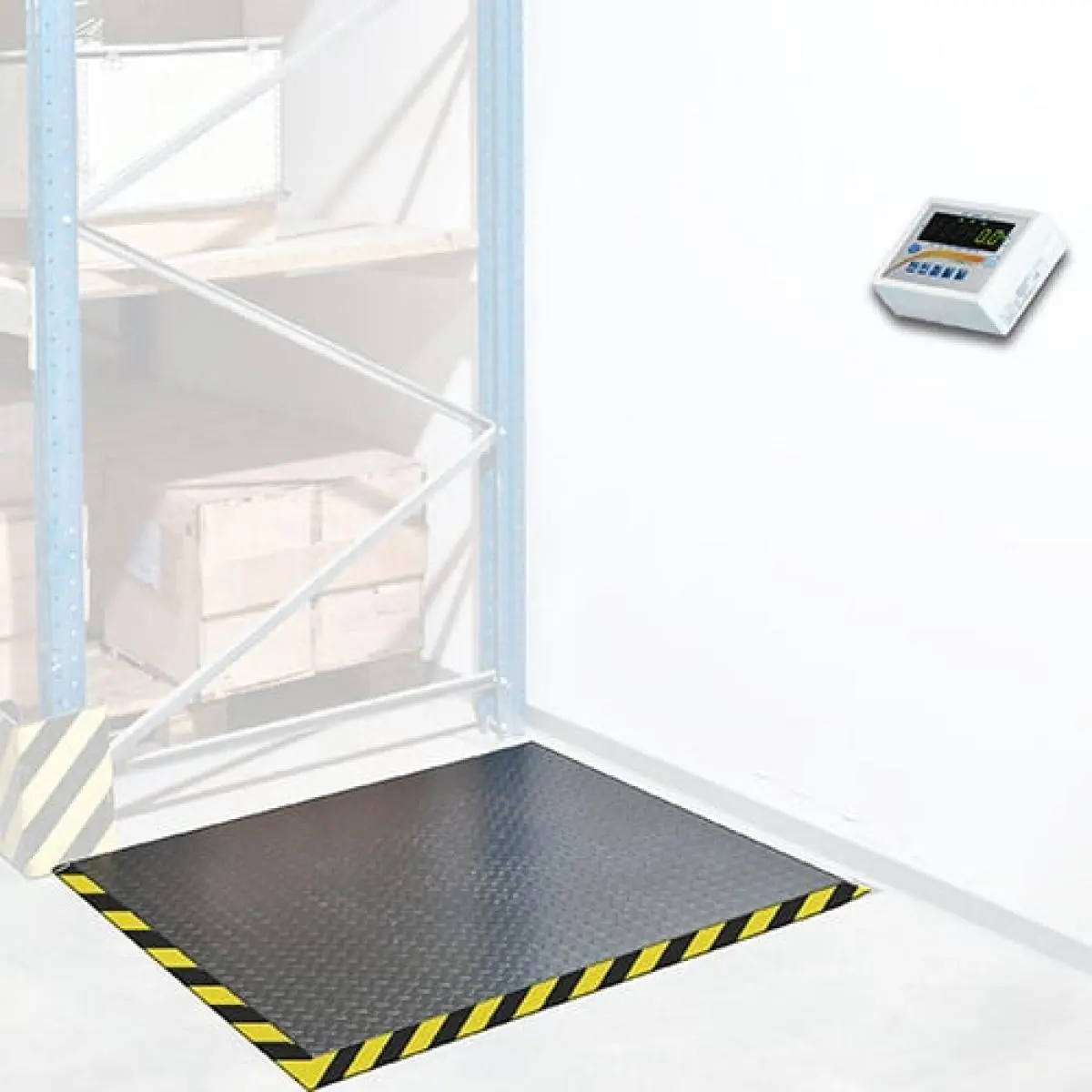

The stainless steel scale is designed for flush installation and is optionally available with a built-in frame on request. The stainless steel built-in scale is calibrated according to Calibration Class III and is approved throughout the EU for use for trading of goods for two years. The display cable of the stainless steel scale has a length of 5 m and is equipped with a plug-in connection, which allows a problem-free laying in the cable duct without having to re-calibrate the stainless steel scale. The display of the stainless steel scale is IP 54 protected and has a bracket for a table or wall mounting.Optionally, you can also get a tripod suitable for the stainless steel scale.

Various dimensions of the stainless steel scale are available to you and the functions of the stainless steel scale make this a multi-talent. The serial bi-directional RS-232 interface of the stainless steel scale is also a versatile feature. Thus, a programmer can easily implement the stainless steel scale in the existing IT system. The stainless steel scale is also available as a stainless steel version. For special industrial applications analog interfaces 4-20 mA or 0-10 V as well as 3 potential-free switching contacts can be offered for the calibrated floor scale.


- Piece counting function
- Percent% comparison weighing
- Filter (reaction time) adjustable
- Animal weighing function
- A tare value storable
- Tolerance determination Weight min / ok / max
- Sum up several weighings
- Average weight determination
- Formulation mixed weighing
- Adjustable bidirectional RS-232 interface
- Statistics function
- Adjustable automatic shutdown
- Gross / net button on the display
- Menu freely adjustable
- Maintenance-free components
- Optional: USB, LAN or 4-20 mA


Model Weighing range Resolution Min.* Dimensions Weight
PCE-SD 3000 F 3,000 kg 1 kg 20 kg 1500 x 1500 mm 210 kg
* The minimum load is the load from which the calibration authority checks the accuracy. The verifiable floor installation scale also indicates smaller weights, but these may not be used in legal traffic.
Calibration calibratable according to class M III (delivered calibrated)
Tare multiple tare over the full weighing area
Settling time <4 s
Display LED with 20 mm digit height
Cable length plugged in 5 m
Weighing units kg / piece / lb
Interface bi-directional RS-232
optional USB, LAN, 4-20 mA, 0-10V, OC

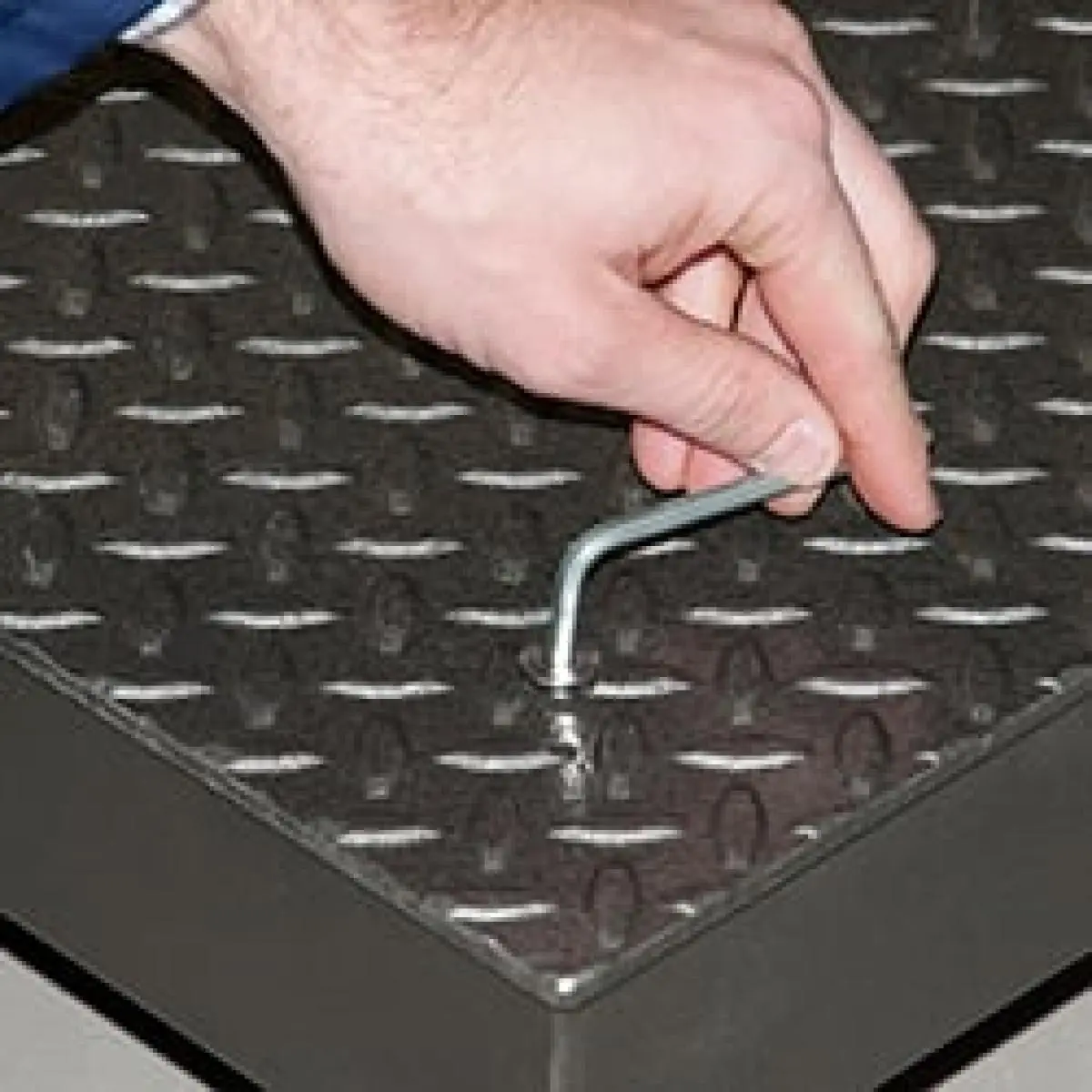

Weighing plate fluted painted steel (unscrewable)
Operating temperature -10 °C ... +40 °C / 14 ... 104 °F
Power supply ~230V 50Hz 8VA  (safety plug)
Protection cell IP 67 / display IP54

Delivery Scope

1 x Stainless Steel Scale PCE-SD 3000F
1 x Display
4 x Floor fixing plates
1 x User manual
