Shipping Scale PCE-SD 60C

Order no.: PCE-SD 60C

GTIN (EAN): 4250348712271

Accessory

Adaptor RS232 to USB

£ 29.00

Description

Calibratable shipping scale / platform 400 x 500 mm or 500 x 600 mm / bi-directional RS- 232 interface /

item counter / Summation function / RS-485, analogue outputs 4-20 mA, 0 - 10 V optional

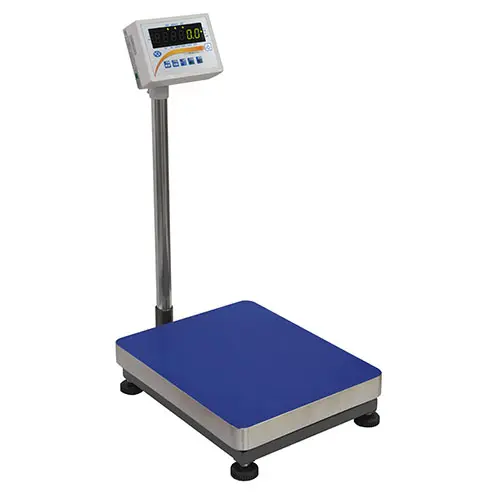

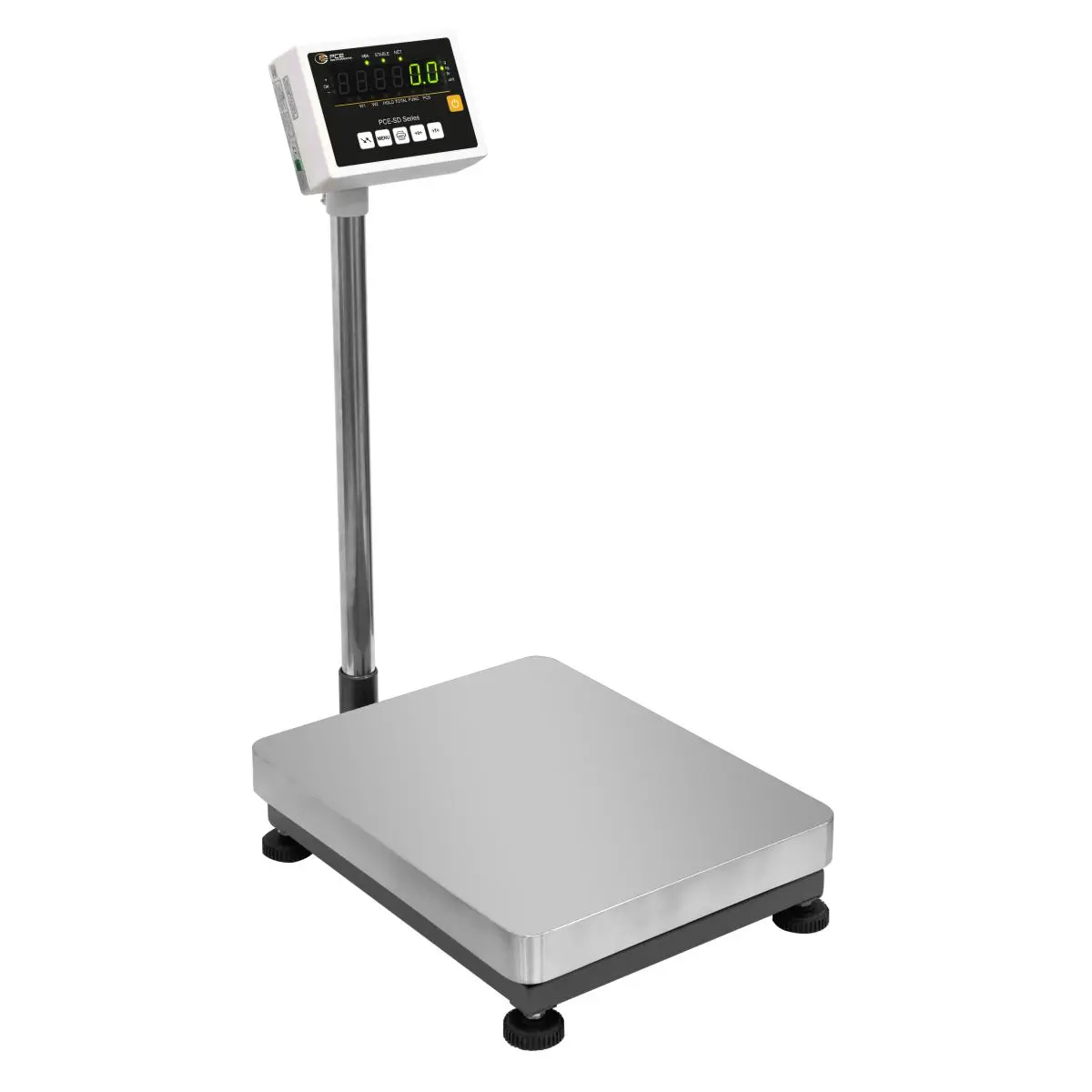

The calibratable shipping scale is a solid calibratable platform scale that is reasonably priced. The calibration of the shipping scale is performed by calibrating authorities following the calibration directives of Class M III. The solid base of the calibratable shipping scale is made of lacquered steel and features a plastic-coated platform made of steel. The calibratable shipping scale also has pedestals that can be alternated in their height, assuring a firm stand. The navigation display of the shipping scale is placed on a stand mounted within a reachable height and fixed to the platform scale. In order to assure an ideal readability of the display at all time, the display can be alternated in its angle. Functions that the calibratable shipping scale features are: automatic tare, item counter, saving tare value, gross / net weighing, percentage calculation, threshold weighing, etc. Further characteristics of the calibratable shipping scale are: e.g. analogue output 4 ... 20 mA or 0 ... 10 V, RS-485, LAN interfaces, potential-free contact, USB data storage, scanner input etc.

Highlights

- Calibratable (delivery incl. calibration)

- Bi-directional RS-232 interface

- Unit counter

- Summation function

- Max. / min. display

- Percentage weighing

- Formula weighing

- Statistics function

- Animal weighing function

- Gross / net function

- Tare data storage

- Threshold weighing MIN / MAX / OK

- 3 potential-free contacts optional

- Analogue outputs optional (4-20 mA / 0-10 V)

Specification

Weighing range
Measurement range up to [Max]	60 kg
Resolution [d]	20 g
Accuracy	20 g
Verification value [e]	20 g

General technical data
Measuring functions	MIN, MAX, Average value
Measuring functions (additional information)	Piece counting function, totalising function, percentage weighing, recipe weighing, statistics function, animal weighing function
Units	kg, g, lb, oz, ct, ozt, gr, dwt
Display type	LED
Digit size [WxH]	18 mm
Interface	bidirectional RS232
Automatic power-off	5 min
Repeatability	4 g
Minimum load [min]	400 g
Tare range	Multiple tare over the full measurement range
Calibration	external

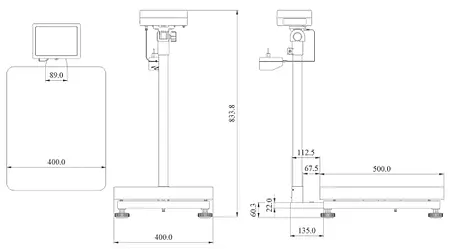

Dimensions	Display 190 x 140 x 65 mm Platform 400 x 500 mm
Verification class [e]	M III
Settling time	< 3 s
Linearity	6 g
Menu language	English, English (GB)
Protection class (device)	IP54, IP65
Power supply	230V AC \| 50 Hz, 8V A 12V DC, 850 mA
Connector type	Device-europlug
(Rechargeable) battery	1 x 3 V Button cell , lithium-ion battery
Capacity	220 mAh
Operating conditions	-10 ... 40 °C , 20 ... 90 (non-condensing)% RH
Storage conditions	-10 ... 40 °C , 0 ... 90 % RH
Dimensions ( L x W x H )	400 x 620 x 870 mm
Weight	12000 g
