Calibrated built-in scale with software up to 1,500 kg / Resolution 0.5 kg / Weighing cells IP67 /

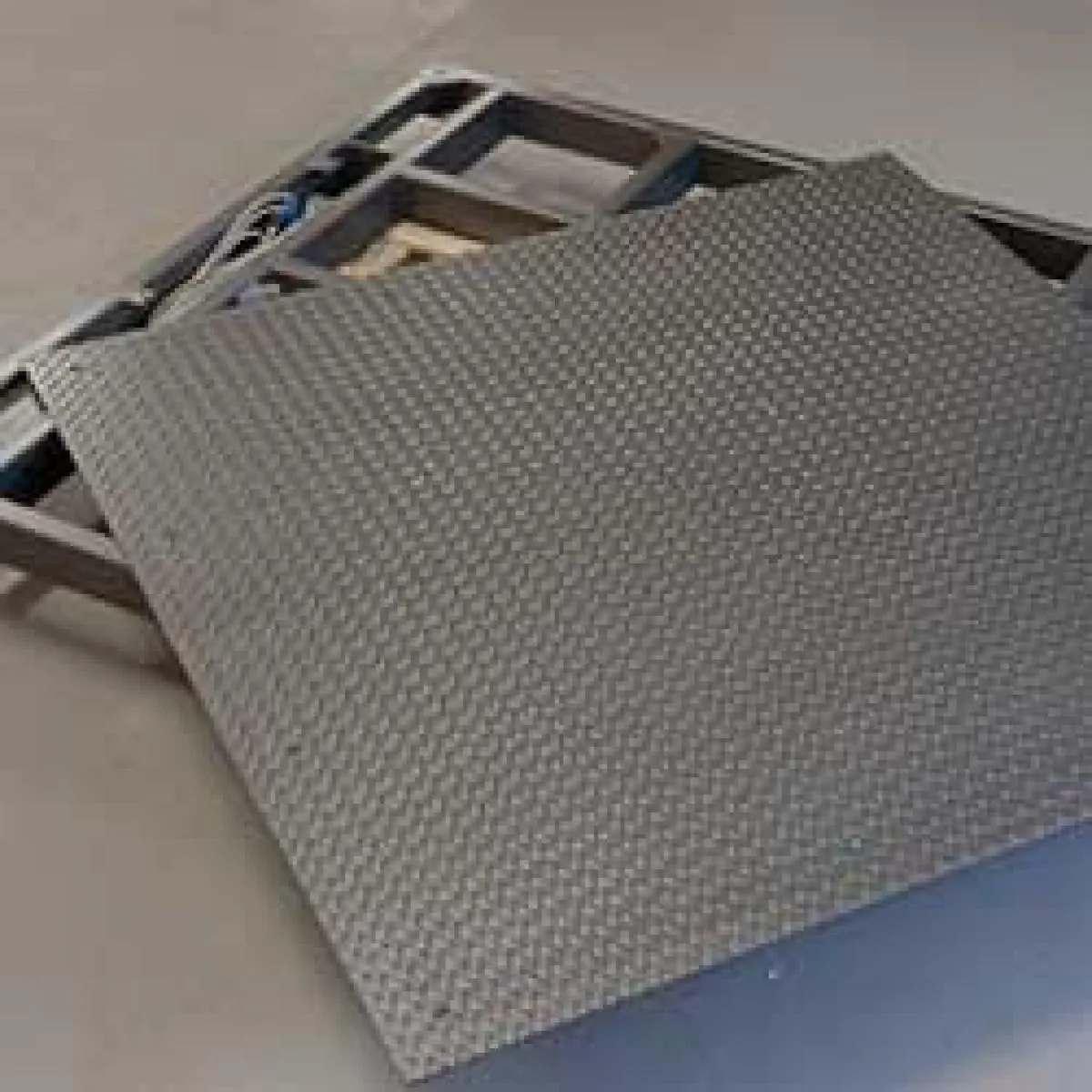

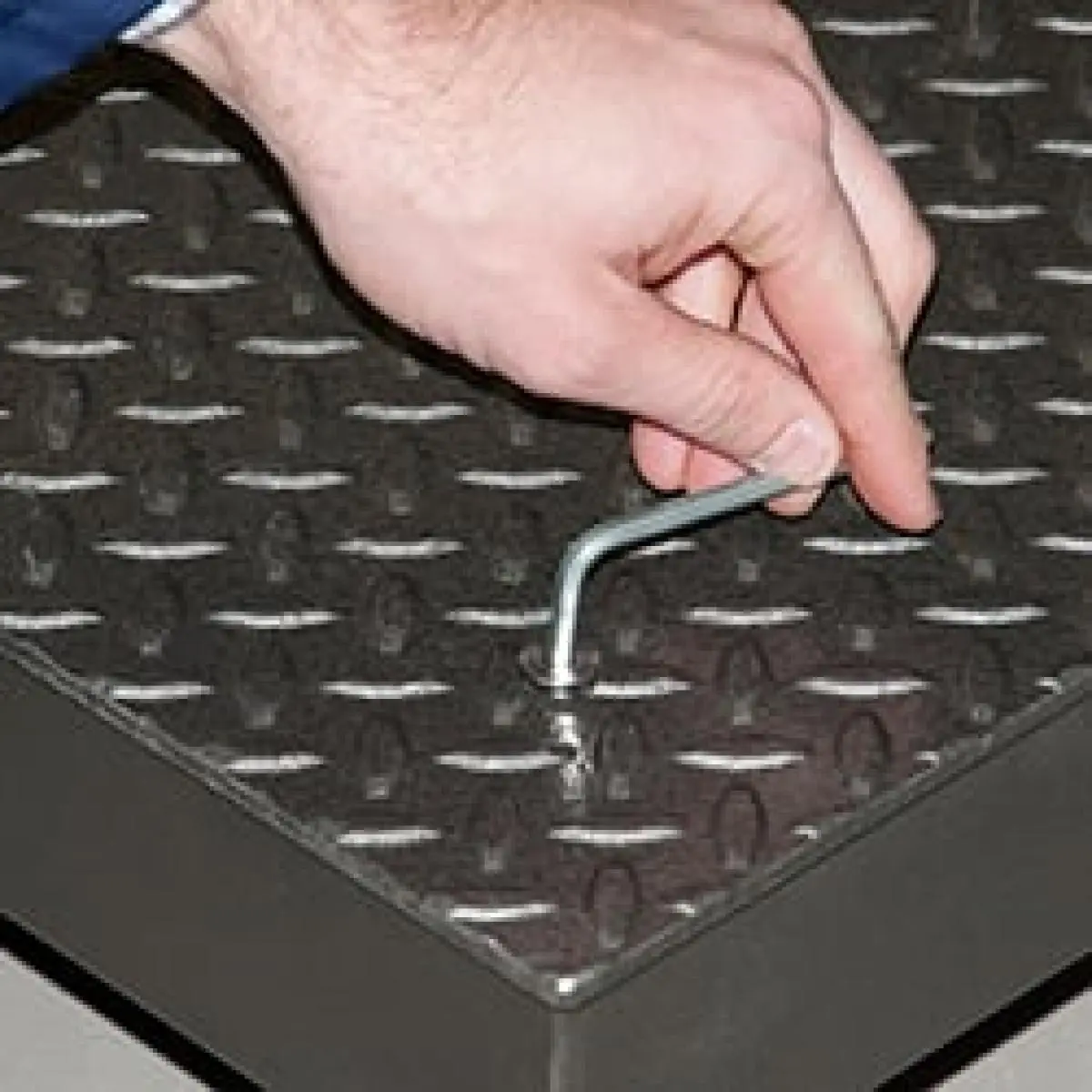

Piece counting function / Summing function / RS-232 interface / Scales made of painted steel / Removable weighing plate / Mounting frame optional

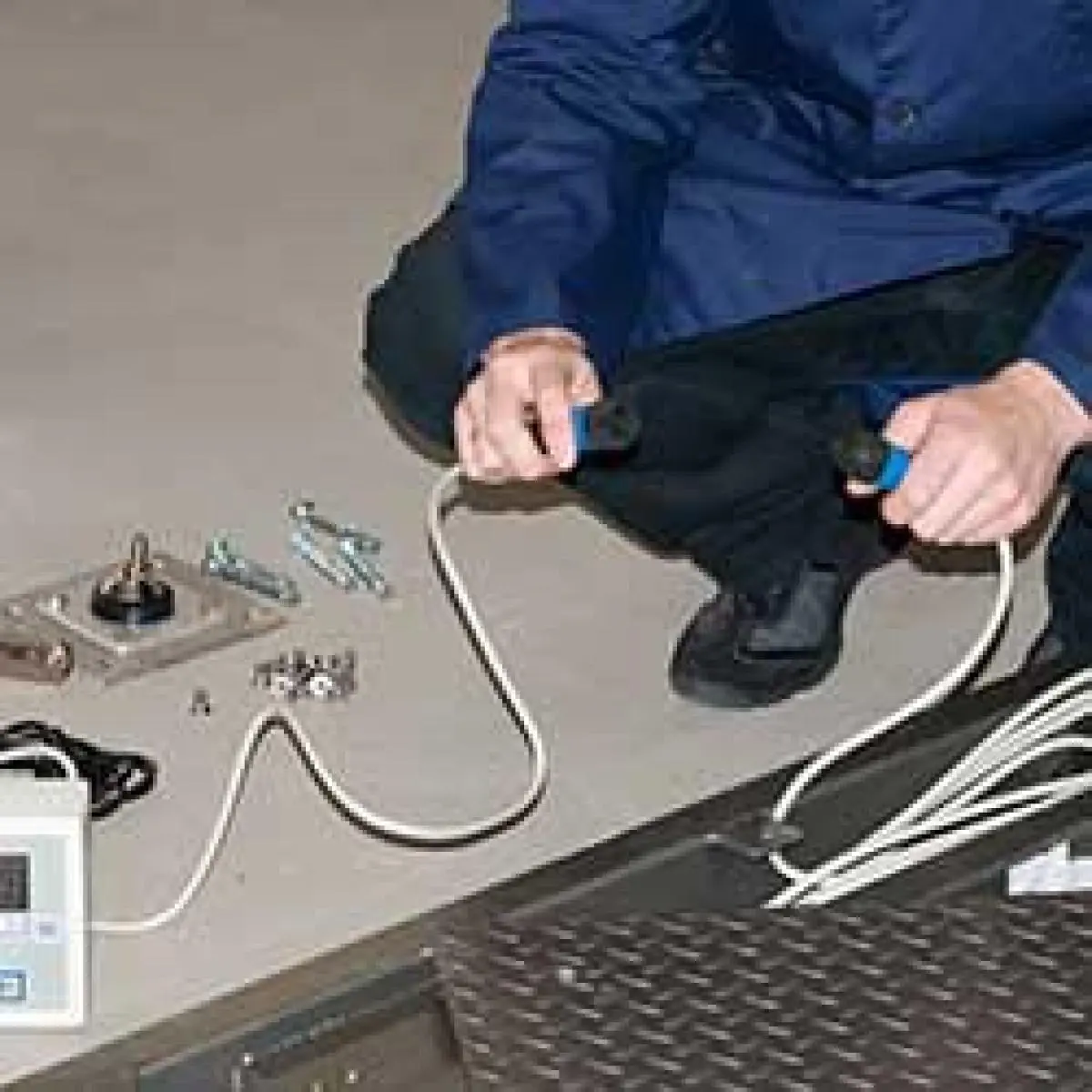

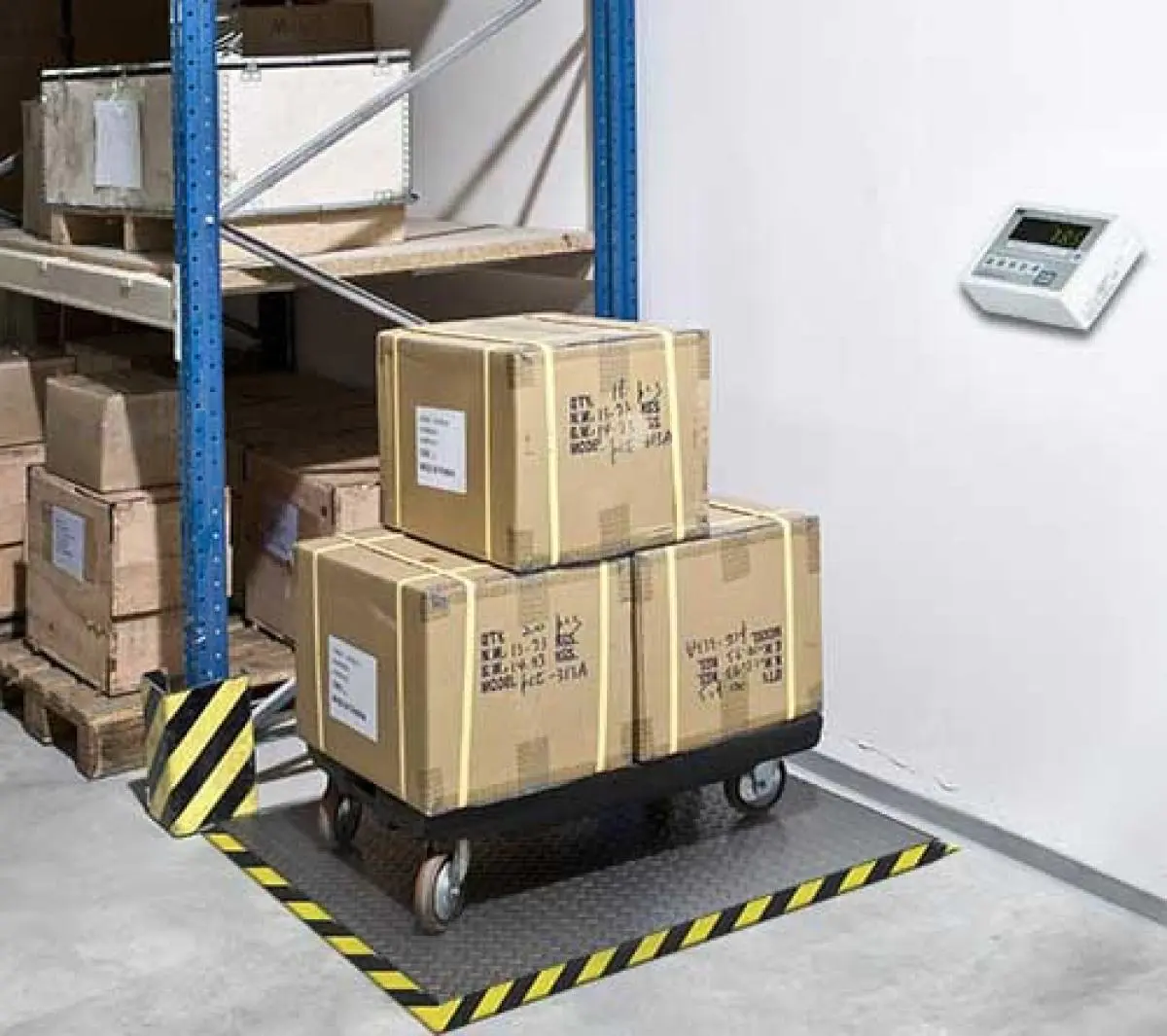

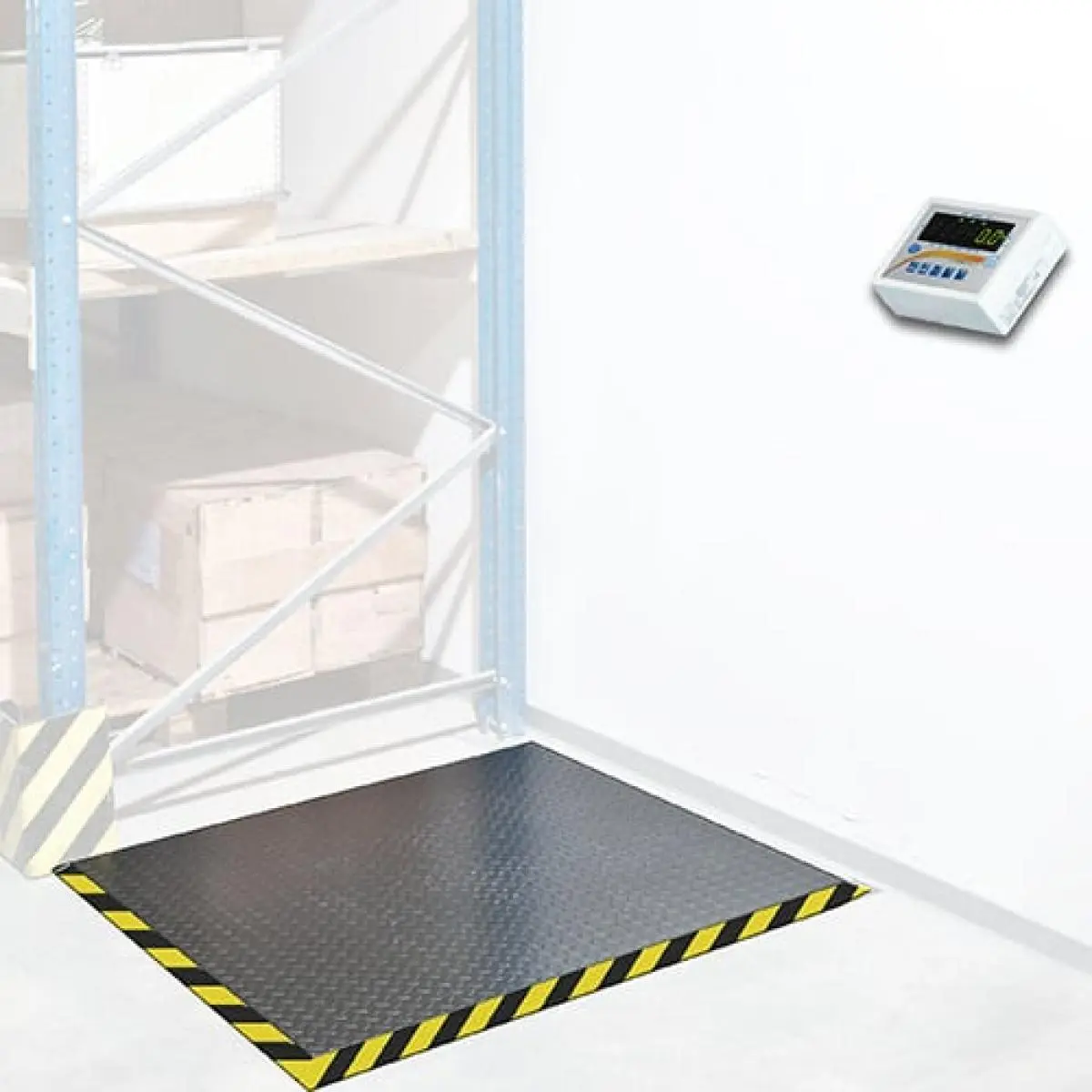

The calibratable built-in scalewith software is designed for flush installation and is optionally available with a built-in frame on request. The calibrated built-in scale with software is calibrated according to Calibration Class III and is approved throughout the EU for use for trading of goods for two years. The display cable of the built-in scale with software has a length of 5 m and is equipped with a plug-in connection, which allows a problem-free laying in the cable duct without having to re-calibrate the built-in platform scale. The display of the scale with software is IP 54 protected and has a bracket for a table or wall mounting.

Optionally, you can also get a tripod suitable for the scale with software. Various dimensions of the built-in platform scale are available to you and the functions of the built-in platform scales make this a multi-talent. The serial bi-directional RS-232 interface of the platform  scale is also a versatile feature. Thus, a programmer can easily implement the scale with software in the existing IT system. The platform scale is also available as a stainless steel version. For special industrial applications analog interfaces 4-20 mA or 0-10 V as well as 3 potential-free switching contacts can be offered for the calibrated platform scale.
