£ 822.00
PCE-WWSB8-S Platform Scale
Portable floor scale with display and printer / Designed for weighing trucks and other vehicles / Sum function for calculating vehicle weight plus trailer

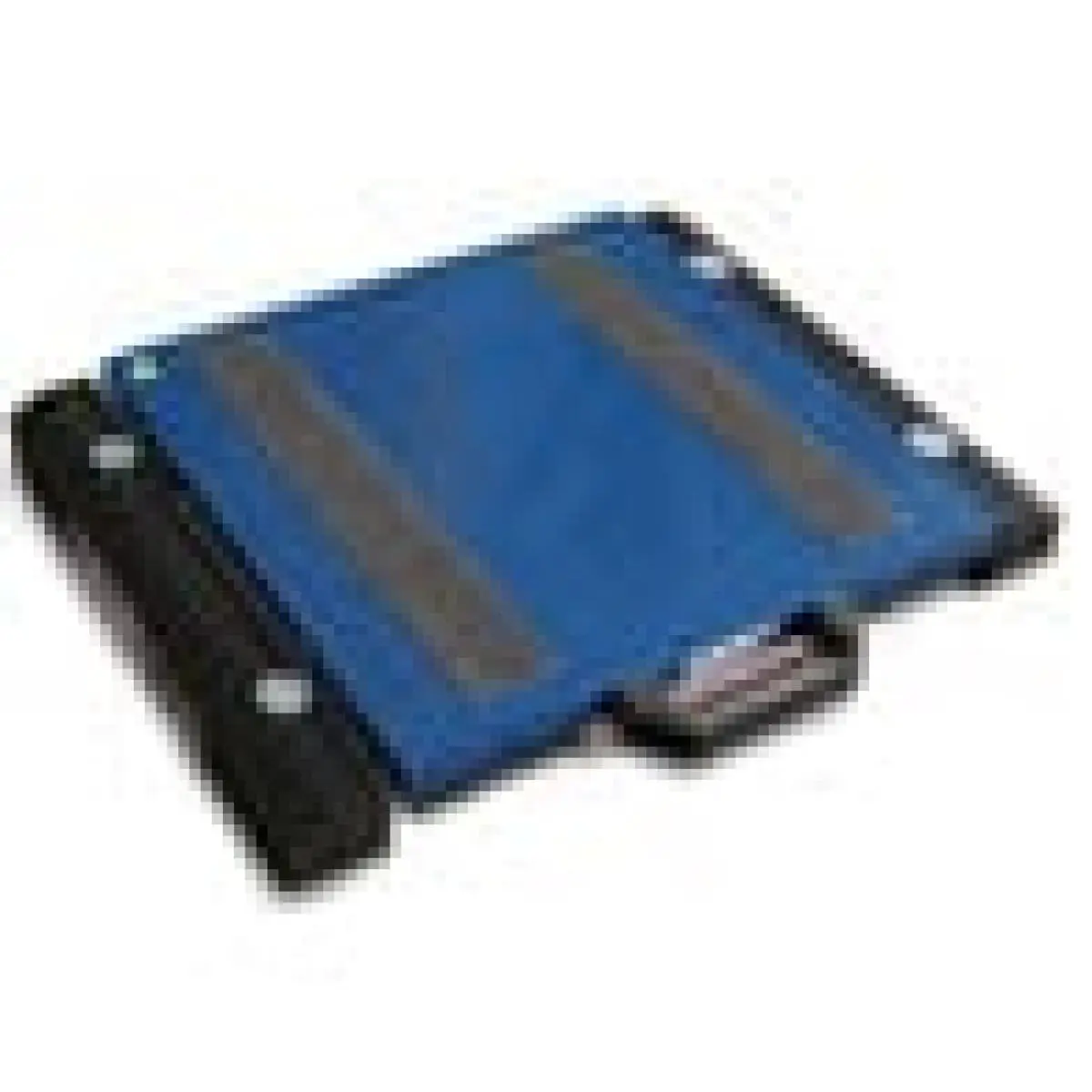

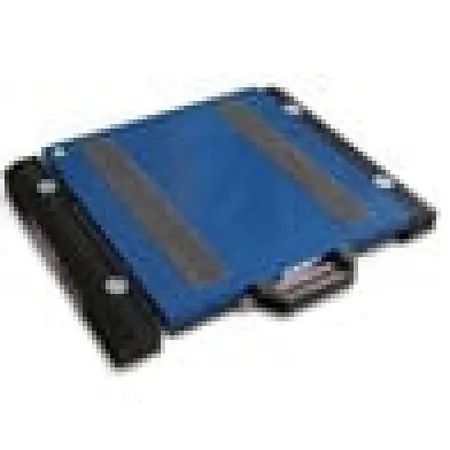

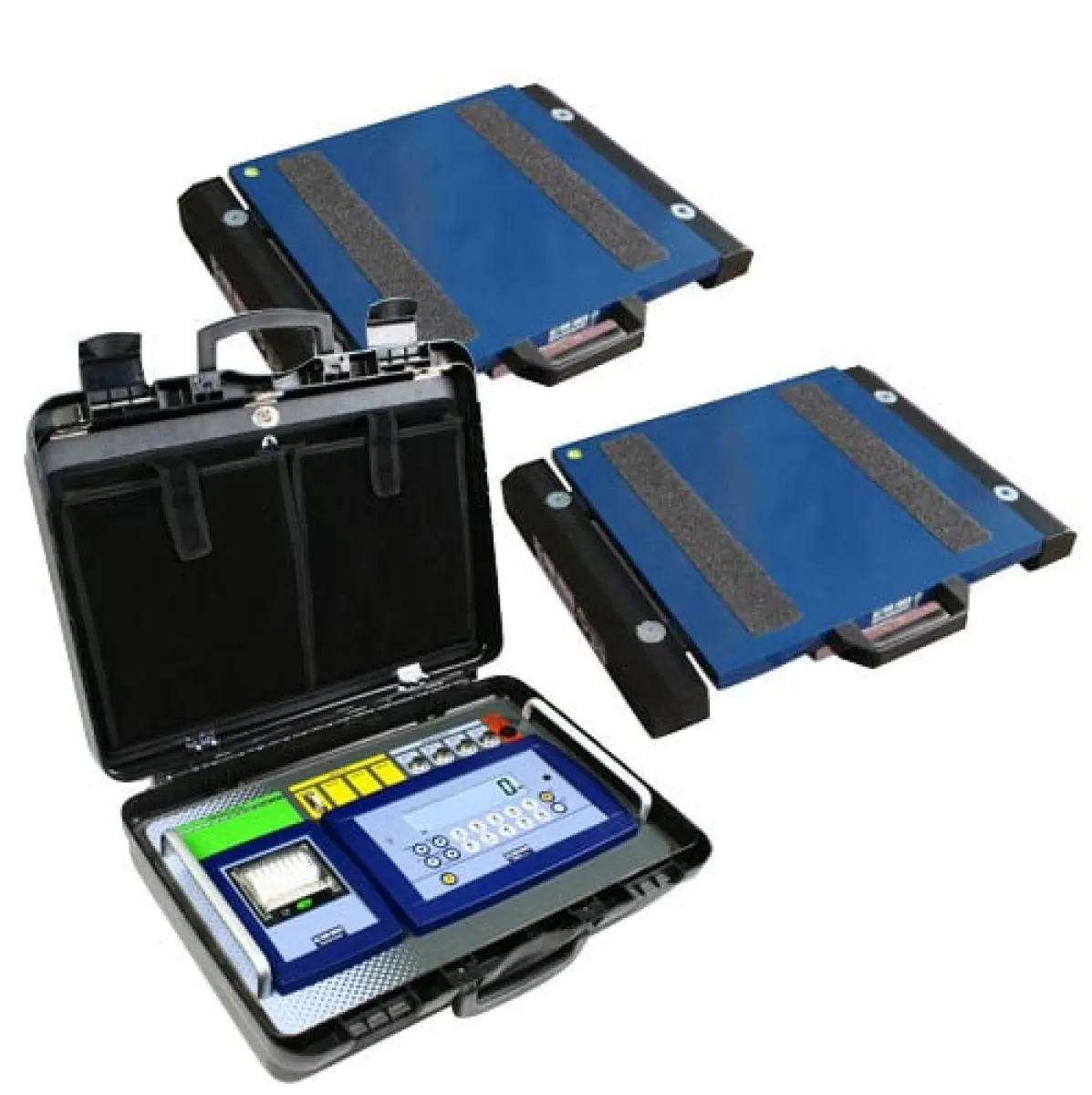

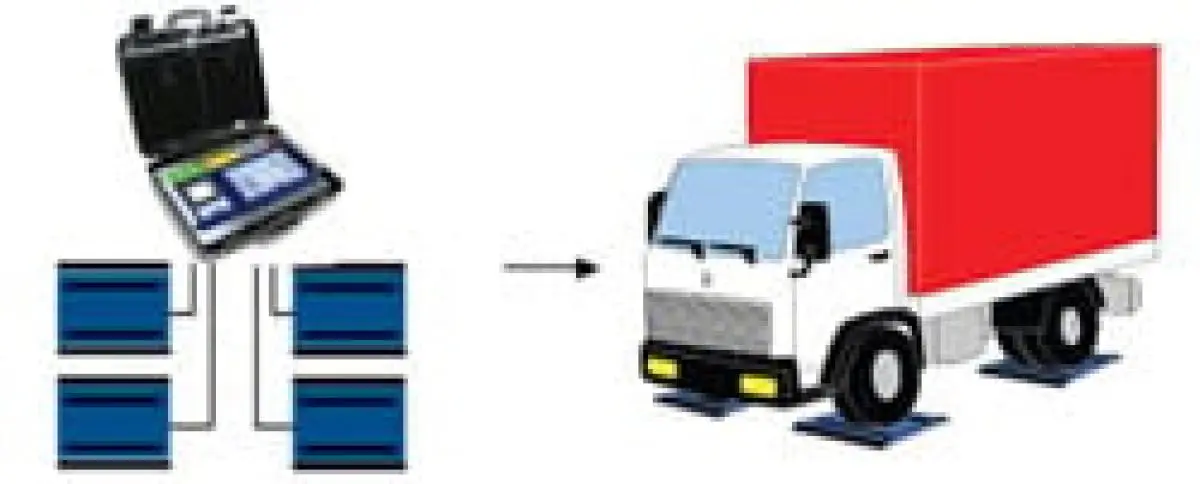

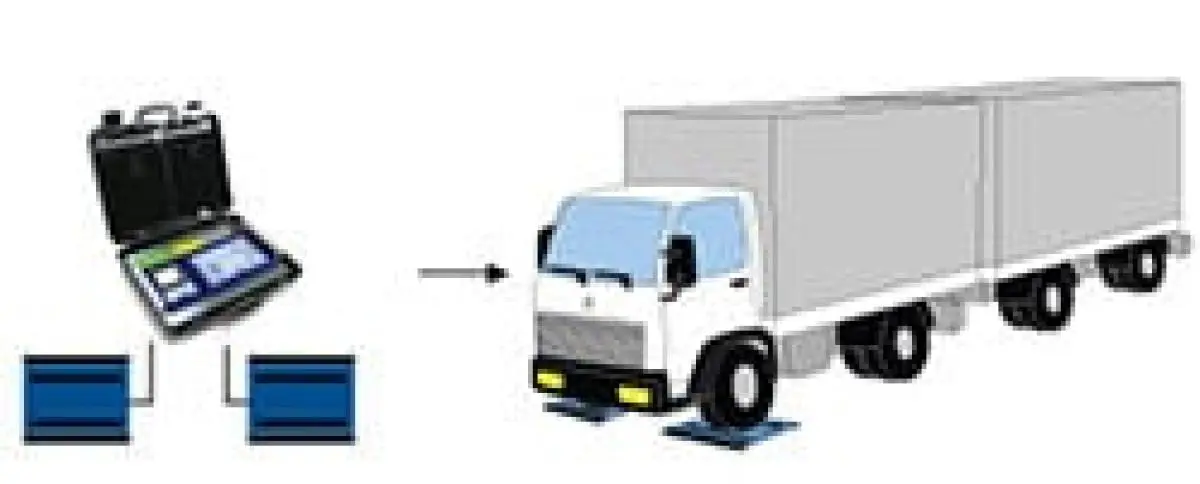

PCE-WWSB8-S is a portable platform scale consisting of two weighing platforms and a carrying case with a built-in display and printer. Featuring connections for up to four weighing platforms (additional weighing platforms sold separately - see accessories), this floor scale calculates the total weight, wheel load and axle load of a vehicle. The floor scale also has a sum function for calculating vehicle weight plus trailer.
The load cell of the floor scale has an IP65 ingress protection rating and is suitable for outdoor use. The display of the floor scale is located inside the carrying case along with a printer. The digit height on the display is 25 mm / 0.98". Printouts include the time and date.
| Weighing range | |
| Measurement range up to [Max] | 8000 kg |
| Resolution [d] | 5 kg |
| Accuracy | Class III |
| General technical data | |
| Cable length | 10 m |
| Display type | LCD with backlight |
| Digit size [WxH] | Height: 25 mm |
| Operating time | 10 h |
| Operating time additional information | Charging time: 8 h |
| Repeatability | 10 kg |
| Housing | Aluminium |
| Dimensions | Dimensions per platform: 300 x 400 x 58 mm Display: 325 x 460 x 170 mm |
| Readability | 5 kg |
| Weights | Weight per platform: approx. 14.5 kg Display: 5000 g |
| Menu language | English, English (GB) |
| Protection class (device) | IP65 |
| Power supply | 5 V DC |
| (Rechargeable) battery | 1 x 6 V internal , Lead gel battery |
| Capacity | 4500 mAh |
| Operating conditions | -10 ... 40 °C , 0 ... 80 (non-condensing)% RH |
| Storage conditions | 0 ... 40 °C , 0 ... 90 (non-condensing)% RH |
| Dimensions ( L x W x H ) | 400 x 410 x 58 mm |
| Weight | 29000 g |
