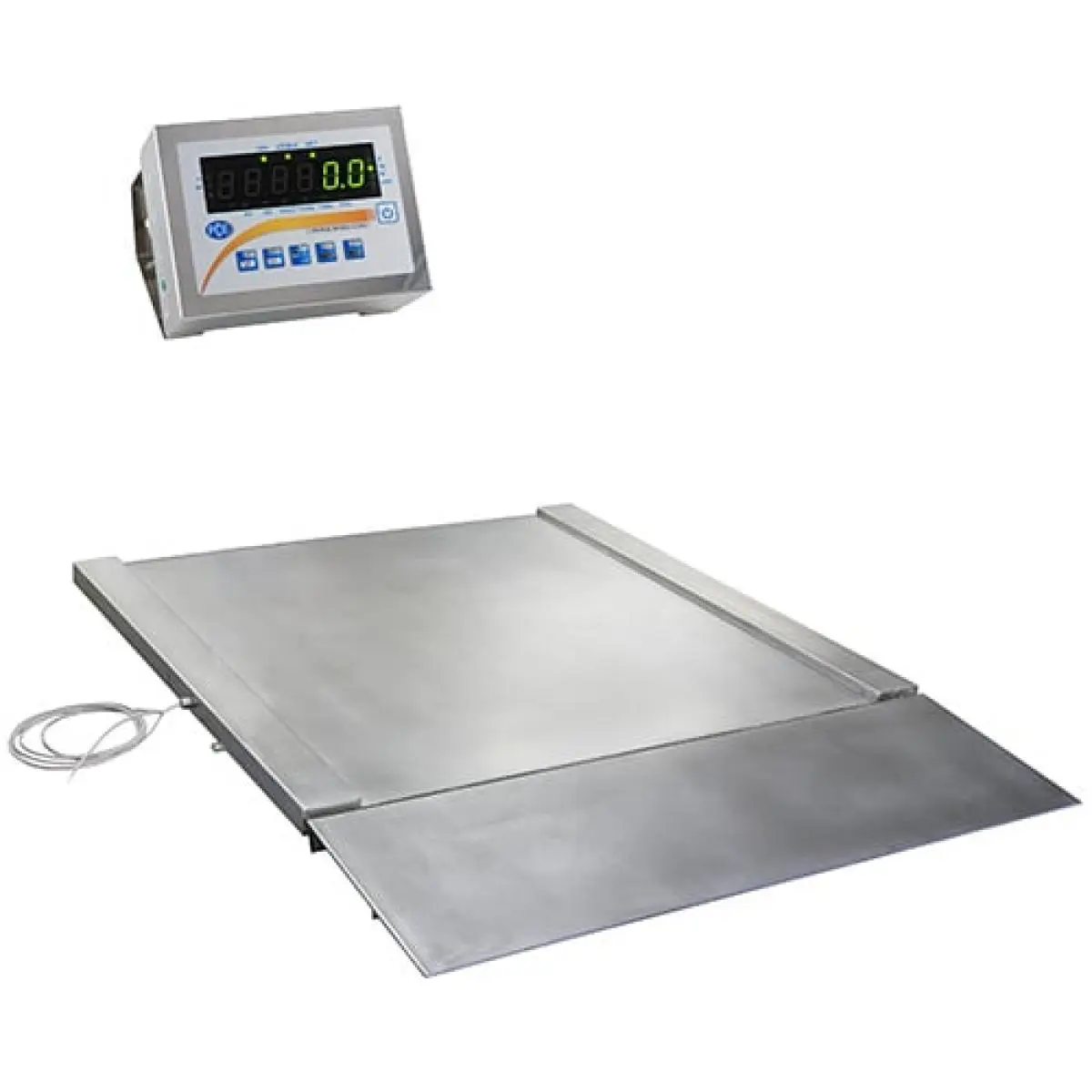

Before delivery, the calibratable stainless steel platform scale is calibrated for its location of use according to calibration class III and is then approved for two years in all of Europe for calibration class III. The platform scale is made of solid corrosion and acid-resistant steel. The weighing platform of the platform scale has encapsulated weighing cells that withstand the harshest conditions with the IP 68 protection class. The drive-on ramp is easy to drive on thanks to the low height of the platform scale and, as required, can be used as a drive-on ramp or as a drive-through scale using a second optionally available drive-through ramp. The fixing plates included in the scope of delivery ensure that the calibrated platform scales stand securely and prevent the ramps from slipping.
The stainless steel display of the platform scale is IP 65 protected and can be conveniently mounted on the table, on the wall or on the optionally available stainless steel tripod. The functional package of the calibrated platform scale is very extensive. Functions such as auto tare, piece counting function, saving a fixed tare weight, recipe function, summing function and more make work much easier. The platform scale is ideal if you do not want to install a scale into the floor. Simply set up the platform scale on a level hall floor, connect the control terminal and you can start weighing. For the calibrated platform scale, we offer an RS-232, USB, LAN interface and 4..20 mA or 0 ... 10 V analog outputs or three switching outputs.
|*The minimum load is the load from which the calibration authority checks the accuracy. The verifiable drive-through scale also shows smaller weights, but these may not be used in legal transactions.|
|Calibration||calibratable according to class M III (delivered calibrated)|
|Taring range||over the full weighing range|
|Settling time||< 3 s|
|Display||high-contrast LED with 20 mm digit height|
|Weighing units||kg / pieces / lb|
|Interface||optional RS-232 / USB / LAN / 4-20 mA / 0-10V|
|Operating temperature||-10 ... +40 °C|
|Protection class||Cells IP68 / Display IP65 (without connections)|
|Power supply||~230V, 50Hz, 8VA (Schuko plug)|
