£ 183.00

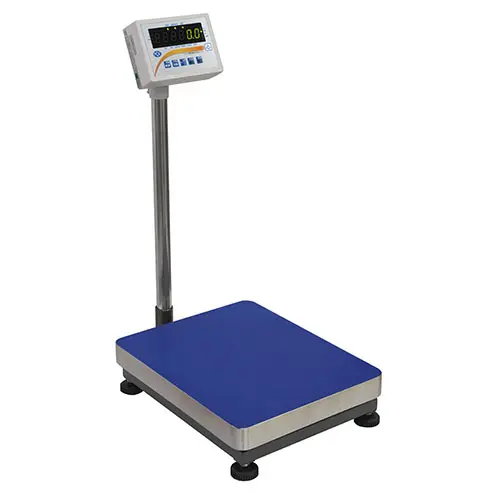

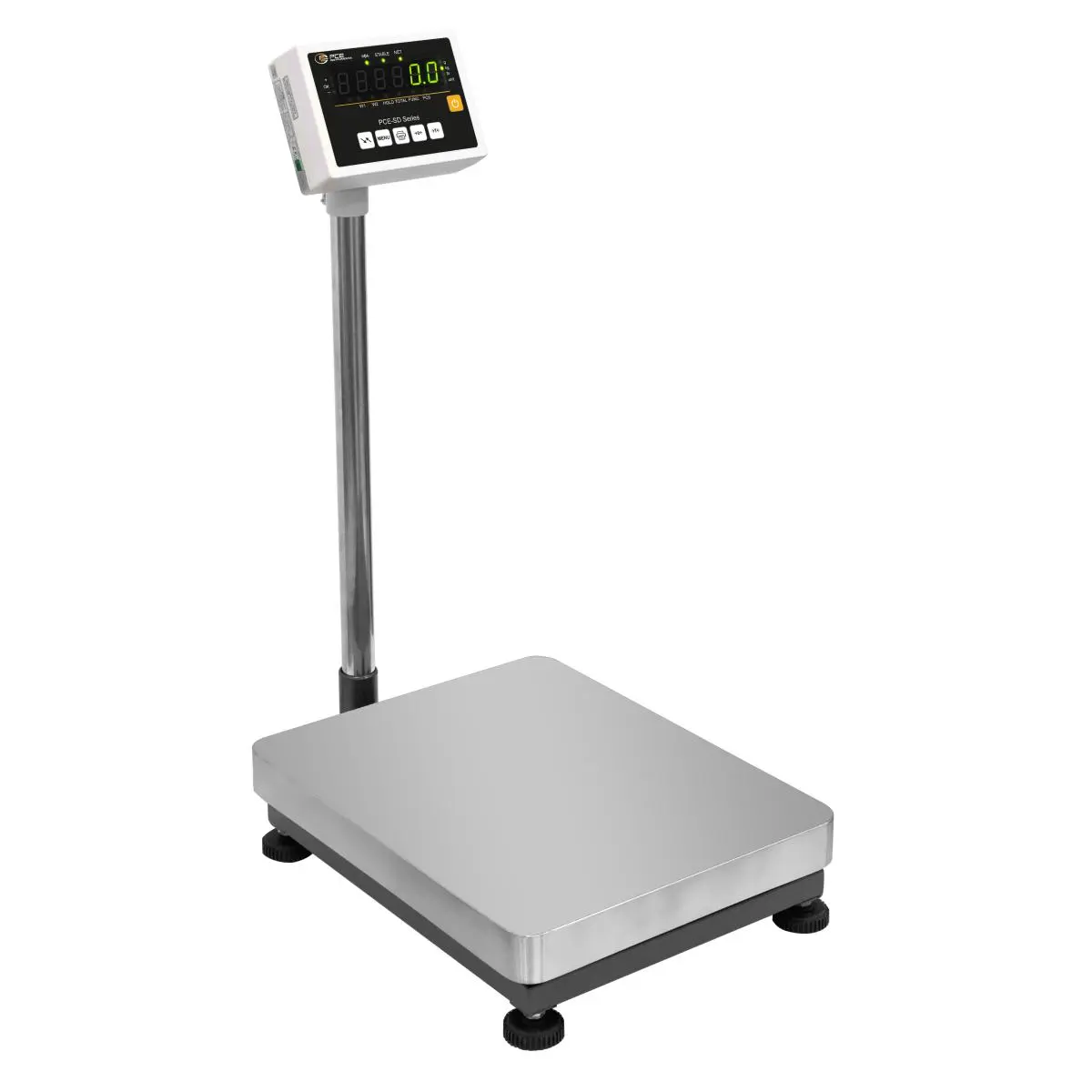

The platform scale is a solid calibratable platform scale that is reasonably priced. The calibration of the platform scale is performed by calibrating authorities following the calibration directives of Class M III. The solid base of the calibratable platform scale is made of lacquered steel and features a plastic-coated platform made of steel. The calibratable platform scale also has pedestals that can be alternated in their height, assuring a firm stand.
The navigation
display of the platform scale is placed on a stand mounted within a
reachable height and fixed to the platform scale. In order to assure an
ideal readability of the display at all time, the display can be
alternated in its angle. Functions that the calibratable platform scale
features are: automatic tare, item counter, saving tare value, gross /
net weighing, percentage calculation, threshold weighing, etc. Further
characteristics of the calibratable platform scale are: e.g. analogue
output 4 ... 20 mA or 0 ... 10 V, RS-485, LAN interfaces,
potential-free contact, USB data storage, scanner input etc.
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| * the minimal load is defined here as the load above which the calibration authorities test their accuracy. The calibratable scale shows even lower weights, but these are not allowed to be used for custody transfer. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Calibration Class | M III (is delivered calibrated) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Unit Counter | through counting by reference value | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Tare function | Multiple tare function for whole measurement range | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interface | RS-232
bi-directional Description of interface RS-485, LAN and USB optional | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Display | LED with 20 mm digit height | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | 12 V / 1.4 A incl. adapter | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IP Code | IP 54 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operational temperature | - 10 °C ... + 40 °C | ||||||||||||||||||||||||||||||||||||||||||||||||||||||

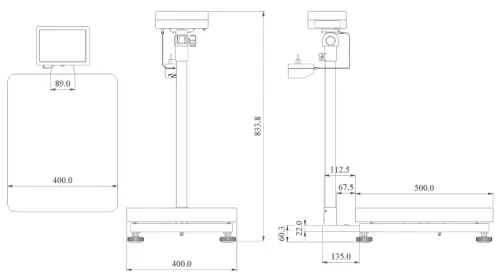

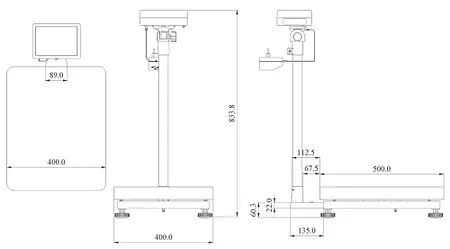

| Diameters | 400 x 620 x 850 - 870 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | approx. 12 kg | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
