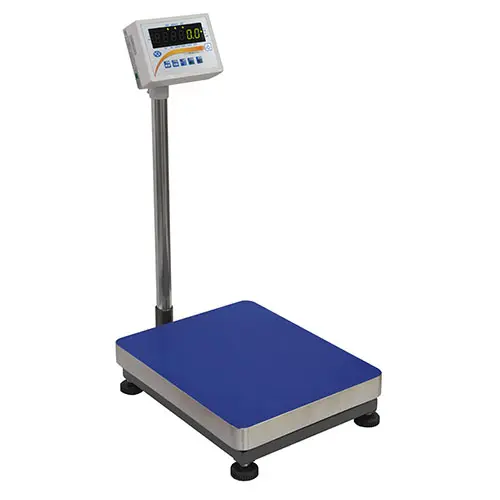

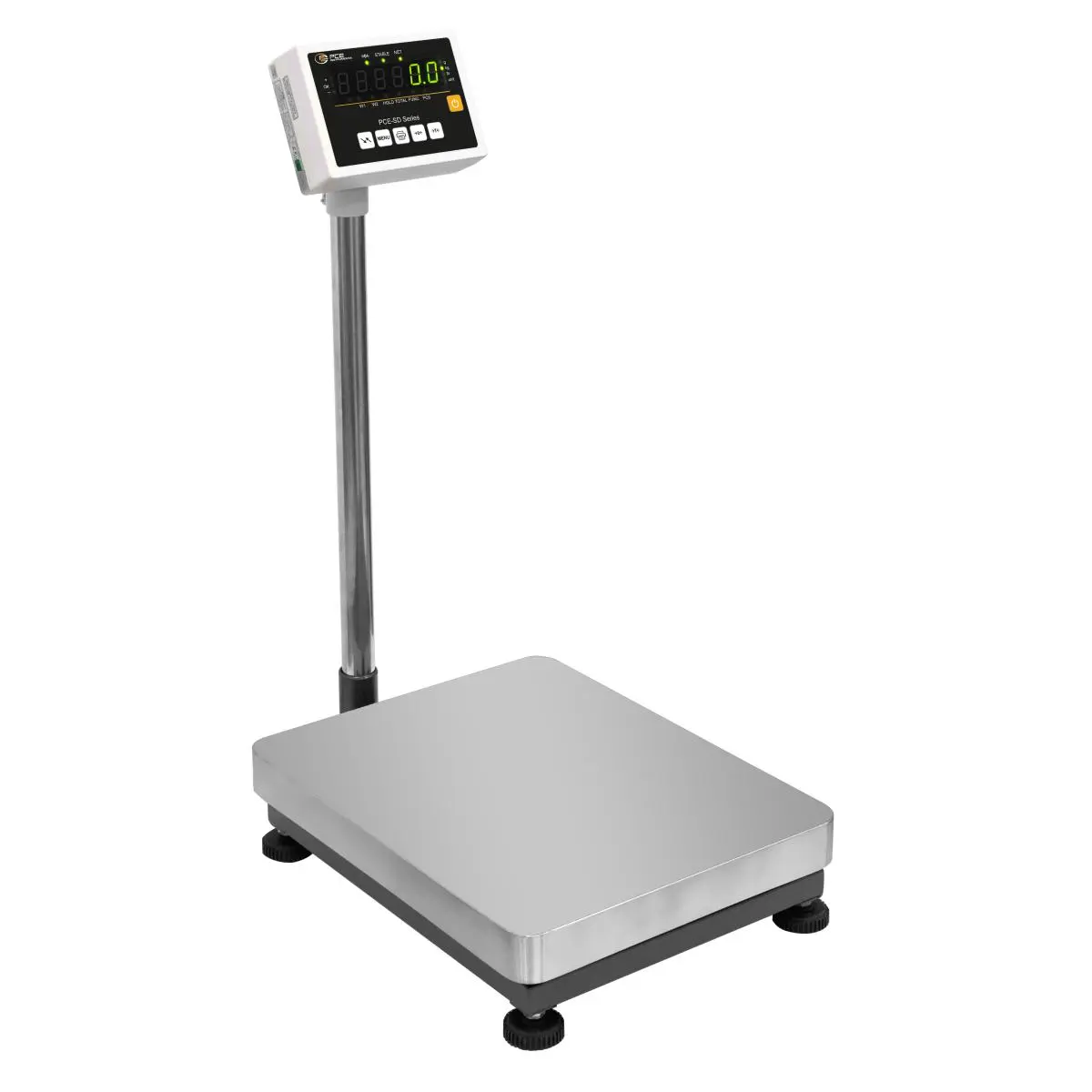

The platform scale is a solid calibratable platform scale that is reasonably priced. The calibration of the platform scale is performed by calibrating authorities following the calibration directives of Class M III. The solid base of the calibratable platform scale is made of lacquered steel and features a plastic-coated platform made of steel. The calibratable platform scale also has pedestals that can be alternated in their height, assuring a firm stand.
The navigation
display of the platform scale is placed on a stand mounted within a
reachable height and fixed to the platform scale. In order to assure an
ideal readability of the display at all time, the display can be
alternated in its angle. Functions that the calibratable platform scale
features are: automatic tare, item counter, saving tare value, gross /
net weighing, percentage calculation, threshold weighing, etc. Further
characteristics of the calibratable platform scale are: e.g. analogue
output 4 ... 20 mA or 0 ... 10 V, RS-485, LAN interfaces,
potential-free contact, USB data storage, scanner input etc.
| Weighing range | |
| Measurement range up to [Max] | 300 kg |
| Resolution [d] | 100 g |
| Accuracy | 100 g |
| Verification value [e] | 100 g |
| General technical data | |
| Measuring functions | MIN, MAX, Average value |
| Measuring functions (additional information) | Piece counting function, totalising function, percentage weighing, recipe weighing, statistics function, animal weighing function |
| Units | kg, g, lb, oz, ct, ozt, gr, dwt |
| Display type | LED |
| Digit size [WxH] | Height: 18 mm |
| Interface | bidirectional RS232 |
| Automatic power-off | 5 min |
| Repeatability | 20 g |
| Tare range | Multiple tare over the full weighing range |
| Weighing plate material | Painted checkered steel sheet |
| Calibration | external |

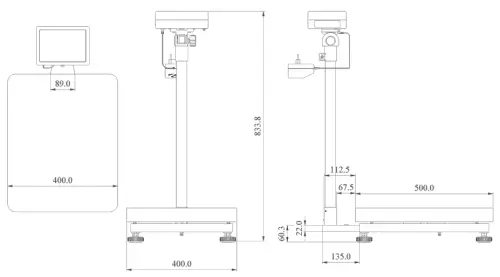

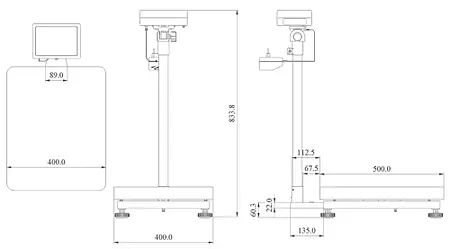

| Dimensions | Display 190 x 140 x 65 mm Platform 400 x 500 x 140 mm |
| Verification class [e] | M III |
| Settling time | < 3 s |
| Linearity | 30 g |
| Menu language | English, English (GB) |
| Protection class (device) | IP54, IP65 |
| Power supply | 230V AC | 50 Hz, 8V A 12V, 850 mA |
| Connector type | Device-europlug |
| (Rechargeable) battery | 1 x 3 V Button cell , lithium-ion battery |
| Capacity | 220 mAh |
| Operating conditions | -10 ... 40 °C , 20 ... 90 (non-condensing)% RH |
| Storage conditions | -10 ... 40 °C , 0 ... 90 % RH |
| Dimensions ( L x W x H ) | 400 x 620 x 870 mm |
| Weight | 12000 g |
