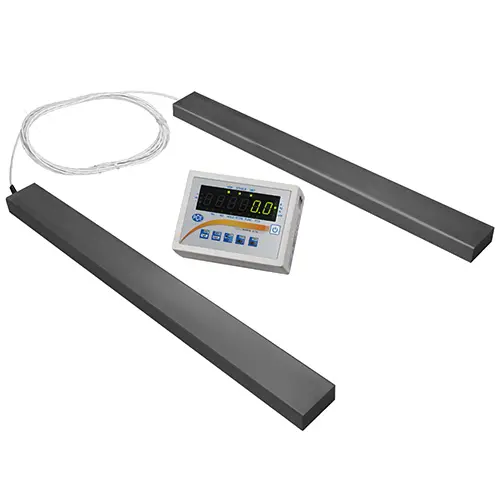

Verifiable load beam up to 600 kg / Resolution from 0.1 kg
/ Robust industrial design / Summing function / Counting function / Checkweighing function
/ RS-232 interface /
Optional 4-20 mA analogue output or LAN interface
* The minimum load is the load from which the calibration authority checks the accuracy. The calibrated balance bars also indicate smaller weights, but these may not be used in legal calculations.
|Calibration||Calibratable to class M III (to be calibrated)|
|Tare range||Multiple tare over the entire weighing range|
|Settling time||<3 s|
|Display||LED with 20 mm digit height|
|Weighing units||kg / piece / lb|
optional USB or LAN interface
|Operating temperature||-10 ... +40 °C|
|Power supply||~230V, 50Hz, 8VA|
If other dimensions, cable lengths or tapped holes are required, we can also realize these with our calibrated load beam. Please contact us.
