Pallet Scales PCE-SD 1500E

Pallet Scale PCE-SD 1500E

Order no.: PCE-SD 1500E
GTIN (EAN): 4250348712752
£ 2,803.00
£ 3,363.60
price ex. (VAT / delivery)
:
4250348712752
PCE-SD 1500E
Delivery time:1-2 working days

Description

Approved - calibrated pallet scales up to 6,000 kg / Resolution from 0.1 kg /
Bidirectional RS-232 interface / Tare weight storable / Piece counting function /
Optional: analog output 4-20 mA, 0-10 V, OC switch contacts, etc.

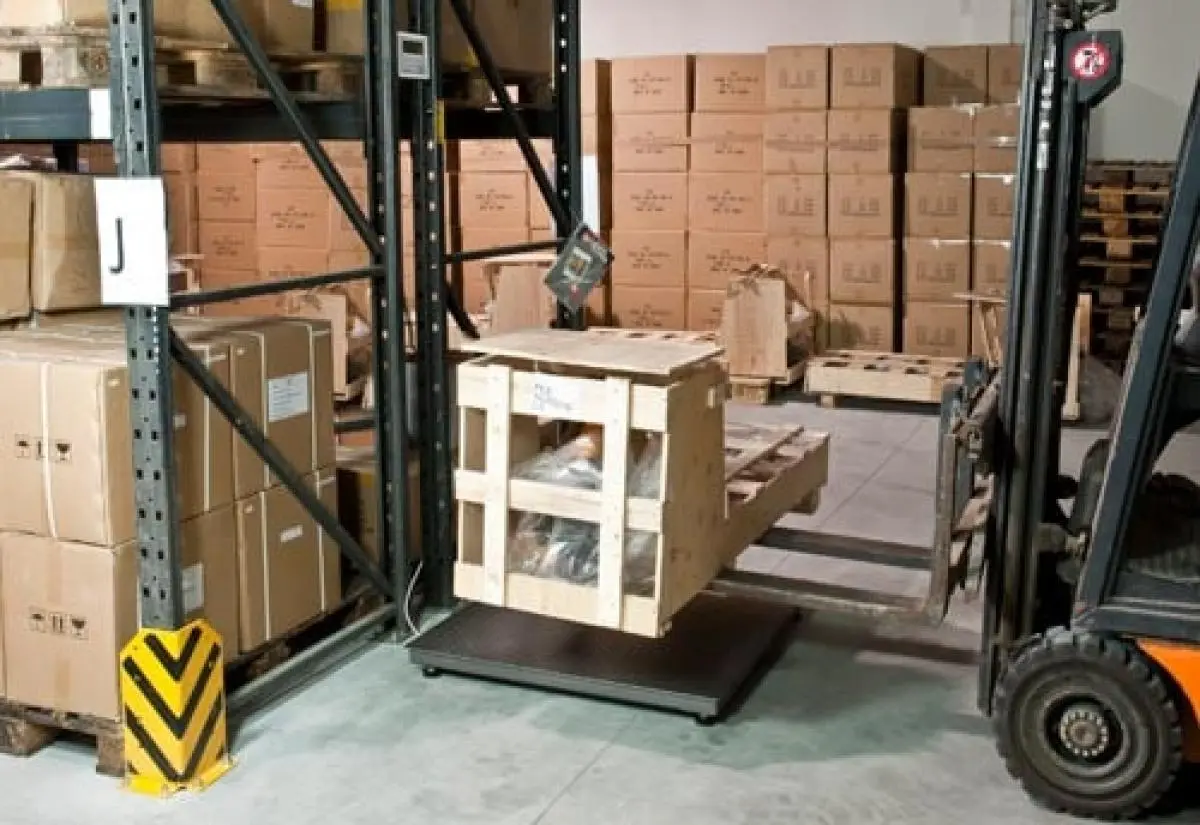

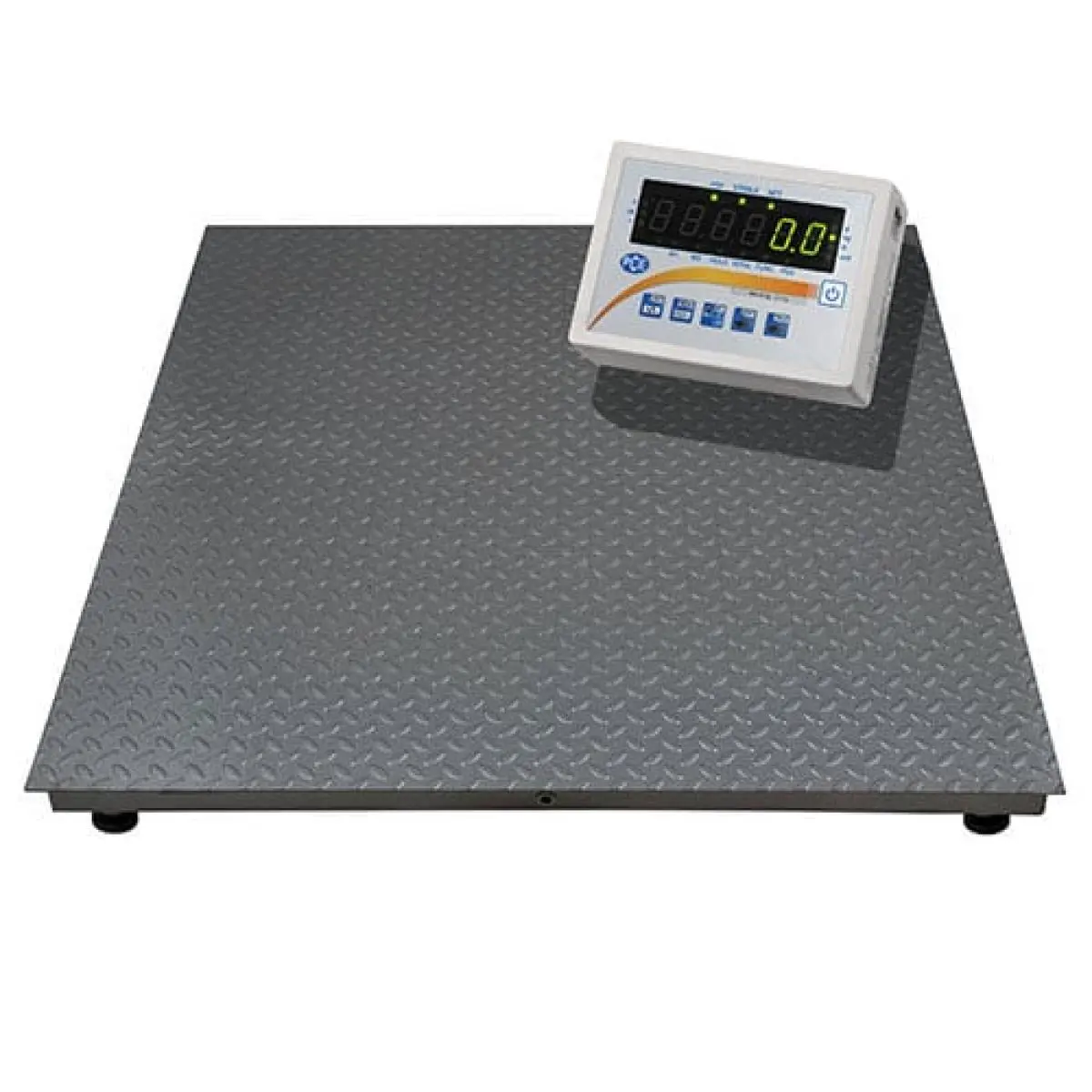

The pallet scale is supplied calibrated and is intended for stationary use with its solid
construction. Due to the robust design and the large platform, this calibrated weighing platform is
particularly suitable for weighing large objects. The verifiable / calibrated pallet scale is made of painted steel and available in different platform sizes depending on the weighing capacity. As an option, ramp-on ramps are available for the legal-for-trade / calibrated pallet scales, allowing for driving on or passing through. The display unit can be placed on a table or fixed to the wall, optionally a stainless steel tripod can be ordered. The integrated RS-232 interface allows bi-directional data transport from the calibratable / calibrated pallet scale to the PC and provides programmers with a versatile system integration. With an optional adapter, the weighing data can also be stored on a USB stick. Further system integration is possible with the optionally available 4-20 mA analogue output or the limit value function with OC switching contacts. Direct printer connection is also possible via the RS-232 interface. Functions such as auto-tare, piece counting function, the storage of a fixed tare weight makes the workload a great deal easier.

Highlights

- Tolerance determination weight min / max
- Average weight determination
- Sum up several weighings
- Percent % comparison weighing
- Filter (reaction time) adjustable
- Animal weighing function
- Piece counting function
- A tare value storable
- Formulation mixed weighing
- Adjustable bidirectional RS-232 interface
- Printer languages Line Mode and EPL2
- Adjustable automatic shutdown
- Gross / net button on the display
- Menu freely adjustable
- Maintenance-free components
- Optional: USB, LAN or 4-20 mA

Specification

Weighing range
Measurement range up to [Max]  1500 kg
Resolution [d]  0,5 kg
Accuracy  0.5 kg
Verification value [e]  0,5 kg

General technical data
Cable length  4 m
Measuring functions  Average value, MIN, MAX
Measuring functions (additional information)  Animal weighing function, piece counting function, mixed recipe weighing, totalising multiple weighings, percentage % comparative weighing
Units  kg, lb, T, oz, ct, ozt, gr, dwt
Display type  LED
Digit size [WxH]  Height: 18 mm
Interface  bidirectional RS232
Automatic power-off  5 min
Minimum load [min]  10 kg
Tare range  Multiple tare over the full measurement range
Calibration  external
Dimensions  Display 190 x 140 x 65 mm
Verification class [e]  M III
Settling time  < 3 s
Menu language  English, English (GB)
Protection class (device)  IP67, IP54
Power supply  230V AC | 50 Hz, 8V A
Connector type  Schuko plug
(Rechargeable) battery  1 x 3 V CR 2032 (button cell 3V) , lithium-ion battery
Capacity  220 mAh
Operating conditions  -10 ... 40 °C , 20 ... 90 (non-condensing)% RH
Storage conditions  -10 ... 40 °C , 0 ... 90 % RH
Dimensions ( L x W x H )  1250 x 1250 x 80 mm
Weight  100000 g

Delivery Scope

1x calibratable Pallet Scales (calibrated)
1 x display with wall / table mount
1 x manual
