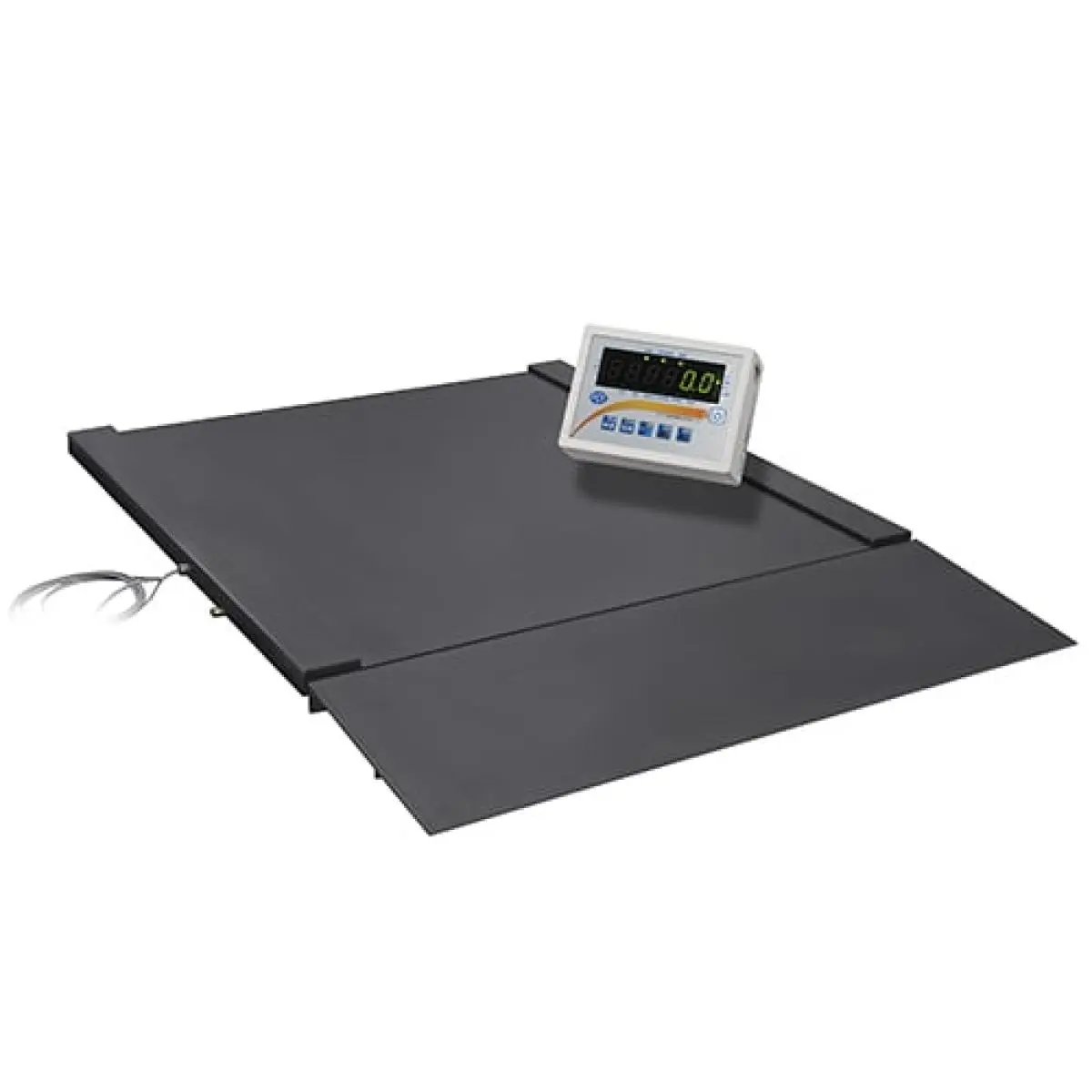

The calibrated pallet scale is ideal if you do not want to put a scale into the ground. Simply place the pallet scale in the room, fix the pallet scale to the ramp with the fixing plates included in the delivery, connect the operating terminal to the socket and you can start weighing. We carry out the verification of the pallet scales before shipping, so the pallet scales can be used immediately in the custody of goods traffic. The floor scales have a small height of only about 5 cm and allow easy loading even with heavy goods.
A drive-on ramp is included in the delivery contents, and a second ramp can be ordered as an option. The display of the counting scale has a bracket which allows it to be mounted on the wall or on the table, optionally a tripod is also available for the pallet scale. The functions of the floor scale are: piece count function, max. min weighing, recipe weighing, percentage weighing, average weight determination, summing function, tare weight memory and adjustable RS-232 interface.
|*The minimum load is the load from which the calibration authority checks the accuracy. The verifiable scale also indicates smaller weights, but these must not be used in legal traffic.|
|Certification||Certified according to class M III (certified delivered)|
|Tare range||over the full weighing range|
|Settling time||<4 s|
|Display||LED with 20 mm digit height|
Optional: USB / LAN / 4-20 mA / 0-10 V / OC
|Calibration||external (not in the calibrated throughput scale)|
|Operating temperature||-10°C ... +40°C|
|Power supply||~230V 50Hz 8VA (safety plug)|
|Protection||Display IP 54 / Cell IP 67|
