Pallet Scales PCE-SW 3000N

Pallet Scales PCE-SW 3000N [zoom]

Industrial Pallet Scale PCE-SW 3000N

Order no.: PCE-SW 3000N
GTIN (EAN): 4250348712479
£ 766.00
£ 919.20
price ex. (VAT / delivery)
:
4250348712479
PCE-SW 3000N
Delivery time:1-2 working days

Accessory

Description

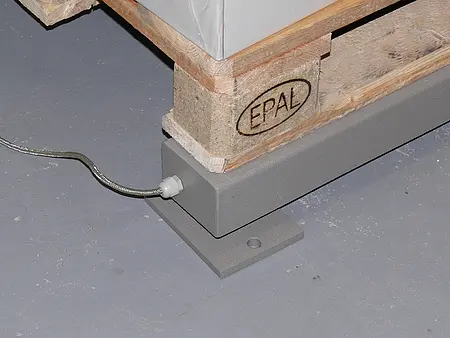

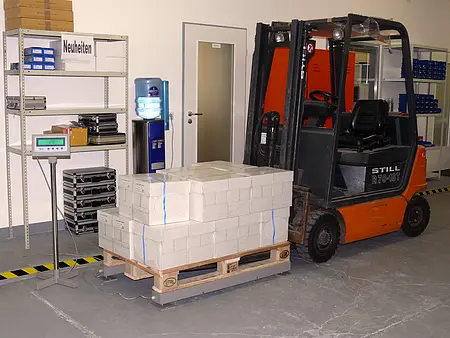

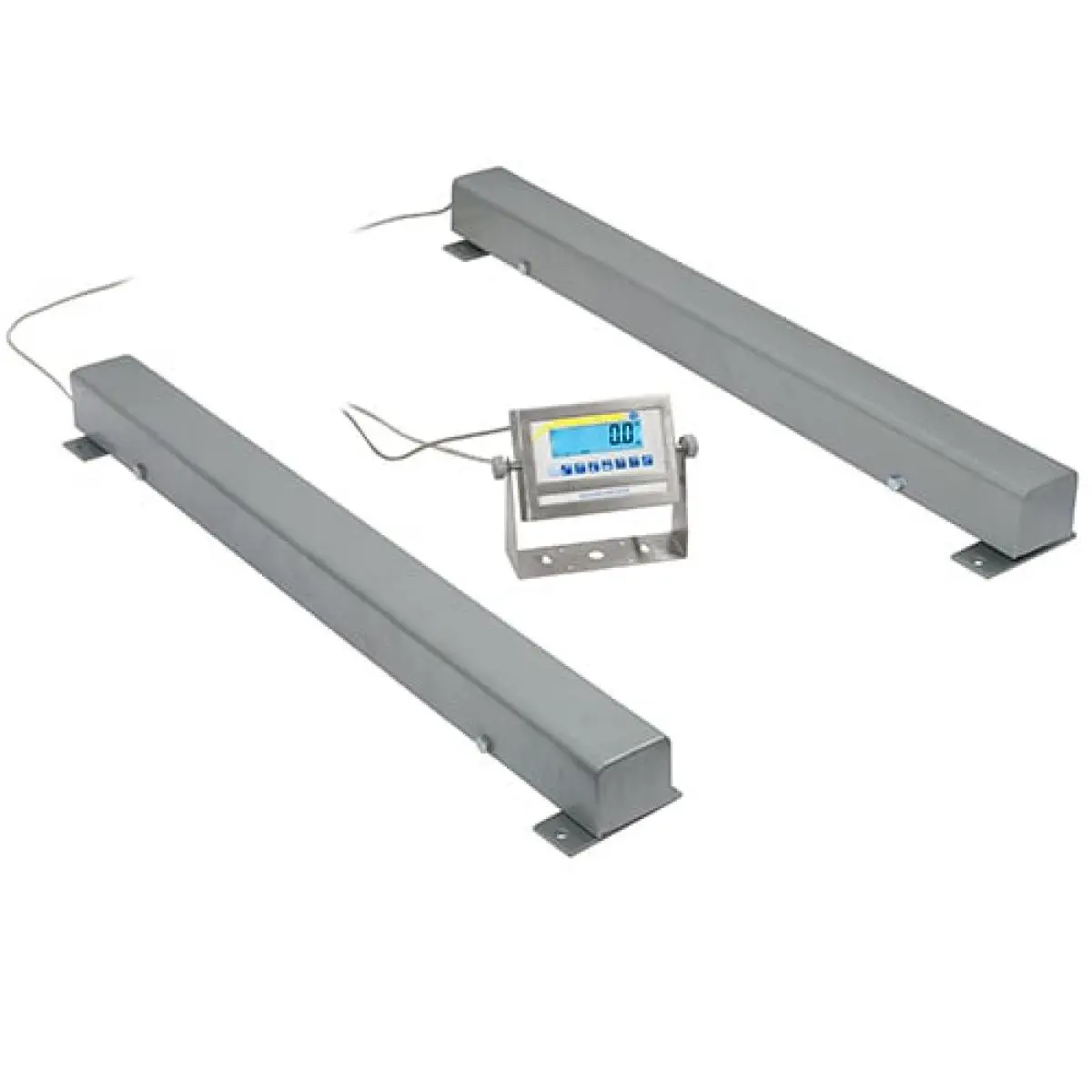

PCE-SW 3000N is a portable battery-powered industrial pallet scale or floor scale featuring two heavy-duty parallel weighing beams made of lacquered steel that can be positioned up to 4 m / 13 ft apart. Thus, the adjustable width accommodates multiple pallet, box and container sizes. In addition, the scale's stainless-steel-encased display can be placed up to 5 m / 16 ft away from the weighing beams, allowing for wall mounting.

Highlights

- Bi-directional RS-232 interface for PC or printer connection
- Multiple TARE for whole weighing range
- Threshold, sum-up and counting functions
- 6V rechargeable battery inside display
- Ingress protection rating: IP 54
- Ideal for use in warehouse, storage facility, shipping, receiving, loading dock, logistical, supply chain, retail, inventory and stock room applications
- Software, USB to RS-232 adapter and ISO calibration certificate sold separately - see accessories for details

Specification

Weighing range
Measurement range up to [Max]  3000 kg
Resolution [d]  1 kg
Accuracy  ±4 kg

General technical data
Cable length  5 m
Measuring functions  HOLD
Measuring functions (additional information)  Limit value weighing function, counting function, totalising function
Units  kg, lb
Display type  LCD
Digit size [WxH]  Height: 25 mm
Material evaluation device  Stainless steel
Interface  bidirectional RS232
Automatic power-off from...to  10 ... 60 min.
Housing  Painted steel
Tare range  Multiple tare over the entire weighing range
Calibration  Multi-point calibration possible
Menu language  English, English (GB)
Protection class (device)  IP54
Power supply  Power supply unit: 9V / 1.2 A
Connector type  Device-europlug
(Rechargeable) battery  1 x 6 V internal , Lead gel battery
Capacity  4500 mAh
Operating conditions  0 ... 40 °C , 10 ... 80 % RH
Storage conditions  0 ... 40 °C , 10 ... 80 % RH

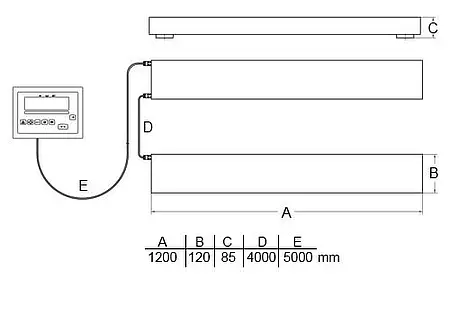

Dimensions ( L x W x H )  1200 x 120 x 110 mm
Weight  55000 g

Delivery Scope

1 x Pallet Scales PCE-SW 3000N (includes 2 x weighing beams and 1 x display)
1 x Battery charger
1 x User manual
