NTEP Certified Scales PCE-SD 3000F SST

[zoom]

NTEP Certified Scale PCE-SD 3000F SST

Order no.: PCE-SD 3000F SST

GTIN (EAN): 4250348712400

£ 6,208.00

Price (exclude VAT)

£ 7,449.60

Price (include VAT)

price ex. (VAT / delivery)

GTIN (EAN):

4250348712400

Order no.

PCE-SD 3000F SST

Delivery time:1-2 working days

Interface Slot 1

Output / Interface Slot 2

Switching Output Slot 3

Additonal functions

+AF-CCP: Plug connection between display and weighing surface with approx. 1.5 m cable (£ +23.00)

+AF-DW-PCE: Additional function dual range weighing (£ +49.00)

+AF-TD-PCE: Additional function time and date (£ +27.00)

Resolution

1 kg

Verification

–

Question / Callback

Accessory

Scale Software PCE-SOFT-SC-Pro

£ 183.00

RS232 Cable

£ 25.00

Signal lights for Balances

£ 445.00

Stand for PCE-SD Series

£ 200.00

USB cable PCE-USB

£ 13.00

USB Memory Adapter

£ 85.00

USB interface AF-USB-S

£ 80.00

Limit weighing including control interface

£ 53.00

Additional date and time function

£ 29.00

Scale Software PCE-SOFT-SC-Basic

£ 160.00

Scale Software PCE-SOFT-SC-3XPro

£ 344.00

Adaptor RS232 to USB

£ 29.00

Analog output / analog interface 4-20mA

£ 120.00

Two additional function ranges for PCE-SD Series

£ 53.00

LAN interface

£ 133.00

Additional RS-232 interface

£ 31.00

RS485 interface AF-RS485-PCE

£ 62.00

Analog output / analog interface 0-10V

£ 120.00

Description

NTEP Certified Scale up to 3t / Resolution 1 kg / IP68 - IP65 / Piece counting function / Summing function / RS-232 interface / Removable weighing plate

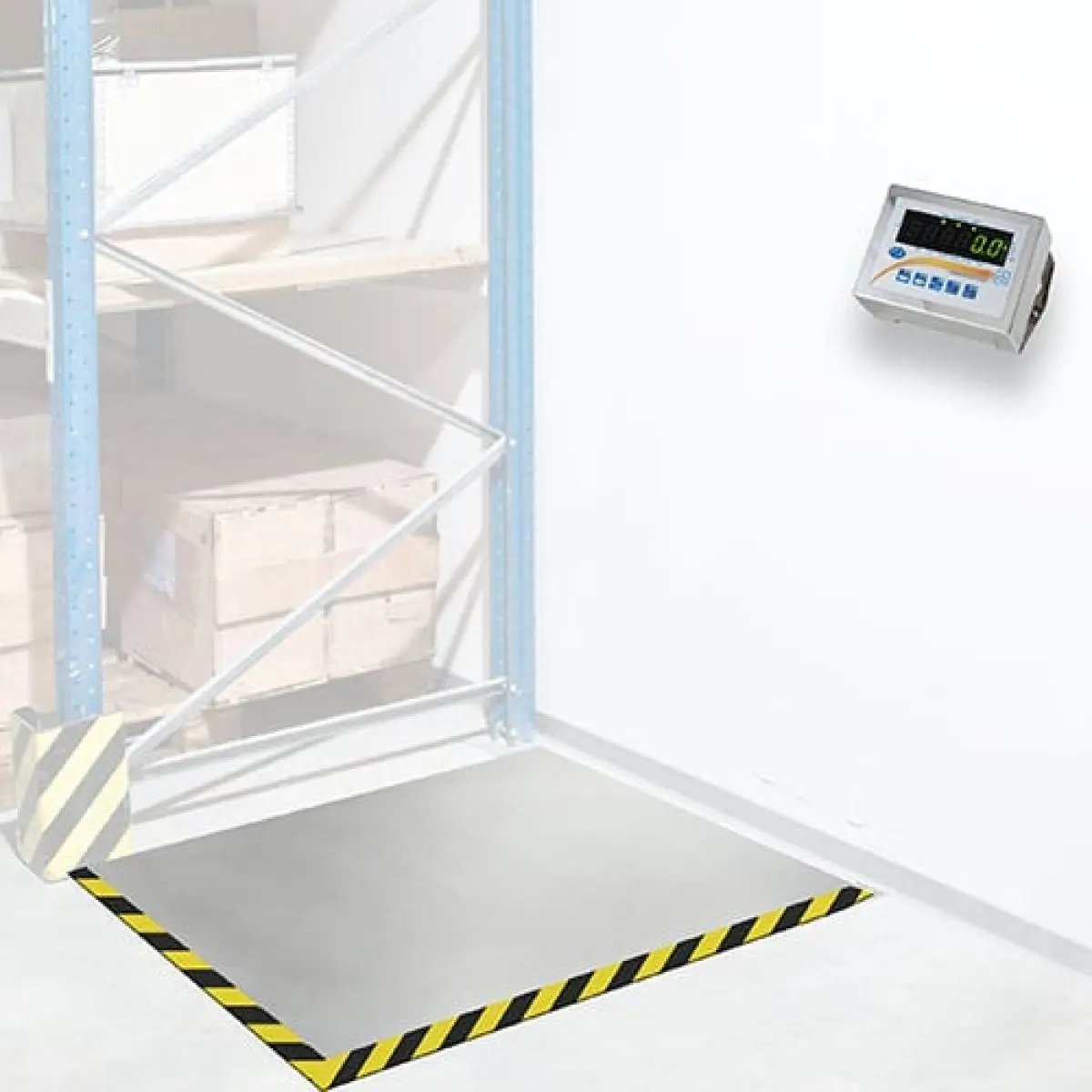

The NTEP certified scale is installed in the floor to obtain a flat surface. As a result, the NTEP certified scale can be easily loaded with all kinds of conveyors. The NTEP certified scale has a weighing platform bolted to the frame, which can be used as required. Optionally, it is possible to provide the NTEP certified scale with a damper which makes it easier to lift the weighing surface. The cells of the NTEP certified scale are IP68 protected and the display IP65. Due to the high protection class, the NTEP certified scale has no interfaces. These interfaces, such as RS-232, RS-485, USB, LAN, 4-20mA, 0-10V or floating contacts can be installed at our factory. Subsequent installation is not possible. This allows the NTEP certified scale to monitor or control production processes.

Highlights

- Piece counting function

- Percent% comparison weighing

- Filter (reaction time) adjustable

- Animal weighing function

- A tare value storable

- Tolerance determination Weight min / ok / max

- Sum up several weighings

- Statistics function

- Adjustable automatic shutdown

- Gross / net button on the display

- Menu freely adjustable

- Maintenance-free components

- Optional: USB, LAN or 4-20 mA

Specification

Weighing range
Measurement range up to [Max]	3000 kg
Resolution [d]	1 kg
Accuracy	1 kg
Verification value [e]	1 kg

General technical data
Cable length	4 m
Measuring functions	MIN, MAX, Average value
Measuring functions (additional information)	Piece counting function, percentage comparative weighing, animal weighing function, recipe weighing, statistics function, totalising several weighings
Units	kg, lb, g, T, oz, ct, ozt, gr, dwt
Display type	LED
Digit size [WxH]	Height: 18 mm
Interface	bidirectional RS232
Automatic power-off	5 min
Minimum load [min]	20 kg
Tare range	Multiple tare over the full weighing range
Weighing plate material	Plain stainless steel sheet
Calibration	external
Dimensions	Display 190 x 140 x 65 mm
Verification class [e]	M III
Settling time	< 3 s
Menu language	English, English (GB)
Protection class (device)	IP65, IP68
Power supply	230V AC \| 50 Hz, 8V A
Connector type	Schuko plug
(Rechargeable) battery	1 x 3 V Button cell , lithium-ion battery
Capacity	220 mAh
Operating conditions	-10 ... 40 °C , 20 ... 90 (non-condensing)% RH
Storage conditions	-10 ... 40 °C , 0 ... 90 % RH
Dimensions ( L x W x H )	1500 x 1500 x 118 mm
Weight	210000 g
