Order no.: PCE-SD 1500E

NTEP Certified Scale PCE-SD 1500E

Verification for Trade / conformity assessment

Question / Callback

Delivery time: up to 10 working days

Description

NTEP Certified Scale scales up to 6,000 kg / Resolution from 0.1 kg /
Bidirectional RS-232 interface / Tare weight storable / Piece counting function /
Optional: analog output 4-20 mA, 0-10 V, OC switch contacts, etc.

The industrial scale is supplied calibrated and is intended for stationary use with its solid construction. Due to the robust design and the large platform, this calibrated weighing platform is particularly suitable for weighing large objects. The verifiable / calibrated floor scale is made of painted steel and available in different platform sizes depending on the weighing capacity. As an option, ramp-on ramps are available for the legal-for-trade / calibrated floor scales, allowing for driving on or passing through. The display unit can be placed on a table or fixed to the wall, optionally a stainless steel tripod can be ordered.

The integrated RS-232 interface allows bi-directional data transport from the calibratable / calibrated floor scale to the PC and provides programmers with a versatile system integration. With an optional adapter, the weighing data can also be stored on a USB stick. Further system integration is possible with the optionally available 4-20 mA analogue output or the limit value function with OC switching contacts. Direct printer connection is also possible via the RS-232 interface. Functions such as auto-tare, piece counting function, the storage of a fixed tare weight makes the workload a great deal easier.

Highlights

- Tolerance determination weight min / max
- Average weight determination
- Sum up several weighings
- Percent % comparison weighing
- Filter (reaction time) adjustable
- Animal weighing function
- Piece counting function
- A tare value storable
- Formulation mixed weighing
- Adjustable bidirectional RS-232 interface
- Printer languages Line Mode and EPL2
- Adjustable automatic shutdown
- Gross / net button on the display
- Menu freely adjustable
- Maintenance-free components
- Optional: USB, LAN or 4-20 mA

Specification

Model	Weighing range	Resolution	Min.*	Dimensions	Weight
PCE-SD 1500E	1500 kg	0.5 kg	10 kg	1250 x 1250 x 85 mm	140 kg

* The minimum load is the load from which the calibration authority checks the accuracy. The verifiable floor scale also indicates smaller weights, but these may not be used in legal traffic.

Calibration

calibratable according to class M III (calibrated)

Tare range

multiple tare over the full range

Settling time

<4 s

Display

LED with 20 mm digit height (on the 3 m cable)

Weighing units

kg / piece / lb

Interface

bidirectional RS-232
optional USB, LAN, 4-20 mA, 0-10V, OC

Ramp

optional, see accessories

Operating temperature

-10 °C ... +40 °C

Power supply

~230V 50Hz 8VA (safety plug)

Protection

IP68 cells / IP65 display

Delivery Scope

1x NTEP Certified Scale PCE-SD 1500E (calibrated)
1 x display with wall / table mount
1 x manual

Downloads

Datasheet

Accessories

Adaptor RS232 to USB

£ 29.00

Price excl. VAT &. delivery
2 year Warranty

[more]

Replacement Paper Rolls for PCE-BP1

£ 53.00

Price excl. VAT &. delivery
2 year Warranty

Replacementpaper rollsfor the thermal printerPCE-BP1

width112mm
10 pieces

Additional date and time function

£ 29.00

Price excl. VAT &. delivery
2 year Warranty

If you need to weigh data with date and time, this option equips the scale with this function.

LAN interface

£ 133.00

Price excl. VAT &. delivery
2 year Warranty

LAN interface

Signal lights for Balances

£ 445.00

Price excl. VAT &. delivery
2 year Warranty

Thissignal lampis used to visualise weighing boundaries and help reduce staffcarelessness.If the weight isbelow the lower limit, a yellow lampis lit, between thelower and upperlight, a green light andwhen exceeding theupper limit a red lamplights up.

Analog output / analog interface 0-10V

£ 120.00

Price excl. VAT &. delivery
2 year Warranty

Analog output / analog interface 0-10V

Limit weighing including control interface

£ 53.00

Price excl. VAT &. delivery
2 year Warranty

This feature allows you to conveniently and effectively establish the precision scales as a weight checker. You can set an upper and a lower limit. In addition, the calibrated precision scale is equipped with a control interface so that you can switch three different power circuits using the limit values and the interface.

Analog output / analog interface 4-20mA

£ 120.00

Price excl. VAT &. delivery
2 year Warranty

Analog output / analog interface 4-20mA

USB cable PCE-USB

£ 13.00

Price excl. VAT &. delivery
2 year Warranty

USB cable forPCEscales

RS232 Cable

£ 25.00

Price excl. VAT &. delivery
2 year Warranty

The serial RS-232 cable is about 2 m long and has the right pinout 2-3 / 3-2 / 5-5 which is necessary for bidirectional communication of the scale with the PC.

USB interface AF-USB-S

£ 80.00

Price excl. VAT &. delivery
2 year Warranty

Since most PCs do not have RS232 interface anymore, we provide the possibility to get the verifiable / calibrated floor scale installation with a USB interface.

RS485 interface AF-RS485-PCE

£ 62.00

Price excl. VAT &. delivery
2 year Warranty

If you requirean RS485 interface,instead of theRS232 interface.

Additional RS-232 interface

£ 31.00

Price excl. VAT &. delivery
2 year Warranty

Ourscale is equippedwith an RS-232 interface.If you want to connectthe scale to a PC anda printer at the same timewe recommend asecondRS-232 interfacewhich preventsannoyingcable replugging.

Two additional function ranges for PCE-SD Series

£ 53.00

Price excl. VAT &. delivery
2 year Warranty

This function divides the weighing area into two-areas, this allows a higher resolution in the lower weighing range.

Only for scales up to 3 t.

Stand for PCE-SD Series

£ 160.00

Price excl. VAT &. delivery
2 year Warranty

Thedisplayof thePCE-SDseriesis provided with auniversal mount, whichgives you the opportunity to mount the displaysecurely to the wall or onthe tableor onthe optional80 cmhighstainless steel stand.

USB Memory Adapter

£ 85.00

Price excl. VAT &. delivery
2 year Warranty

This RS-232 - USB data logger can be connected to the serial Sub-D 9 interface of a device and store the received data on a USB stick in TXT format. The RS-232 - USB data logger can save received data with time and date stamps and also interrogate the data automatically at adjustable time intervals.

TXT Format
Query commands adjustable
Polling cycle adjustable
Internal clock for time / date stamp
External power supply
USB Stick incl.

Software Package PCE-ProCell

£ 80.00

Price excl. VAT &. delivery
2 year Warranty

PCE-SOFT-Procell is a software package that runs in the background and is used to transmit the weight data from the scale or balance to a program where keyboard input is possible — such as Microsoft Excel, Word, UPS, DHL or SAP — as keyboard input is simulated by the software. (Note: If you only have a USB interface or port on your computer, you must use an RS-232 to USB adapter.)

Thermal Printer PCE-BP1

£ 347.00

Price excl. VAT &. delivery
2 year Warranty

Thermal printer for scales and balances

Requires 112 mm paper rolls
Dimensions: 165x140x50mm (WxDxH)
Includes RS-232 interface cable + power supply

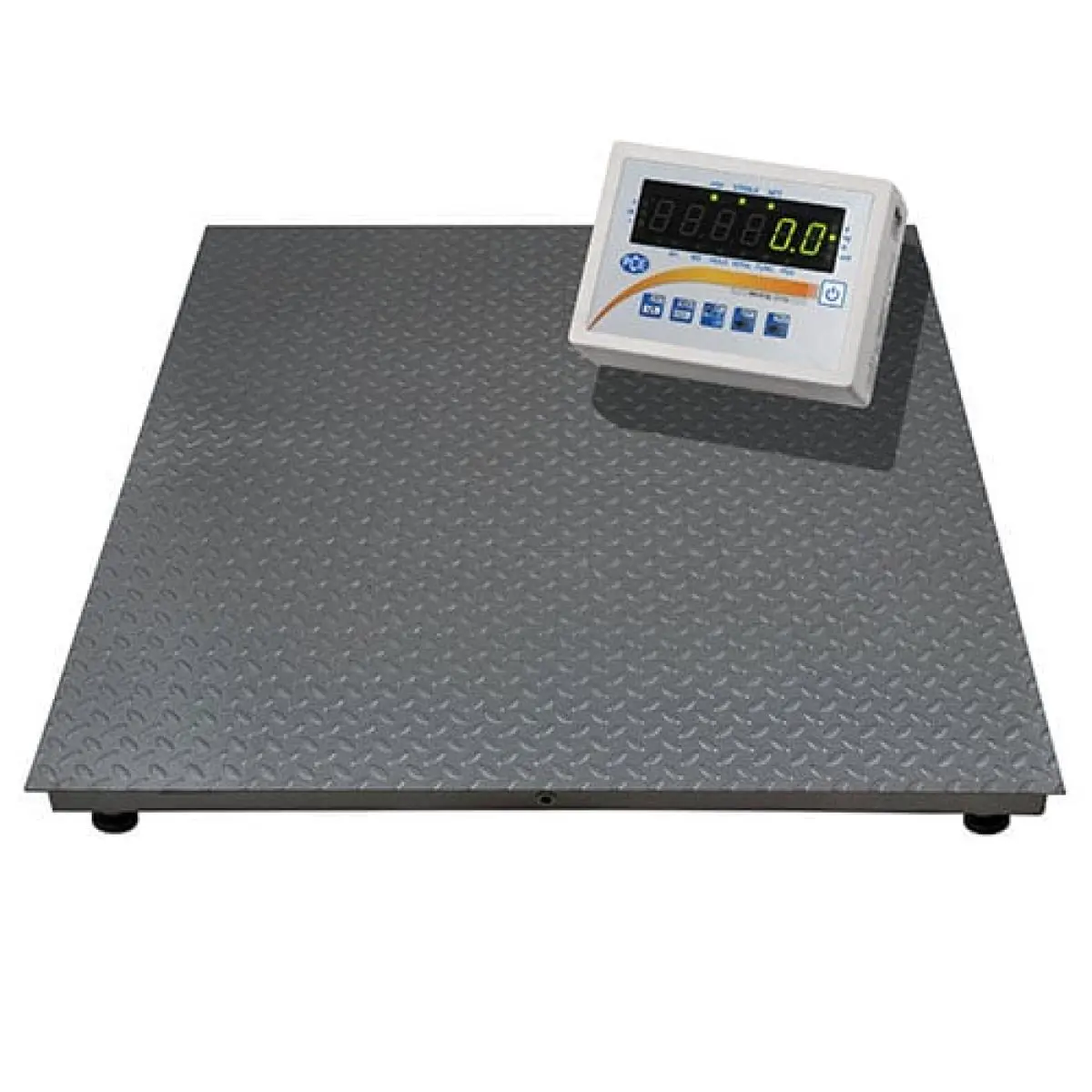

NTEP Certified Scale PCE-SD 1500E

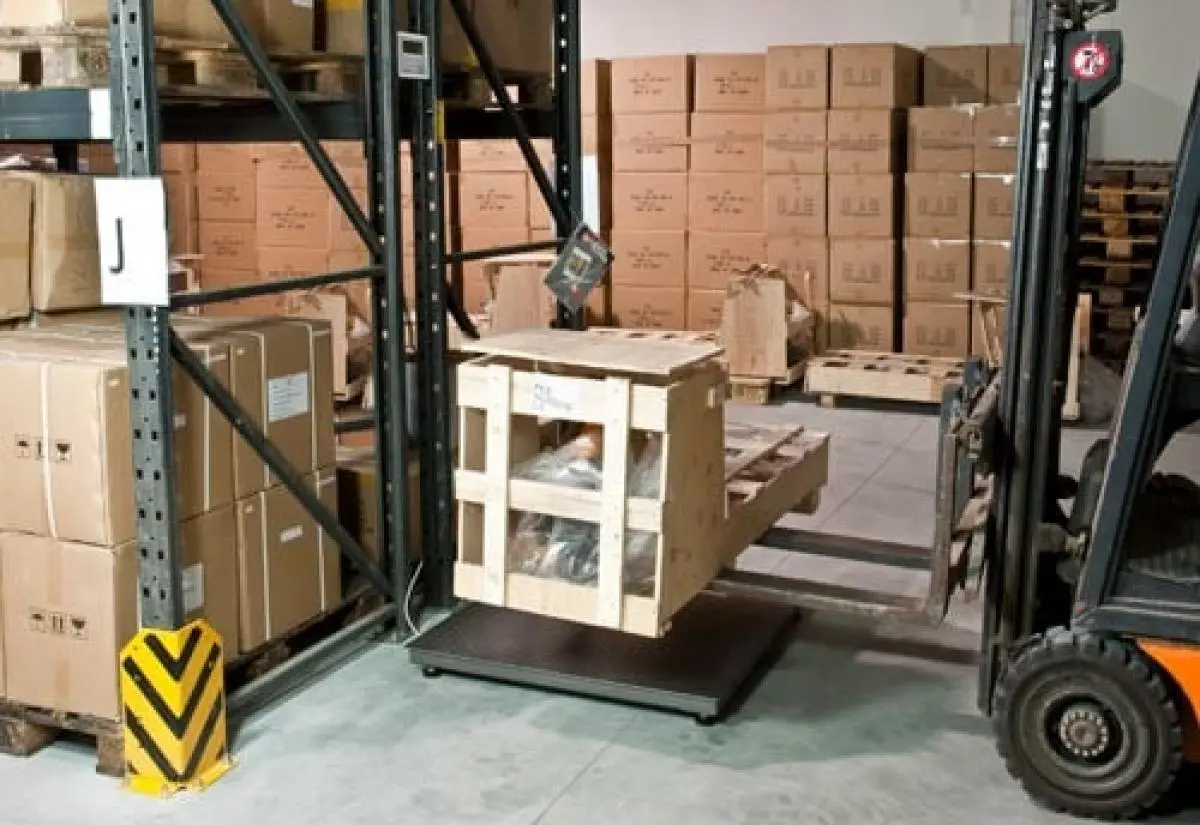

NTEP Certified Scale PCE-SD 1500E application
