Order no.: PCE-SD 60CR

Multifunction Scale PCE-SD 60CR

Verification for Trade / conformity assessment

£ 1,308.00

Price (exclude VAT)

£ 1,569.60

Price (include VAT)

GTIN (EAN):

4250348712578

Order no.

PCE-SD 60CR

price ex. (VAT / delivery)

Interface Slot 1

Output / Interface Slot 2

Switching Output Slot 3

Additonal functions

+AF-CCP: Plug connection between display and weighing surface with approx. 1.5 m cable (£ +23.00)

+AF-DW-PCE: Additional function dual range weighing (£ +49.00)

+AF-TD-PCE: Additional function time and date (£ +27.00)

Question / Callback

Delivery time: 1-2 working days

Description

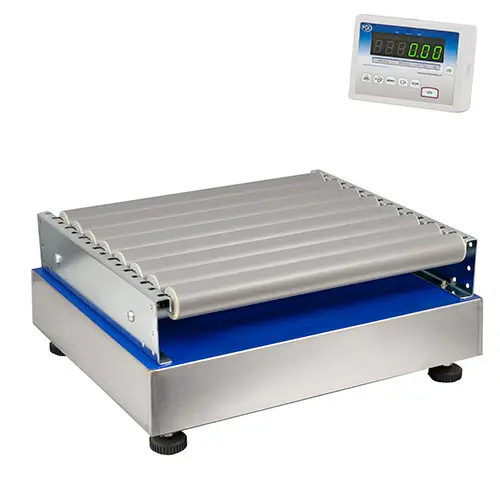

Multifunction Scale up to max. 30kg - 150 kg / bi-directional RS-232 interface /
width of guide rail approx. 580 mm /
optionally purchasable: RS-485, analogue outputs 4 ... 20 mA, 0 ... 10 V, USB interface

The multifunction scale PCE-SD ... CR series is designed for applications in many processes and delivery businesses, since the multifunction scale supports many interfaces. Furthermore the multifunction scale features a standard RS-232 interface. In addition the multifunction scale PCE-SD CR series can be equipped with further interfaces which enable control of the multifunction scale. For example, the multifunction scale can be extended with an analogue output 4-10 mA or 0-10 V, or even potential-free contacts. The multifunction scale is calibrated and thus can be used for tasks in areas of custody transfer. The multifunction scale can be also integrated into larger rollers, and hence can be used as an extension module.

Highlights

- Calibratable incl. initial calibration
- Display cable for platform 1.5 m
- Guide rail scale for max. 30 kg-150 kg
- Diameters of guide rail: 500 x 580 mm

- Smoothly running synthetic rails
- Bi-directional RS-232 interface
- Item counting function
- Tolerance range function: min / OK / max

Specification

Technical specifications of the Multifunction Scale PCE-SD CR series

Model	Weighing range	Resolution	Calibration Value	minimum load*
PCE-SD 30CR	30 kg	10 g	10 g	200 g
PCE-SD 60CR	60 kg	20 g	20 g	400 g
PCE-SD 150CR	150 kg	50 g	50 g	1 kg

*The minimum load is defined by the load, from which the calibration authority tests the accuracy of the scale. The waterproof steel scale shows even lower weights, but these are not valid for custody transfer.

Guide Rail diameters

500 x 580 x 110 mm

Guide Rail material

Synthetic

Guide Rail frame

galvanised

Diameters of scale

520 x 620 x 150 mm

Platform

Stainless steel in synthetic protection foil

Display

LCD display on a 1.5 m cable

Taring range

for the whole weighing range

Settling time

approx. 3 sec.

Calibration Class

M III

Interface

Serial RS-232 (bi-directional)

Operational temperature

-10 °C ... +40 °C

Power Supply

~230 V 50 Hz 6 VA / = 12 V 1,2 A adapter

Protection type

IP 54

Weight of scale

33 kg

Delivery Scope

Delivery content of the Multifunction Scale PCE-SD 60CR

1 x Multifunction Scale PCE-SD CR 60CR (incl. calibration), 1 x adapter, 1 x instruction manual

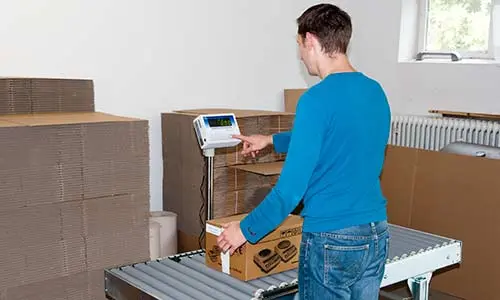

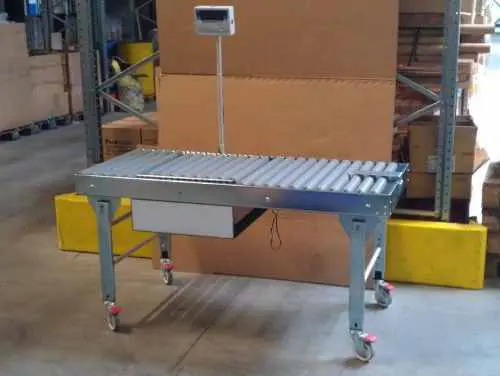

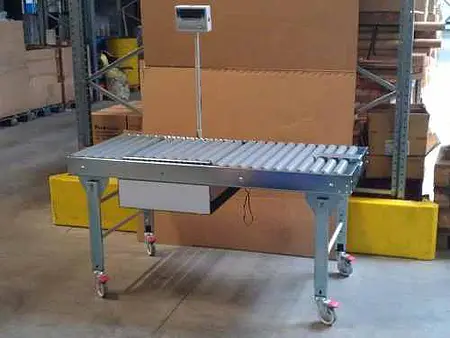

N.B. the roller table (in which the scale is mounted) that appears in some of the images is NOT included

Downloads

Datasheet

Accessories

Signal lights for Balances

£ 445.00

Price excl. VAT &. delivery
2 year Warranty

Thissignal lampis used to visualise weighing boundaries and help reduce staffcarelessness.If the weight isbelow the lower limit, a yellow lampis lit, between thelower and upperlight, a green light andwhen exceeding theupper limit a red lamplights up.

RS485 interface AF-RS485-PCE

£ 62.00

Price excl. VAT &. delivery
2 year Warranty

If you requirean RS485 interface,instead of theRS232 interface.

WIFI interface AF-S WiFi

£ 168.00

Price excl. VAT &. delivery
2 year Warranty

Interfacefor wireless transmissionofweighing data.

Analog output / analog interface 4-20mA

£ 120.00

Price excl. VAT &. delivery
2 year Warranty

Analog output / analog interface 4-20mA

Thermal Printer PCE-BP1

£ 347.00

Price excl. VAT &. delivery
2 year Warranty

Thermal printer for scales and balances

Requires 112 mm paper rolls
Dimensions: 165x140x50mm (WxDxH)
Includes RS-232 interface cable + power supply

Replacement Paper Rolls for PCE-BP1

£ 53.00

Price excl. VAT &. delivery
2 year Warranty

Replacementpaper rollsfor the thermal printerPCE-BP1

width112mm
10 pieces

USB interface AF-USB-S

£ 80.00

Price excl. VAT &. delivery
2 year Warranty

Since most PCs do not have RS232 interface anymore, we provide the possibility to get the verifiable / calibrated floor scale installation with a USB interface.

Battery operation for PCE-SD Series Bench Scales

£ 71.00

Price excl. VAT &. delivery
2 year Warranty

Do you want toequipyour scale with abattery?(Retrofittingthe battery is not possible).The scalewill then receivea6V/12Ahbatterywith12Vpower connectorand apower-savingLCDdisplayto be able toworkas long as possiblewith the battery.The working timeof the batteryis approximately50 hours,andcan be rechargeddirectly onthe scale.

Replacement power supply for PCE-SD; LS; AB; BT; TB

£ 25.00

Price excl. VAT &. delivery
2 year Warranty

12V power supplywith1.4 A
Polarity:outer-/inner+

RS232 Cable

£ 25.00

Price excl. VAT &. delivery
2 year Warranty

The serial RS-232 cable is about 2 m long and has the right pinout 2-3 / 3-2 / 5-5 which is necessary for bidirectional communication of the scale with the PC.

USB cable PCE-USB

£ 13.00

Price excl. VAT &. delivery
2 year Warranty

USB cable forPCEscales

Limit weighing including control interface

£ 53.00

Price excl. VAT &. delivery
2 year Warranty

This feature allows you to conveniently and effectively establish the precision scales as a weight checker. You can set an upper and a lower limit. In addition, the calibrated precision scale is equipped with a control interface so that you can switch three different power circuits using the limit values and the interface.

Analog output / analog interface 0-10V

£ 120.00

Price excl. VAT &. delivery
2 year Warranty

Analog output / analog interface 0-10V

LAN interface

£ 133.00

Price excl. VAT &. delivery
2 year Warranty

LAN interface

Two additional function ranges for PCE-SD Series

£ 53.00

Price excl. VAT &. delivery
2 year Warranty

This function divides the weighing area into two-areas, this allows a higher resolution in the lower weighing range.

Only for scales up to 3 t.

Additional date and time function

£ 29.00

Price excl. VAT &. delivery
2 year Warranty

If you need to weigh data with date and time, this option equips the scale with this function.

Additional RS-232 interface

£ 31.00

Price excl. VAT &. delivery
2 year Warranty

Ourscale is equippedwith an RS-232 interface.If you want to connectthe scale to a PC anda printer at the same timewe recommend asecondRS-232 interfacewhich preventsannoyingcable replugging.

Adaptor RS-232 to USB

£ 29.00

Price excl. VAT &. delivery
2 year Warranty
