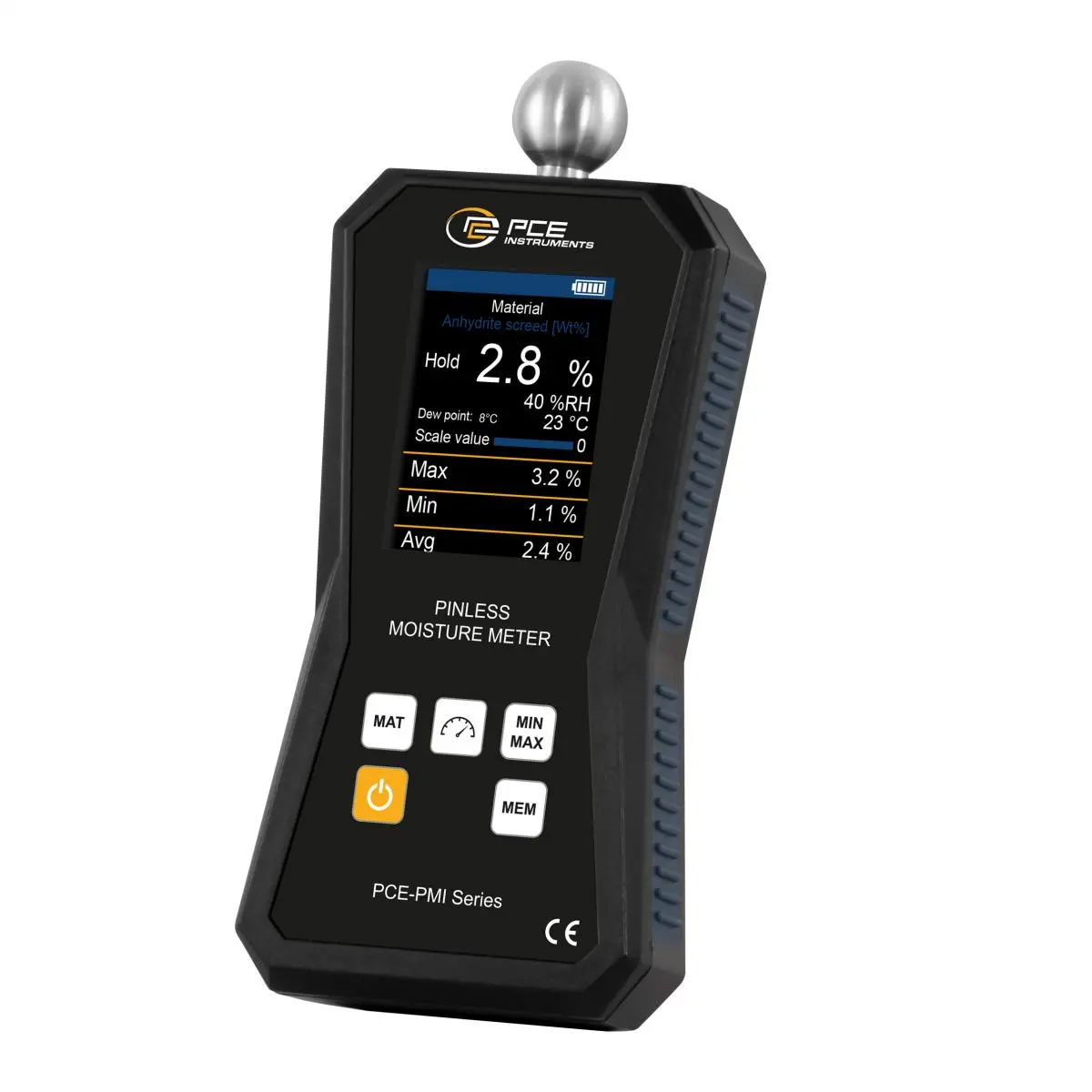

The Moisture Analyser / Moisture Analyzer is a versatile measuring instrument for non-destructive moisture detection in various building materials and types of wood. The Moisture Analyser / Moisture Analyzer can be used to precisely determine moisture values in screed, concrete, plaster, hardwood and softwood. In addition, the Moisture Analyser / Moisture Analyzer measures the ambient temperature, relative humidity and dew point, thus providing a comprehensive climate analysis for construction and renovation projects.

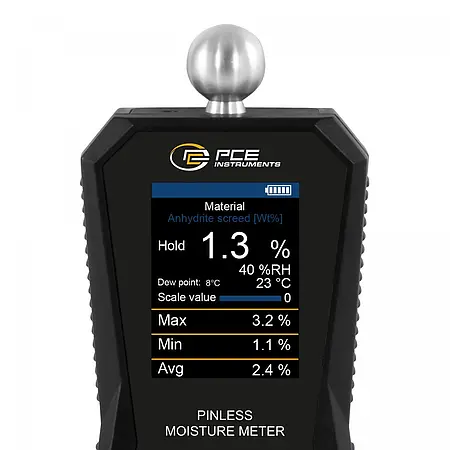

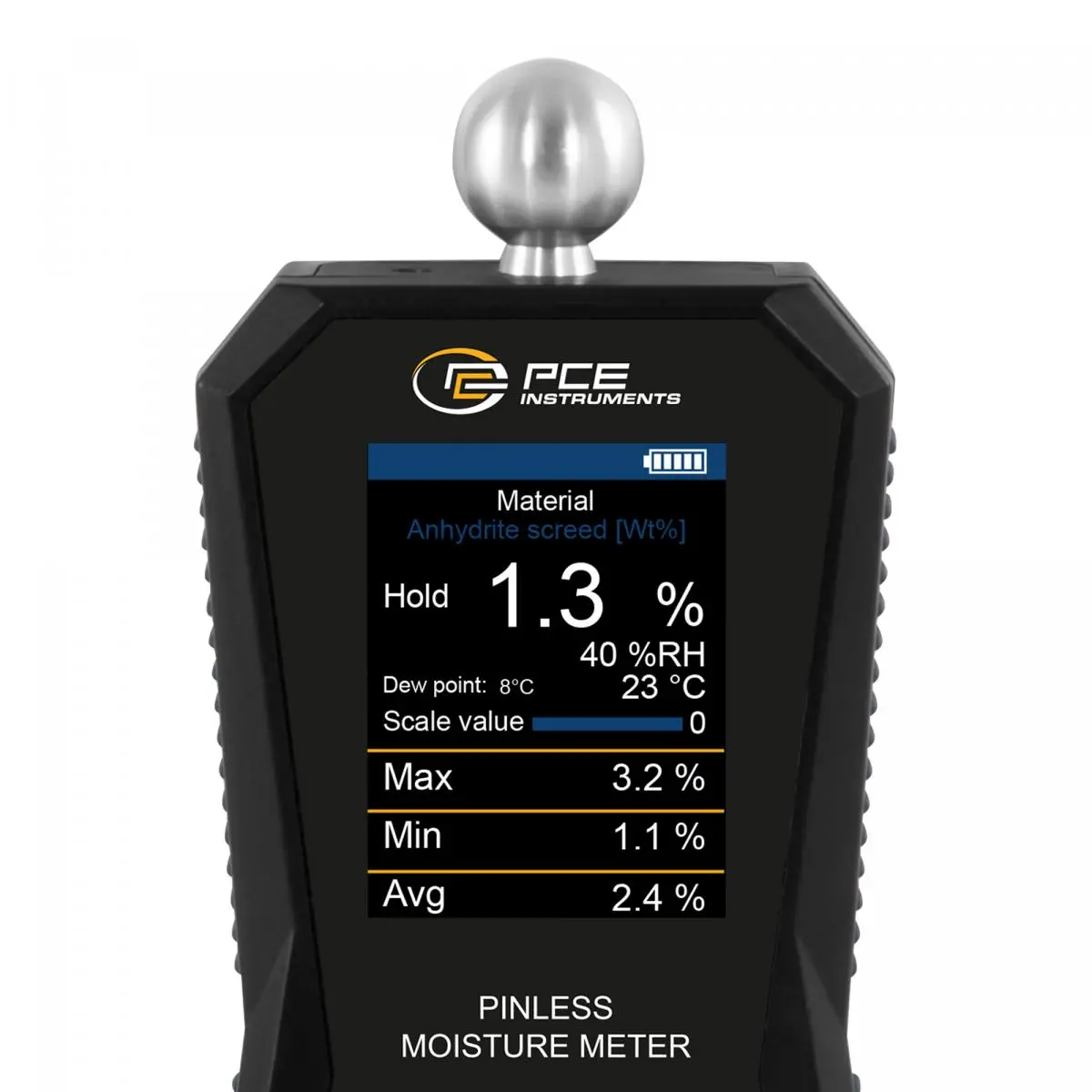

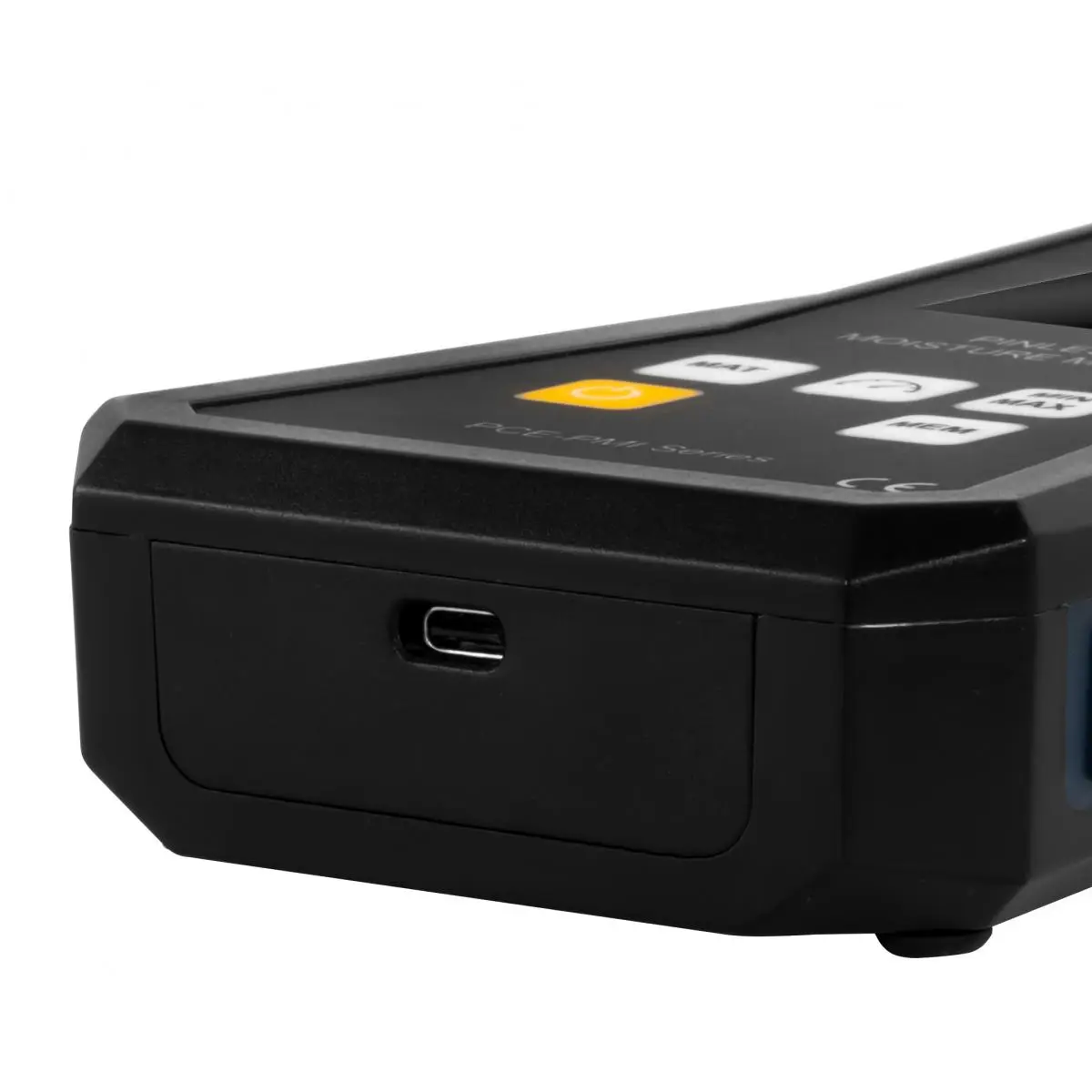

The 2.8-inch TFT color display ensures a clear presentation of all measured values. The Moisture Analyser / Moisture Analyzer has an internal memory with a capacity of 32 GB, which can store up to 10 million measurement points. Data can be easily read out and the device charged via the USB-C interface. The menu navigation is multilingual and allows for convenient operation. Statistical functions, hold mode and a data logger support professional documentation and evaluation of the measurements. The Moisture Analyser / Moisture Analyzer is ideal for site managers, surveyors, craftsmen and anyone who needs precise moisture and climate measurements on construction sites, in building diagnostics or in woodworking.
| Relative humidity | |
| Measurement range up to | 0 ... 100 % RH |
| Resolution | 1 % RH |
| Accuracy | 3% r.F. |
| Dew point | |
| Measurement range up to | -33 ... +65 °C |
| Resolution | 1 °C |
| Accuracy | 1 °C |
| Humidity | |
| Material | Anhydrite screed (% by weight) |
| Measurement range up to | 0 ... 3,5 % |
| Resolution | 0,1 % |
| Accuracy | ±0.5% |
| Humidity | |
| Material | Anhydrite screed (CM%) |
| Measurement range up to | 0 ... 1,5 % |
| Resolution | 0,1 % |
| Accuracy | ±0.5% |
| Humidity | |
| Material | Cement screed (% by weight) |
| Measurement range up to | 0 ... 4,9 % |
| Resolution | 0,1 % |
| Accuracy | ±0.5% |
| Humidity | |
| Material | Cement screed (CM%) |
| Measurement range up to | 0 ... 4 % |
| Resolution | 0,1 % |
| Accuracy | ±0.5% |
| Humidity | |
| Material | Concrete |
| Measurement range up to | 0 ... 6 % |
| Resolution | 0,1 % |
| Accuracy | ±0.5% |
| Humidity | |
| Material | Gypsum screed |
| Measurement range up to | 0 ... 10 % |
| Resolution | 0,1 % |
| Accuracy | ±0.5% |
| Humidity | |
| Material | Hardwood |
| Measurement range up to | 0 ... 37 % |
| Resolution | 0,1 % |
| Accuracy | ±0.5% |
| Humidity | |
| Material | Softwood |
| Measurement range up to | 0 ... 51 % |
| Resolution | 0,1 % |
| Accuracy | ±0.5% |
| Humidity | |
| Material | Relative Scale |
| Measurement range up to | 0 ... 99,9 % |
| Resolution | 0,1 % |
| Accuracy | ±0.5% |
| Temperature | |
| Measurement range up to | 0 ... 65 °C |
| Resolution | 1 °C |
| Accuracy | 1 °C |
| General technical data | |
| Display type | TFT colour display |
| Display size | 2,8 Inch |
| Interface | USB-C |
| Operating time | 18 h |
| Menu language | English (GB), English |
| Protection class (device) | IP52 |
| Power supply | 5 V DC |
| (Rechargeable) battery | 1 x 3,7 V internal , Lithium polymer battery |
| Capacity | 2500 mAh |
| Operating conditions | -20 ... 60 °C , 35 ... 85 % RH |
| Storage conditions | -20 ... 45 °C , 35 ... 85 % RH |
| Dimensions ( L x W x H ) | 190 x 85 x 32 mm |
| Weight | 263 g |
